157F Honeywell- PTM7950 Thermal Pad,Laptop CPU Graphics Card GPU Phase-change Cooling Silicone Grease Pad Gasket

Features:
brand new and high quality
PTM7950 is a super highly thermally conductive Phase Change Material (PCM) in both pad and paste formats. It is designed to minimize thermal resistance at interfaces, maintain excellent performance through reliability testing, and provide scalable application at a competitive cost.
PTM7950, based on a novel polymer PCM system, exhibits excellent wetability during typical operating temperature ranges, resulting in extremely low surface contact resistance.
PTM7950 is a proprietary material that provides superior reliability (pass 150˚C baking 1000 hours, T/C-B 1000 cycles) and maintains low thermal impedance <0.04˚Ccm2 @ no making the PTM7950 series desirable for high performance integrated circuit devices.
Product Use：Clamping pressure and temperature are suggested to achieve a minimum line thickness of the thermal material, typically less than 1.5 mil (0.038mm) for best performance.
The material must go through the phase change temperature to entitlement performance.
Specifications:
Material: Silicone

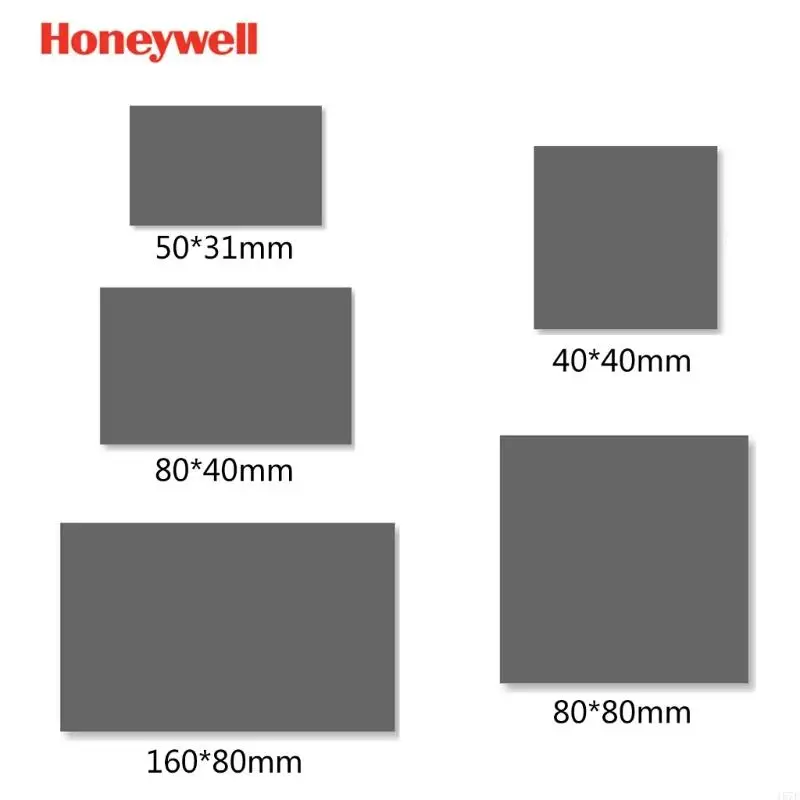

Dimensions: 31X50MM, 40X40MM, 40X80MM, 80X80MM,80X160MM (optional)
Thermal Impedance 0.04˚C-cm2
Thermal Conductivity 8.5W
Thickness：0.25mm
End of Line 0.04˚C-cm2
Bake 150˚C, 1000 h 0.04˚C-cm2
Double 85, 1000h 0.04˚C-cm2
Temperature Cycling ''B''(-55˚C to +125˚C, 1000 cycles) 0.045˚C-cm2

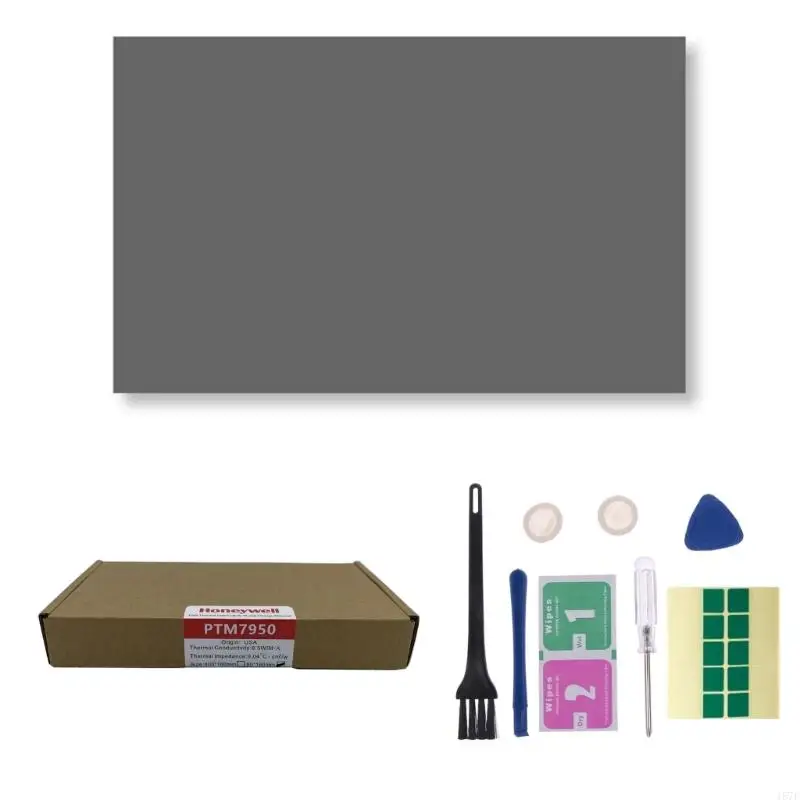

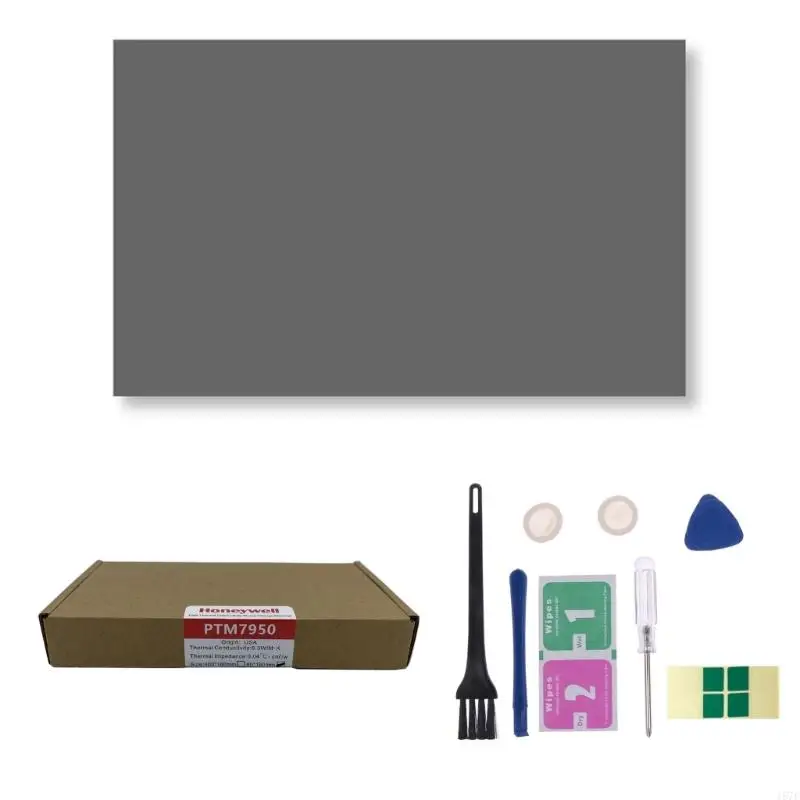

Package Includes:
1 x PTM7950 Thermal Pad
1 x Sticker
Note:
This product is a phase change material. In the process of air transportation, the cabin and local climate may cause slight deformation of the product which will not affect the normal use.If it is unacceptable, please do not buy.
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
