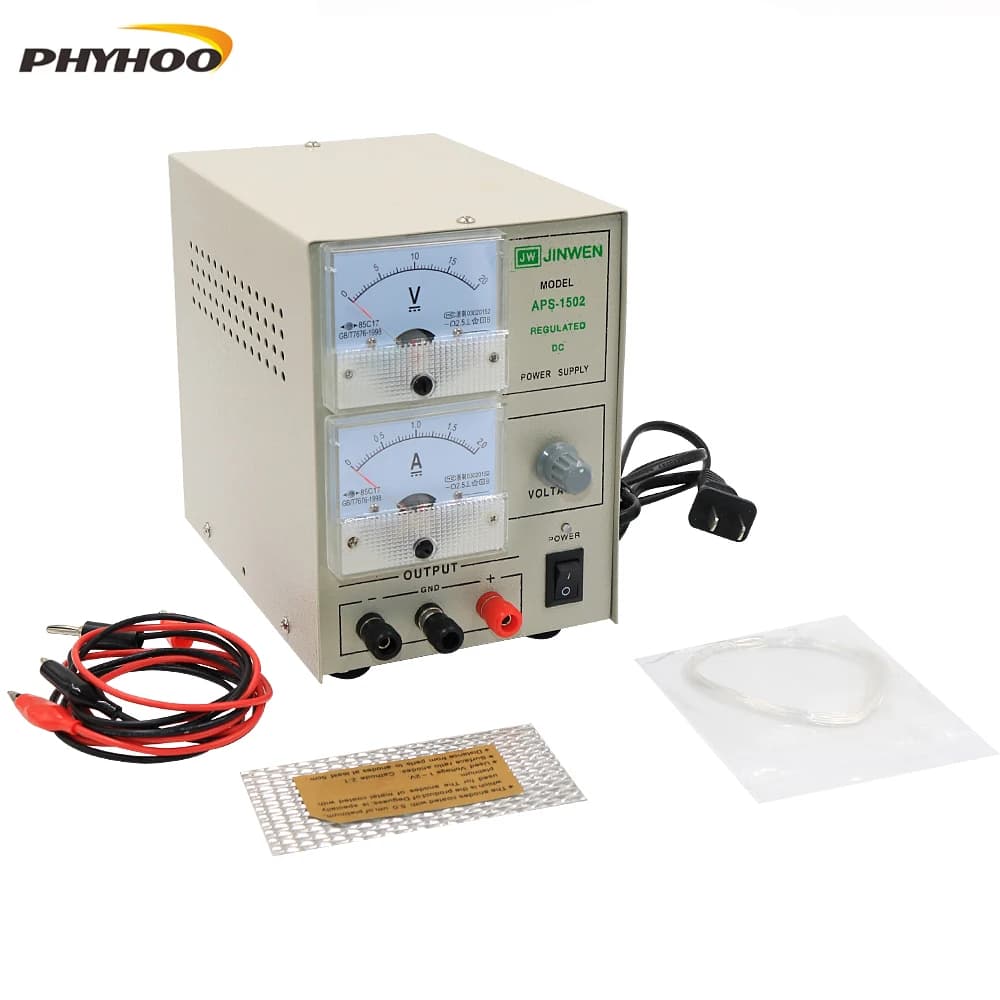

PHYHOO 1502 Jewelry Electroplating Machine Gold Plating Machine 2A Plater Electroplating Kit with Adjustable Voltage

Technical Parameters

Maximum adjustable voltage: 20V

Maximum adjustable current: 2.0A

The machine is using voltage: 220V

Platinum plating method

Positive (+): Titanium mesh negative (-): Jewelry

Temperature: 30-40.C

Gold plating time: 90-120 seconds

Note: Electroplating items need to be shaken at the beginning

Gold plating method 14K.18K.24K

Positive (+): Titanium mesh negative (-): Jewelry

Temperature: 70.C-80.C

Gold plating time: 20-50 seconds of electroplating items need to be shaken, from 1 to 4 pieces of ring.

Accessories required for electroplating: beaker, titanium mesh, gold plating machine,

water line, electric furnace, thermometer

Silver plating method

Positive electrode: Titanium mesh Negative electrode: Clip jewelry, cleaned according to

the electrolytic cleaning salt program, 3 channels after electrolysis

Beaker cleaning, 2.5 g silver salt 54% 500 cc distilled water.

Temperature: 40.c Voltage: 5V Plating time: 3-5 seconds.

Note: All silver salts, electrolytic cleaning salts, and over-beaker cleaning must use

pure distilled water.

Additional information

1. Polish the light with a cloth wheel and a sander.

2. Then use ultrasonic cleaning machine to add wax water (heating) to clean

3. Polish with a polishing machine

4. Clean with a steam cleaner

5. Finally completed by electrolysis and electroplating procedures

Packaging Information

15V2A plating machine * 1

Titanium mesh * 1

Waterline * 1

Alligator clip * 2

Note: This order does not include a beaker
