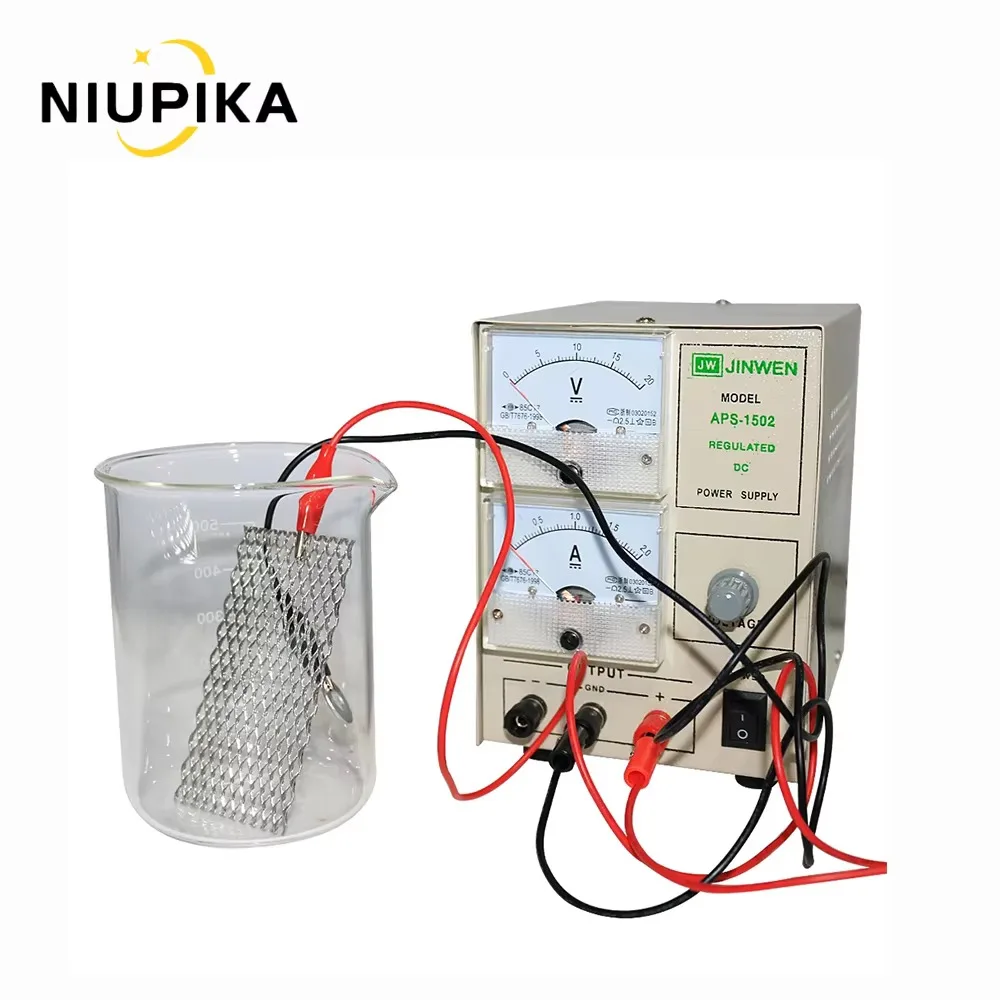

NIUPIKA 1502 Jewelry Electroplating Machine Gold Plating Machine 2A Plater Electroplating Kit with Adjustable Voltage

Description

NIUPIKA Jewelry Electroplating Machine (APS-1502) is professional adjustable DC regulated power supply, specially designed for small-batch jewelry electroplating. Perfect for gold plating, silver plating, platinum plating, jewelry color restoration and surface renovation. Compact desktop design, ideal for jewelry workshops, jewelry repair stores and DIY crafters.

🔨Core Features

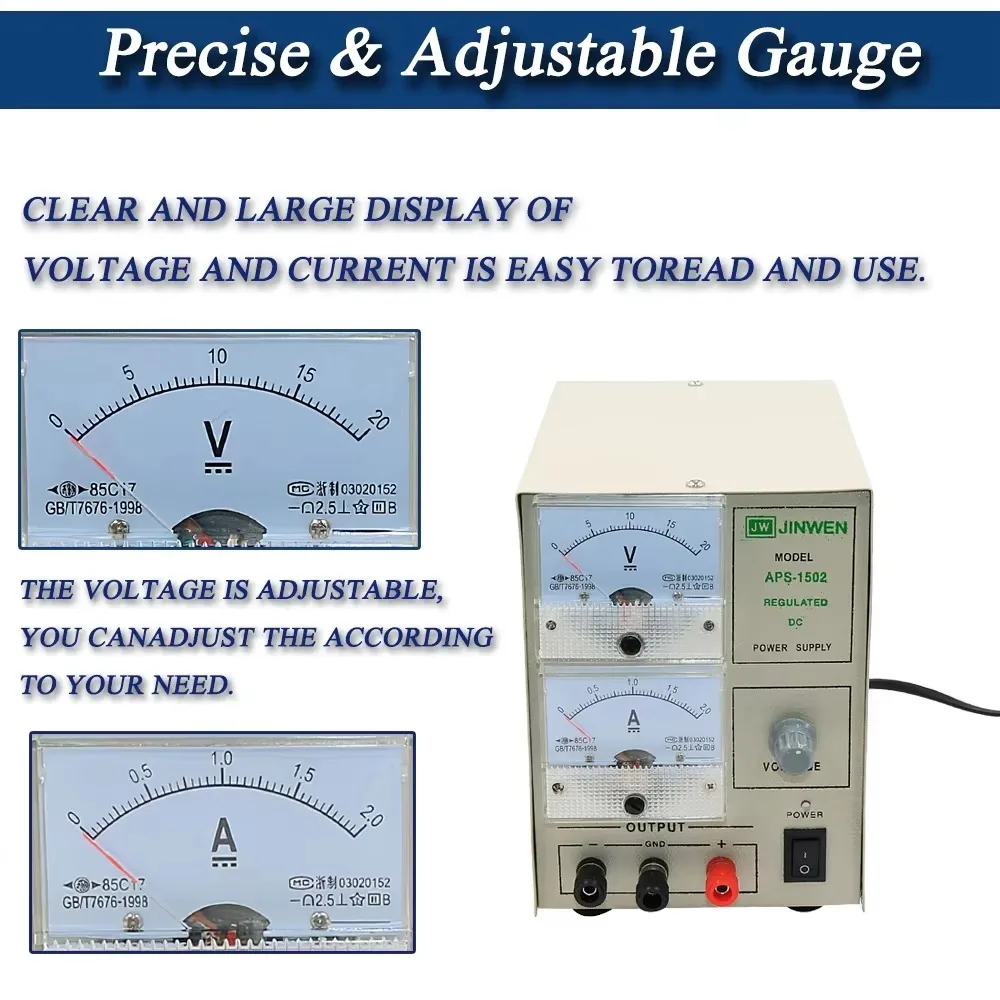

🔨Dual Analog Clear Meters

Independent voltmeter & ammeter, real-time display of voltage and current data. Intuitive reading for precise parameter control during plating work.

🔨Stepless Adjustable Voltage

Max output 20V, continuously adjustable voltage knob. Freely set parameters to match gold, silver, platinum different plating craft requirements.

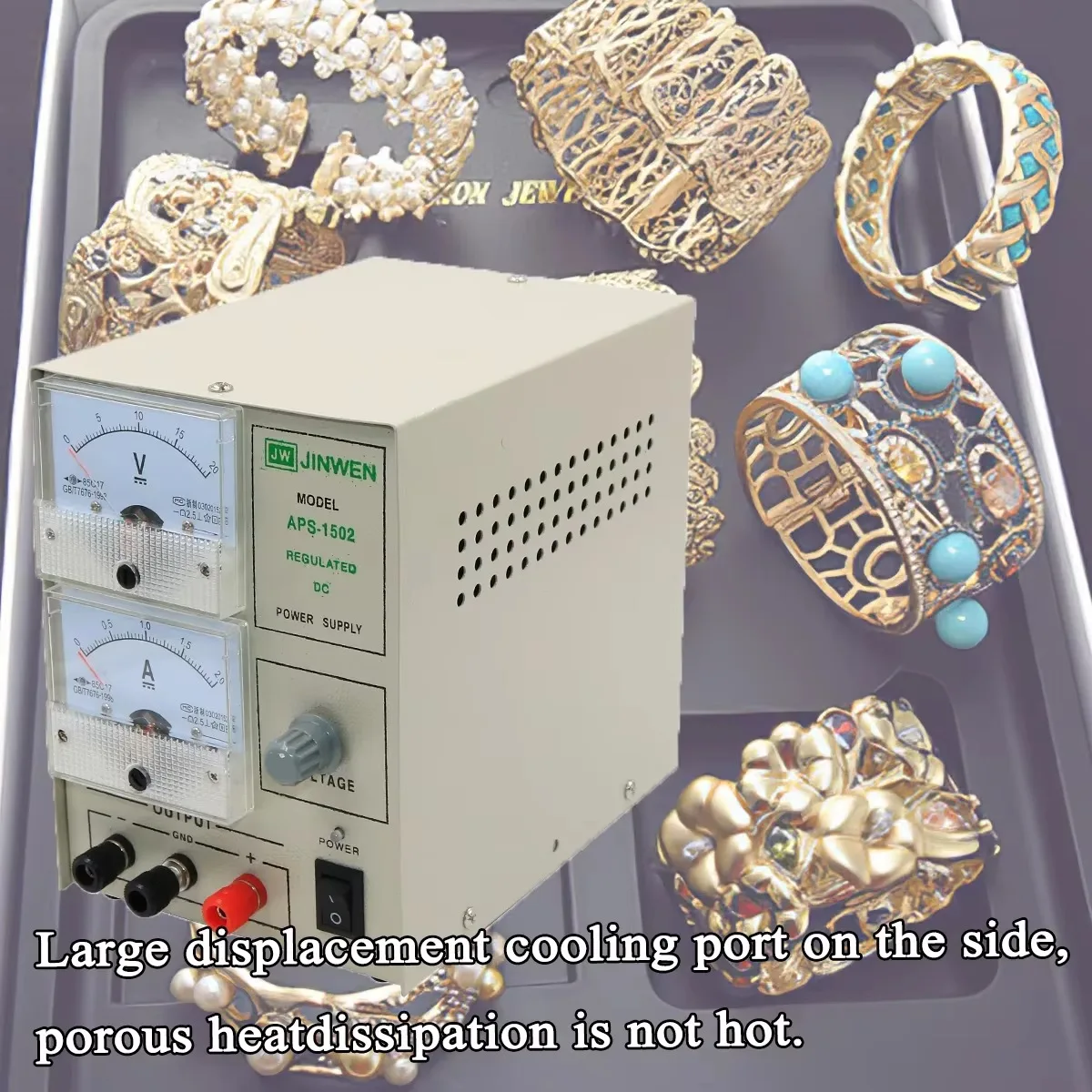

🔨Efficient Heat Dissipation

ide dense vent hole structure, rapid internal heat dissipation, long-time stable operation without overheating.

🔨Complete Matching Accessories

Equipped with titanium mesh electrode, connecting waterline and alligator clips. Ready to use after simple assembly.

🔨Solid Metal Housing

Sturdy casing effectively protects internal circuit, anti-interference, stable output voltage for uniform plating layer.

🔨Wide Application

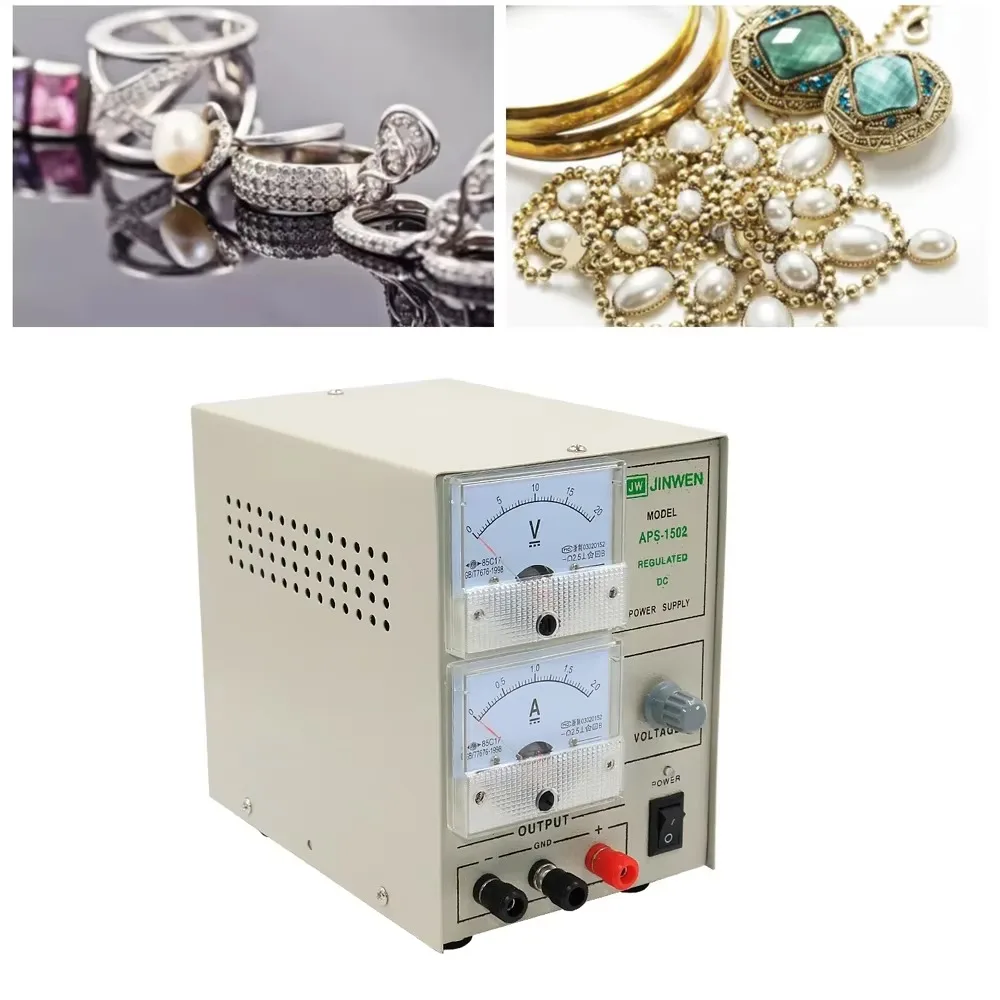

Supports 14K/18K/24K gold plating, silver plating, platinum plating. Great for rings, bracelets, necklaces and other ornaments repair & re-plating.

🔨Who this set for

Jewelry repair technicians, jewelry studio artisans, jewelry store maintenance staff, jewelry DIY hobbyists. Suitable for jewelry renovation, faded ornament recoloring and electroplating processing.

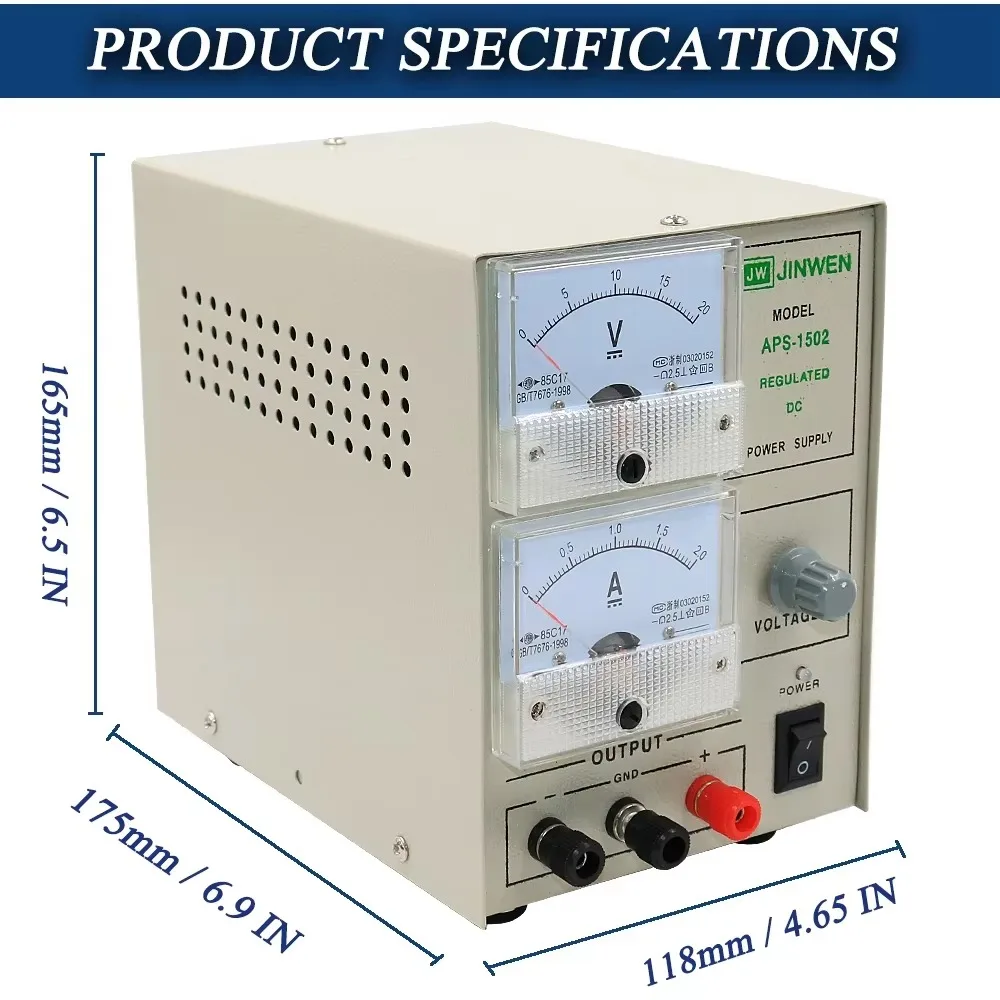

🔨Technical Parameters

Max adjustable voltage: 20V
Max adjustable current: 2.0A
Input working voltage: 220V

🪛Reference Plating Operation Guide

✅ Platinum Plating

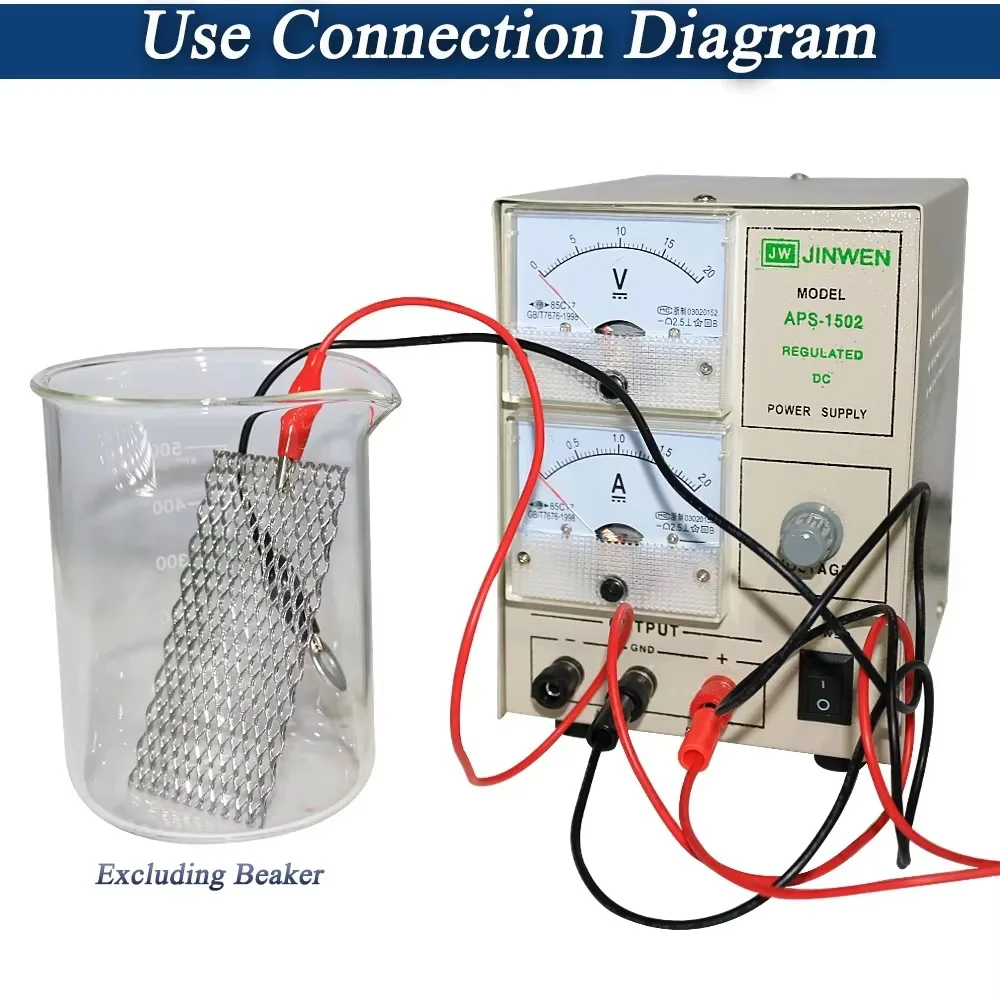

Anode(+): Titanium Mesh | Cathode(-): Jewelry
Working Temperature: 30-40°C
Plating Time: 90-120 seconds
Tip: Shake the jewelry slightly at the beginning of electroplating

✅ 14K / 18K / 24K Gold Plating

Anode(+): Titanium Mesh | Cathode(-): Jewelry
Working Temperature: 70-80°C
Plating Time: 20-50 seconds, suitable for 1-4 rings at one time
Required Auxiliary Supplies: Beaker, heating furnace, thermometer, plating liquid

✅ Silver Plating

Anode(+): Titanium Mesh | Cathode(-): Jewelry
Clean pieces following electrolytic cleaning process
Formula reference: 2.5g 54% silver salt mixed with 500cc distilled water
Temperature: 40°C | Working Voltage: 5V | Plating Time: 3-5 seconds
Important: Only distilled water can be used for silver salt and cleaning work

Pre-Electroplating Jewelry Standard Process

1. Polish jewelry surface with cloth wheel & sander

2. Ultrasonic heating cleaning with wax removal solution

3.Secondary fine polishing by polishing machine

4.Deep cleaning with steam cleaner

5.Complete surface finishing via electrolysis & electroplating

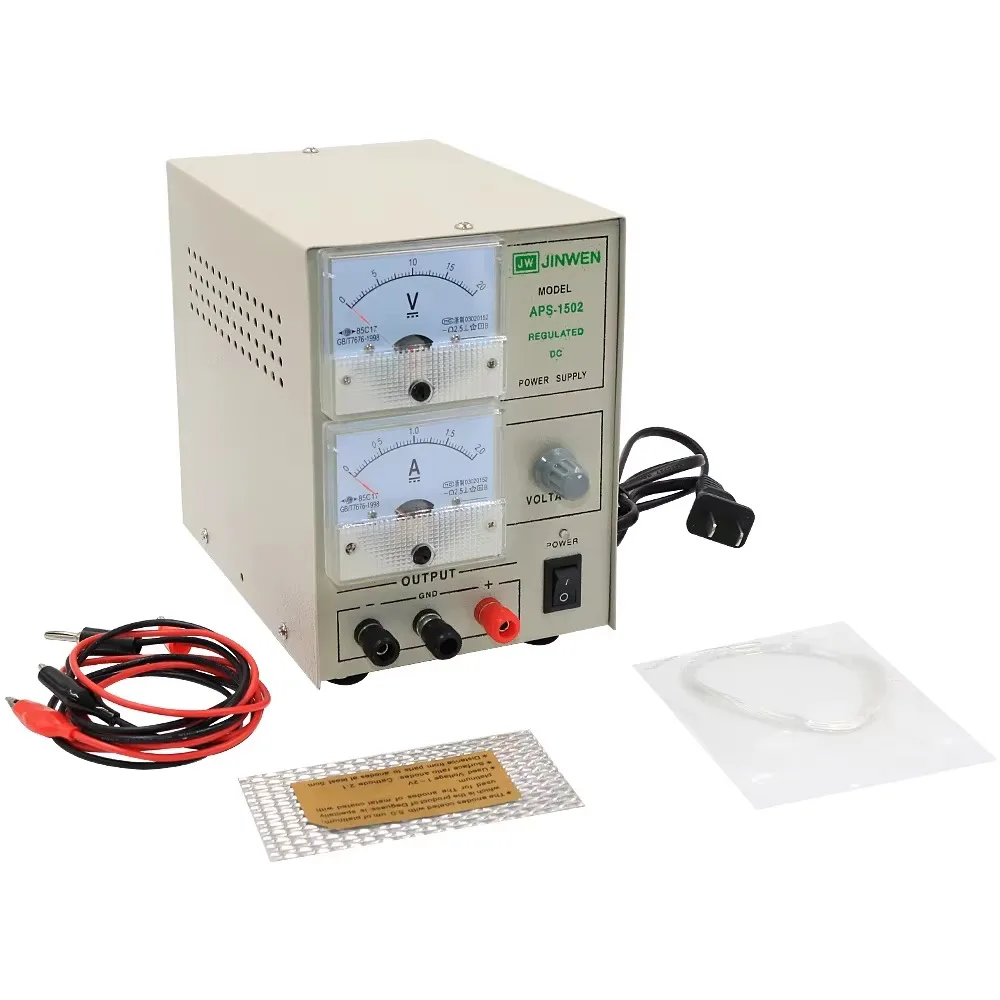

Package Contents:

1 × APS-1502 Jewelry Electroplating Machine
1 × Titanium Mesh
1 × Connecting Waterline
2 × Alligator Clip Cables

Notes

1.Glass beaker is NOT included in the package.
2.Please strictly follow temperature & time parameters for different plating solutions to avoid poor plating effect
3.Distilled water is required for preparing plating liquid; tap water is prohibited.
4.Operate in ventilated environment, wear protective gloves when contacting plating solution.
5.Do not overload the machine, keep the ventilation holes unobstructed during continuous working.
