Surecom SR-628 Controller Cross Channel Band Duplex Repeater Controller for Walkie Talkie Two Way Radio with USB Power Cable

Surecom SR-628 Controller Cross Channel Band Duplex Repeater Controller for Walkie Talkie Two Way Radio with USB Power Cable

Description:
The SR-628 is a multi-function and cheaper device that connects any handheld or mobile radio.
By equipment and so on our assemble the build, the new generation trunk-line board, the internal structure design are finer, the outward appearance is more attractive. Besides can provide a the basic repeater function which has following the receiver transmitter, furthermore has the Simple connection, provides the more ideal 2-way radio conversation region for you, causes you maintains the relation in the bigger operating region.
When the radio units are connected, the received signal on a radio unit will be real time transmit on the other radio unit.
e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes

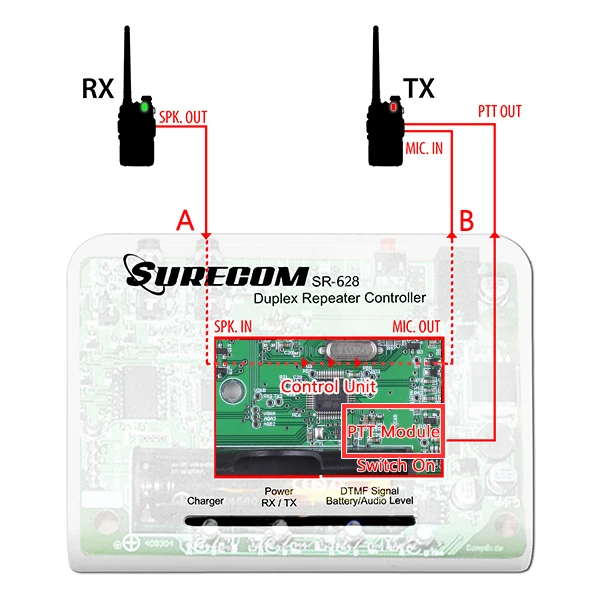

Input A: Channel A is TX When channal B is RX.

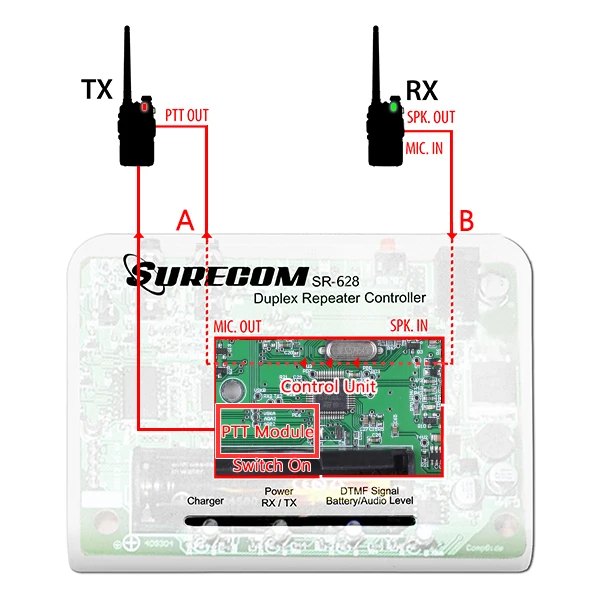

Input B :Channel B is TX When channel A is RX .
The purpose can be done in two different places and using different frequency bands intercom, through our mutual communication relay station.
This is a radio cross band duplex repeater controller. It is an easy of operation and cost effective and highly flexible platform for setting up bi-direction cross band duplex repeater with mobile radio and handheld radio.

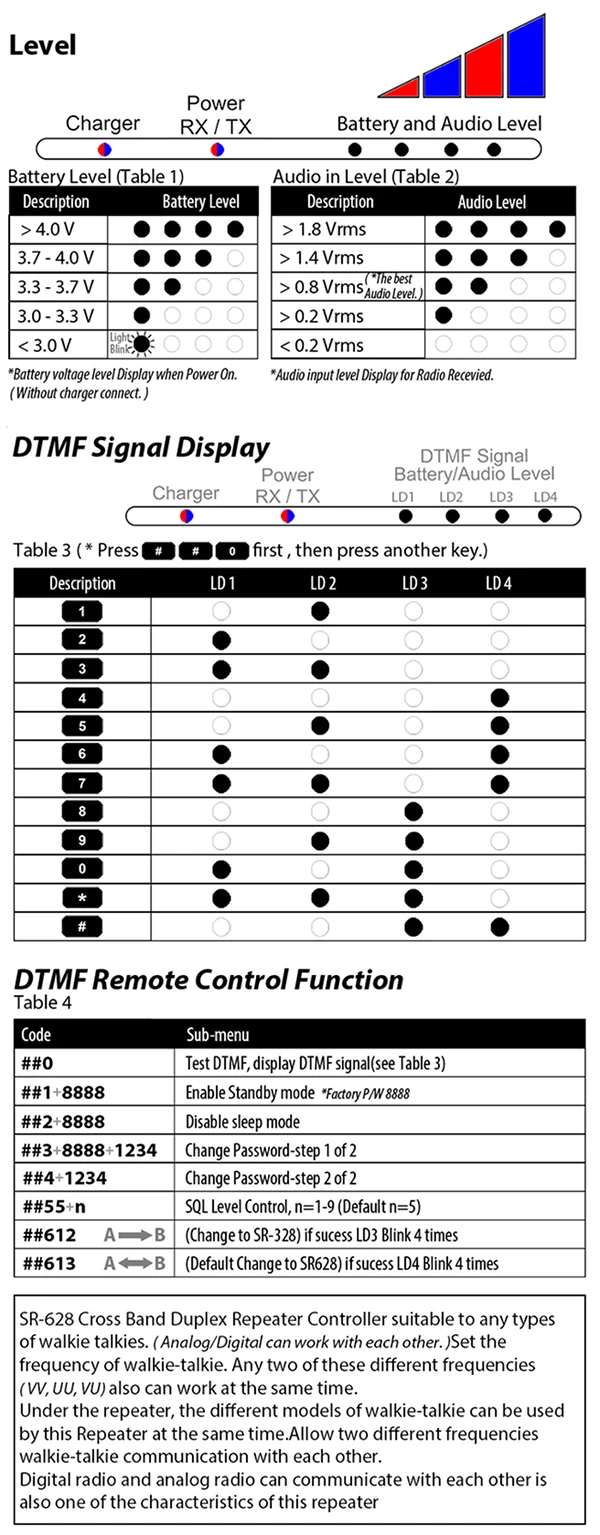

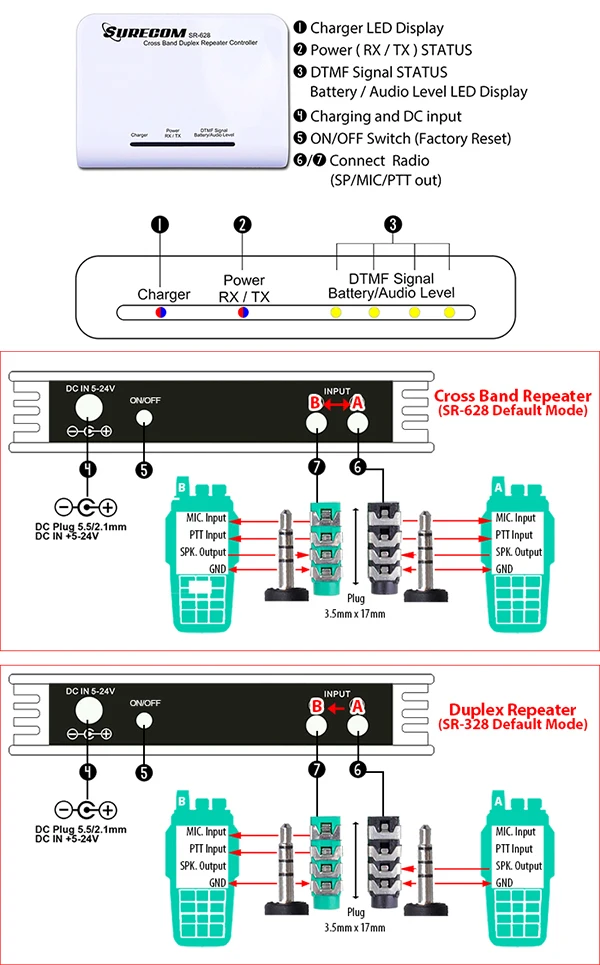

The SR-628 has 2 audio ports input and out , they are used to connect with mobile and handheld radio. DTMF remote control function with password protection is available in the . User can control the repeater ON or OFF remotely by DTMF. Multi-LED display 2 of radio status , and build-in battery Level

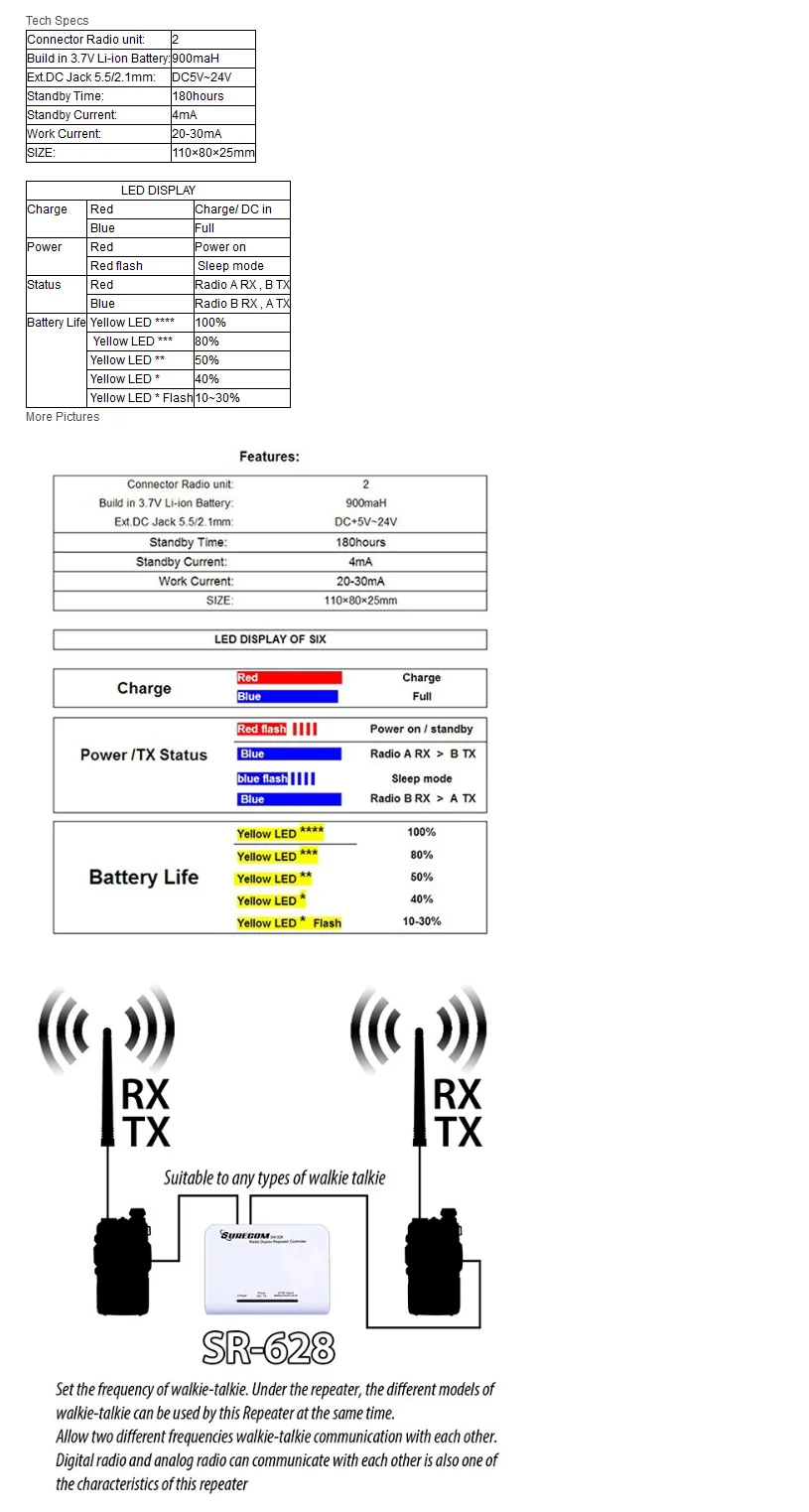

Major Features

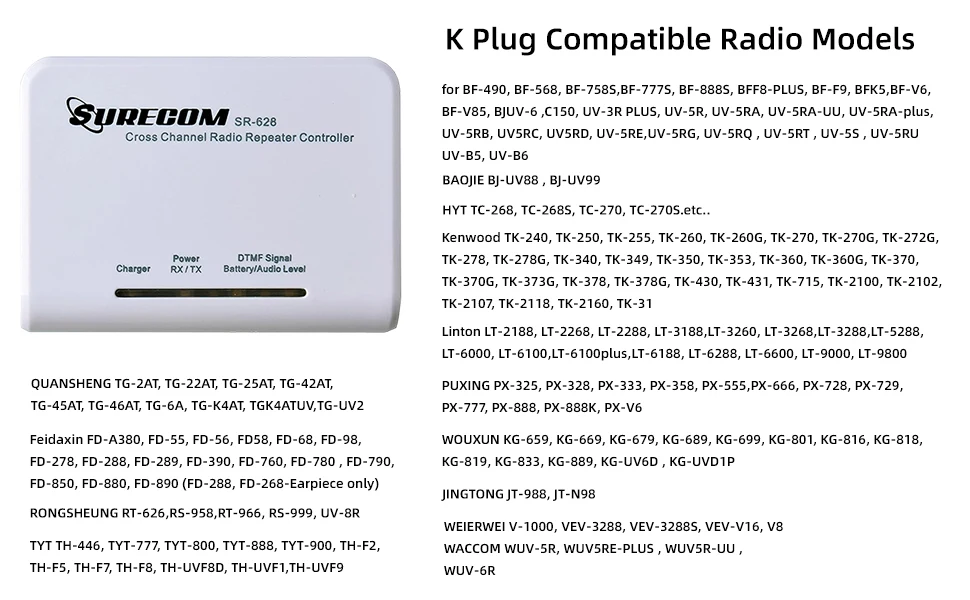

Works with most popular handheld radios

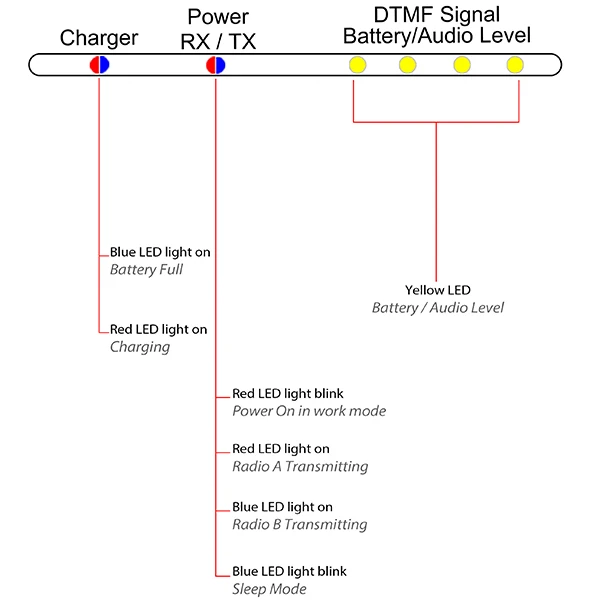

Multi- LED display 2 radio status , And controller Battery Level
Real time duplex repeater with link radio
Allows user to change the DTMF remote control password by radio
Operates on both build-in Li-ion battery 72 hours long life operation
External DC 5~24V power supply
DTMF remote control repeater function ON and OFF with password protection
Professional manufacturer low power consumption .
Package includes:

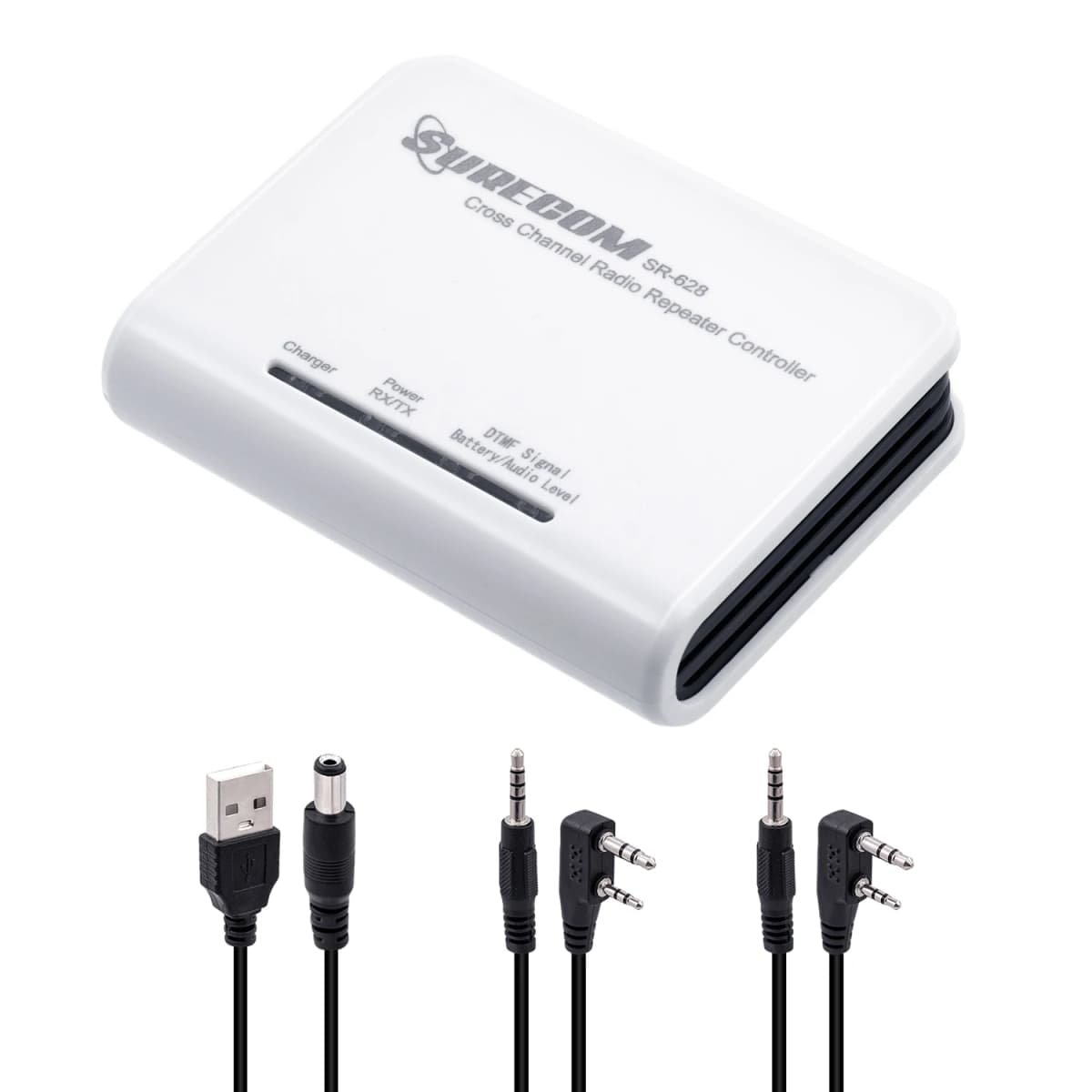

1 x SR-628 Cross Band Duplex Repeater Controller
1 x USB Power Cable
1 x Power Supply Plug(we will send corresponsible plug to your country)
2 x 46-K for Kenwood
1 x Manual
