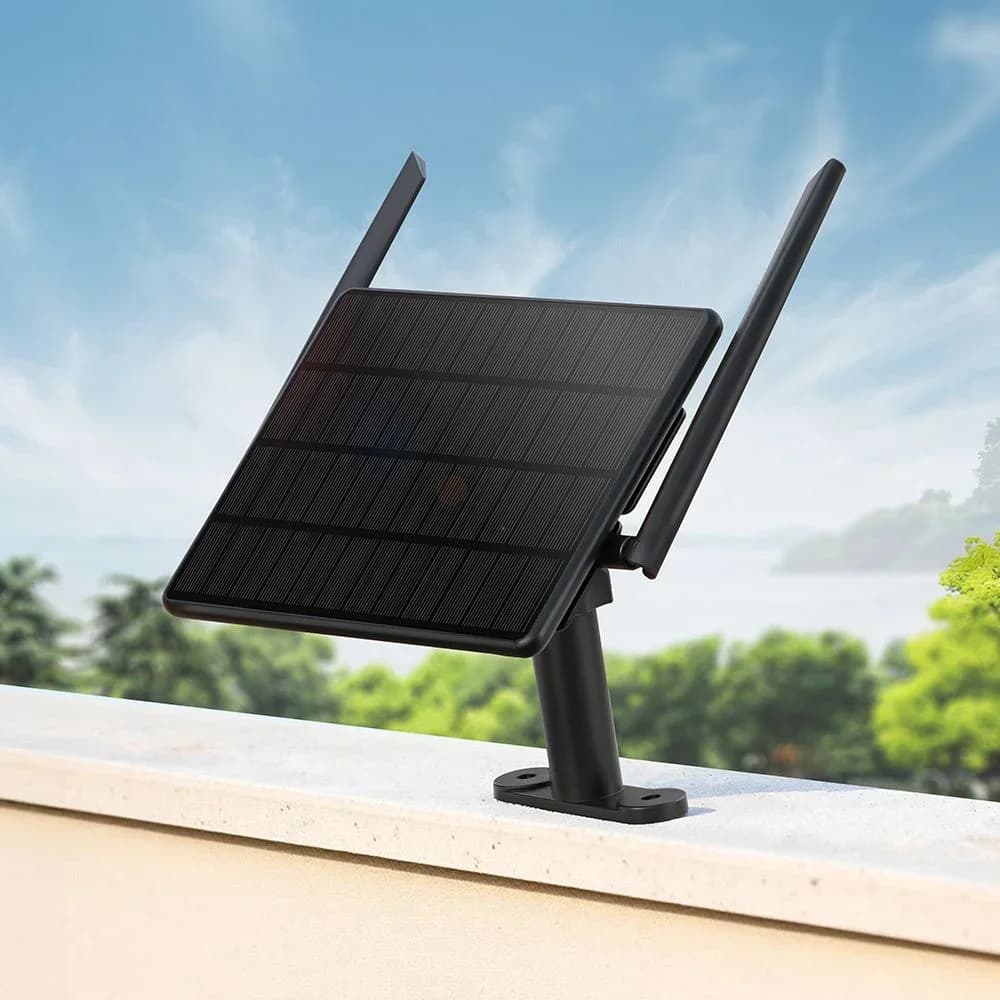

Elecrow ThinkNode M6 Outdoor Solar Power SX1262 LoRa Transceiver nRF52840 GPS positioning Support 915MHz / EU 868MHz

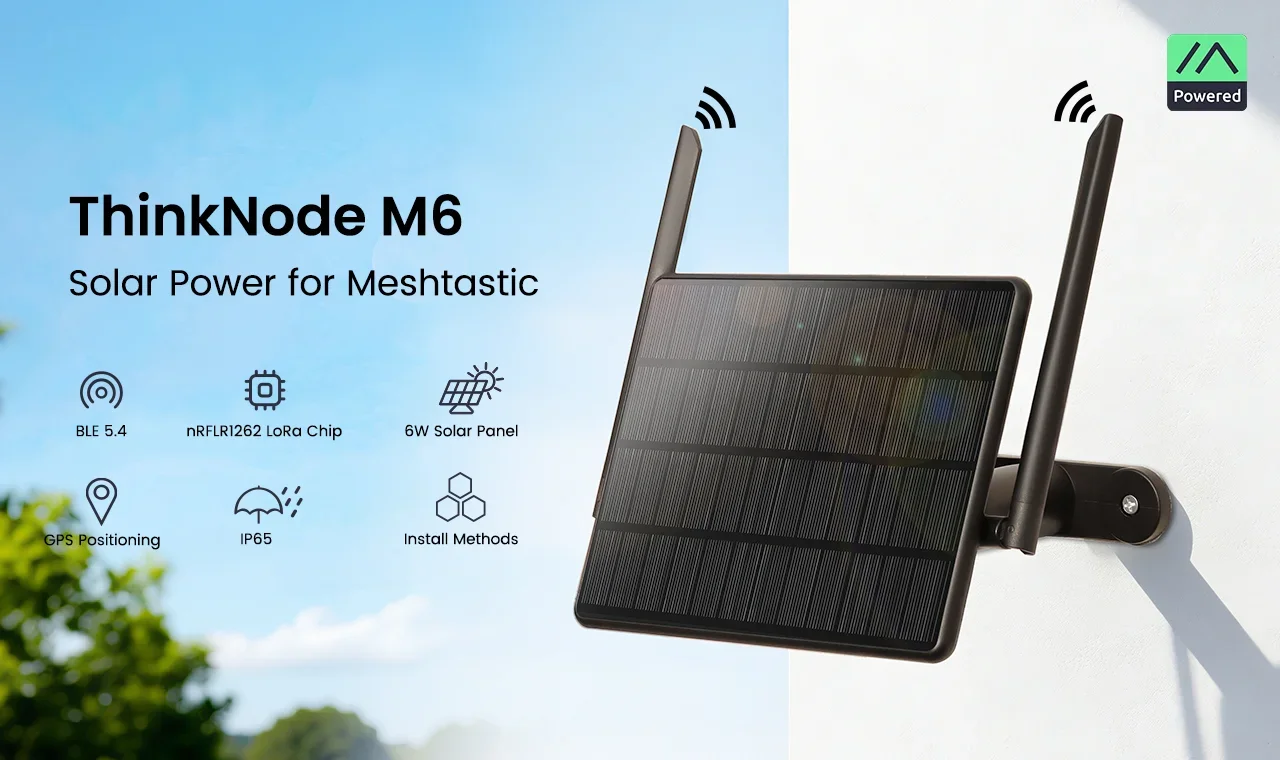

The ThinkNode M6 Outdoor Solar Power is a high-performance Meshtastic IoT device designed for harsh outdoor environments and industrial scenarios.

It features the nRFLR1262 LoRa transceiver module and the nRF52840 core processor, supporting Bluetooth and LoRa dual-mode connectivity to ensure stable signal coverage. Equipped with a 6W solar charger and two 18650 batteries, it offers all-weather operation. Its IP65 waterproof housing allows operation in extreme environments ranging from -20°C to 60°C. It offers flexible mounting options, including wall mounting, brackets, pole mounting, and U-shaped clamps.

ThinkNode M6 comes with dual SP11 waterproof aviation connectorsand supports long-range communication, precise positioning, and low-power operation. It can be used out-of-the-box, and rapid deployment, ideal for Meshtastic network expansion, remote monitoring, outdoor emergency response, and off-grid communications, especially in remote areas with limited outdoor network access.

Feature

All-Weather Power System

Integrated 6W high-efficiency silicon solar panels and MPPT smart charging maximize energy harvesting efficiency.

Combined with a large-capacity lithium battery and ultra-low power consumption, it maintains stable operation for extended periods.

High-Performance Hardware Configuration

A built-in 64 MHz Arm Cortex-M4 processor with a DSP instruction set enables smooth execution of complex algorithms.

Dual-mode communication chip for wireless connectivity

Bluetooth 5.4 (BLE) enables fast near-field configuration and low-power connectivity. The LoRa SX1262 chip supports the full 150-960 MHz

frequency band.

Flexible Expansion

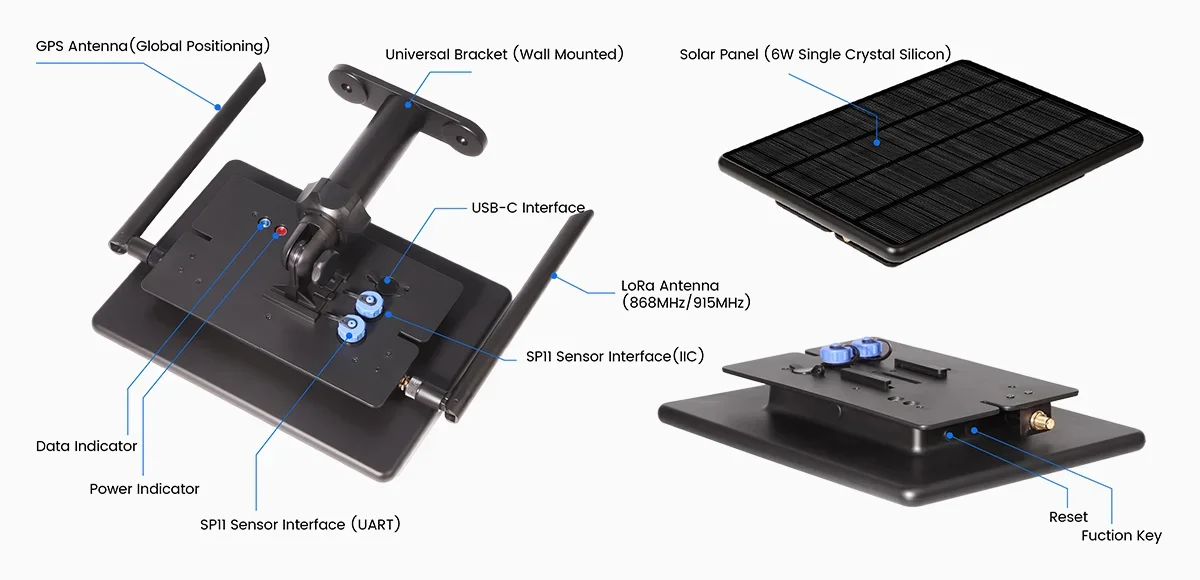

Dual SP11 waterproof aviation interfaces support IIC/UART, enabling quick access to various sensors, such as temperature, humidity, gas, and soil sensors etc.

Local Data Processing

Edge computing capabilities support local data pre-processing (such as filtering, compression, and protocol conversion), reducing cloud reliance and improving response speed and privacy.

Simple Deployment and Compatibility

Pre-installed with Meshtastic firmware and support Meshtastic App, compatible with Meshtastic ad hoc networks, for out-of-the-box use.

High-Precision Positioning

The L76K GPS module supports real-time, accurate positioning and location information sharing.

IP65 Protection

The integrated sealing structure supports an IP65 protection level and can be used in environments ranging from -20°C to 60°C.

Multiple mounting options

Supports wall mounting, bracket mounting, pole mounting, and U-shaped clamp mounting.

Multi-scenario application coverage

It can be used in wide-area IoT applications( remote monitoring, environmental monitoring, and asset tracking), and also supports ad hoc networks, making it suitable for distributed deployment in areas without network coverage.

All-Weather Power Supply System

6W solar power + MPPT technology + large-capacity lithium battery = Ultra-long battery life

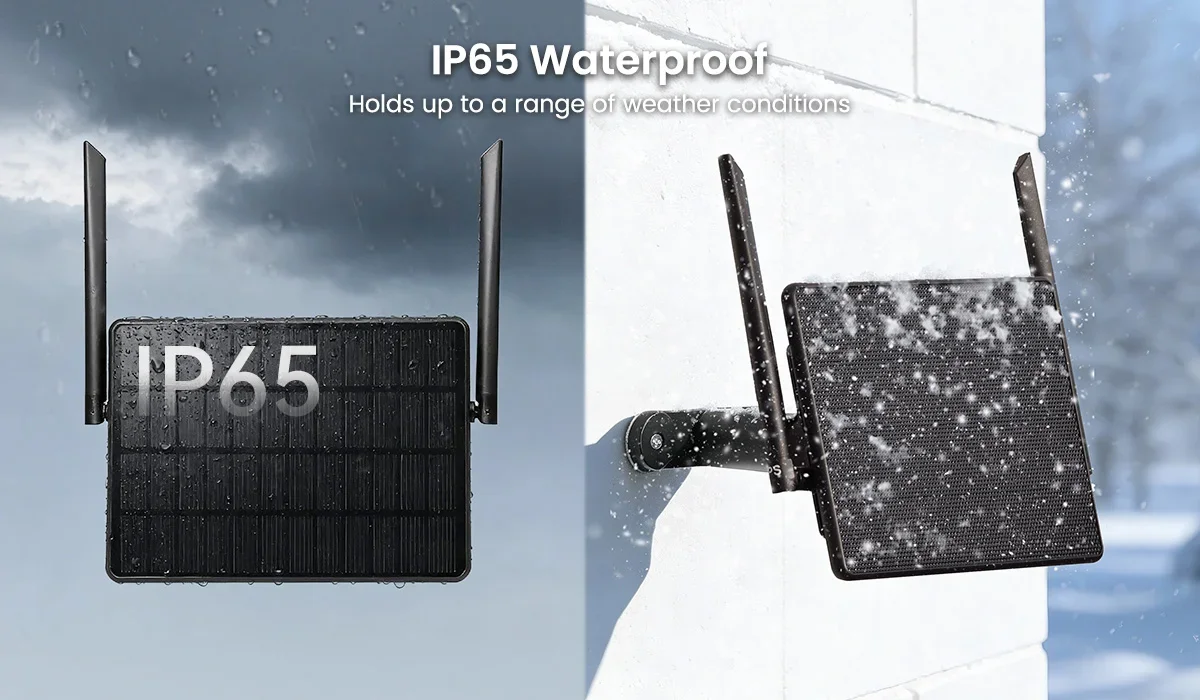

IP65 Waterproof

Holds up to a range of weather conditions

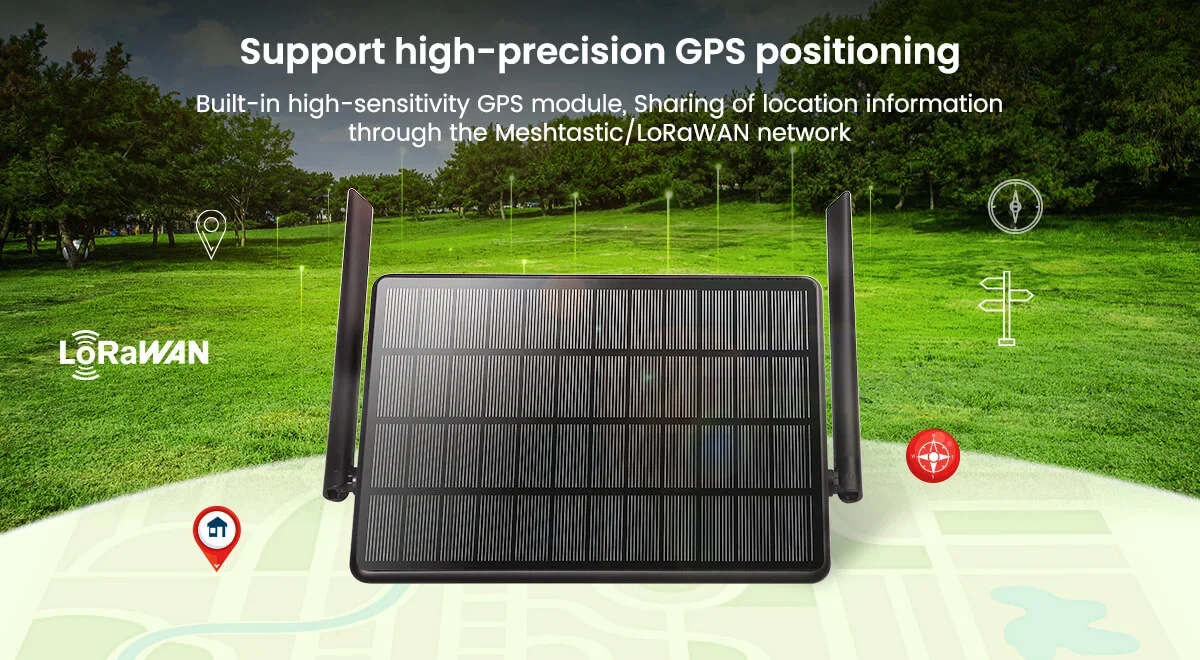

Support high-precision GPS positioning

Built-in high-sensitivity GPS module, Sharing of location information through the Meshtastic/LoRaWAN network

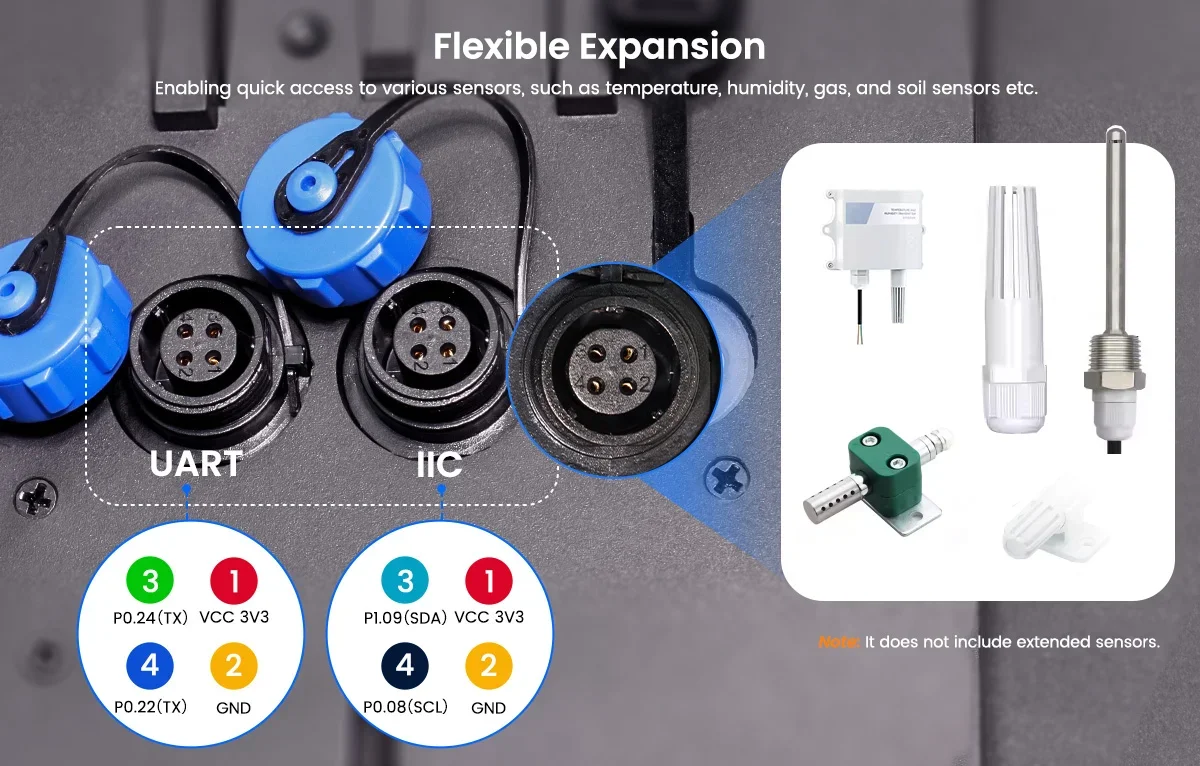

Flexible Expansion

Enabling quick access to various sensors, such as temperature, humidity, gas, and soil sensors etc.

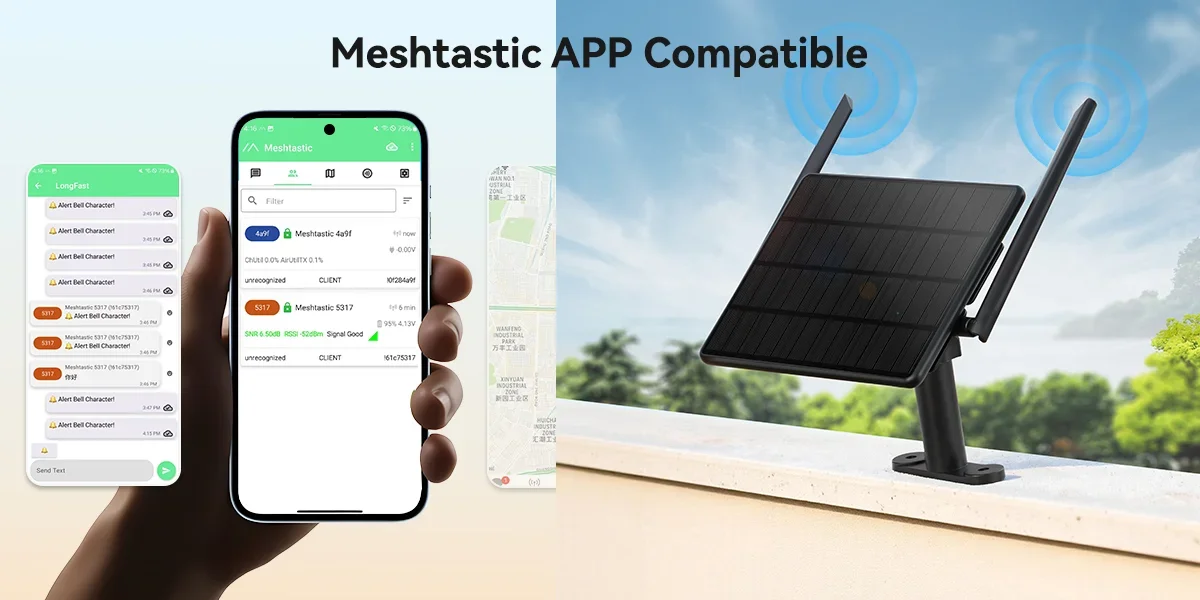

Meshtastic APP Compatible

Who Needs This?

Outdoor enthusiasts and explorers, commercial and engineering service providers, scientific research and educational institutions

Where is it used?

Emergency communications and rescue, Mesh network expansion, outdoor environment monitoring, educational experiments

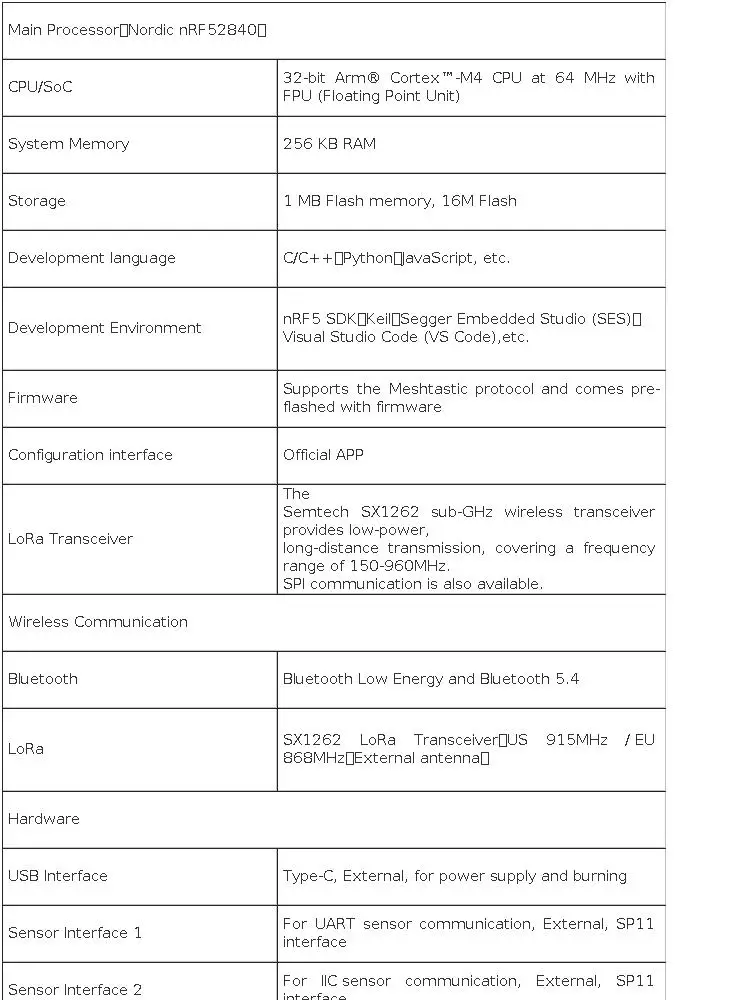

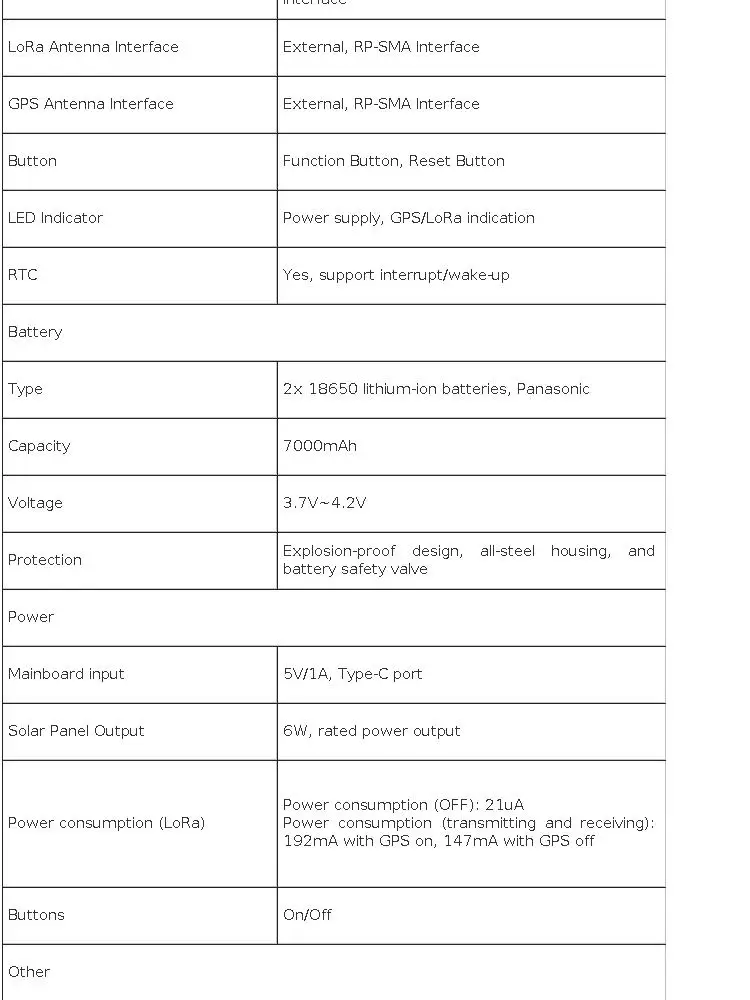

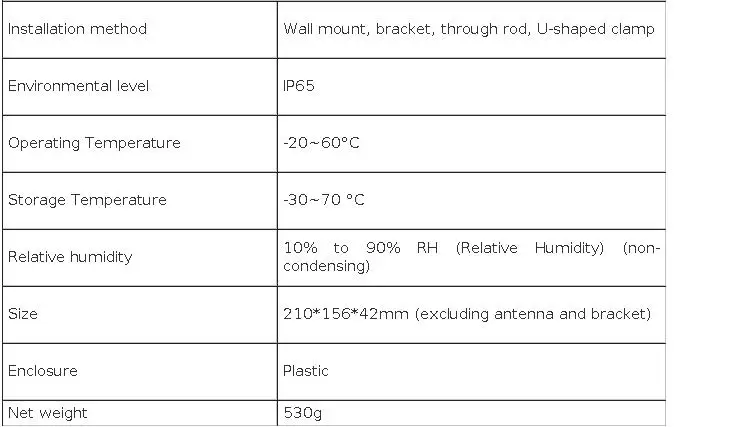

Specification

Why Choose Us?

As an industry-leading equipment manufacturer for 11 years, we rely on our independently developed core technology and the production strength of our factory to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.

Package List

1x ThinkNode M6- Outdoor Solar Power

1x LoRa Antenna

1x GPS Antenna

Wiki & External links

Wiki (https://www.elecrow.com/wiki/ThinkNode_M6_Outdoor_Solar_Power_for_Meshtastic_Powered_By_nRF52840_Supports_GPS.html)

User Manual (https://www.elecrow.com/download/product/LMM14106D/ThinkNode_M6_Outdoor_Solar_Power_for_Meshtastic_User_Manual.pdf

CE and FCC Report (https://www.elecrow.com/download/product/LMM14106D/CE_and_FCC_Report.zip
