Elecrow LR1302 LoRaWAN Gateway Module SPI-US915 915MHz Long Range Gateway Module Support 8 Channels For Smoother Communication

Elecrow LR1302 LoRaWAN Gateway Module SPI-US915 915MHz Long Range Gateway Module Support 8 Channels For Smoother Communication

Note: If you need the EU868, please

click here

.

Description

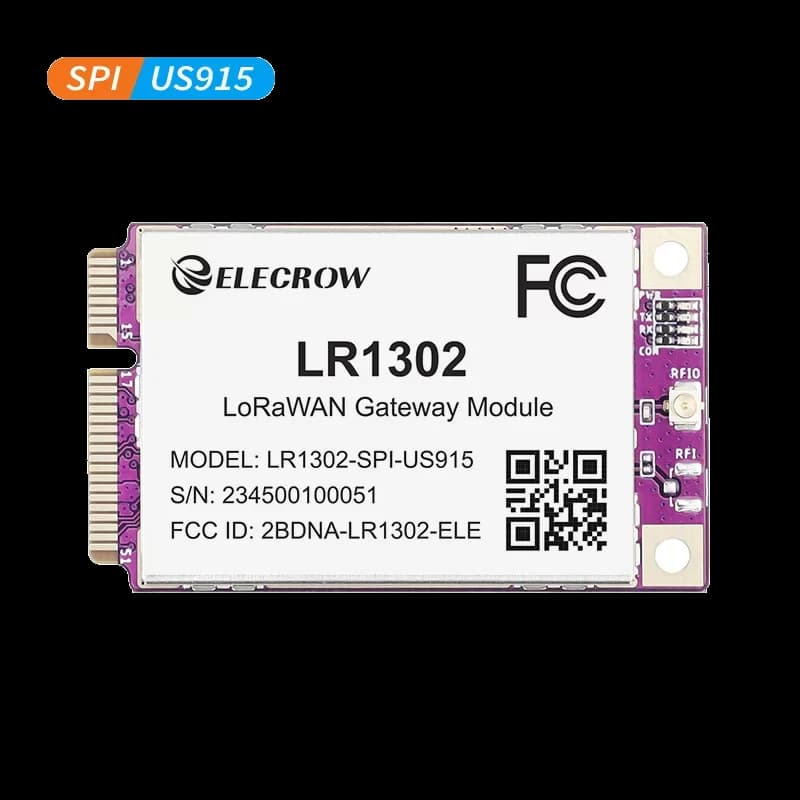

This LR1302 module is a new generation LoRaWAN® gateway module. It adopts a mini-PCIe form factor design and features low power consumption and high performance. Based on Semtech Network's SX1302 LoRaWAN® baseband chip, the LR1302 gateway module provides gateway products with potential capacity for long-distance wireless transmission. Compared to the previous SX1301 and SX1308 LoRa chips, the SX1302 chip has higher sensitivity, lower power consumption and lower operating temperature. It supports 8-channel data transmission, improves communication efficiency and capacity, and supports the connection and data transmission of more devices.

It reserves two antenna interfaces, one for transmitting and receiving LoRa signals and one U.FL (IPEX) interface for independent transmission. It also has a metal shield to protect against external interference and provide a reliable communications environment.

The LR1302 LoRaWAN® gateway module is available in SPI and USB versions, covering the US915 and EU868 frequency bands, giving you a choice of LoRaWAN® frequency solutions, including EU868 and US915.

Designed specifically for the IoT space, the LR1302 is suitable for a variety of IoT applications. Whether used in smart cities, agriculture, industrial automation or other

fields, the LR1302 module can provide reliable connections and efficient data transmission.

Support multiple channels for smoother communication.

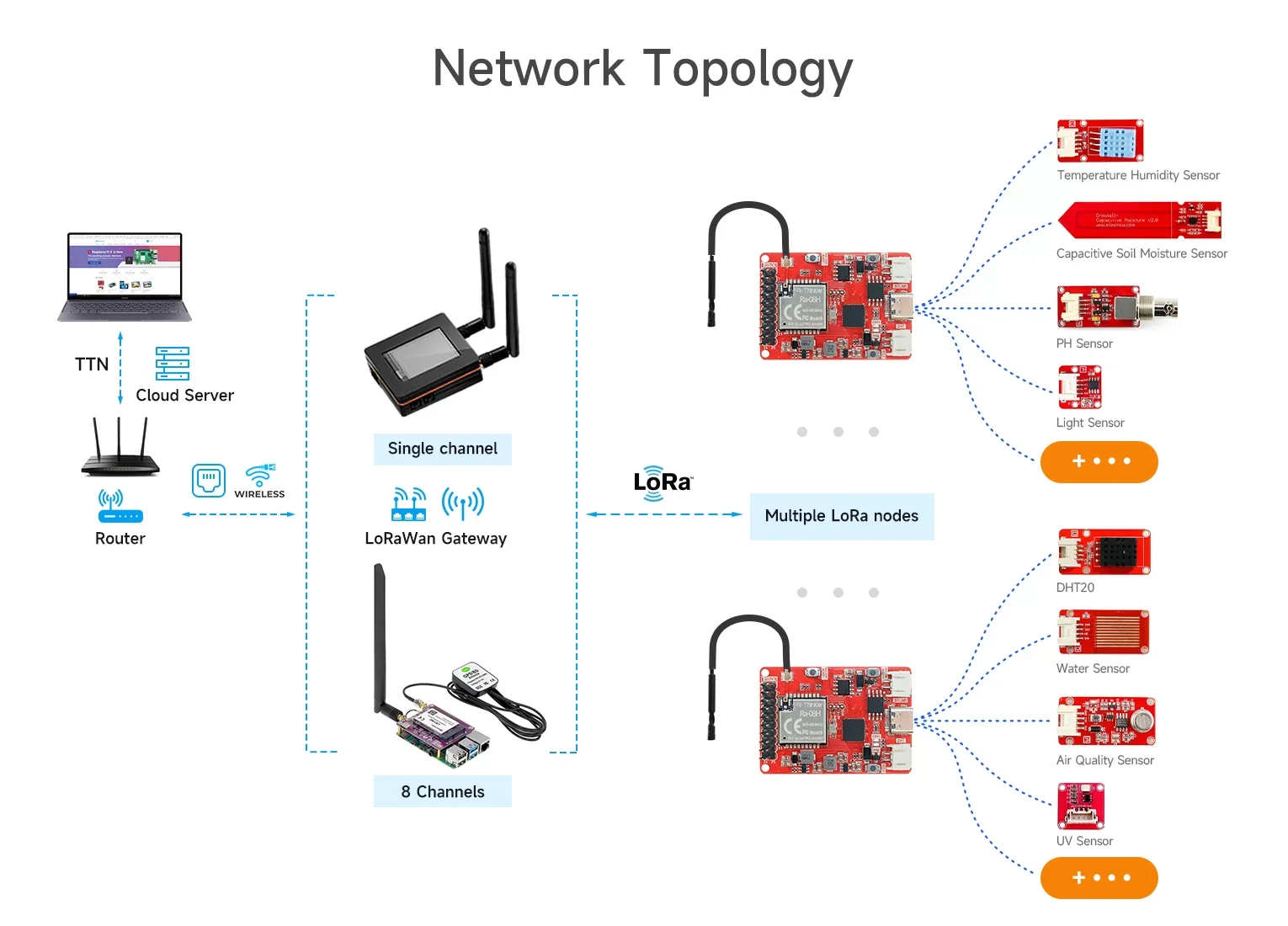

Application Example

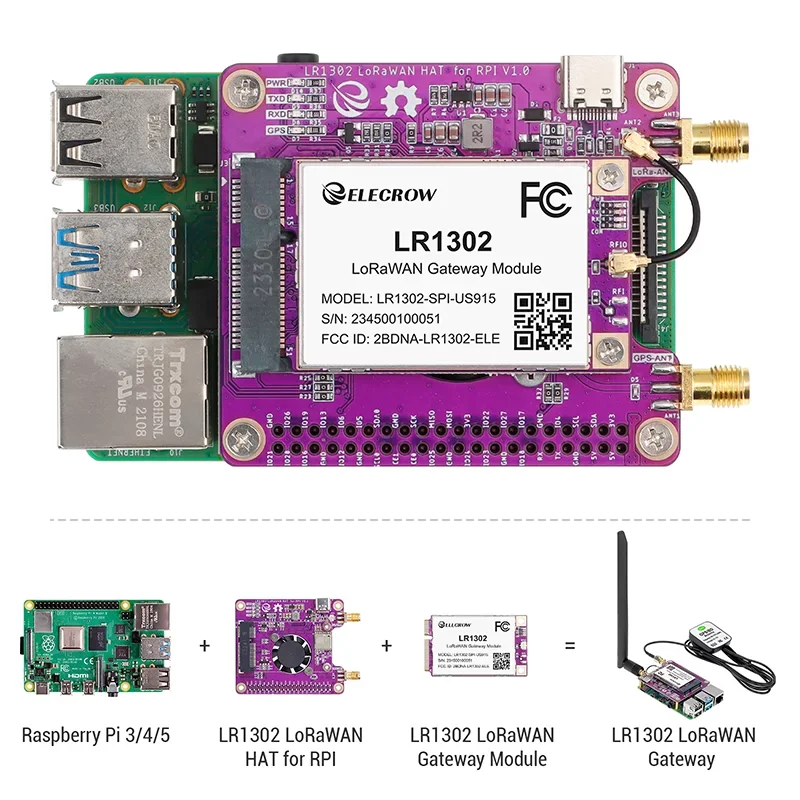

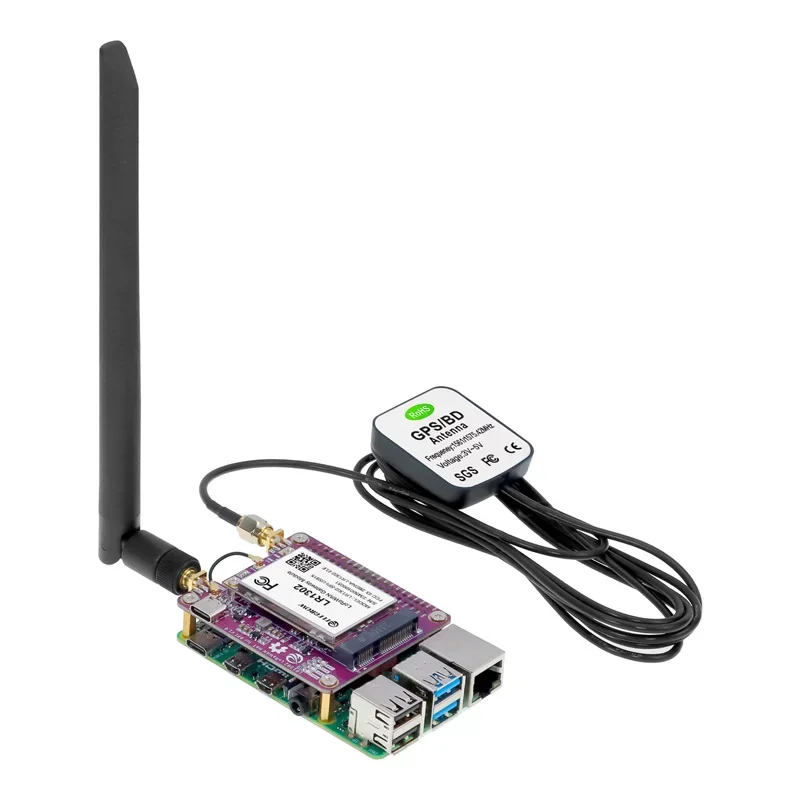

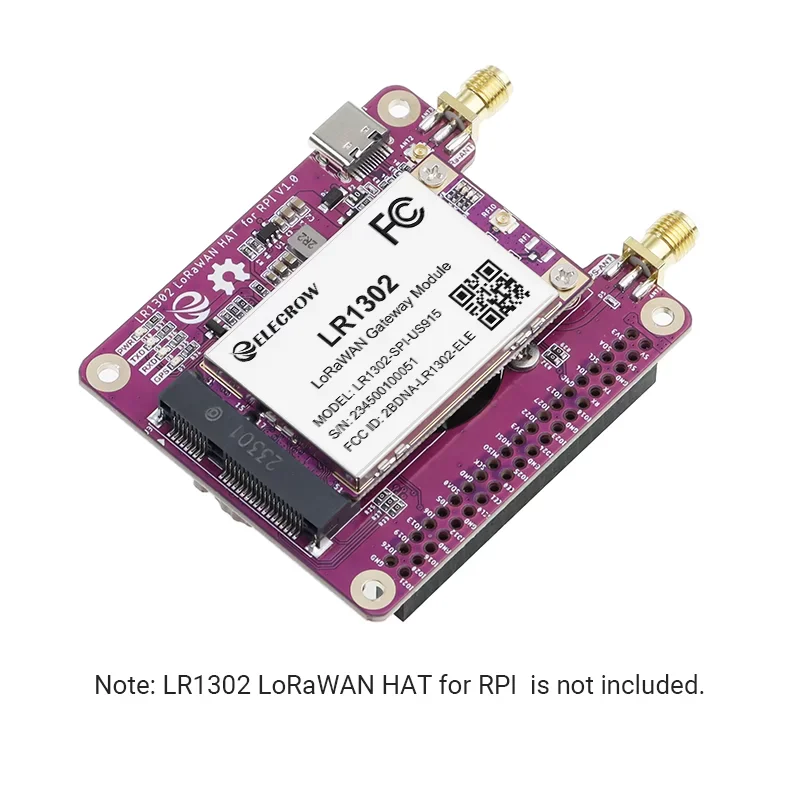

Note: It doesn’t include Raspberry Pi, GPS, Gateway HAT, IPEX and antenna.

Feature

Uses Semtech® SX1302 baseband LoRa® chip with extremely low power consumption and excellent performance;

Mini-PCIe form factor and compact design make it easier to integrateinto various gateway devices, suitable for space-constrained application scenarios, and provide flexible deployment options;

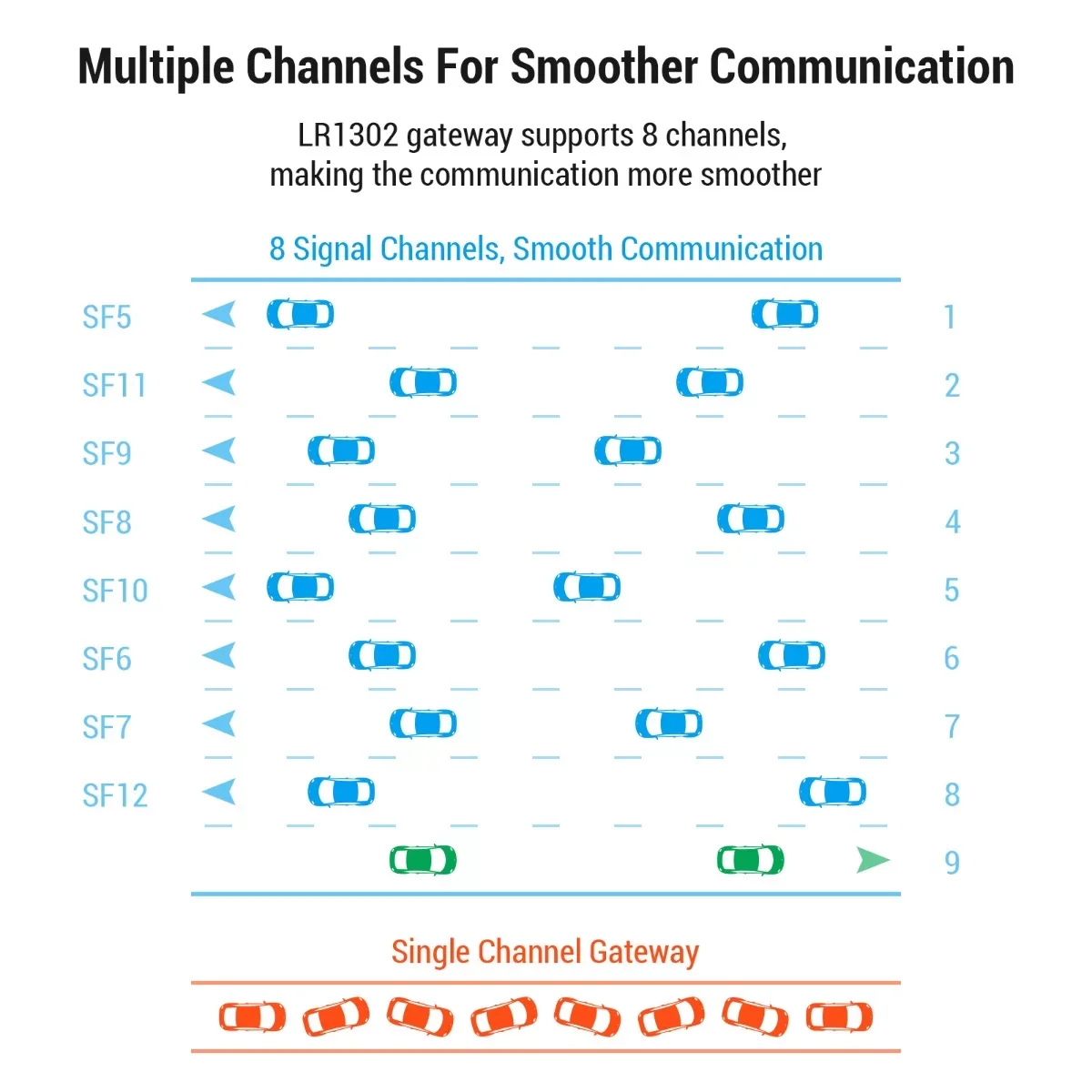

Support 8-channeldata transmission, provide more efficient communication efficiency and capacity;

Ultra-low operating temperatureeliminates the need for additional cooling and reduces the size of the LoRaWAN® gateway;

Uses SX1250 TX/RX front end with sensitivity down to -139 dBm@SF12; TX power up to 26 dBm @3.3V;

With CE and FCC certification, simplify the certification process of the final product and provide convenience for certification.

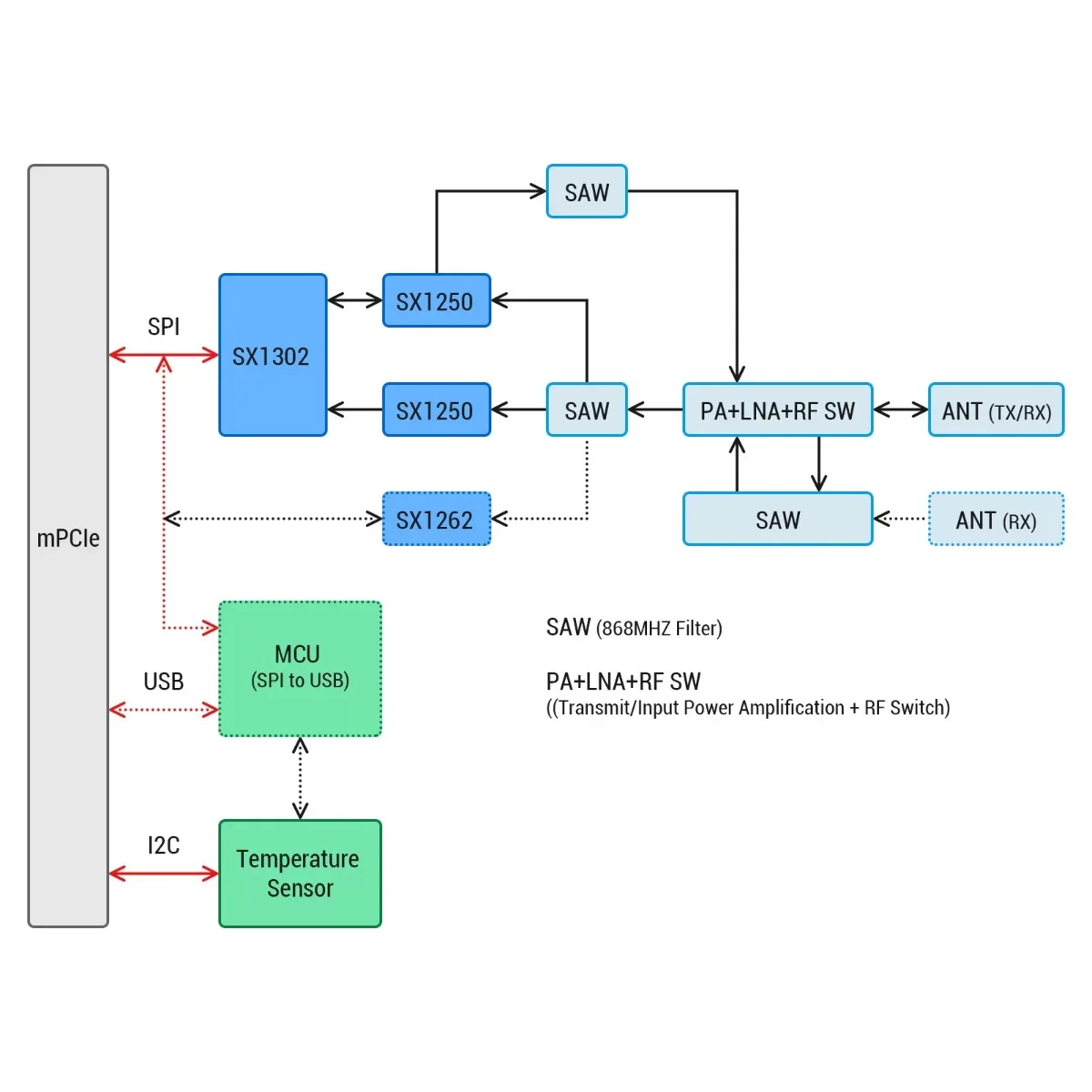

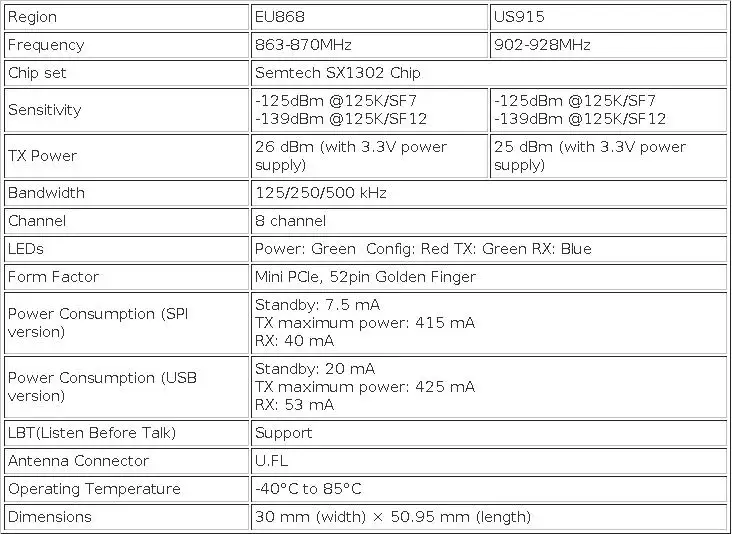

Specification

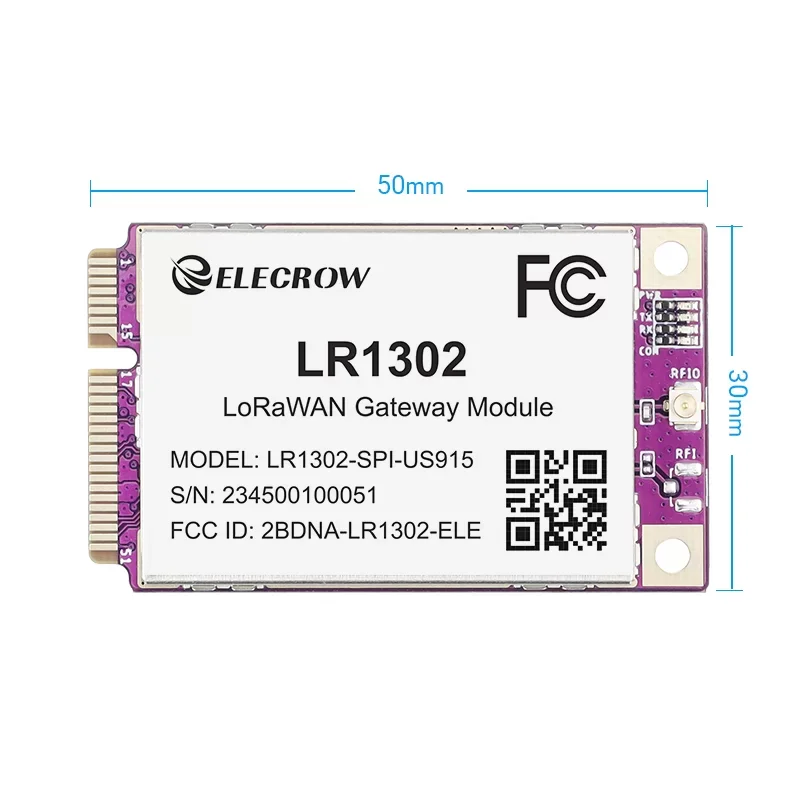

Hardware Overview

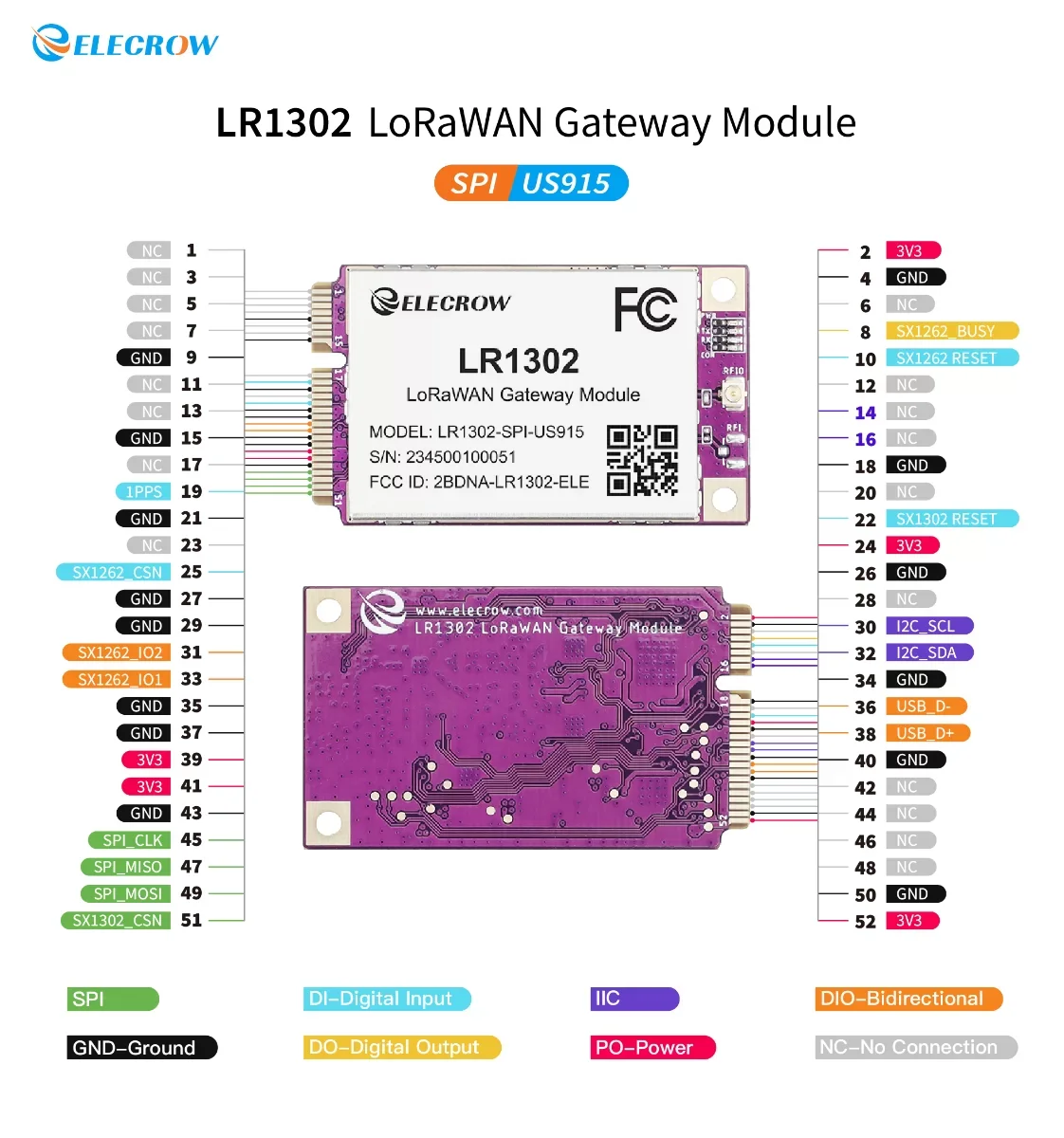

Interface Function

Package List

1x LR1302 LoRaWan Gateway-US915

Wiki & External links

Wiki

SX1302 Datasheet

Schematic Diagram
