1/5/10PCS RGB LED Ring 8 Bits LEDs WS2812 5050 RGB LED Ring Lamp Light with Integrated Drivers for Arduino DIY Kit

Purchase Notes

1. The two logistics of Yanwen Economic Air Mail and China Post Ordinary Small Packet Plus do not have tracking information, so there is no time limit. We recommend using China Post Registered Air Mail or AliExpress Standard Shipping.

2. We do not accept refunds for minor damage (pin bending, slight screen abrasion,etc.)during the transit of the material, without affecting normal use. If you mind,please do not buy.

3. Some products provide technical support, if you need help, please contact us, we will handle your message the first time.

4. If you have any questions about the product, please contact us before you open a dispute. We will give you the most satisfactory answer.

5. We provide each customer with good quality products, very favorable prices and the most sincere service. We hope to get your good feedback.

Wish you a pleasant shopping!

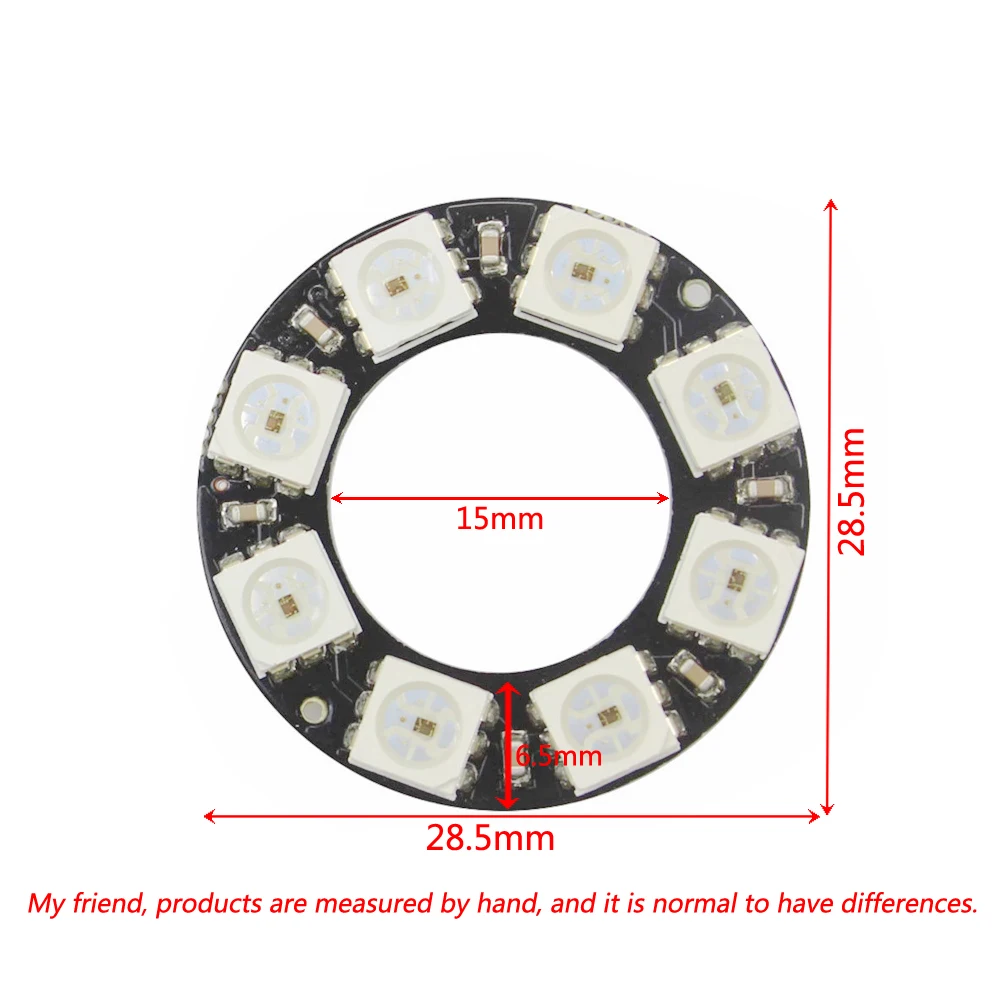

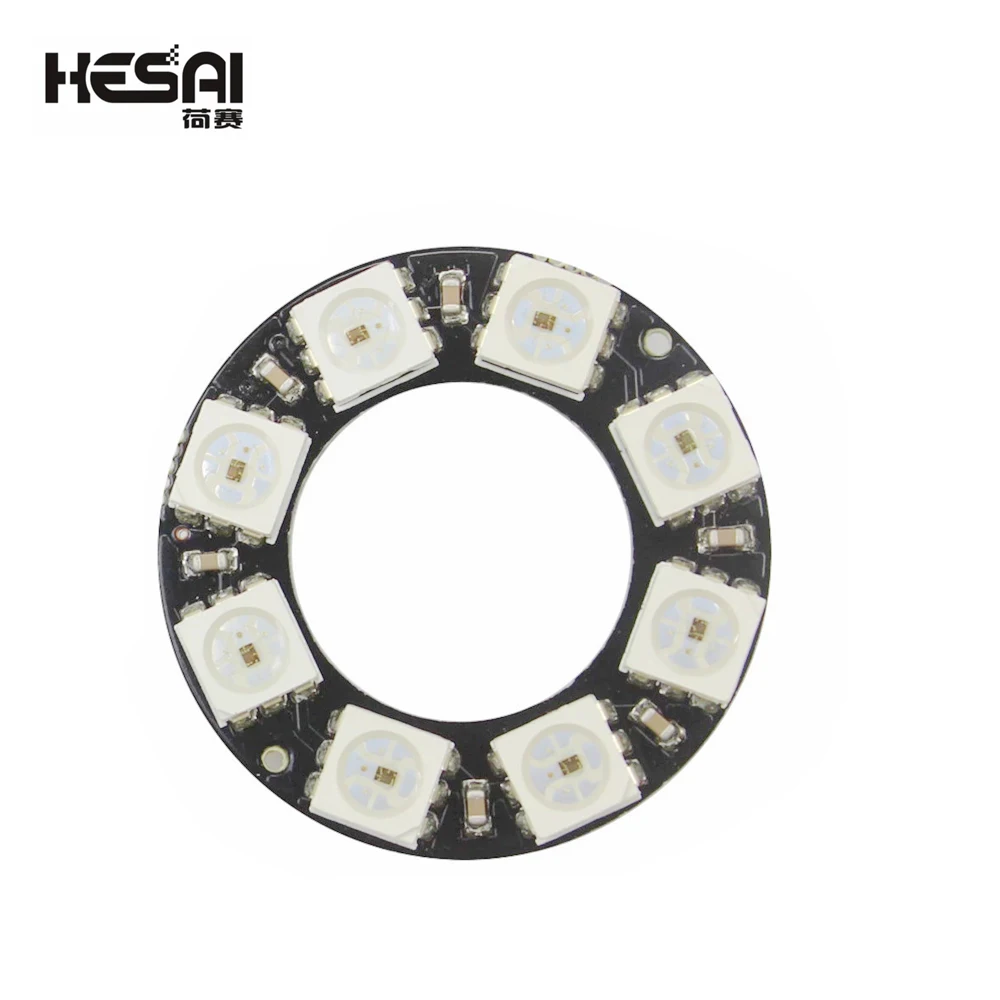

8-bit WS2812 5050 RGB LED intelligent full-color RGB light ring development board-big ring FOR arduino

Voltage: DC4-7V power supply.

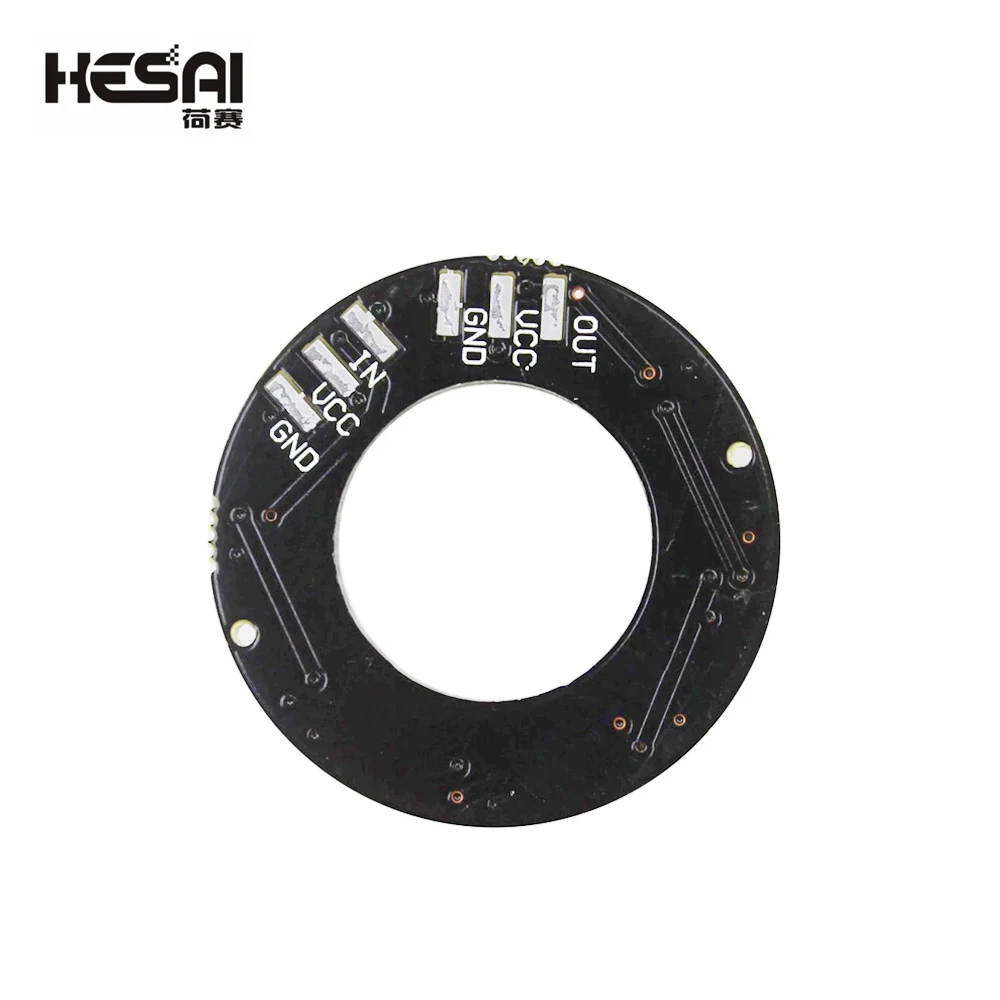

Communication interface: single-wire communication

LED driver chip WS2812 (integrated in LED)

8-bit WS2812 5050 RGB LED built-in full-color driving lantern development board.

main feature

● Intelligent reverse connection protection, the reverse connection of power supply will not damage the IC.

● IC control circuit and LED point light source share a power supply.

● The control circuit and RGB chip are integrated in a 5050 package to form a complete external control pixel.

● Built-in signal shaping circuit, any pixel receives the signal and then outputs it after waveform shaping to ensure that the line waveform distortion will not accumulate.

● Built-in power-on reset and power-off reset circuits.

● The three primary colors of each pixel can display 256 levels of brightness, and complete the full true color display of 16,777,216 colors. The scanning frequency is not lower than 400 Hz/s..

● Serial cascade interface, which can receive and decode data through a signal line.

● There is no need to add any circuit when the transmission distance between any two points is less than 5 meters.

● When the refresh rate is 30 frames per second, the number of cascades shall not be less than 1024 points.

● The data transmission speed can reach 800Kbps.

● The color of light is highly consistent and cost-effective.

Main application fields

● LED full-color luminous character light string, LED full-color module, LED full-color soft light bar and hard light bar, and LED guardrail tube.

● LED point light source, LED pixel screen, LED special-shaped screen, various electronic products, and electric equipment.
