LoRa Directional Antenna for ThinkNode series M1/M5 868MHz/915MHz Optional Support 90°Lateral Adjustment RP-SMA Connector

What is a directional antenna?

Directional antennas can radiate radio waves in beams, when greater concentration of radiation in a certain direction is desired, or in receiving antennas receive radio waves from one specific direction only.

This is a LoRa directional antenna designed for long-range, high-reliability communications. Its unique paddle-like foldable design supports 90° lateral adjustment, allowing users to precisely align the signal, significantly improving signal sensitivity and connection stability. It covers the mainstream global LoRa frequency bands of 868/915MHz and uses a standard SMA male / RP-SMA connector, making it compatible with a wide range of LoRa modules and gateways.

Compared to common omnidirectional rubber antennas, directional antennas offer advantages in signal strength, interference resistance, and transmission efficiency, providing longer-range, lower-latency data links for your IoT system. Optimized for scenarios with long communication distances, limited coverage areas, high target density, and high frequency utilization, it is an ideal solution for long-distance projects such as those operating in complex terrain, high-speed mobile environments, and

IoT field deployments.

It can also be used with our ThinkNode series M1, M5.

Feature

Powerful performance and stable connection. This performance far exceeds that of omnidirectional antennas, maintaining a stable connection even at high speeds or in complex environments.

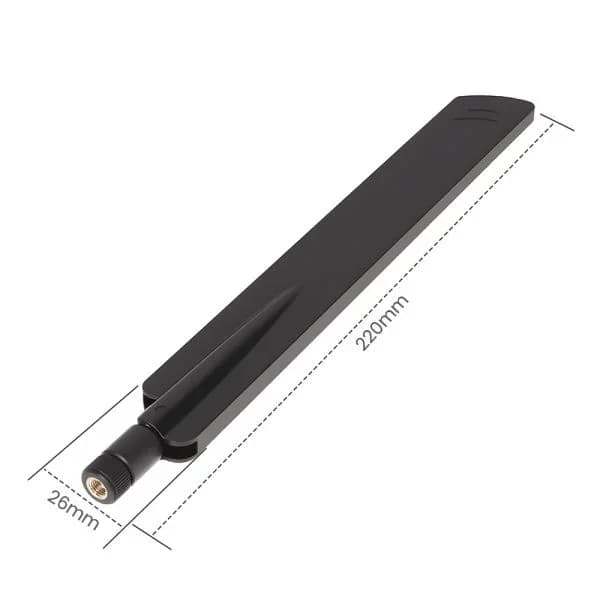

Precise directional positioning and signal enhancement. The paddle-style directional design allows for precise 90 ° adjustment to point directly at the signal source, effectively improving reception sensitivity and communication quality.

Mainstream frequency bands. Supports the 868/915MHz global LoRa frequency band.

Wide compatibility. The standard SMA male connector is compatible with mainstream LoRa devices.

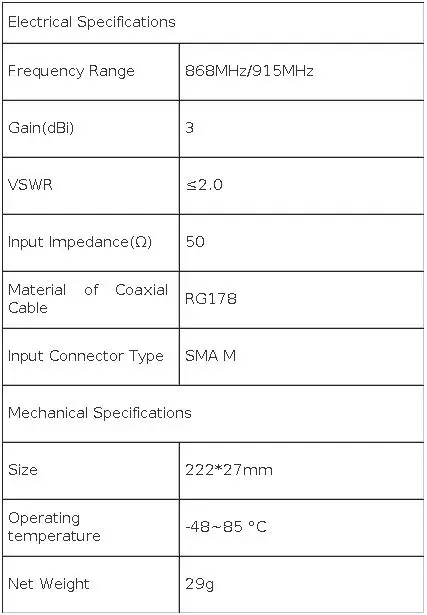

Specification

Package List

1xLoRa Antenna for ThinkNode M1/M5-868MHz/915MHz(Optional)
