Elecrow ThinkNode G1 Indoor LoRaWAN Gateway Powered By SX1302 Chip 8-channel Transmission Support WiFi, Bluetooth, Ethernet

Are you still frustrated by imprecise indoor positioning? ThinkNode G1 is here to help! What is ThinkNode G1?

Elecrow ThinkNode G1 is an advanced LoRaWAN indoor gateway designed to connect to various network servers. This gateway supports multiple connection methods such as WiFi, Bluetooth, and Ethernet, supports 8-channel transmission, and utilizes LoRa wireless technology to achieve long-distance data transmission at extremely low data rates, providing users with an efficient and reliable communication solution.

The G1 gateway adopts an advanced packet forwarder from Semtech and is fully compatible with the LoRaWAN protocol, ensuring efficient and stable communication. It is equipped with an SX1302 LoRa concentrator and two SX1250 chips, offering 10 programmable parallel demodulation paths, significantly enhancing data processing capabilities and communication efficiency.

The ThinkNode G1 indoor gateway supports global ISM frequency bands, with a frequency range from 815MHz to 960MHz. It also comes preset with LoRaWAN frequency bands that comply with European and American standards. With a powerful signal coverage that provides 5 to 10 km of LoRaWAN signal range, it is adaptable to various wireless application scenarios.

Whether it's smart buildings and home automation, logistics and supply chain management, smart metering, smart agriculture, smart cities, or smart factories, the G1 gateway provides extensive coverage and powerful signal output capabilities, ensuring stable network connections in various environments. With its outstanding performance and flexibility, the ThinkNode G1 gateway has become an ideal choice for building LoRaWAN networks, bringing users an unprecedented smart interconnected experience.

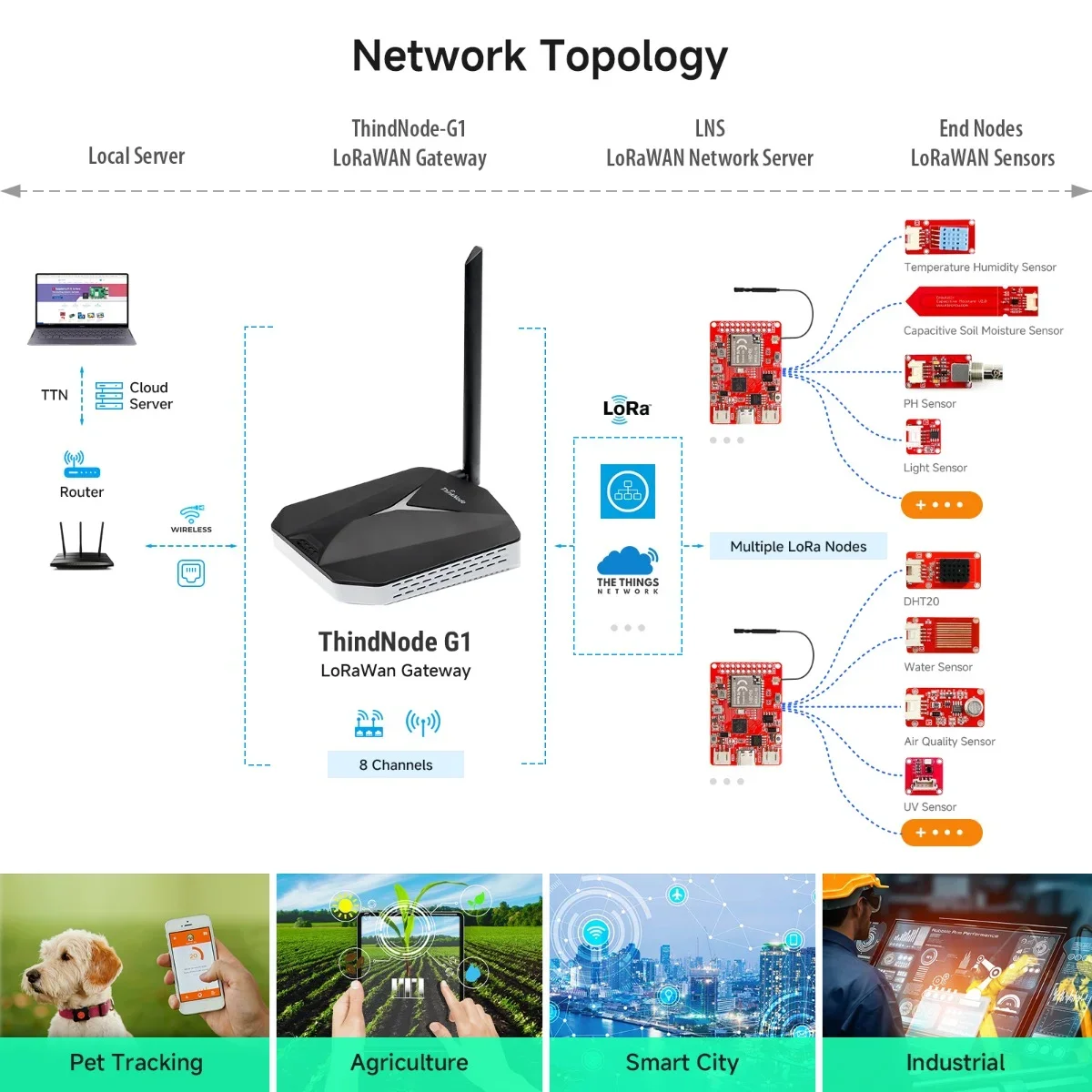

Network Topology

High Hardware Performance

Equipped with MediaTek MT7628 processor and Semtech SX1302 baseband chip, ensuring the stability and reliability of data transmission.

Network Server Compatibility

Seamlessly supports multiple LoRaWAN network servers such as The Things Network(TTN),  ChirpStack, offering flexible network service options.

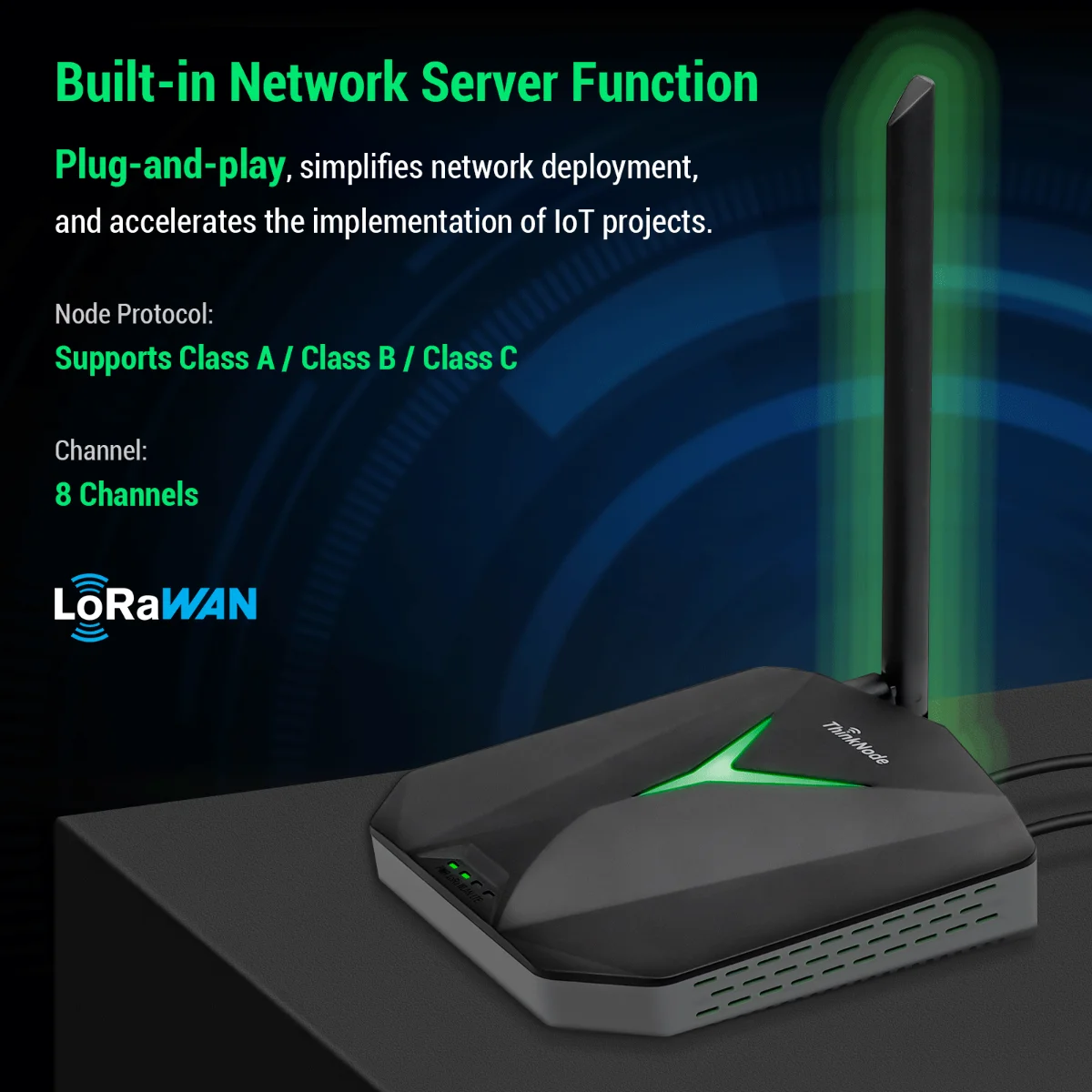

Built-in Network Server Function

Plug-and-play simplifies network deployment and accelerates the implementation of IoT projects.

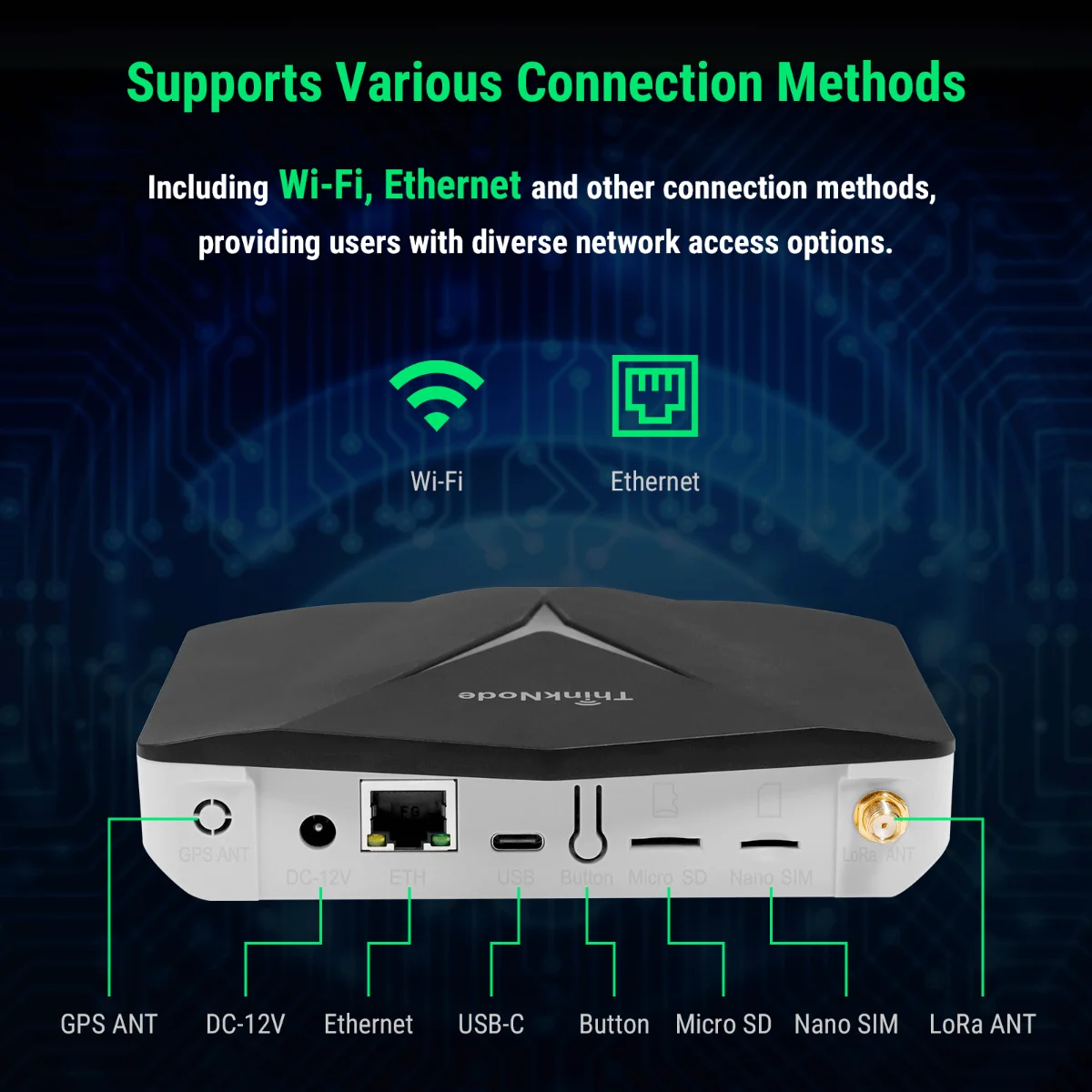

Supports Various Connection Methods

Including Wi-Fi, Ethernet and other connection methods, providing users with diverse network access options.

Powerful Signal Coverage

Provide 5 to 10 kilometers of LoRaWAN signal coverage.

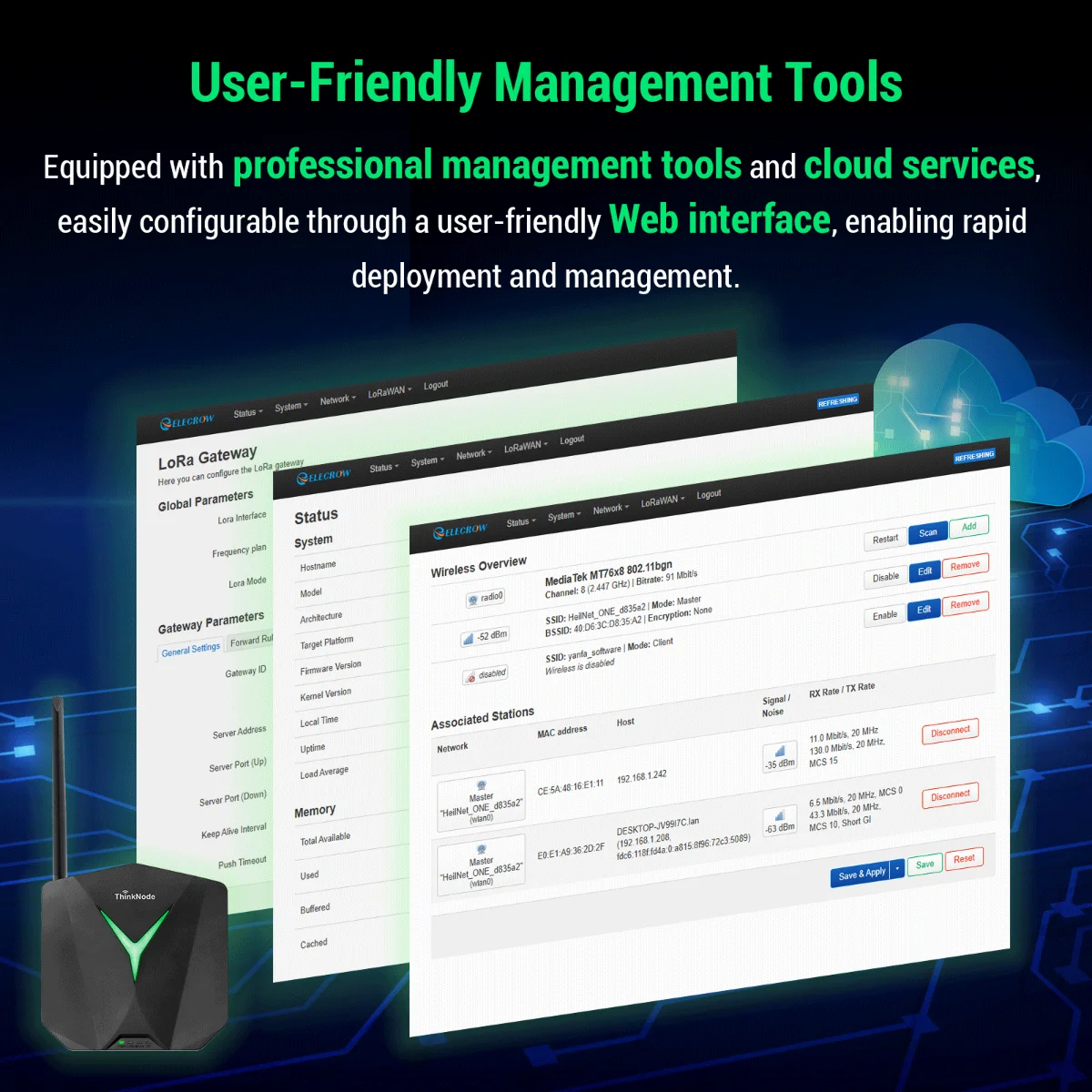

User-Friendly Management Tools

Equipped with professional management tools and cloud services, easily configurable through a user-friendly Web interface, enabling rapid deployment and management.

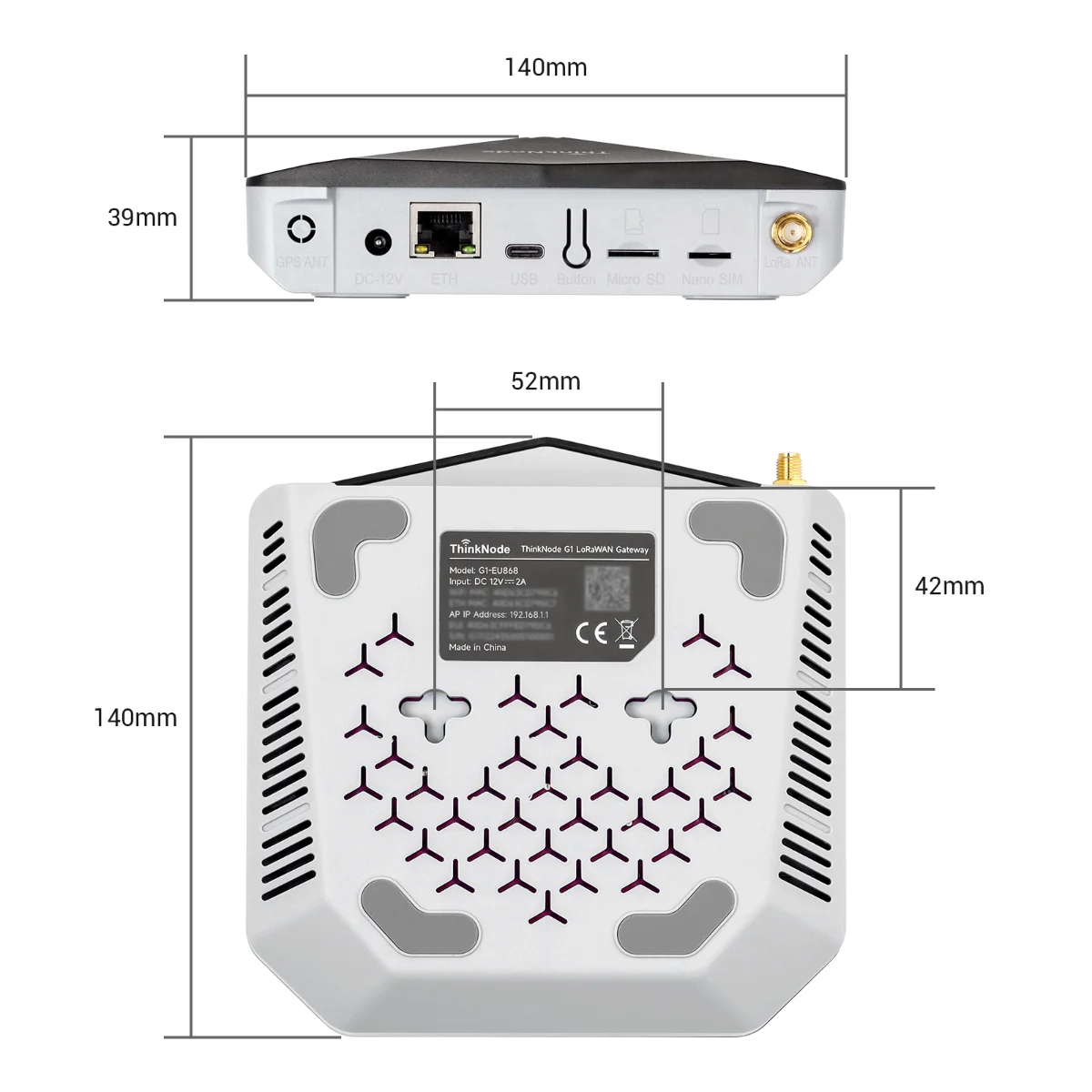

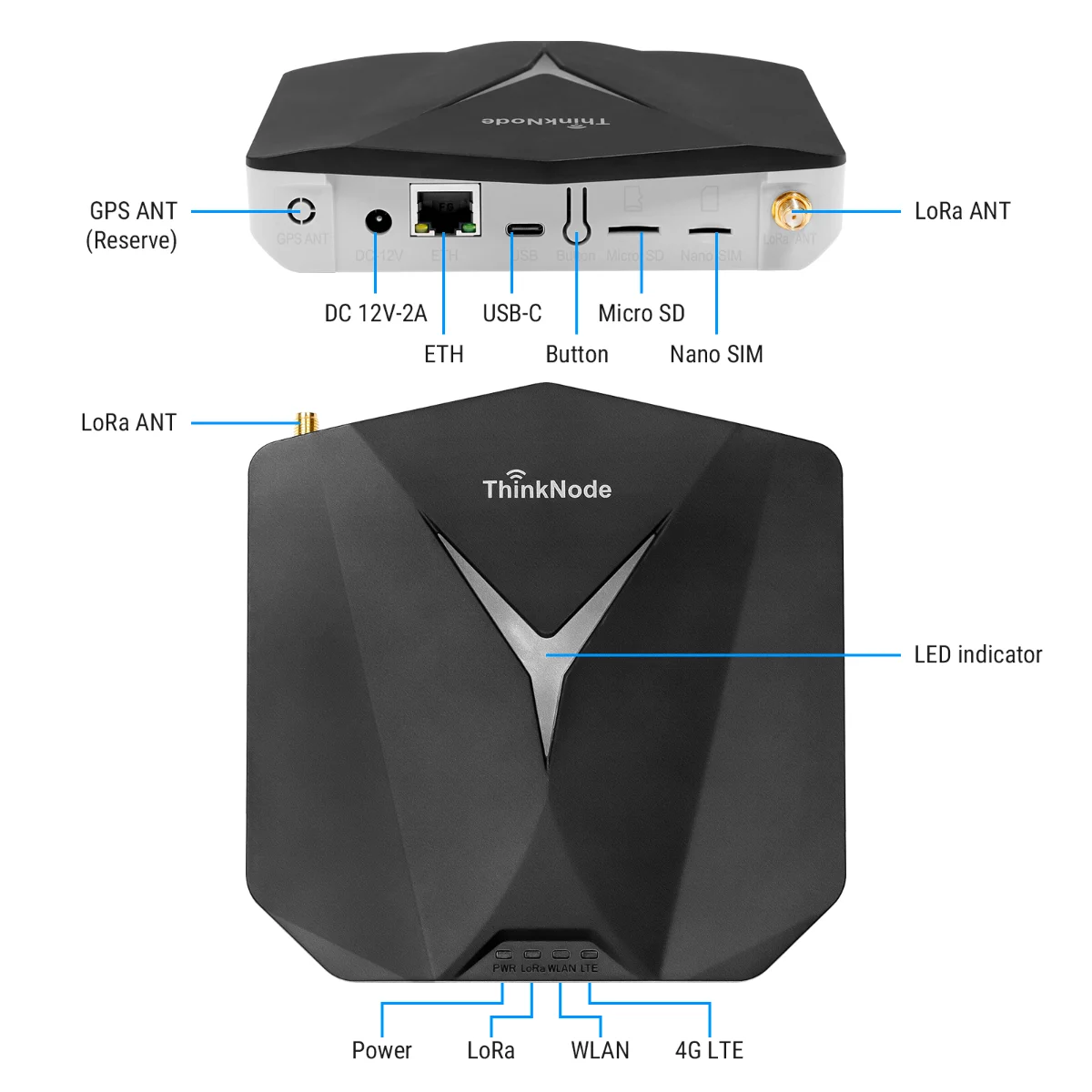

Interface Overview

Feature

Compatible with Various Network Servers. Equipped with advanced packet forwarding technology, it seamlessly supports multiple LoRaWAN network servers including The Things Network (TTN), ChirpStack, etc., offering flexible network service options.

Built-in Gateway Server. Provides a plug-and-play solution that simplifies the network deployment process and accelerates the implementation of IoT projects.

Extensive Signal Coverage. The G1 gateway offers 5 to 10 km of LoRaWAN signal coverage, ensuring efficient and stable data processing.

High-Performance Hardware. With a MediaTek MT7628 processor and Semtech SX1302 baseband chip, theThinkNode G1 gateway ensures efficient and stable data processing.

Supports Various Connection Methods. Including Wi-Fi, Ethernet and other connection methods, providing users with diverse network access options.

User-Friendly Management Tools. The G1 gateway is equipped with professional management tools and cloud services, allowing users to easily configure through an intuitive Web interface, achieving rapid deployment and management, and offering an out-of-the-box experience.

Application

* Smart Cities: Including smart lighting, traffic management, public safety surveillance, and environmental monitoring.

* Smart Agriculture: LoRaWAN gateways can collect data from soil moisture sensors, climate monitoring stations, and livestock tracking devices through LoRa nodes

* Industrial Internet of Things (IIoT): LoRaWAN gateways are used for remote monitoring of industrial equipment.

* Smart Buildings and Home Automation: LoRaWAN gateways can be integrated into smart home systems to control lighting, security systems, and energy management.

* Logistics and Supply Chain Management: LoRaWAN gateways are used for tracking cargo and assets.

* Smart Metering: LoRaWAN gateways are used for remote reading of electricity, water, and gas meters, enabling more accurate billing.

* Environmental Monitoring: LoRaWAN gateways collect air quality, water quality, and other environmental data to support environmental protection projects.

* Emergency Services and Disaster Response: LoRaWAN gateways can provide critical communication in emergencies, supporting disaster response and rescue operations.

* Consumer Applications: LoRaWAN gateways are also suitable for individual users, such as home security systems and health monitoring devices.

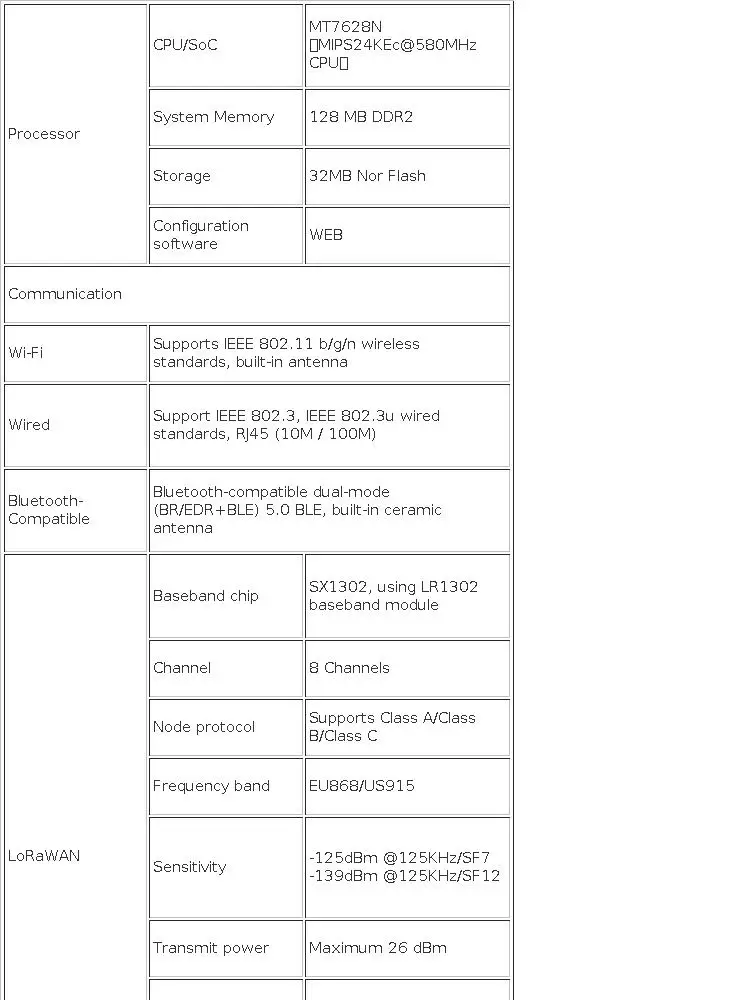

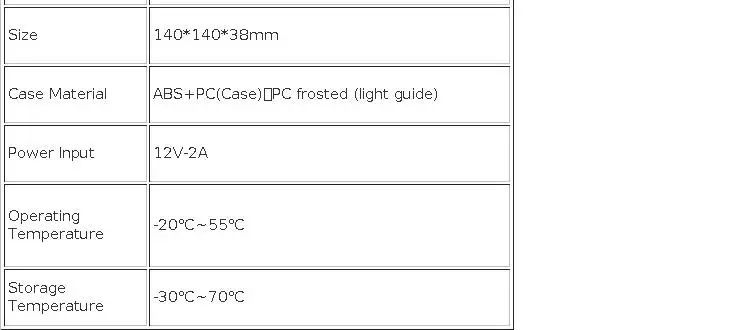

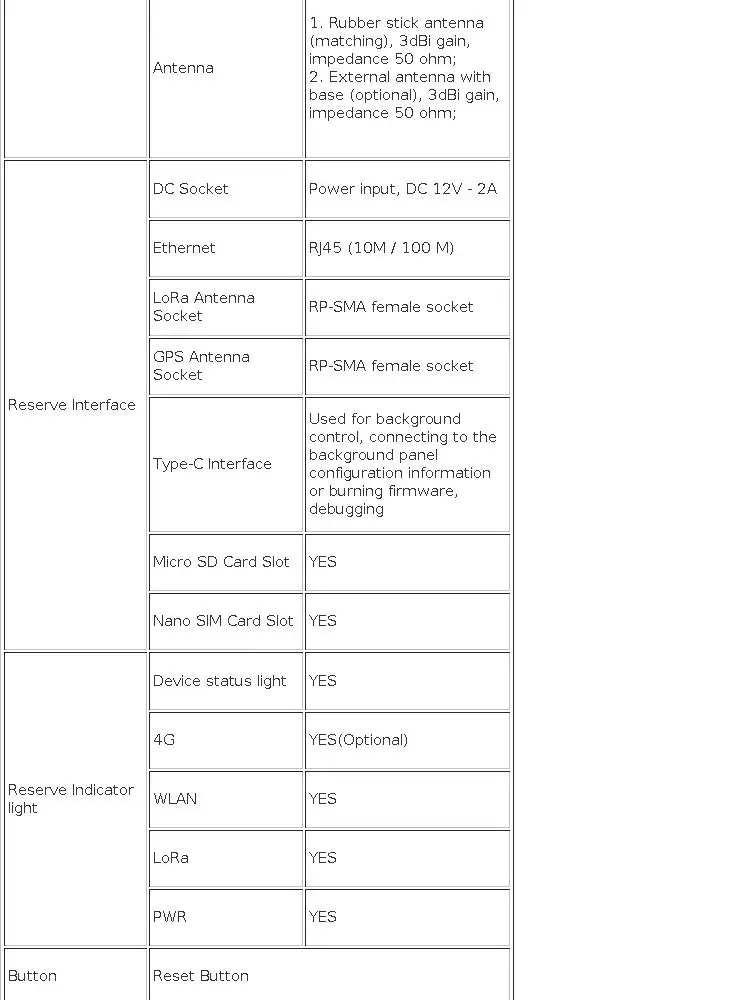

Specification

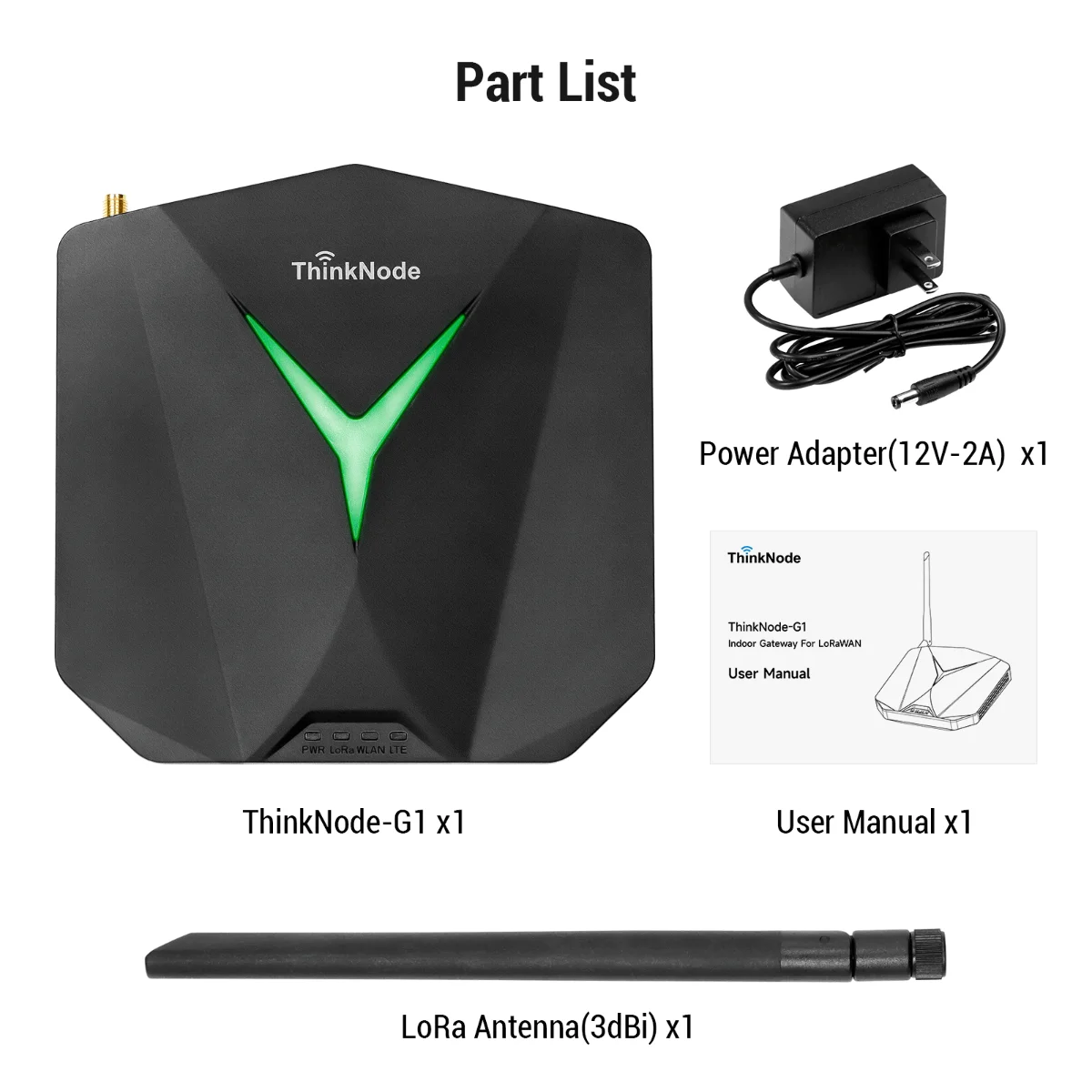

Package List

1x ThinkNode G1 LoRaWAN Indoor Gateway

1x Power adapter(12V-2A)

1x LoRa Antenna(3dBi)

1x User Manual
