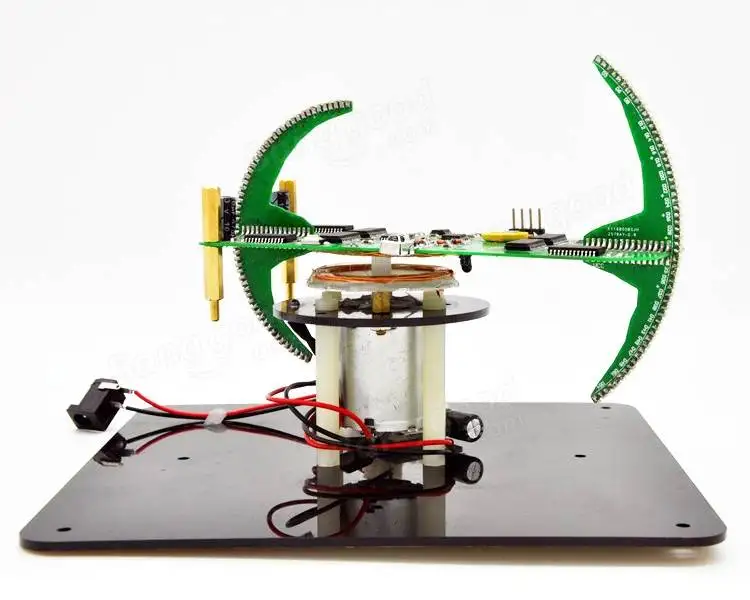

New DIY Spherical Rotating LED Kit POV Soldering Training Kit Upgraded Version

Type 1 DIY Spherical Rotating LED Kit

Features:

1, Flat + side of the text scrolling cycle: Can through remote control to pause the scrolling, can turn off flat panel display, leaving only the side of the display text. can be modified the text by PC software, flat panel display up to 240 English characters, side display up to 240 English characters.

2, The side of the digital clock, date (Month/Day) display + flat display text: Clock with backup battery, after power remains work, only this mode can be set time by remote control also can calibration time by software, setting time is very convenience!

3, Flat panel display digital clock + side display text: You can turn off or suspend the text displayed on the side!

4, Analog clock + side display text: You can turn off or suspend the text display on the side!

5, Flat table clock display + side display text: You can turn off or suspend the text display on the side!

6, Flat display picture + side display text: You can turn off or suspend the text displayed on the side! The default automatic switching picture, press the remote manually switch to convert pictures! Up to 21 images can be stored (Note: the picture more than 21 will be shows garbled)!

7, Flat display simple animation + side display text: You can turn off or suspend the text displayed on the side! Animation can support up to 29 pictures consisting of simple animation!

8, Flat Analog clock + side digital clock display

9, Memory mode (Note: only one in the eight kinds of modes)!

Note: This is a DIY kit, you need to have some electronic knowledge and ability. SMD is unsoldered!!

Instruction download: https://copy.com/w4SBKVri7F8faaF9

Recommended download and read the instructions first before buying, in order to ensure that you can use

Package includes:

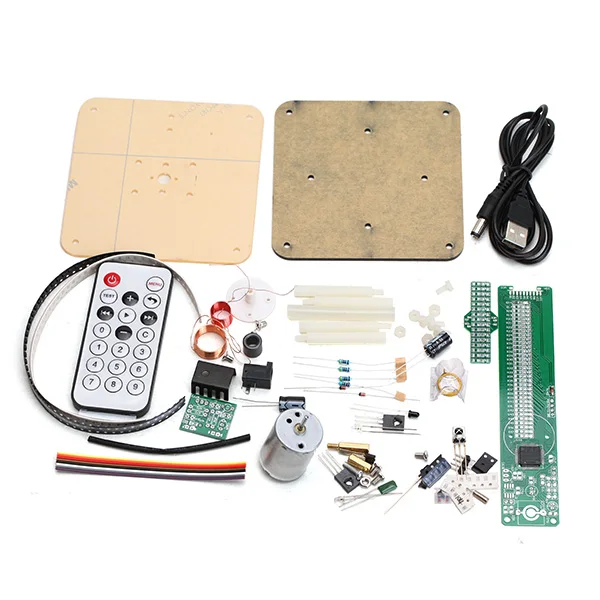

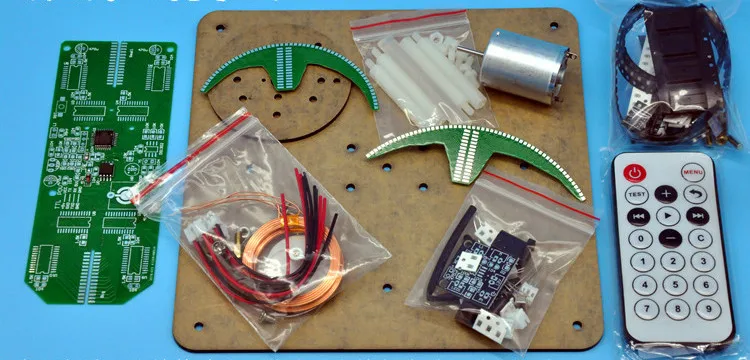

1 x DIY Rotating LED Kit

Type 2 DIY Spherical Rotating LED Kit

2, the clock and date display: with the backup battery, power down is still maintained after walking, can also change the word through the software calibration time by remote control to set the time, time is on set!

3, picture display: continuous scrolling display pictures, can display static images! Through the remote control mode selection. Picture width must be 64 pixels, 10-200 pixels can be long.

4, what is the memory mode before power mode, the next power is still the mode (Note: only one of the above 3 models).

This suite of standard data: principle diagram (PDF format), The list of components (PDF format), chip data (PDF format), PC software, HEX download. Note: the HEX file and the PC software is encrypted, and only when the MCU supporting the use of purchase.Only the first successful data sent to use, please take good care of, will not be replaced.If the information is lost or damaged can only be sent back to decode the encrypted object.

We are not to provide source program,But in order to ensure the open source suite of this store for lovers Provide a separate program function of the program and the comprehensive effect is realized through changing the microcontroller source program to modify the display content!The program key notes, must have the ability to understand and change the word!This shop does not provide procedures and the principle of guidance and interpretation service!

Type 3 DIY Spherical Rotating LED Kit

Description:

Part of rotary plate are using high-power wireless power supply, rotating noise greatly reduced.

System power supply voltage 12V2A (please use your own power), rotating motherboard using STM8S105K4T6 single-chip control, plug-in 8 Mbit flash storage text, pictures, animation!

Through the host computer software to send text, pictures, animation, calibration time, PC software support Chinese and English input.

Clock chip using DS1302 with backup battery, support the remote control to adjust the time. Remote control switch a variety of display modes, to provide some open source C program, suitable for learning purposes.

Note:

This is a DIY kit, you need to have some electronic knowledge and ability. SMD is unsoldered!!

The kit has certain difficulty, please buy according to your own situation.

Dual axis of each 56 LEDs display.

Motor speed is high, no shell, please be careful to use!

Red light / blue light can be soldered according to personal preferences in the inner and outer ring.

Hardware parameters (error 2mm):

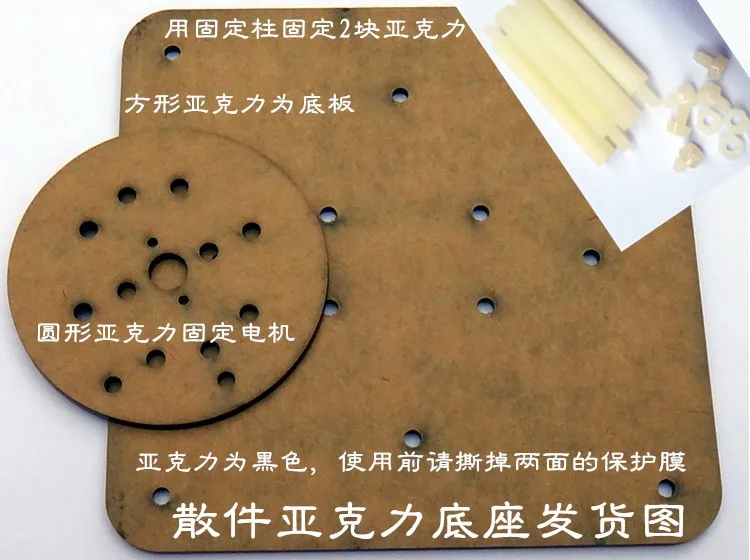

Acrylic board: 16.2 * 16.2cm

Main control board: 12.5 * 4.8cm

Side panel: 9cm high / 7.5cm high

Finished product reference height: 11cm

Package includes:

1 x DIY Spherical Rotating LED Kit (battery not included)
