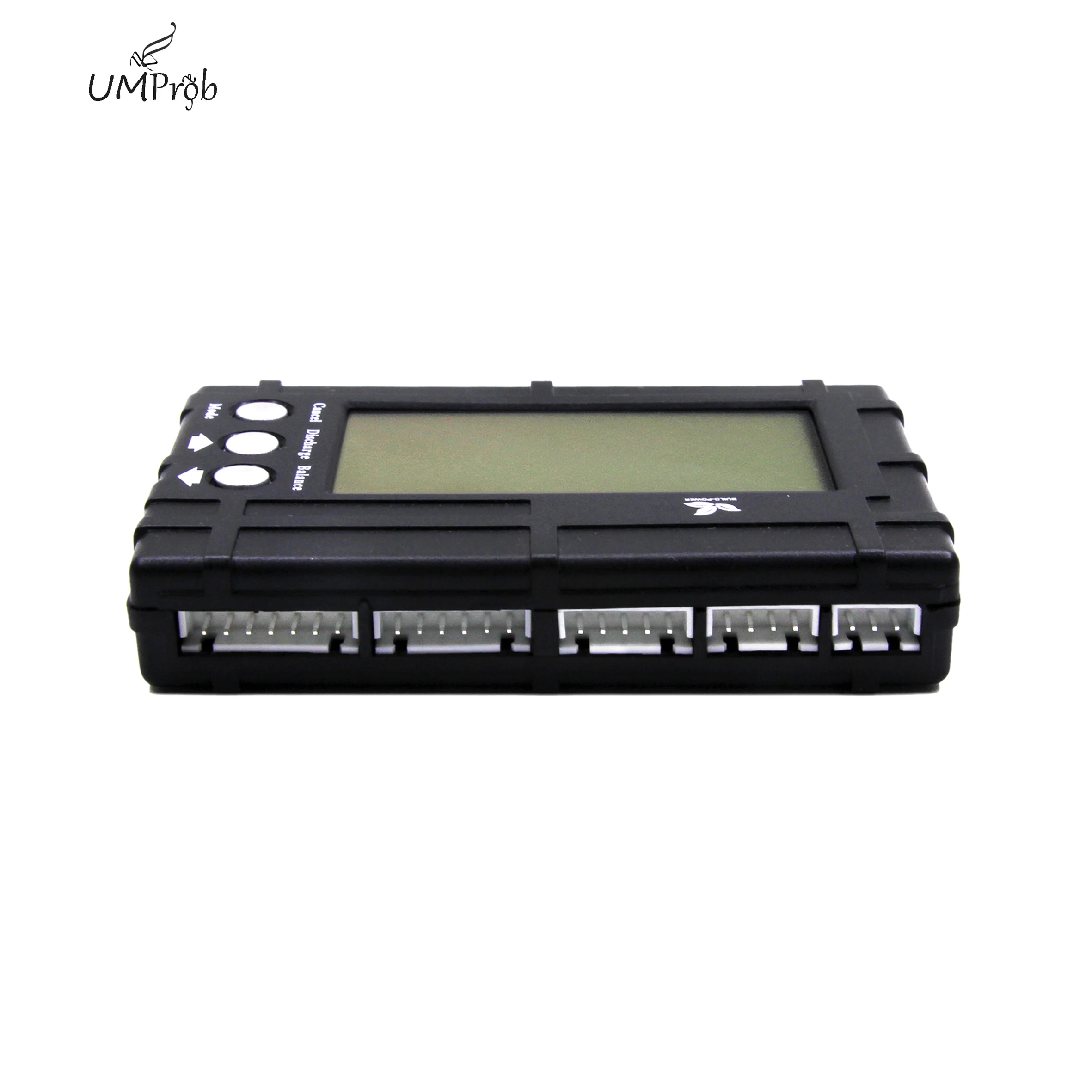

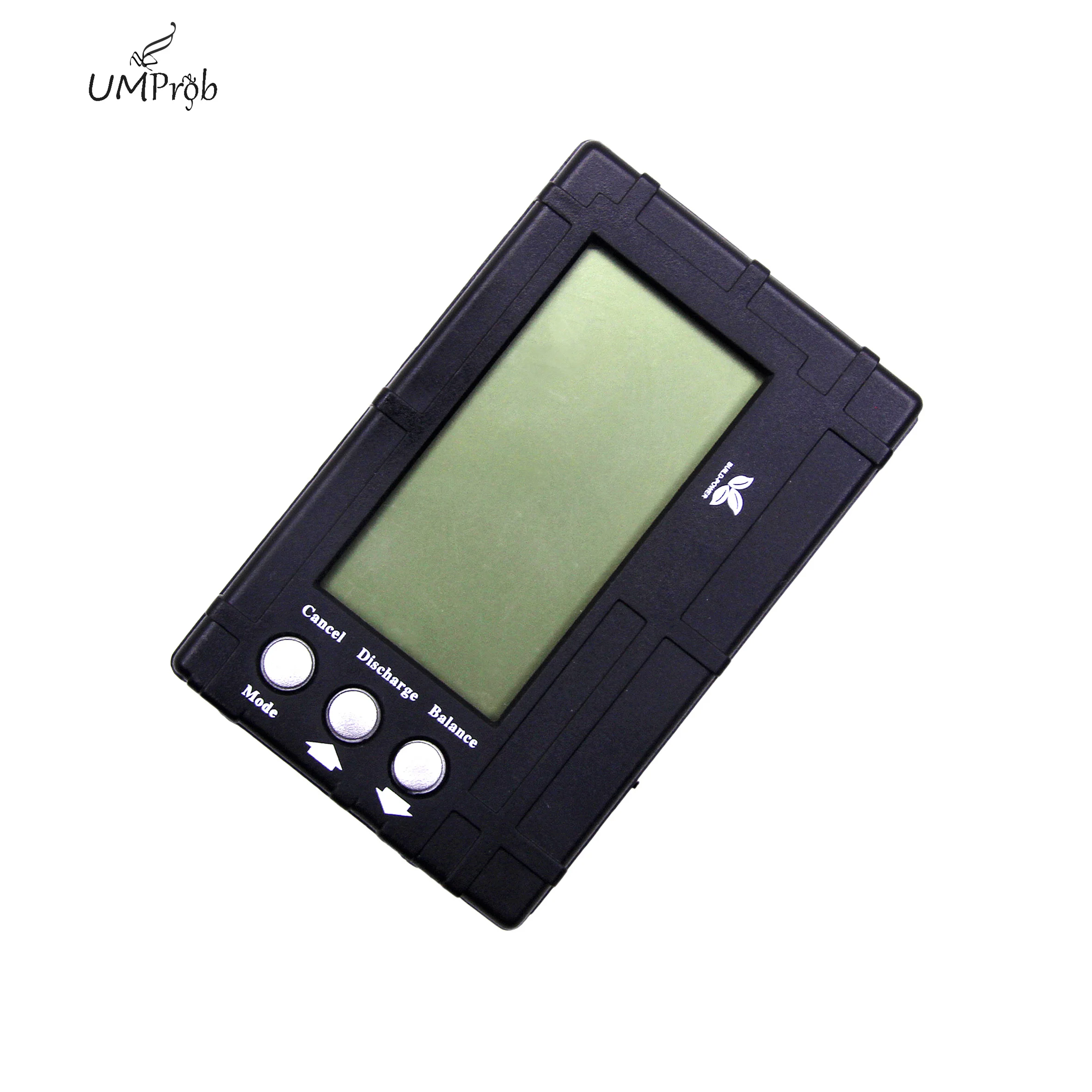

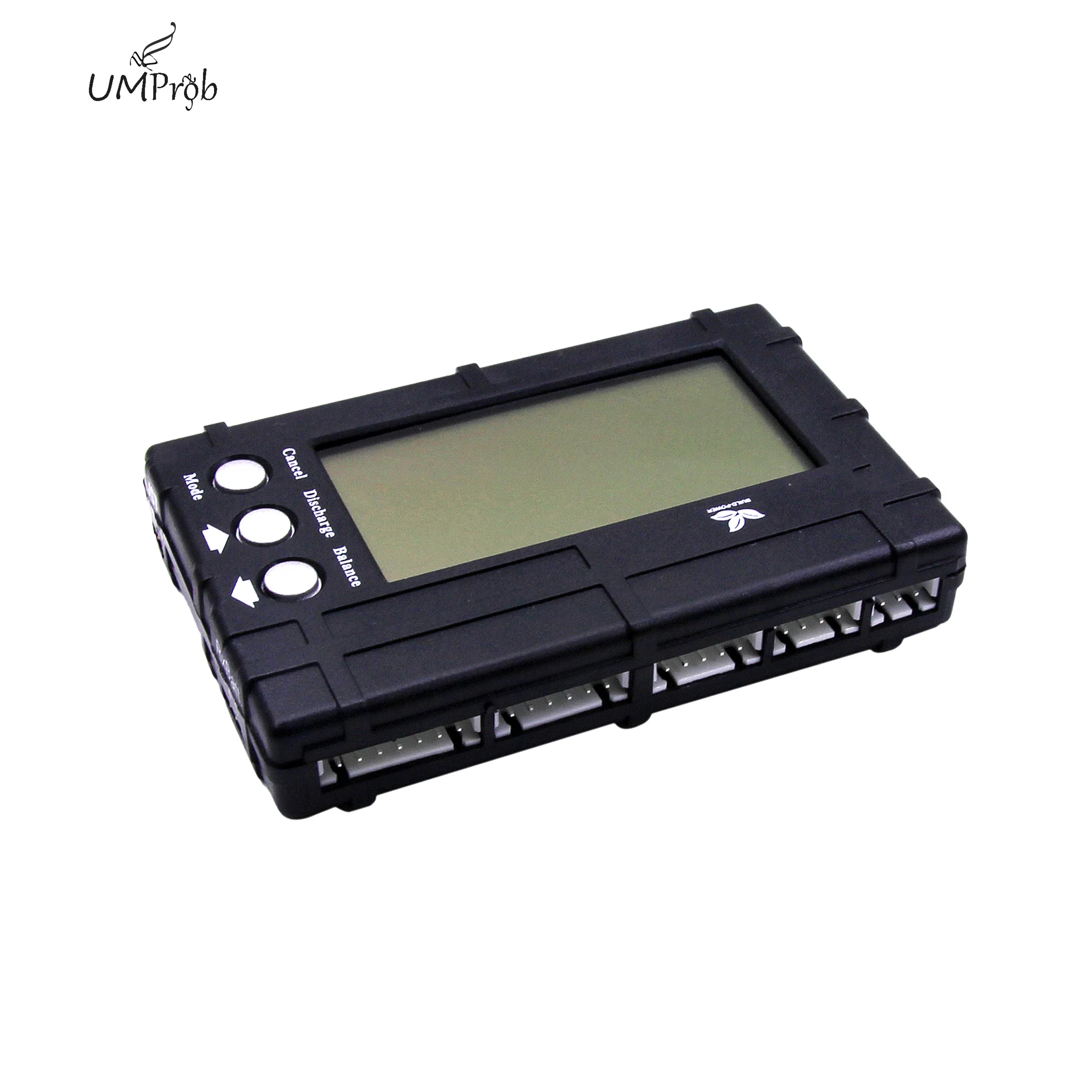

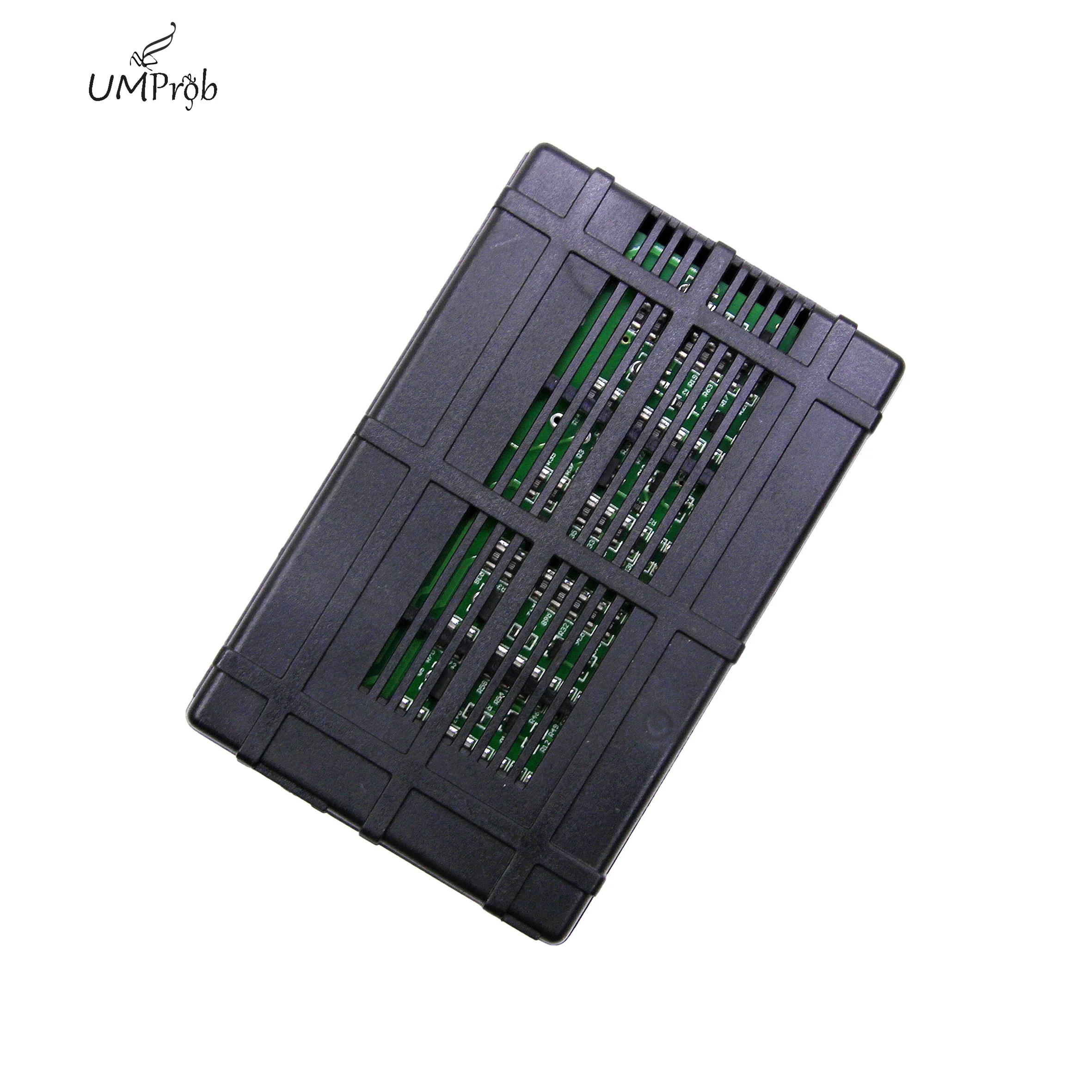

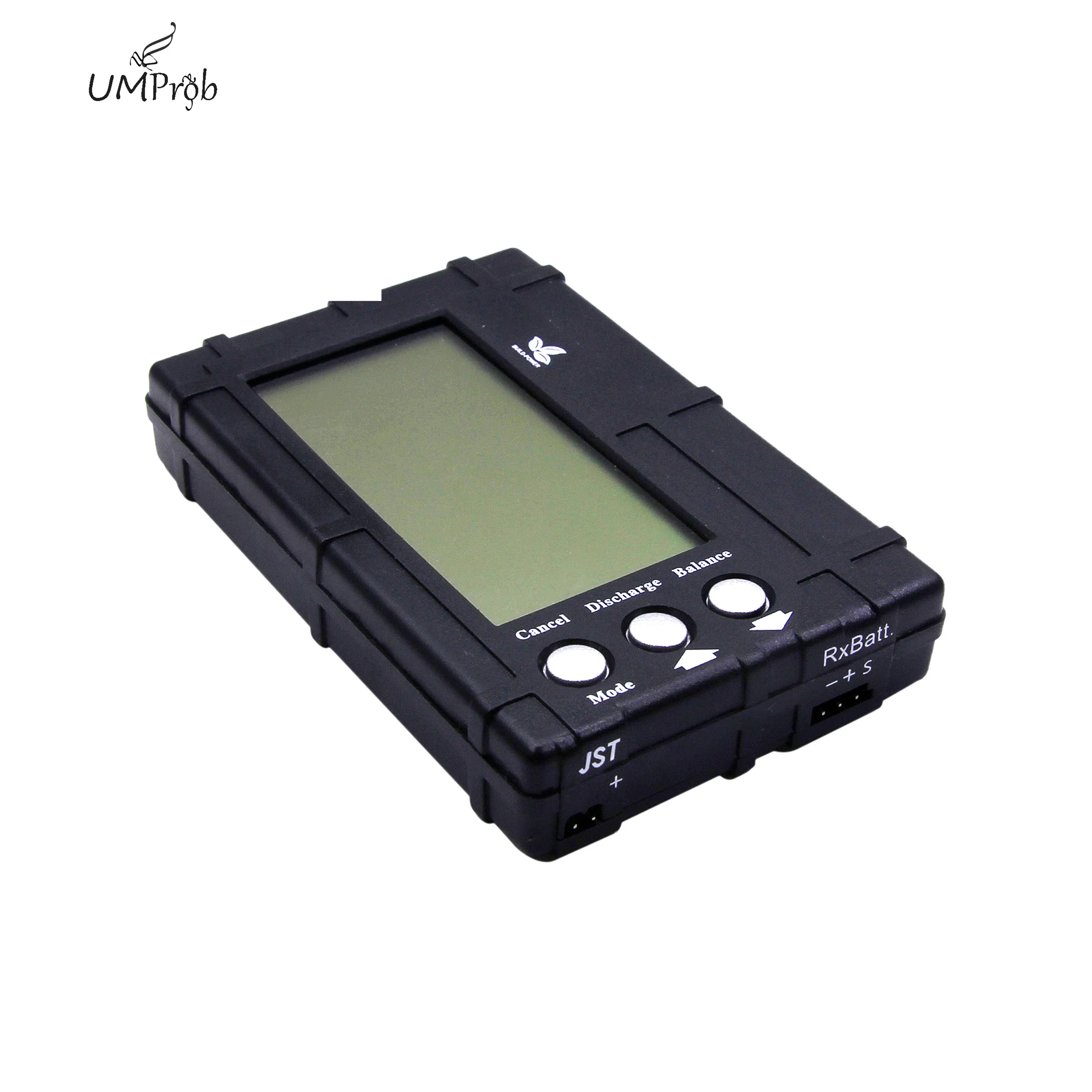

High Precision Electronic Display Three in One 2-6S Lithium Battery Balancer, Voltage Display, Discharge Device Balancer

The three in one battery balanced display uses a large LCD screen, which can simultaneously display the voltage values of up to six lithium batteries. Specially designed for polymer lithium batteries and lithium iron phosphate batteries, it accurately measures the overall voltage and individual voltage of the battery, performs balancing operations on multiple series connected batteries, and can discharge the battery to facilitate long-term storage and avoid battery damage. The balance function of the three in one battery balance display allows the battery to perform a balance function before and after charging or using (discharging)

[Product Specifications]

Supported battery types: Li Po/Li Fe 2-6 cells

(Using a voltage divider for nominal voltages ranging from 7.4V to 22.2V)

Receiver battery: 1.2V~8.5V DC

(Not limited to battery type, but requires external connection of 7.4V to 11.1V, using JST connector)

Balance voltage setting range (lower limit): 2.0V~3.9V (default 3.3V)

Discharge voltage setting range (lower limit): 3.0V~4.2V (default 3.9V)

Discharge current (4.0V/Cell): Approximately 450mA Product features
