Canalyst-II Pro Can Bus Adapter Bus Analysis Can Bus Data Logger USB to CAN USBCAN

Features:
·USB to CAN bus protocol conversion;
·Equipped with 2 CAN interfaces, both high-speed CAN;
·USB interface supports USB 3.0, USB 2.0, and is backward compatible with USB 1.1;
·Supports CAN 2.0A/B, standard frames, and extended frames; supports data frame and remote frame formats;
·Bidirectional transmission support for CAN transmission and reception;
·Programmable baud rate from 10Kbps to 1Mbps, configurable via software;
·Dual CAN bus interfaces employ high-speed magnetic coupling isolation and dual-isolated DC-DC power supplies;
Full three-terminal isolation (isolation between USB bus and each CAN bus, complete isolation between CAN1 and CAN2);
·Isolation voltage rating: 3000V;
·CAN1 channel incorporates a GDT ceramic discharge tube for effective surge current dissipation;
·Built-in common-mode chokes/inductors on both CAN channels suppress common-mode interference, significantly enhancing immunity;
·Supports relay and transparent transmission functions with 3000V isolation between CAN1 and CAN2;
·Throughput: Each CAN channel (when operating simultaneously) achieves 8500 frames/s for reception and 8500 frames/s for transmission;
(Simultaneous reception of 8500 frames/s on both channels enables USB speeds up to 17000 frames/s without frame loss);
·Directly powered by USB bus, no external power supply required;
·Operating temperature: -40°C to 85°C;
·Enclosure dimensions: 104*70*25mm;
·Product compatibility: Function library compatible with Guangzhou ZLG/ZhiYuan Electronics ZLG-USBCAN interface adapters;
·System support: Standard version supports Win11/Win10/Win8/Win7/XP (64-bit/32-bit);
Linux version supports Win11/Win10/Win8/Win7/XP (64-bit/32-bit) + Linux (64-bit/32-bit)
·CAN Terminal: 2EDG-5.08-6P, Pitch: 5.08mm;

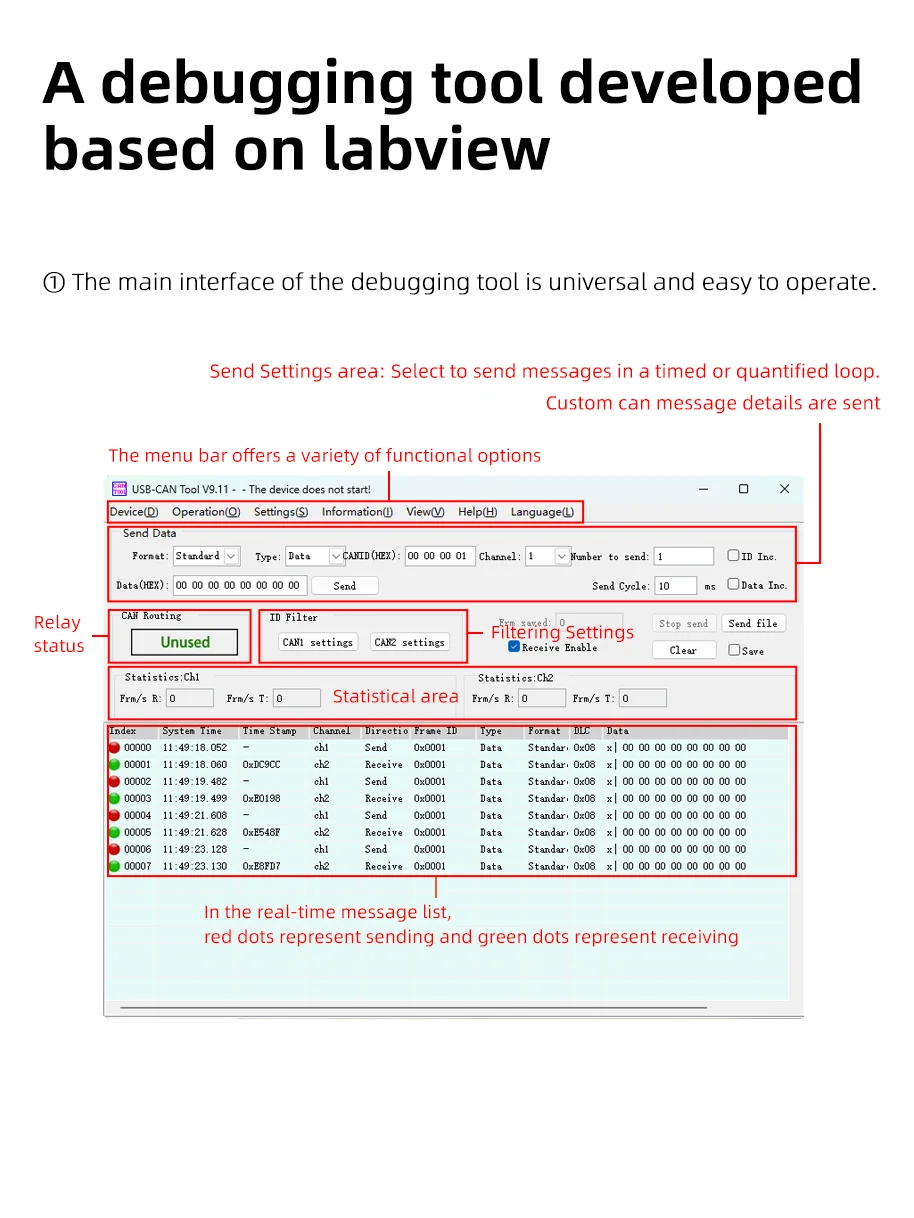

The provided USB_CAN Tool software enables direct configuration, transmission, and reception of CAN bus data.
Users may also reference the supplied DLL dynamic link libraries and sample code for VC/VB to develop custom applications, facilitating the creation of CAN system software products.
During secondary software development, you need not understand complex USB interface communication protocols.

Interfaces:
1. System indicator: LED indicator
2. USB-B port: Powered directly by USB bus, no external power supply required
3. CAN1 channel: Baud rate 10k-1M
4. CAN2 channel: Baud rate 10k-1M

Accessory List：
1. CAN Analyzer Standard (Red) 1 unit
2. USB Communication Cable 1 piece
3. DuPont Wires 4 pieces
4. Flathead Screwdriver 1 piece
