8*16 LED Matrix Display Module – I2C Interface, 3.3V~5V For Arduino, Micro:bit & Raspberry Pi DIY Projects
13.58$
6.78$
Quantity:
1
Availability:
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Product description

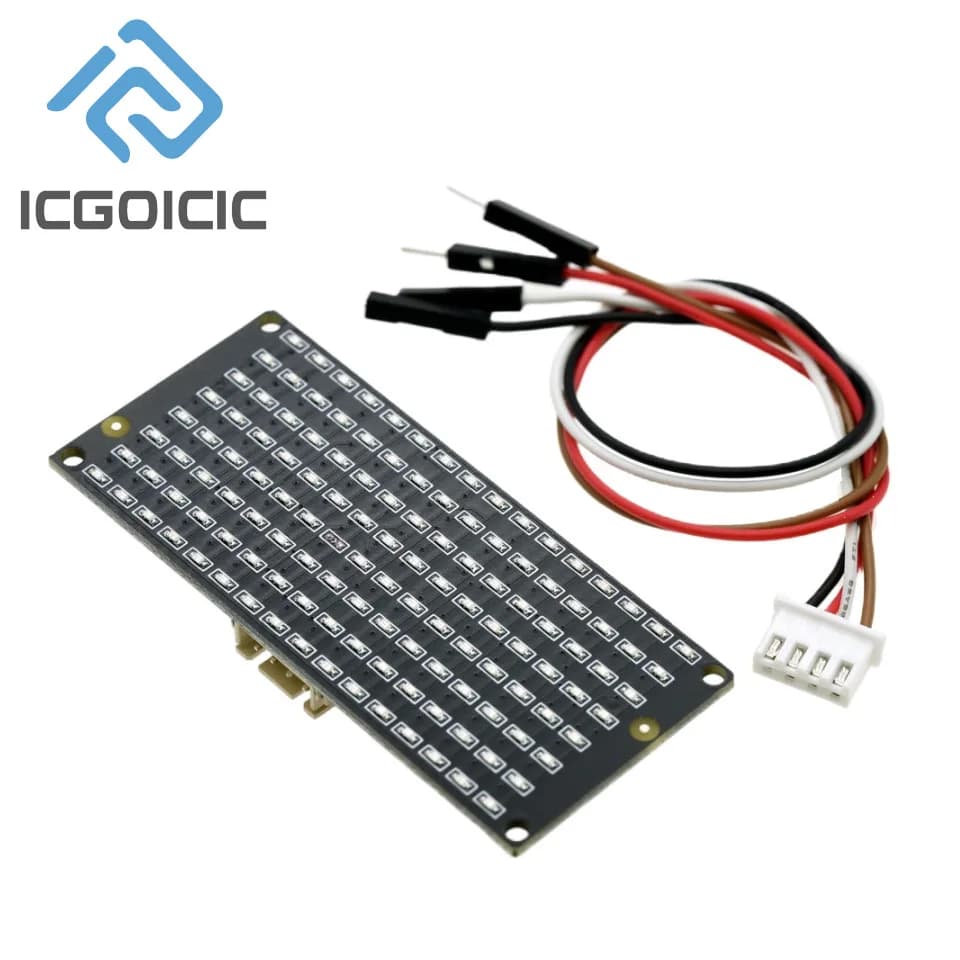

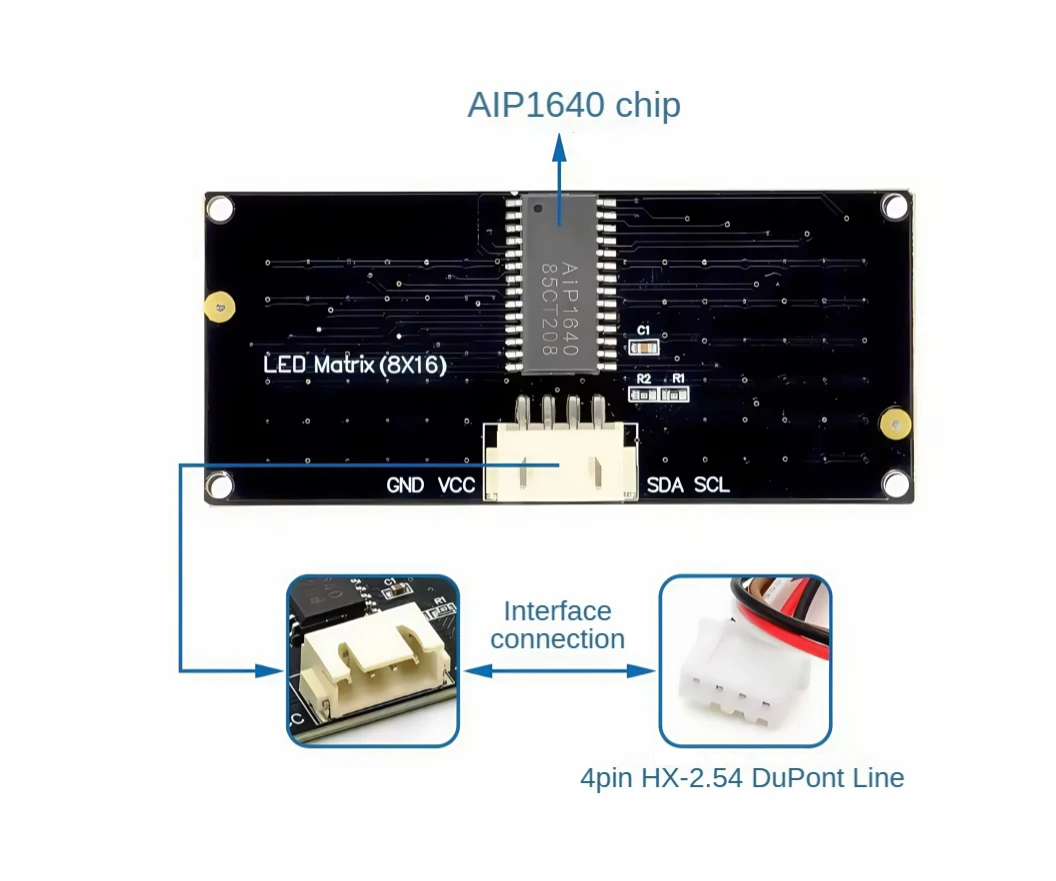

The 8x16 LED light board comes with 128 leds and is equipped with an AIP1640 chip. We can conduct I2C communication between the single-chip microcomputer and this module. By controlling the AIP1640 chip, we can control the on and off of 128 leds on the module, thereby allowing the dot matrix on the module to display the patterns you need. For the convenience of wiring, we also deliver an HX-2.54 4-pin wiring.
Product parameters
Product Name: 8x16 LED Light Board
Driving current: 200mA
Working voltage: DC3.3-5V
Operating temperature: -40 to 80℃
Power loss: 400mW
Communication method: 12C communication
Oscillation frequency: 450KHz

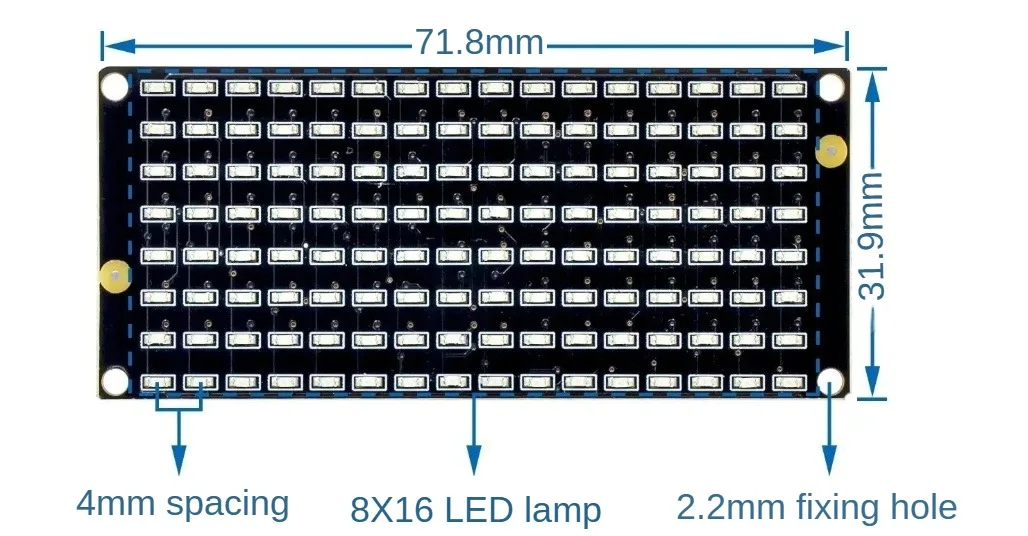

Dimension drawing
