QOTOM Mini PC Q30600PV Intel i7 7500U i5 7200U i3 7100U 3865U Dual LAN 2 COM VGA Industrial Computer Win10 Linux

Note:Shipment&Customs Clearance

Note:Shipment&Customs Clearance1. DHL / FedEx/UPS Express to most of countries
​5~7 days to most of countries.
​​
1. About Shipment:
All packages are shipped from China mainland, the consignee is responsible for completing customs clearance and promptly paying any applicable import charges, including duties, VAT, and other related fees, please pay attention to shipment.
​
2. Invoice
​If you have special requirements on invoice, please leave message.
​If you need invoice (PDF), please provide an email address.

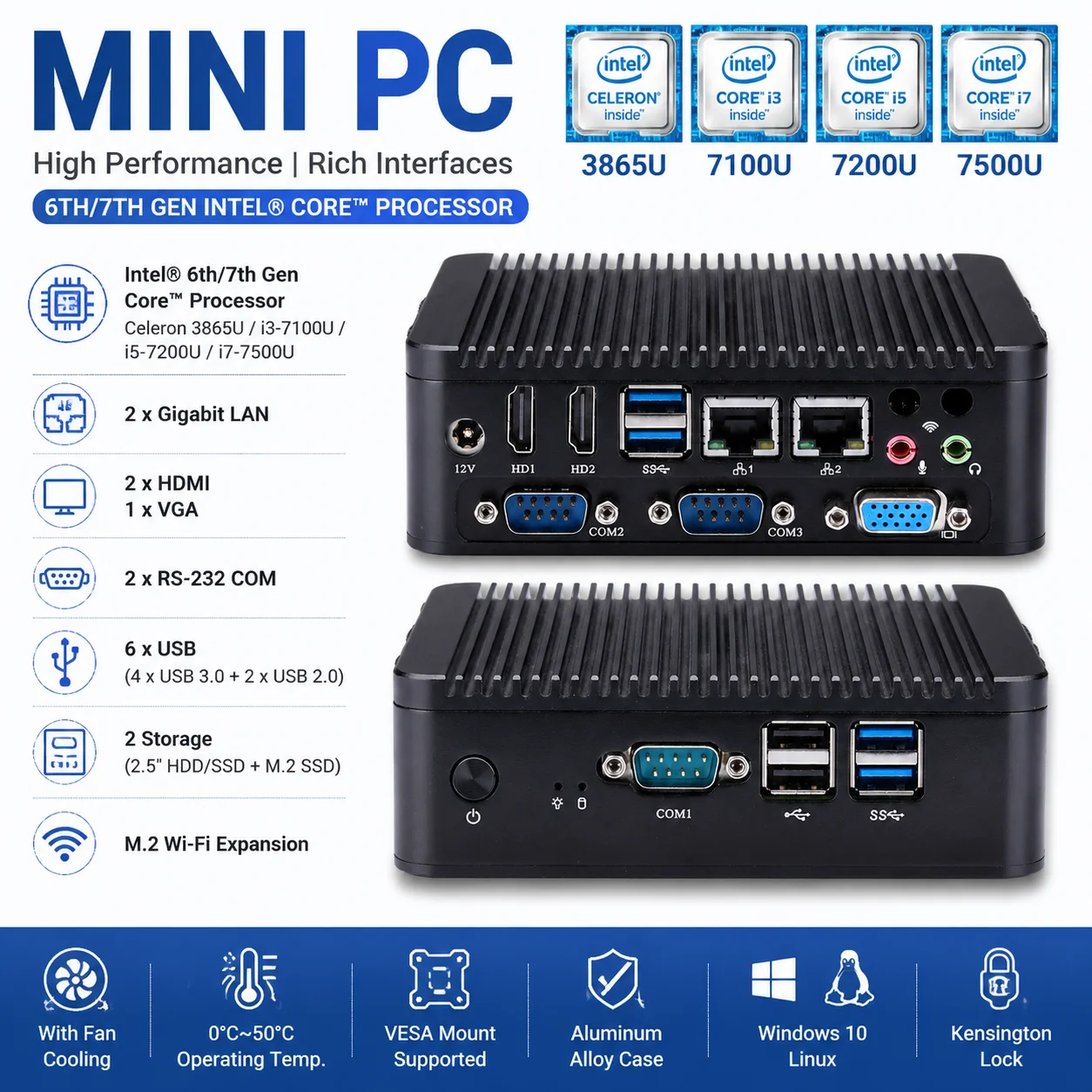

Qotom Q30600PV Series

• Q30711PV CPU: Intel® Celeron® Processor 3865U,2M Cache, 1.80 GHz,15W
• Q30731PV CPU: Intel® Core™ i3-7100U Processor,3M Cache, 2.40 GHz,15W
• Q30751PV CPU:Intel® Core™ i5-7200U Processor,3M Cache, 2.5GHz,up to 3.10 GHz,15W
• Q30771PV CPU:Intel® Core™ i7-7500U Processor,4M Cache, 2.7GHz,up to 3.50 GHz,15W

• 1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
• 1 × 2.5-inch HDD/SSD,1 × M.2 S lot for SSD (M key, Type:2280)
• 2 × Realtek Gigabit LAN
• 2 × HD Video, 1 × VGA
• 3 x RS232
• Support multiple Operating System
• One year warranty

Rear I/O

1 x DC Jack
2 × HD Video, 1 × VGA
2 × Realtek Gigabit LAN
2 × USB 3.0
1 × Mic-in, 1 × Line-out
2 × RS-232

Front I/O

1 x Power Button
1 x Power LED, 1 x HDD LED
2 x USB3.0,2 x USB2.0
1 x RS-232 Port

Expansion

1 × M.2 for SSD (M key, Type:2280)
1 × M.2 for Wi-Fi (E key, Type: 2230)
1 x AutoStart Jumper(1 x 3Pin, Pitch 2.54mm)
1 x CMOS Clear Jumper(1 x 3Pin, Pitch 2.0mm)
1 x GPIO(2 x 5Pin, Pitch 2.0mm)

LOGO and OEM

LOGO printing is free.Just provide your logo documenboot logo: JPG version, black background,and resolution 800*600

Sliver logo for printing: White background,and ORIGINAL logo documents in PDF version.

BIOS

You can ask for changing BIOS settings such as Wake on lan,Restore from AC power Loss when you place order.
Press "delete" key, you can enter the BIOS

Operating System

Mini PC supports Windows 10, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.

Preload Windows 10(Unactivated) for test. Buyer can reinstall OS.

F11 key boot from USB Drive. Delete key enter BIOS.

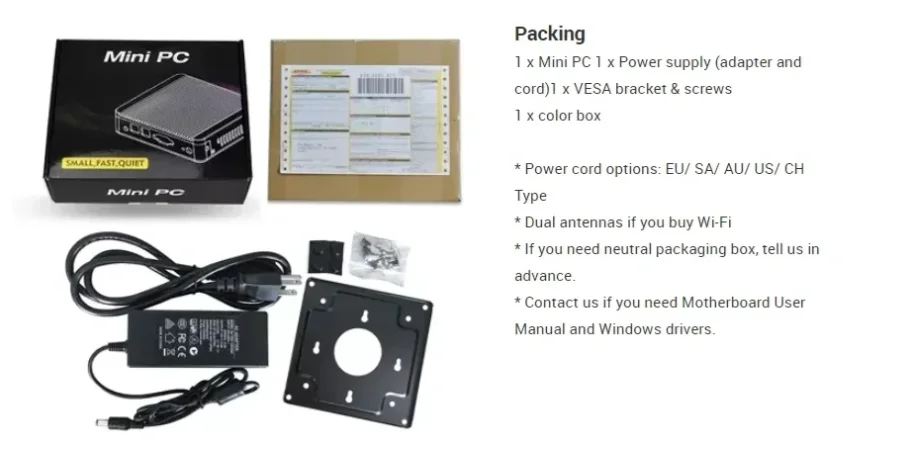

Packing & Delivery

Item Size: 134 × 127 × 46mm
Packaging Size: 261 × 218 × 75mm
