Partaker Mini PC Intel Core I5 1235U I7 1255U DDR5 RAM 4 x LAN TPM2.0 2 x DP 12~24V DC RS485 GPIO AGV AMR Industrial Compter IPC

Compact 12th Gen Core I7 Industry Mini PC Dual DDR5 4 LAN For AGV AMR

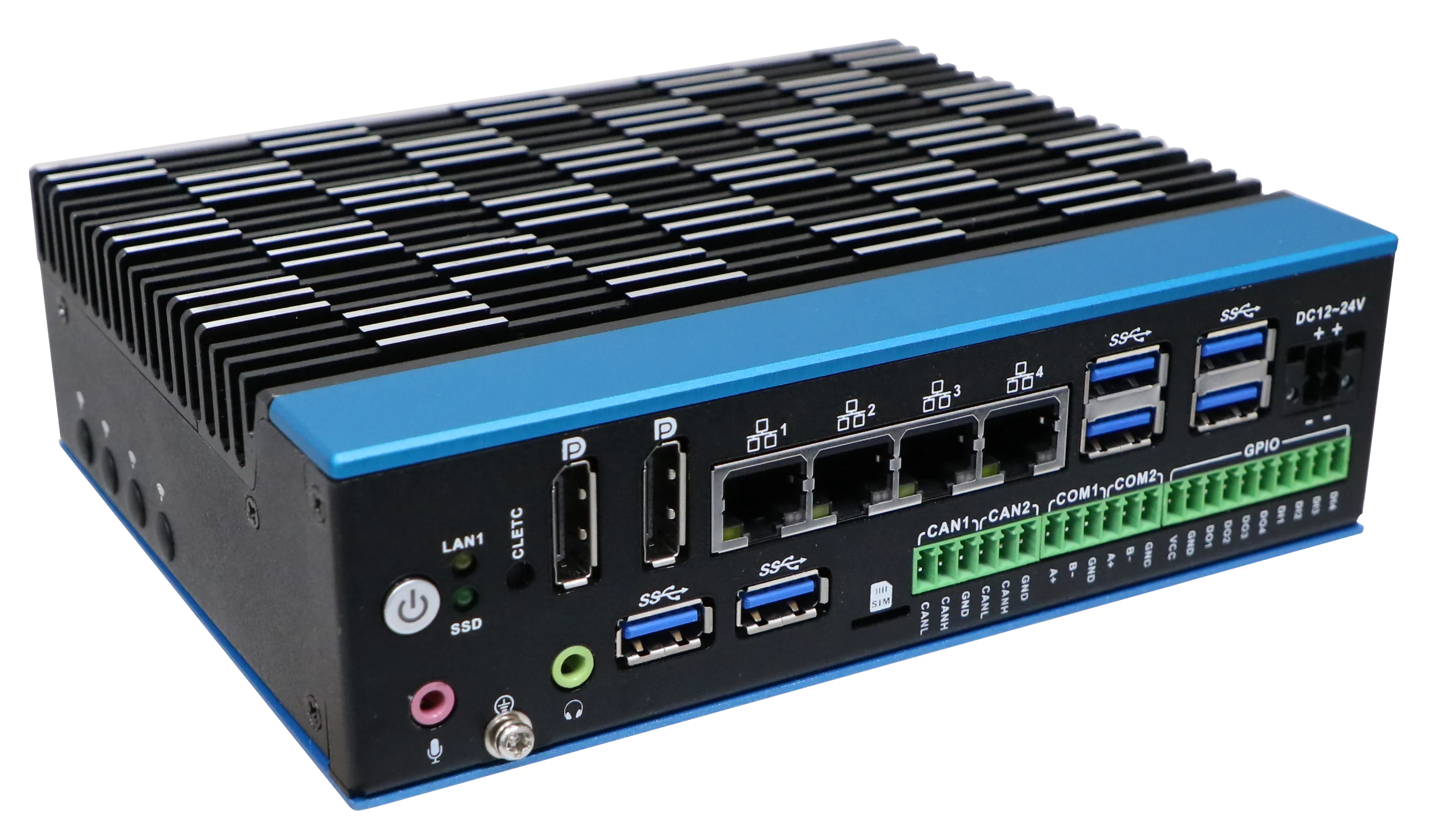

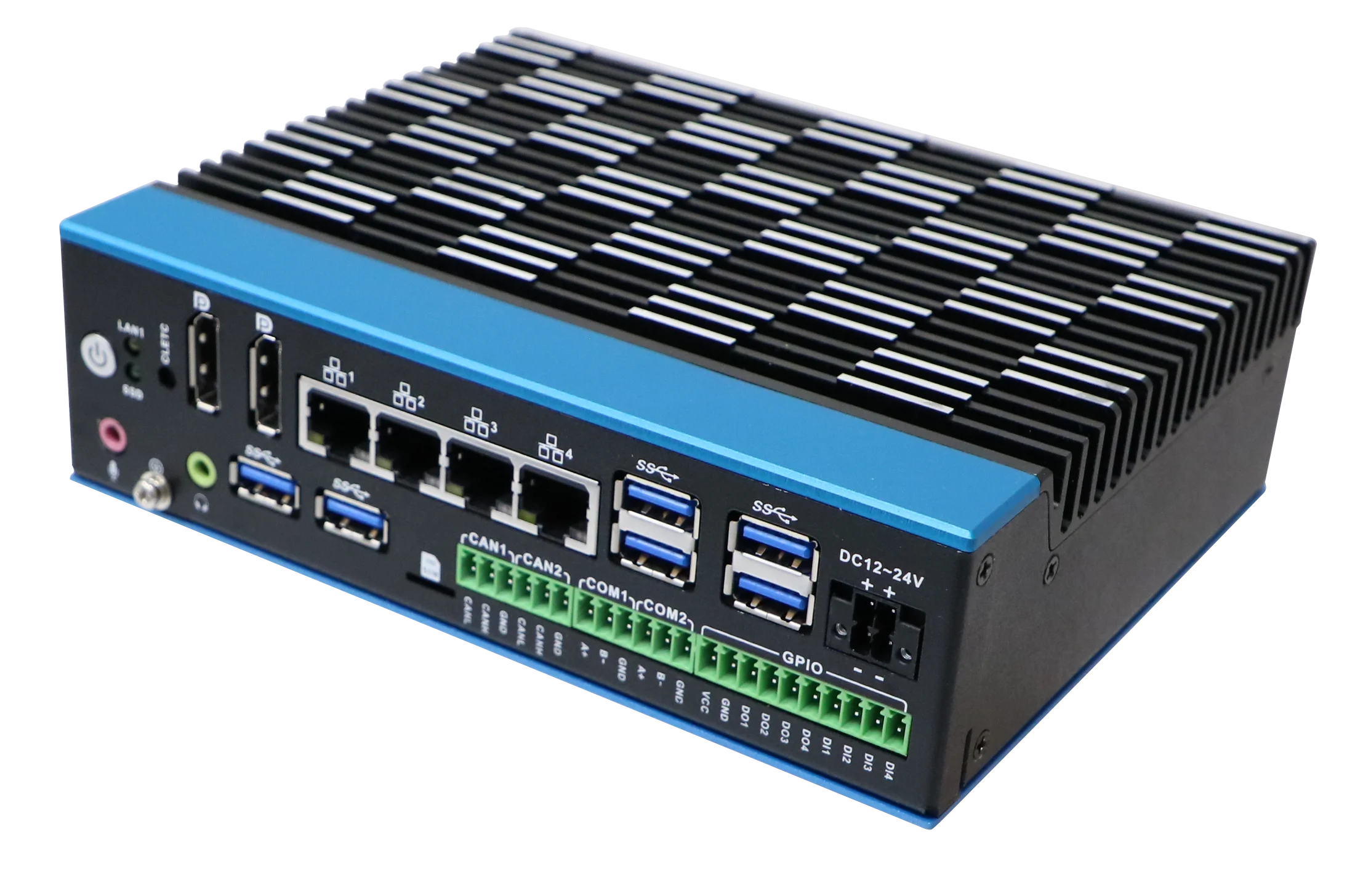

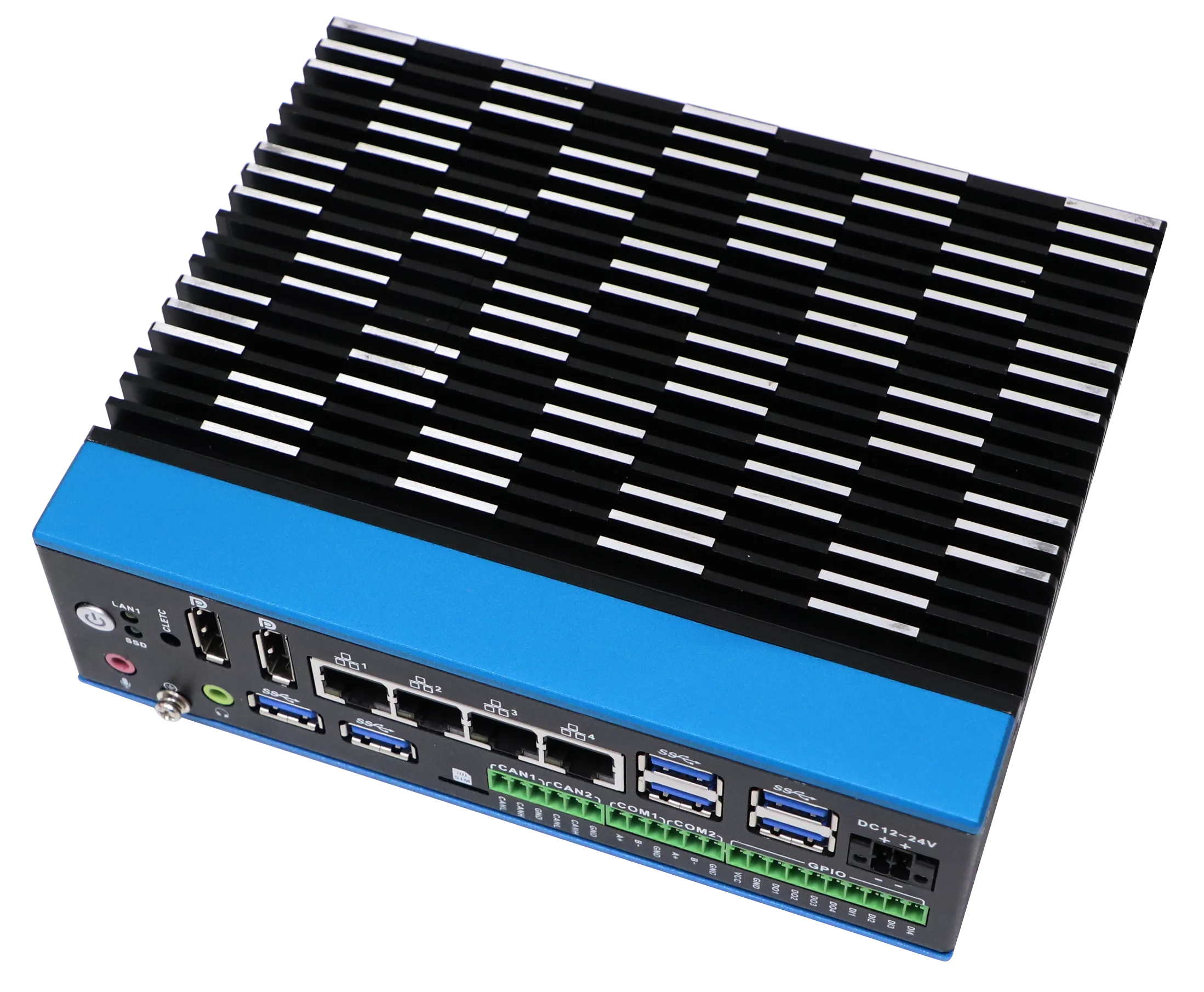

The I37 Industry Mini PC is a high-performance industrial controller powered by 12th Gen Intel Alder Lake U-Series 10-core processors (i5-1235U / i7-1255U), specifically engineered for AGV and AMR applications. Featuring an all-aluminum alloy structure with optional fanless thermal design, this ultra-slim mini PC delivers robust computing power in space-constrained environments.

It supports dual DDR5 4800MHz memory up to 64GB, multiple storage options (M.2 NVMe/SATA and MSATA), extensive expansion slots (Mini PCIe and M.2 B-key for 4G/5G), and rich I/O including 4x Intel Gigabit LAN (with vPro support), 6x USB 3.0 (2 with anti-backflow protection), 2x isolated RS485, 8x isolated GPIO, and optional 2x isolated CAN. With wide voltage input (12V-24V), wide operating temperature (-20℃ to +60℃), and TPM2.0 security, the I37 Industry Mini PC is a reliable backbone for industrial automation, logistics, and smart manufacturing.

Key Features

12th Gen Intel Alder Lake U-Series 10-core processors (i5-1235U / i7-1255U)

Ultra-slim mini size, single-sided multi-interface for compact space installation

2 x DDR5 4800MHz SODIMM slots, up to 64GB

2 x M.2 slots + 3 x Mini PCIe - supports M.2 SSD, MSATA, WiFi, 4G/5G simultaneously

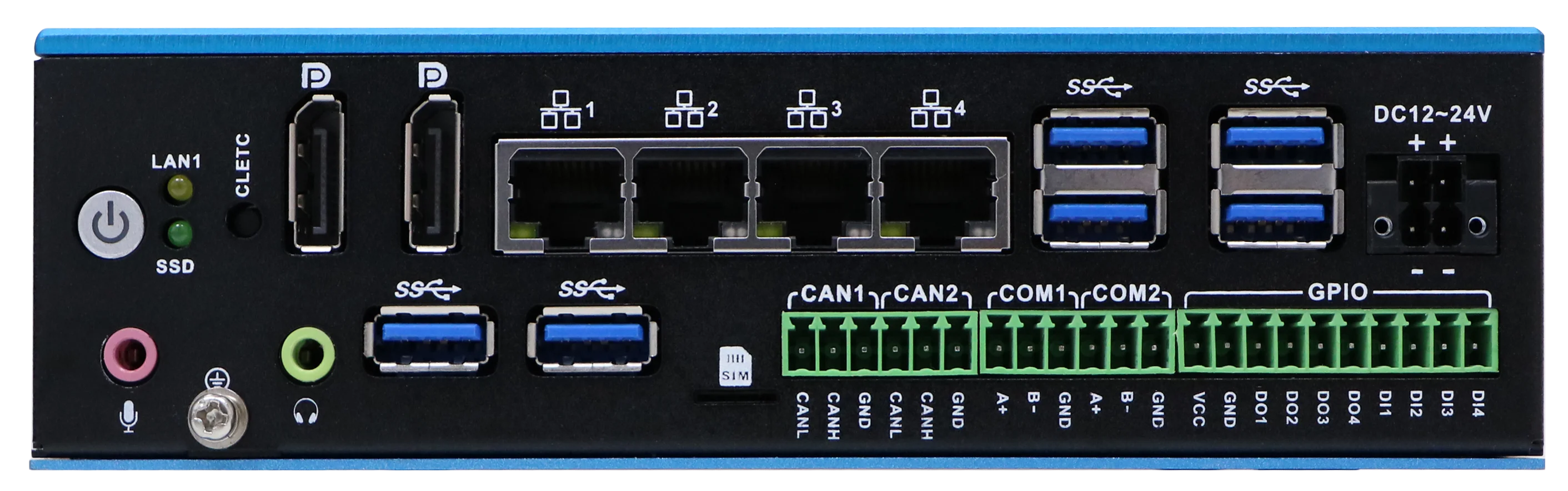

4 x Intel Gigabit Ethernet (3 x i210-AT + 1 x i219-LM, LAN1 supports vPro)

6 x USB 3.0 (2 with anti-backflow protection)

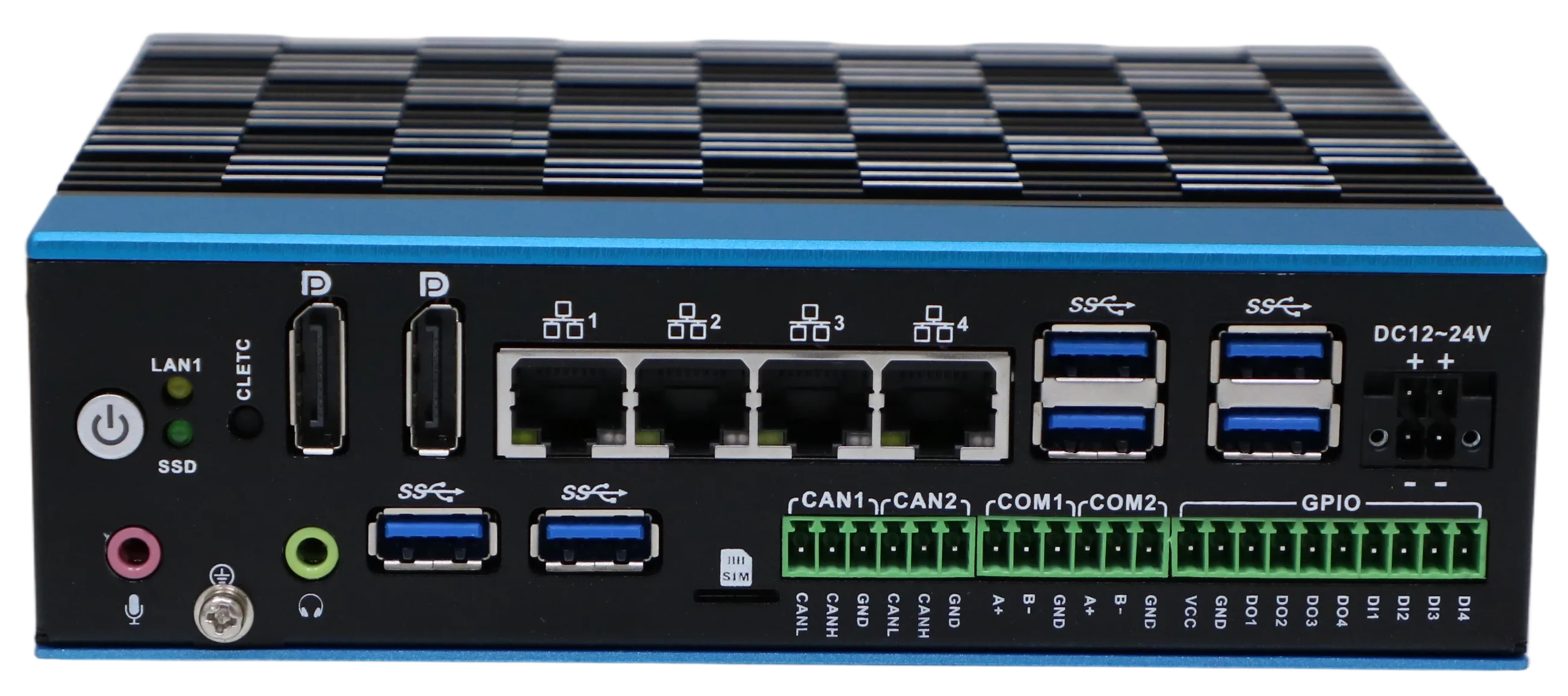

2 x isolated RS485 (Phoenix terminal) + 8 x isolated GPIO (4 in, 4 out)

Optional 2 x isolated CAN (requires internal CAN module)

2 x DP (supports up to 7680 x 4320 @60Hz)

Wide voltage input: DC 12V -24V

Wide operating temperature: -20℃ to +60℃ (with surface air flow)

Applications

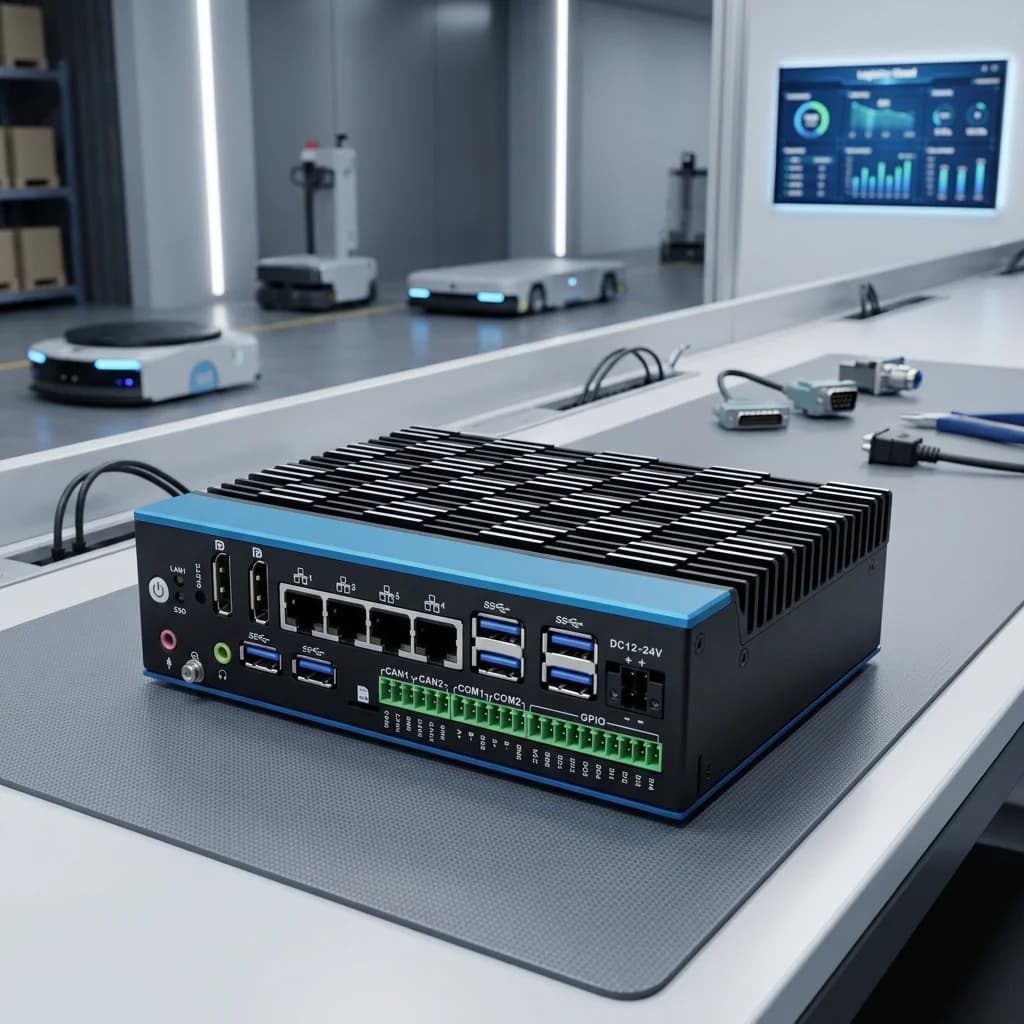

AGV (Automated Guided Vehicles)

AMR (Autonomous Mobile Robots)

Industrial Automation & Control

Smart Logistics & Warehousing

Machine Vision Systems

Fleet Management & Dispatching

Free Operating System: Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc.  Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.

Mechanical
