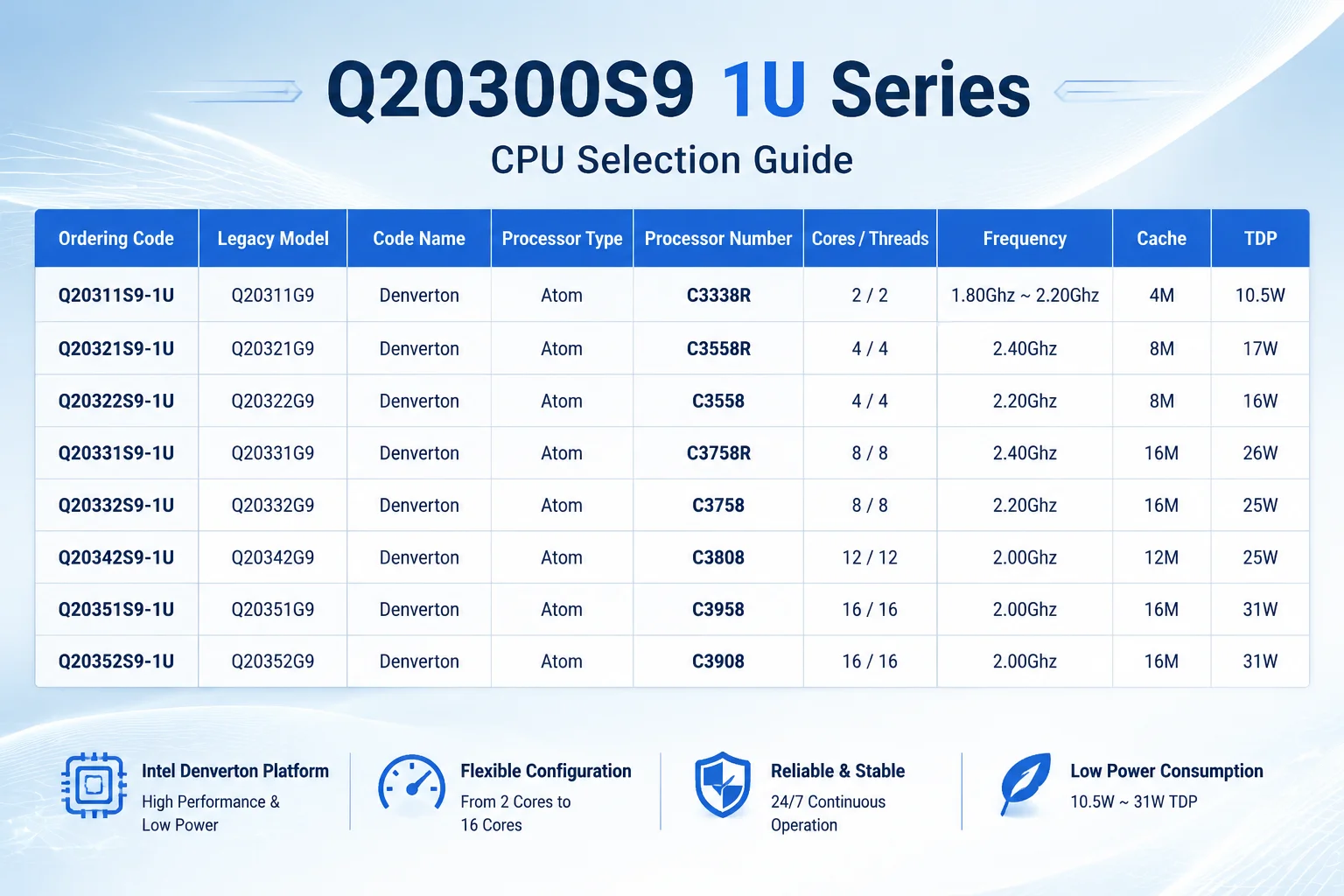

QOTOM Intel Denverton C3758R C3808 C3908 1U Firewall Appliance Router 4x10GbE SFP+ 5x2.5GbE LAN Ubuntu OPNsense VPN Server

Note:Shipment&Customs Clearance

Note:Shipment&Customs Clearance1. DHL / FedEx/UPS Express to most of countries
​5~7 days to most of countries.
​​
1. About Shipment:
All packages are shipped from China mainland, the consignee is responsible for completing customs clearance and promptly paying any applicable import charges, including duties, VAT, and other related fees, please pay attention to shipment.
​
2. Invoice
​If you have special requirements on invoice, please leave message.
​If you need invoice (PDF), please provide an email address.

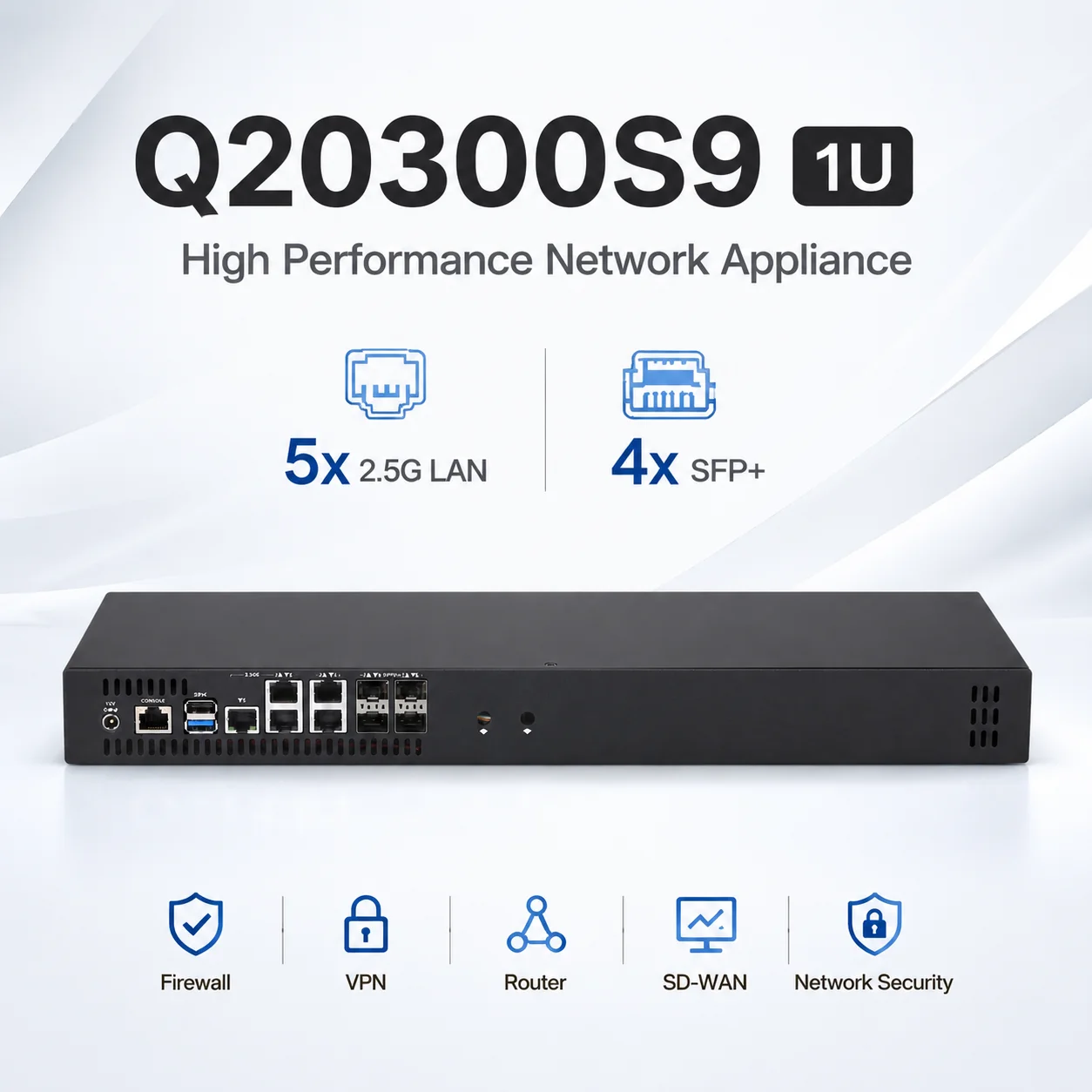

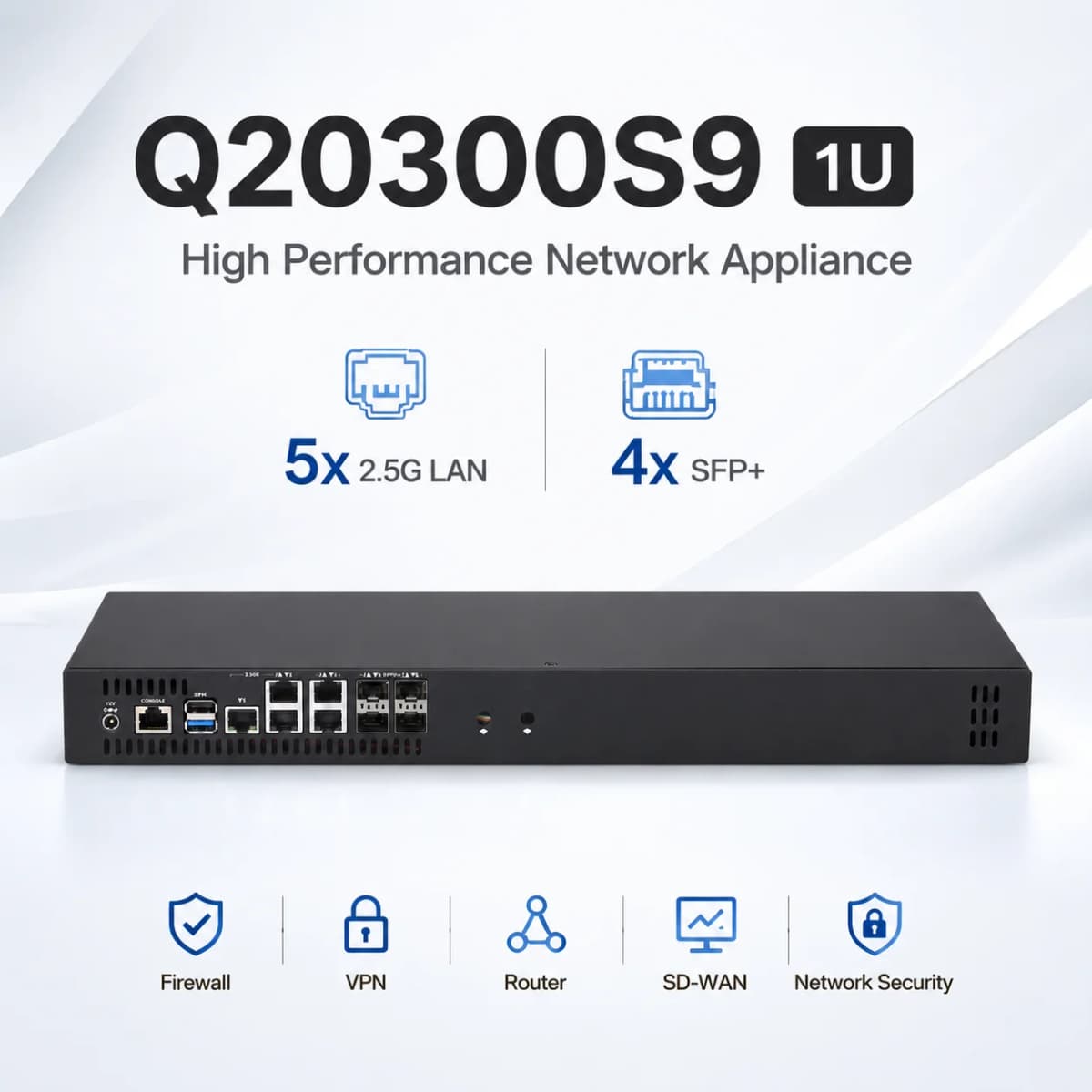

Qotom Mini PC Q20300S9 1U

• Onboard CPU: Intel Denverton Processor
• Small and compact: 440 × 127 × 44mm
• Running 24/7
• Aluminum alloy case
• 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2) . (Extension: 2 x 2.5" SATA connector inside)
• 5 x Intel I225-V/I226-V 2.5 Gigabit LAN
• 4 x SFP+
• Preinstall inactive Windows 10 for test
• Support multiple Operating System
• One year warranty

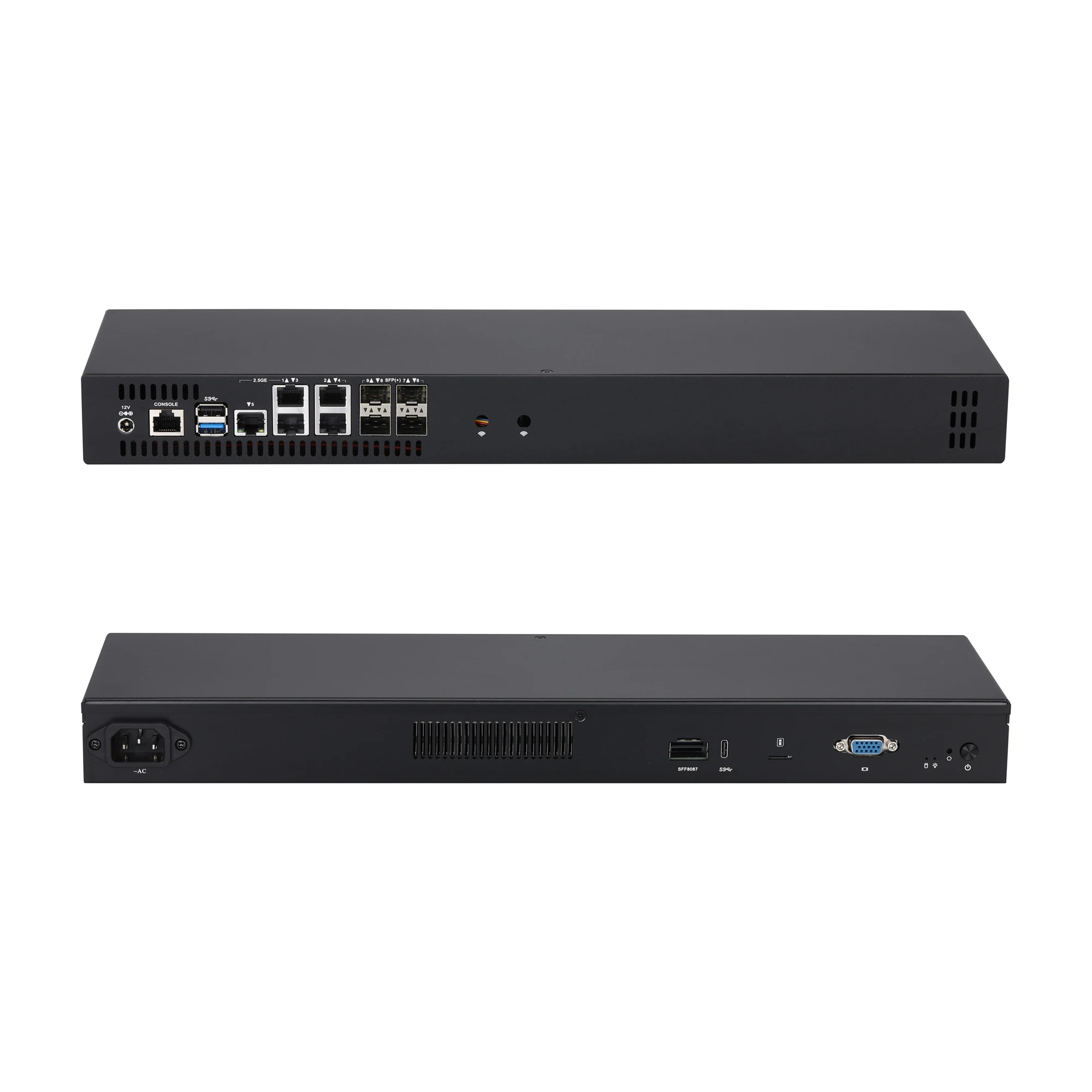

Rear I/O

1 x DC Jack
1 x RS-232 (RJ45)
1 x USB 3.0, 1 x USB 2.0
5 x Intel I225-V/I226-V 2.5 Gigabit LAN
4 x SFP+

Front I/O

1 x Power Button, 1 x Reset Button
1 x Power LED,1 x HDD LED
1 x DB15 SIM Slot
1 x Nano SIM Slot
1 x Type C (USB 3.0)Mini SAS
1 x Mini SAS (SFF8087) (Optional)

Optional

If you need, we can add a fan for you for free(pls leave a message after purchase)

Tips

1.Memory: Support 2 x DDR4 SO-DIMM Socket (Up to 64G, 2400MHz)
2. Storage: Support 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2), 2 x 2.5" SATA HDD/SSD
3. WiFi: No WiFi support by default.
WiFi support via a Converter Card, then 1 x M.2 SSD is unusable.
4. Mini SAS: Please note that it only supports SAS to SATA, DOES NOT support SATA to SAS.

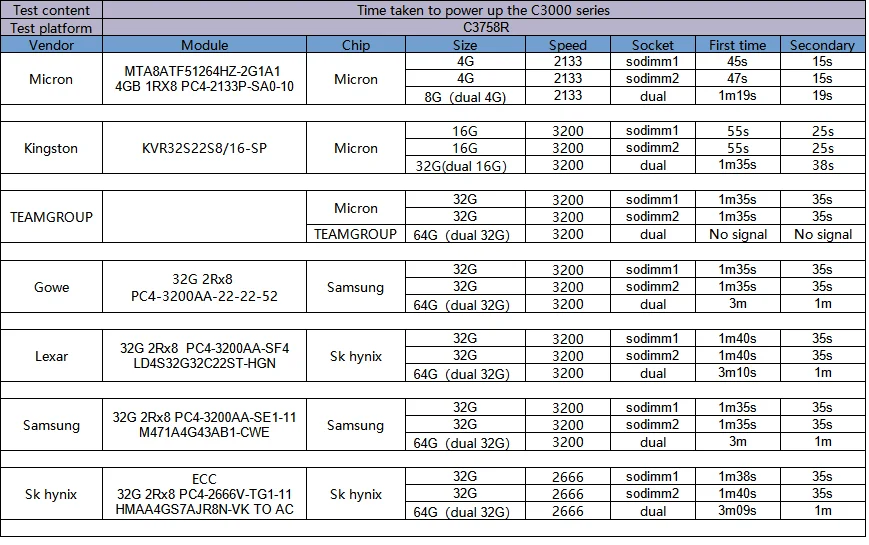

Compatible Memory (Continuously updating)

UEFI BIOS

You can ask for changing BIOS settings such as Wake on lan,Restore from AC power Loss when you place order.
Press "delete" key, you can enter the BIOS

LOGO and OEM

LOGO printing is free.Just provide your logo documenboot logo: JPG version, black background,and resolution 800*600

Sliver logo for printing: White background,and ORIGINAL logo documents in PDF version.

Operating System

Mini PC supports Windows 10, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.

Preload Windows 10(Unactivated) for test. Buyer can reinstall OS.

F11 key boot from USB Drive. Delete key enter BIOS.

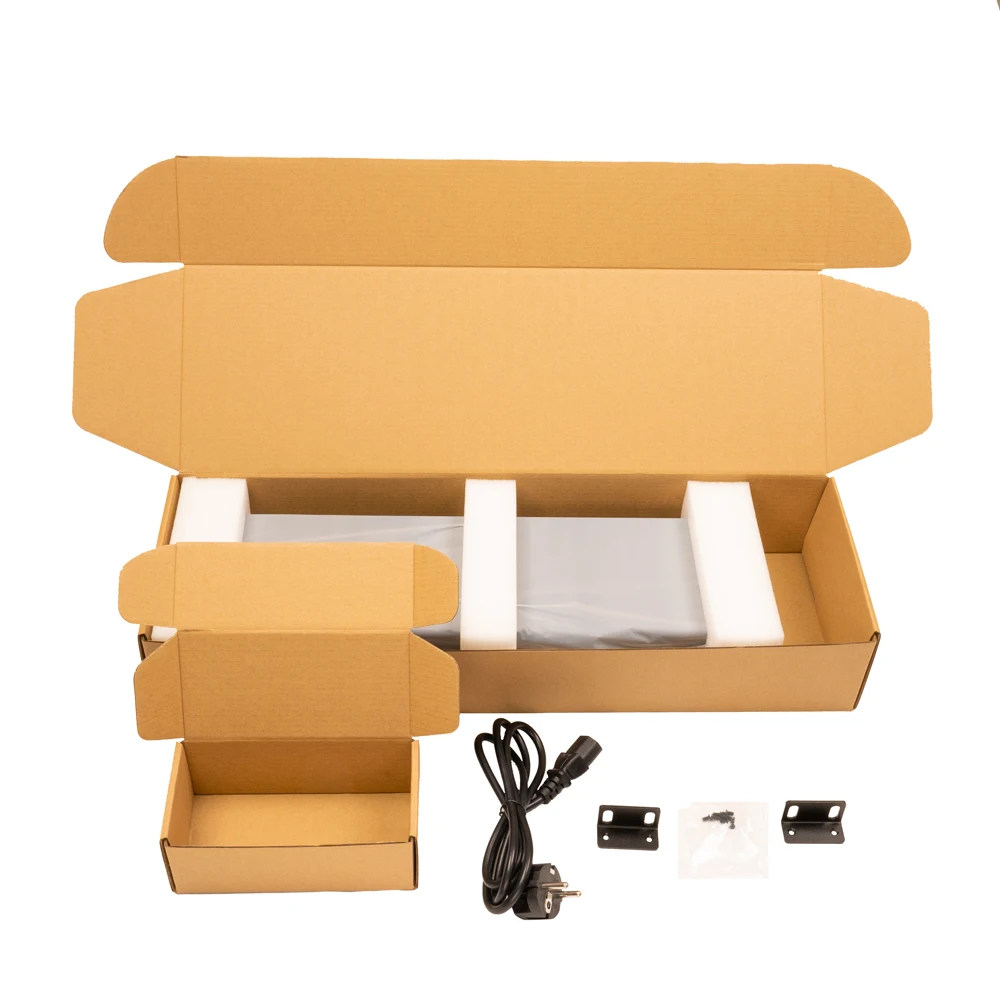

Packing & Delivery

Item Size: 440 × 127 × 44mm
Packaging Size: 545 × 180 × 90mm
