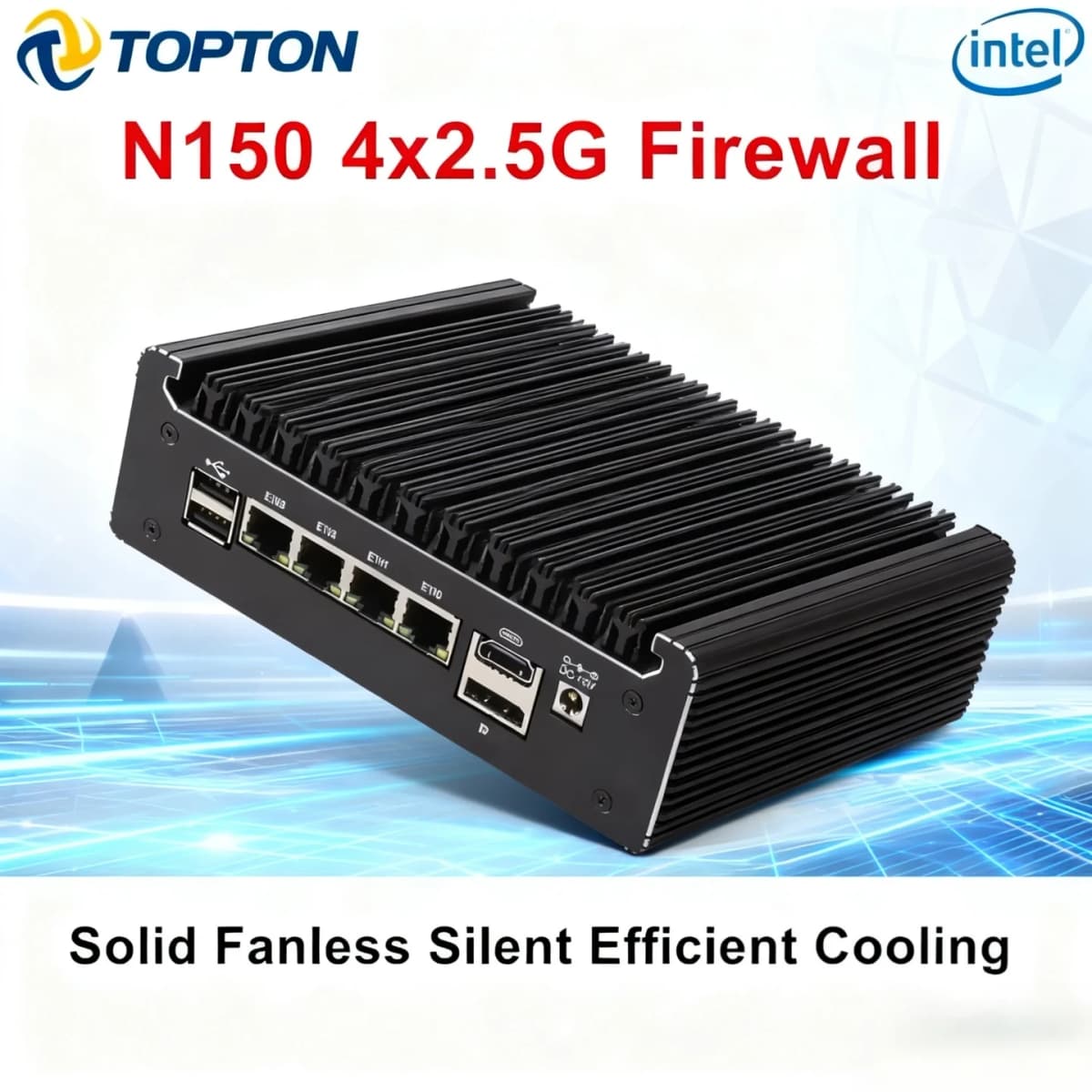

New Solid Fanless Firewall Mini PC Intel N150 N95 4417U 6405U i3-8145U 4x2.5G LANs DDR4 NVMe Type-C Home Server pfSense OPNsense

Product Highlight

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xType-C, 1xRJ45 COM console.

N150/N95 model:

-1xDDR4 SODIMM non-ECC ram slot, support max 32GB.

i3-8145U/Pentium 6405U model:

-2xDDR4 SODIMM non-ECC ram slot, support max 64GB.

i5-8250U/Pentium 4417U model:

-2xDDR3L 1.35V SODIMM non-ECC ram slot, support max 16GB.

-Support 2 storages: 1xM.2 2280 NVMe/PCIe3.0x2 SSD+1x2.5'' SATA3.0 7mm SSD/HDD.

-Support 1xHDMI, 1xDP, 1xType-C, 3x4K@60Hz video display.

-1xM.2 2230 slot(back of motherboard) supports WiFi module(optional to buy, N150/N95 only support CNVio protocol).

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on(moving jumper), RTC, PXE boot, Wake-on-LAN etc.

-Fanless system was equipped with solid aluminum alloy shell as heat-sink, provided same motherboard with 2 different cases for option, Big Case with sharper and larger area fins get a better cooling performance, Small Case was compact with lighter weight to carry. Both work without noise.A internal 8010 fan was included in package for DIY if you still worry about heat.

Package List

1xMini PC

1xPower Adapter

1xPower Cable

1xSATA Cable

1xScrews Bag

1x8010 fan(gift)
