Q10900H6 2X10 Gigabit LAN, 4 X I226-V 2.5 Gigabit LAN, N100/N150/N305/355 Processor Onboard Qotom Firewall Gateway Router

Main Features

• Intel Alder Lake-N Processor

Intel Twin Lake-N Processor

1 × Display Port, 1 × HDMI

3 × USB 3.0, 2 × USB 2.0, 1 × Type C

1 × M.2

1 × RS-232 (RJ-45)

2 × Marvell AQC113 10 Gigabit LAN

4 × Intel I226-V 2.5 Gigabit LAN

Description

Q10922H6 Intel Processor N100,4 Core, 4 Threads, 6M Cache, up to 3.40 GHz,6W

Q11022H6 Intel Processor N150, 4 Core, 4 Threads,6M Cache, up to 3.60 GHz

Q10932H6 Intel Core i3-N305, 8 Core, 8 Threads,6M Cache, up to 3.80 GHz

Q11032H6 Intel Core Processor I3 N355 , 8 Core, 8 Threads,6M Cache, up to 3.90 GHz

Product Description

WatchDog: YES

System: Support Linux/WIN only

Cooling mode: Fanless Design,Fan-assisted Cooling

Processor: Intel Alder Lake-N N100 (6M Cache, quad core, max 3.4GHz,AES-NI)

Graphics: Intel UHD Graphics

Memory: Support 1*DDR5 SO-DIMMs 2400MHz,Max.48G

M.2 Slot:1 x M.2 for 4G/5G(B Key,Type: 3042/3052)

Hard Disk: support 1*M.2 for SSD(M key,Type:2280,pcie3.0x1)

LAN: 2 x Marvell AQC113 10 Gigabit LAN,4 x Intel I226-V 2.5 Gigabit LAN.

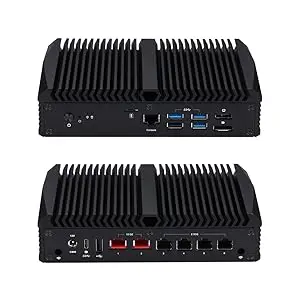

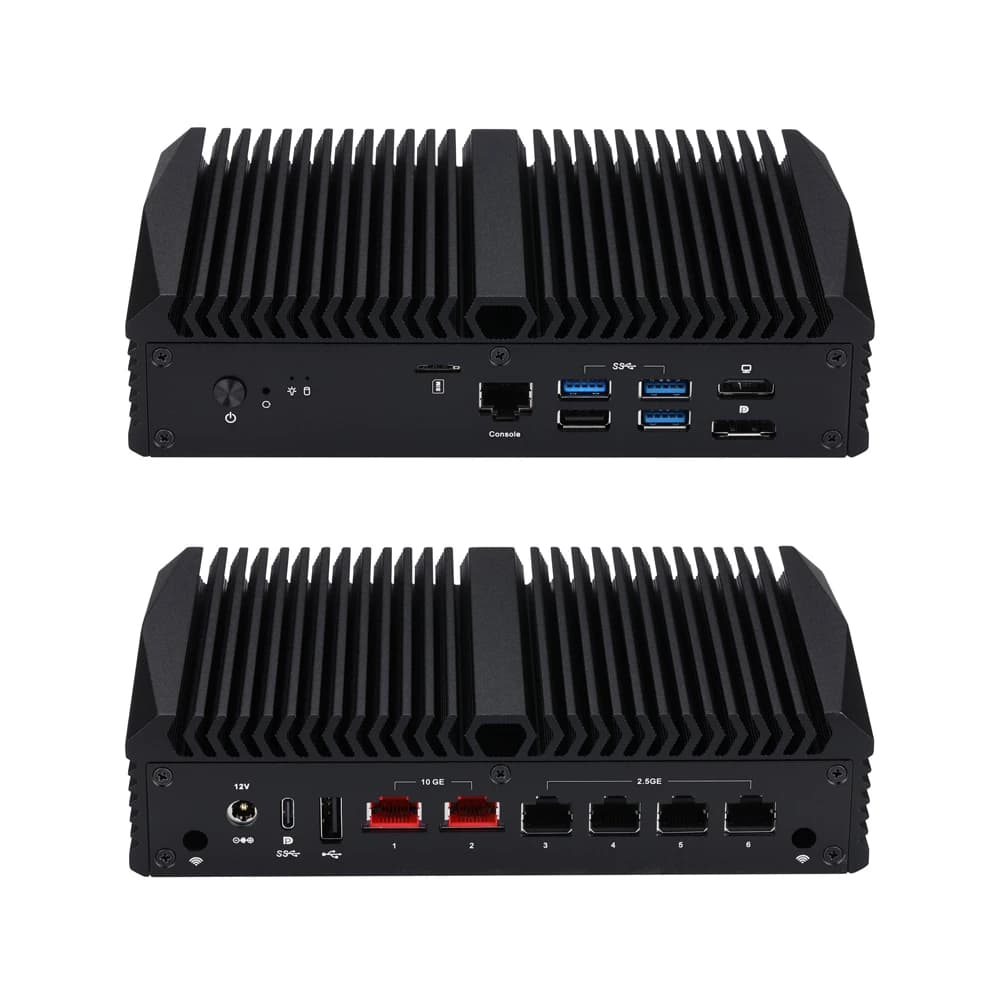

Front Panel:

1 x Power Button

1 x Reset Button

1 x Power LED

1 x Nano SIM slot

1 x USB 2.0 port

3 x USB 3.0 port

1 x HD Video port

1 x DP port

1 x RS232(RJ45) port

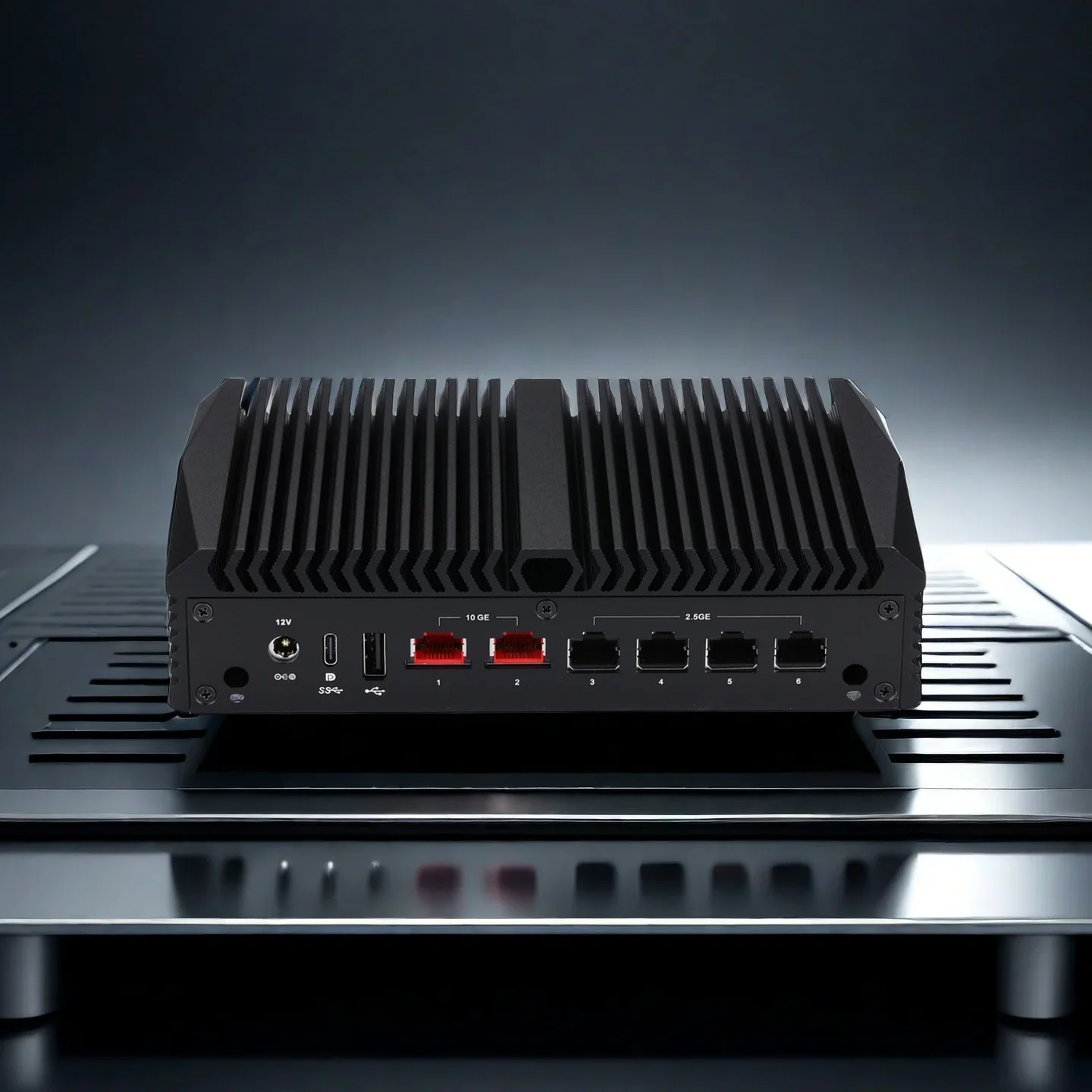

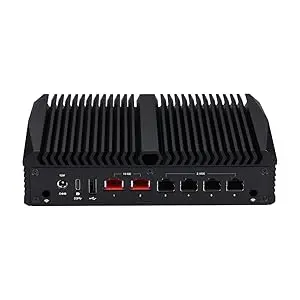

Back Panel:

1 x DC Jack

1 x USB2.0 port

1 x Type C(USB3.0) port

4 x Intel I226-V 2.5G Gigabit LAN

2 X Marvell AQC113 10 Gigabit LAN

Expansion

• 1 x M.2 for 4G/5G (B key, Type: 3042/3052)

• 1 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 1)

• 1 x DDR5 SO-DIMM Socket (Up to 16G)

• 1 x SIM Card Slot

• Auto Start Jumper, 1 x 3Pin, Pitch 2.54mm

• CMOS Clear Jumper, 1 x 3Pin, Pitch 2.0mm

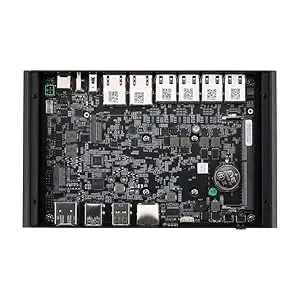

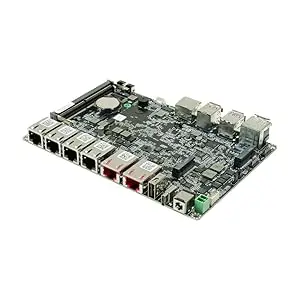

Inside of the motherboard

• Processor Graphics: Intel UHD Graphics

• 4K Support: Yes, at 60Hz

• Max Resolution (HD): 4096 x 2160@60Hz

• AES-NI: Support

• Intel Virtualization Technology (VT-x): Yes

• Intel Virtualization Technology for Directed I/O (VT-d):Yes

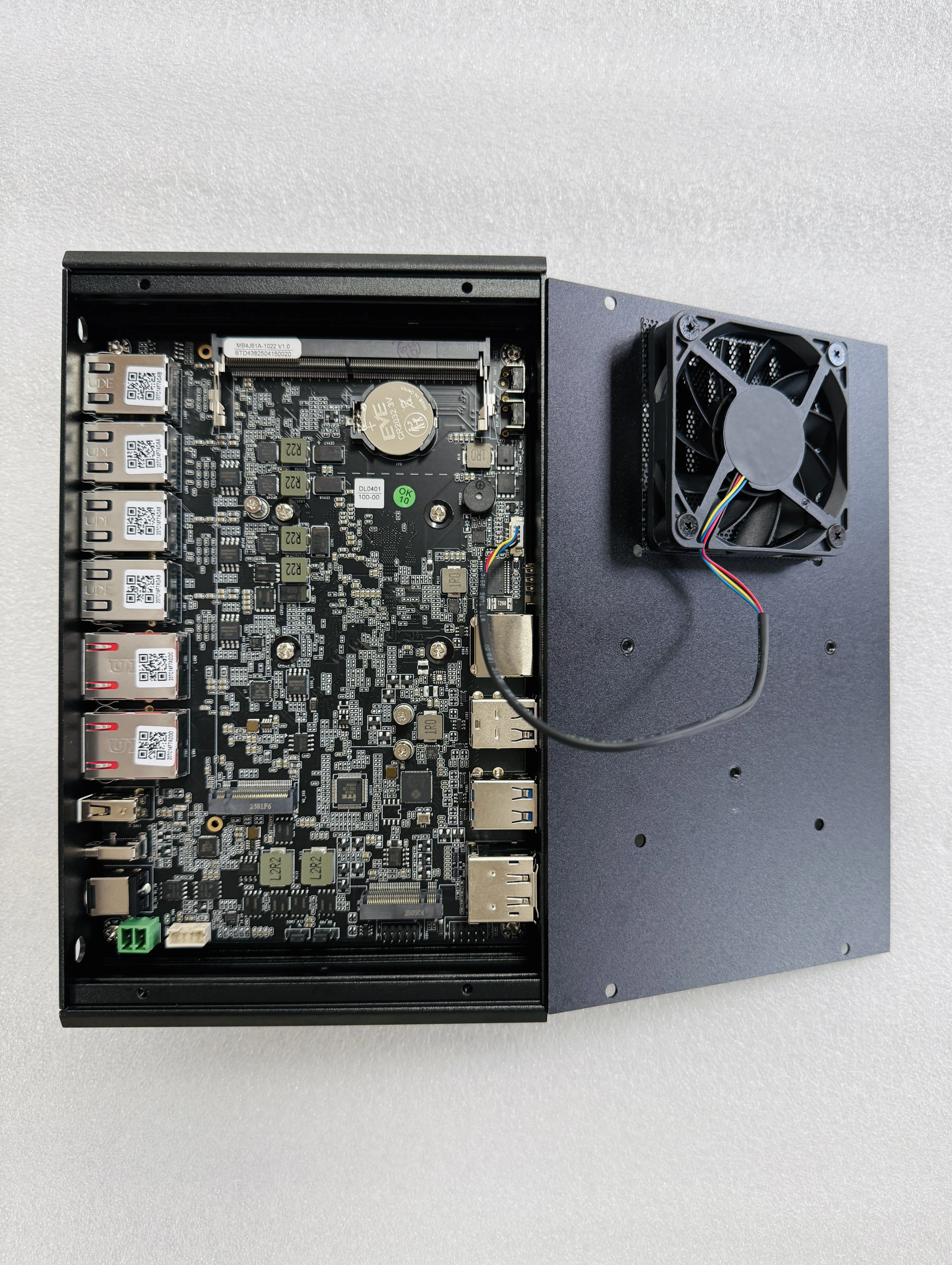

Fanless Design, Fan-assisted Cooling

Packing

• 1 x Mini PC

• 1 x Power supply: adapter and plug (US/ UK/ EU/ AU/ IT)

• 1 x VESA bracket & screws

• 1 x packaging box
