Intel N150 N100 Fanless Mini PC 2x2.5G LAN 2*COM NVMe DDR4 Industrial Mini Computer Firewall Router Home Server PfSense OPNsense

Processor parameter for referance only

Product Highlights

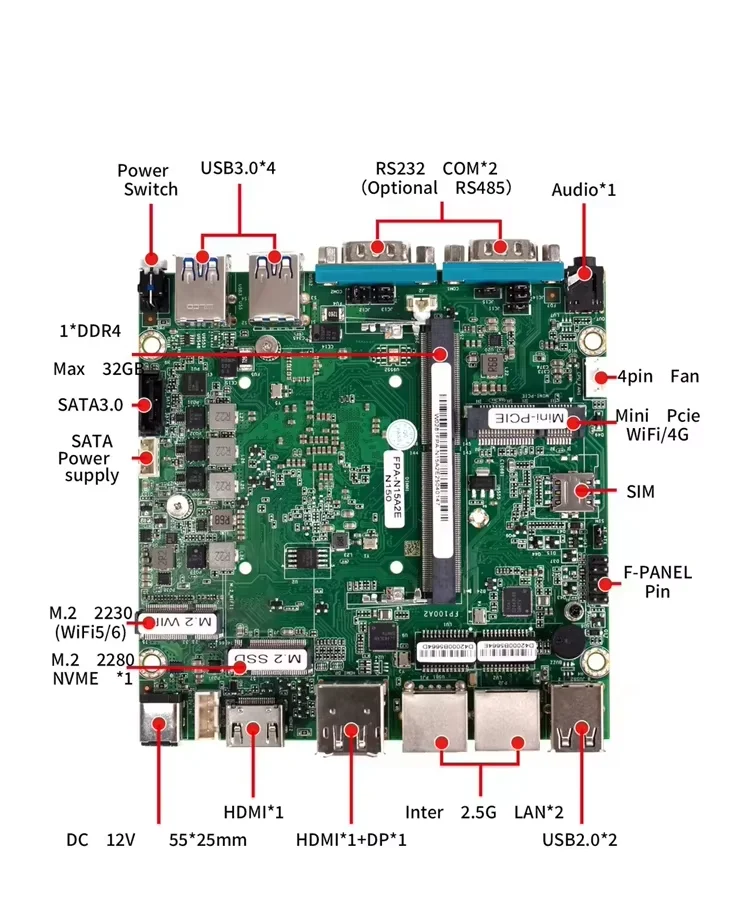

2×Intel i226-V 2.5G RJ45 LAN Ports, 1×USB3.2, 2×USB3.0, 2×USB2.0, 1×Type-C, 2×COM (RS232/RS485), 2×HDMI, 1×DP, 1×Audio Jack

1×DDR4 SODIMM Non-ECC RAM Slot, Max 32GB, supports 2400/2666/3200MHz

Dual Storage Support: 1×M.2 2280 SSD (NVMe/PCIe3.0x2/SATA) + 1×2.5'' SATA3.0 7mm SSD/HDD

1×M.2 2230 WiFi Slot (PCIe Signal), 1×SIM Slot (Optional), 1×MPCIE Slot; compatible with WiFi/4G LTE modules (USB signal only)

Triple Display Output: 2×HDMI + 1×DP, supports 3×4K UHD display

Built-in AES-NI, Watchdog, Auto Power On, RTC, PXE Boot, Wake-on-LAN functions

All-solid aluminum enclosure with extended fin heat sink, equipped with thermal copper pad for enhanced heat dissipation

Completely fanless design, silent and long-lasting. Supports stable 7×24 hours continuous operation, ideal for household and industrial scenarios

Low power TDP design; VESA mount compatible (bracket optional)

Package List

1 × Mini PC

1 × Power Adapter

1 × Power Cord (EU/US/UK/AU plug shipped according to buyer’s destination country)

1 × SATA Cable

If you need a VESA bracket, you may click the VESA bracket image to place a combined order.
