SOYO S5 Air Gaming Mini PC Ryzen 5 7535HS 16GB RAM LPDDR5 512GB NVME SSD Desktop Computers Office Home Triple 4K Display WiFi 6

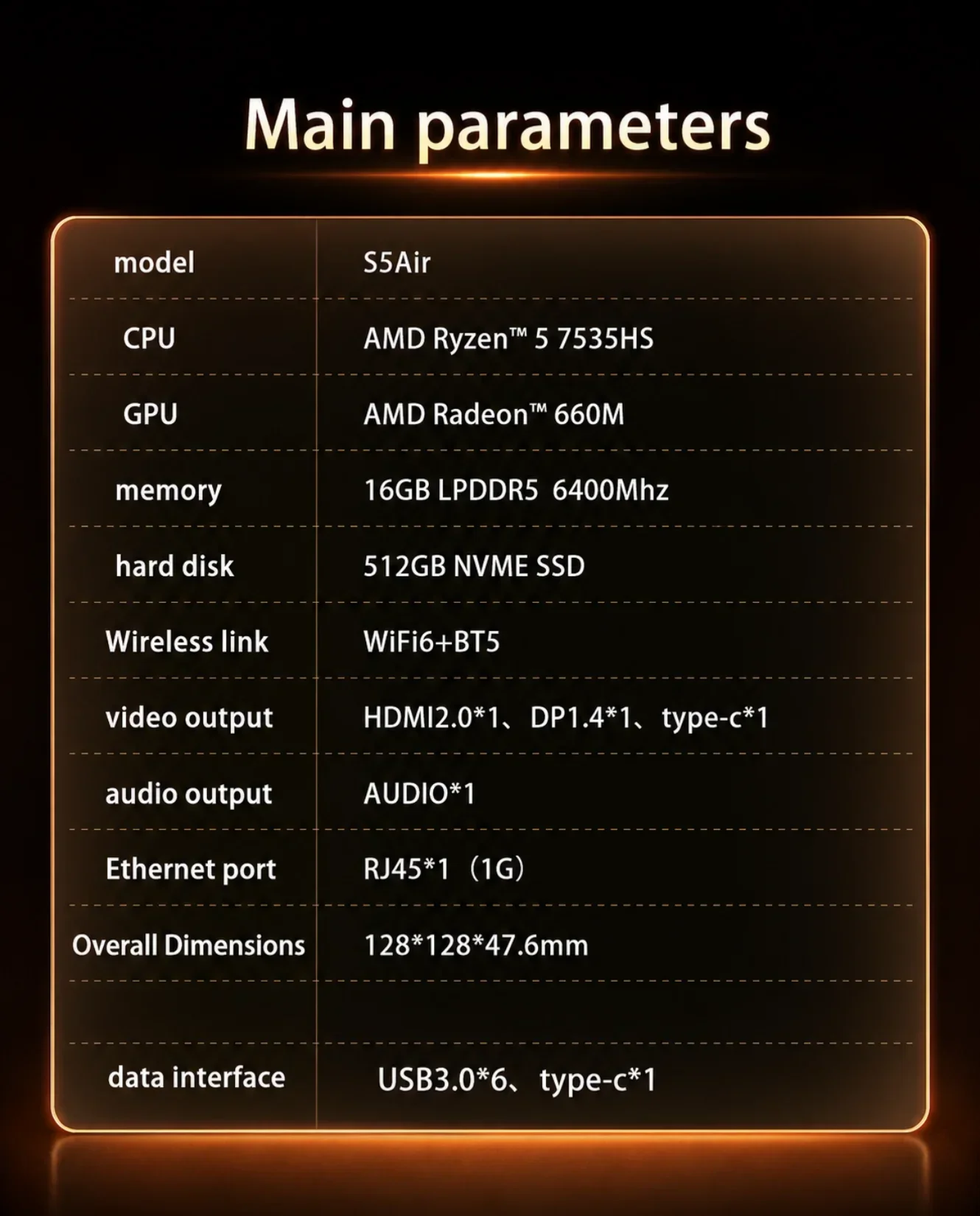

Product Specifications Summary

Brand: SOYO

Model: S5Air

Form Factor: Ultra-compact Mini PC Workstation

Core Performance

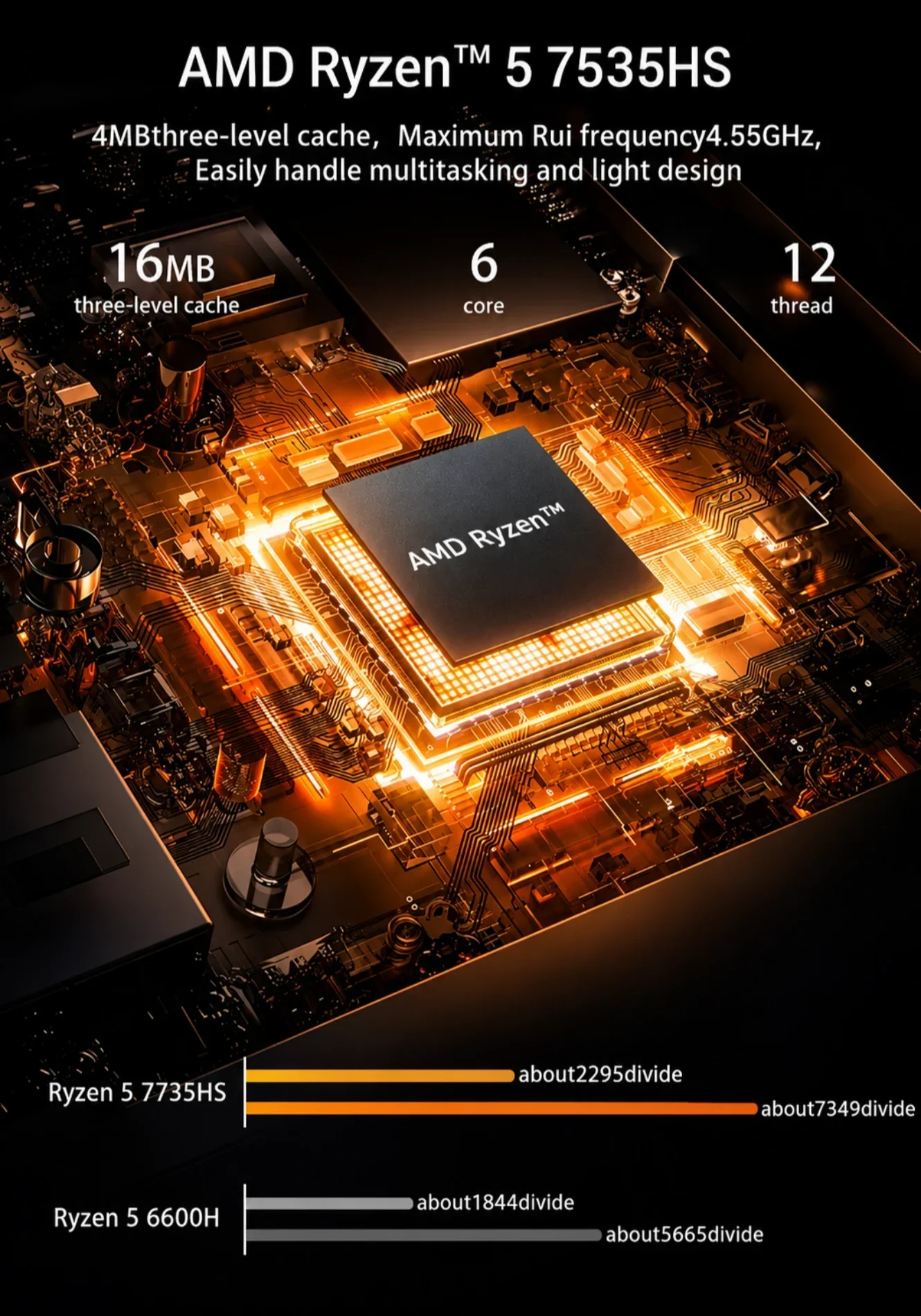

Processor (CPU): AMD Ryzen™ 5 7535HS (6 Cores / 12 Threads, Max Boost Clock up to 4.55 GHz, 16MB L3 Cache)

Graphics (GPU): AMD Radeon™ 660M (6 Cores, 1900 MHz GPU Frequency)

RAM (Memory): 16GB LPDDR5 6400MHz High-Speed Onboard Memory

Storage: 512GB NVMe M.2 SSD (Dual M.2 expansion slots: M.2 2280 NVMe PCIe 4.0 x4 & M.2 SATA/NVMe PCIe 3.0 x4, supports up to 4TB total storage expansion)

Display & Connectivity

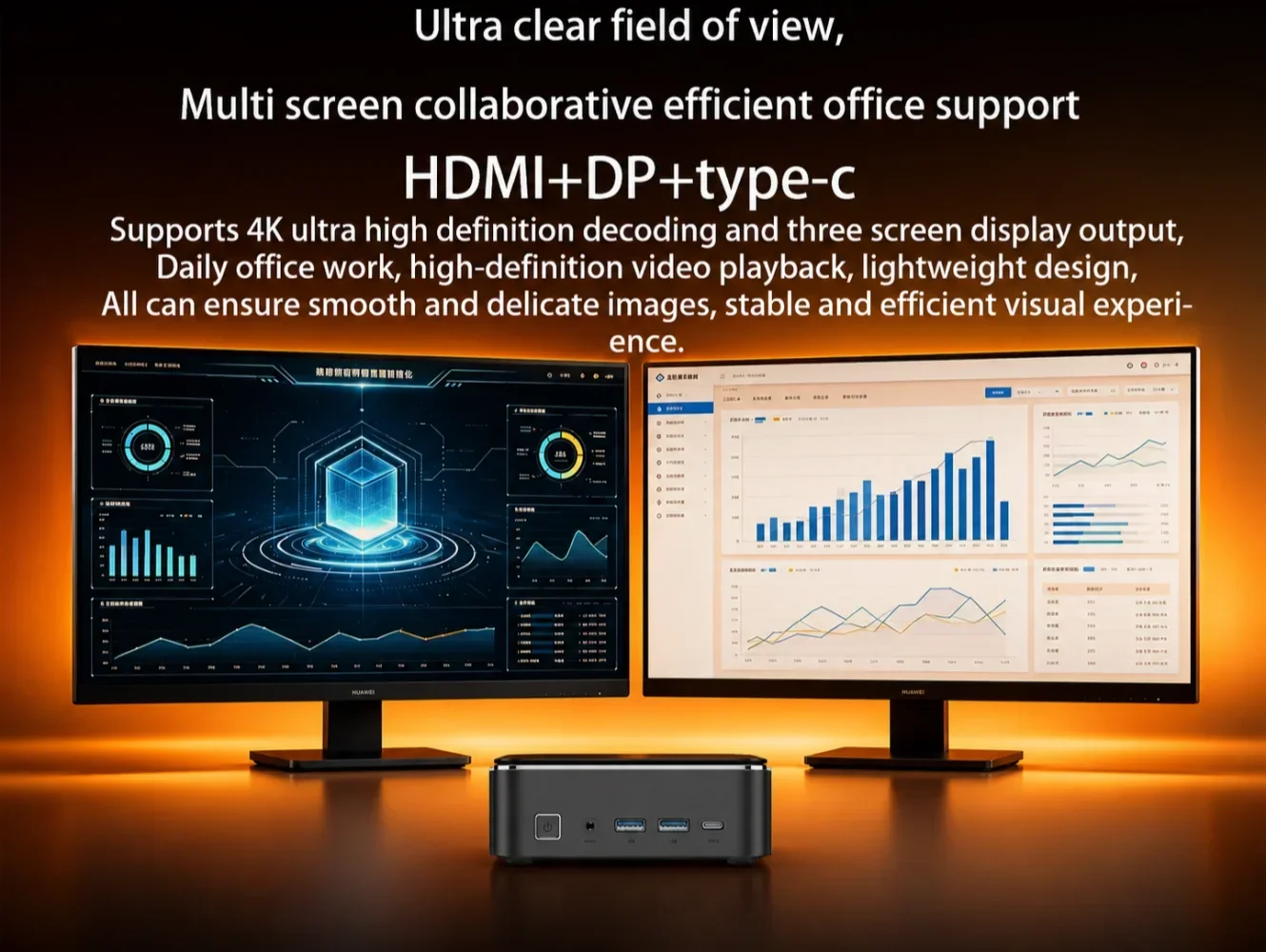

Multi-Display Output: Triple Display Support (HDMI 2.0 + DisplayPort 1.4 + Type-C) with 4K UHD Decoding

Wireless Connectivity: Wi-Fi 6 + Bluetooth 5.0

Network Port: 1x RJ45 Gigabit Ethernet (1000Mbps)

I/O Ports & Interfaces

Video Output: 1x HDMI 2.0, 1x DP 1.4, 1x Type-C

Data Ports: 6x USB 3.0, 1x Type-C

Audio Port: 1x 3.5mm Headphone/Microphone Combo Jack

Design & Thermal System

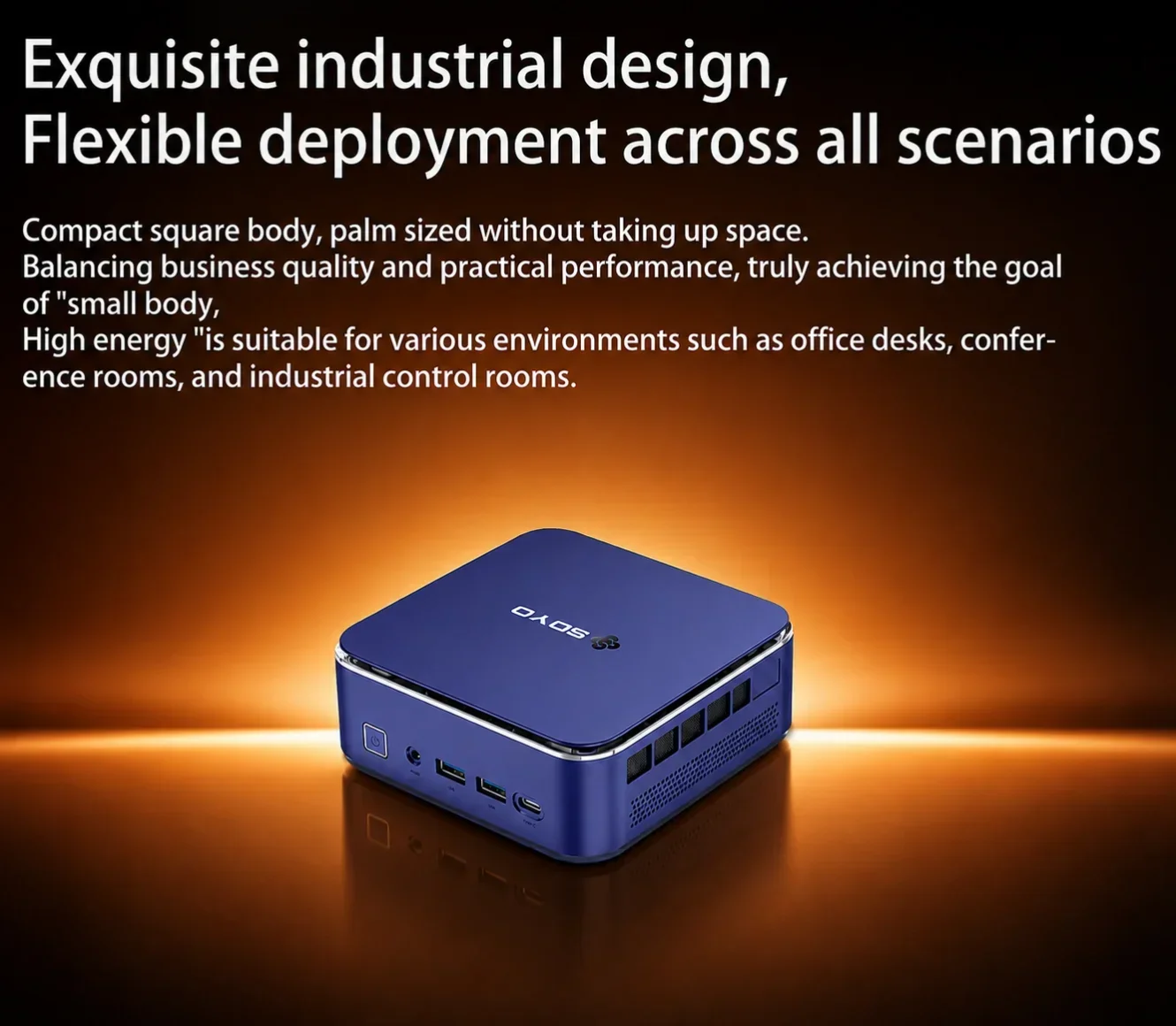

Dimensions: 128mm x 128mm x 47.6mm (Palm-sized compact design)

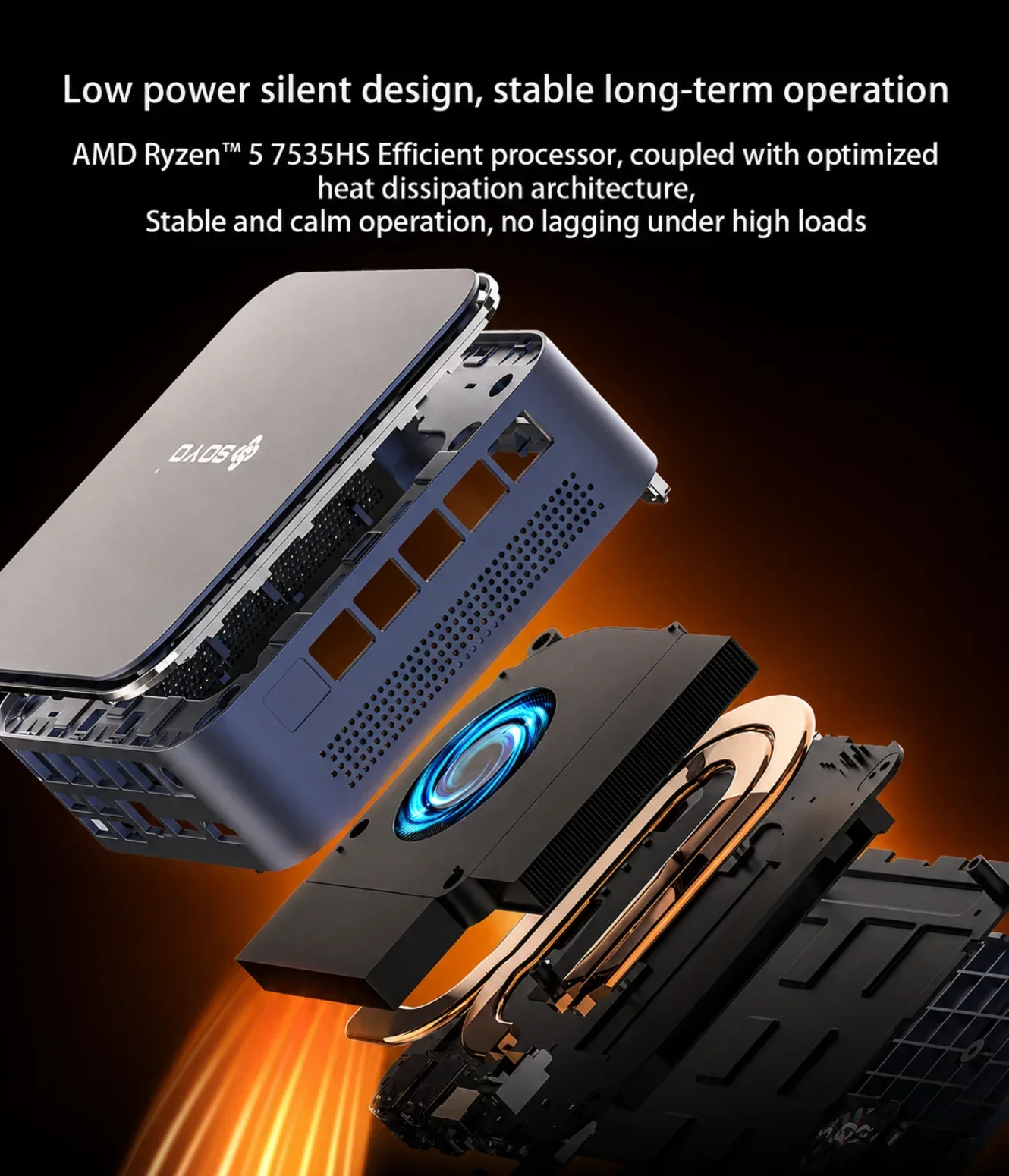

Cooling Architecture: Low-power silent active cooling system with copper heat pipes and high-efficiency fan for sustained high-load operations

Key Highlights for E-commerce Bullet Points

Powerful AMD Ryzen™ 5 7535HS Processor: 6 Cores, 12 Threads with boost clock up to 4.55GHz for effortless multitasking, office productivity, and light design tasks.

AMD Radeon™ 660M Graphics: Delivers high performance for 3D modeling, video editing, and 4K media playback.

High-Speed LPDDR5 Memory & Expansion: 16GB LPDDR5 6400MHz RAM combined with dual M.2 slots for fast read/write speeds and expandable storage up to 4TB.

Triple 4K Display Output: Simultaneous triple-screen connectivity via HDMI 2.0, DP 1.4, and Full-Function Type-C.

Rich Interface Options: Includes 6x USB 3.0 ports, Type-C, Gigabit LAN, and Wi-Fi 6 for comprehensive connectivity.

       Q&A

Q: Don't turn on?

A:

1.Make sure the AC power adapter is connected to the computer and ithe

power cable plugis plugged into a working power outlet.

2.The computer has been started (press the power button again to confirm whether it is started normally).

Q: When the computeris started,nothing is diasplayed?

A: 1.Check whether the HDMI and DP cables are properly connected diasplayed.

2.Check that the diaplay input mode is correct.

Q: A blank screen appears when the computer is running?

A: 1.Check whether the device is in hibernation mode by viewing the appears when the power

indicator status. Press the power button to wake up computer is running.

2.Check whether the monitor sleeps.

Q: Computer unrespensive?

A:1. To force off, press and hold the power button and turn it on again.

2.Check whether the monitor sleeps.

Q: There is no sound from the speaker or headset?

A:1.Check whether the mute function is disabled.

2. To check speakers or earphones are selected as playback
