Q20300G9 1U Rack - Atom C3000 CPU, 4x 10G SFP+/ 5x 2.5G LAN, Barebone Support 2x DDR4 RAM, 2x NVMe SSD, 1x HDD, Firewall Router

IMPORTANT SHOPPING NOTICE:

To ensure a smooth delivery and avoid any misunderstandings, please read the following before placing your order:

• Shipping Origin: All orders are shipped directly from Mainland China
• Customs & Taxes (Buyer's Duty): Import duties are the buyer's responsibility. We provide professional commercial invoices to assist with clearance. If AliExpress pre-collected VAT at checkout, you won't be charged it again. Just show your order payment screenshot to customs if requested. # DDP US
• Delivery Tracking: Once the package reaches your country, the local carrier will contact you. Please monitor your tracking info and keep your phone active to prevent "failed delivery" returns.

Notice: This is a Barebone system (No RAM, No Storage)

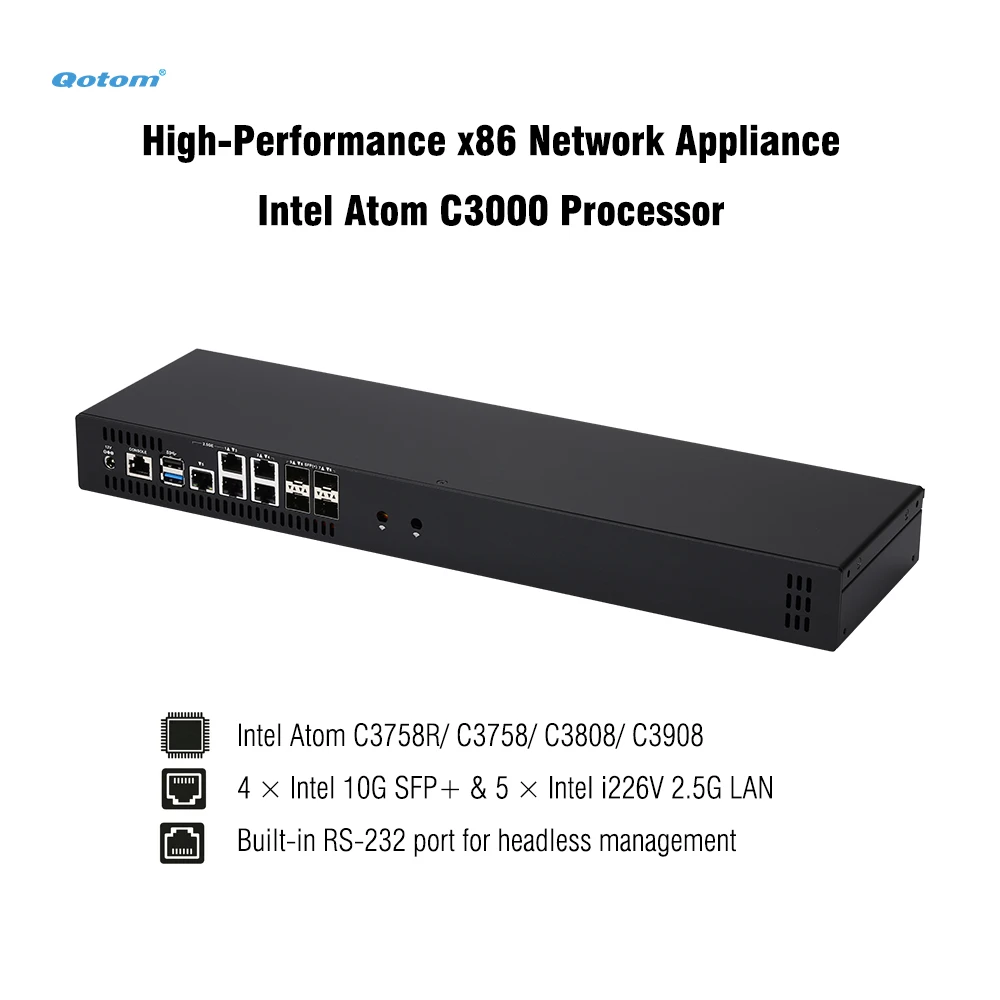

Enterprise-Grade 1U Rackmount Network Appliance

• Professional 1U Rackmount: Standard 19-inch 1U chassis for seamless server rack integration. No messy external adapters - Internal AC 100-240V power included.

• Extreme 10G Performance: 4x 10GbE SFP+ and 5x 2.5GbE Intel i226-V ports. The ultimate hardware for pfSense, OPNsense, and Proxmox.

• Active Cooling System: Equipped with integrated high-efficiency fans to ensure the 16-core Intel Atom C3000 stays cool under 24/7 heavy 10G traffic.

• Ultra-Fast NVMe Storage: Optimized for M.2 NVMe SSDs to provide maximum IOPS for virtualization and rapid OS boot times. (Note: need take out the fan to install a 2.5" SATA).

# Do not support Arista/Untangle NG Firewall 17 (Debian 10) and Sophos XG[No i226V LAN Drivers]
# Turn on when AC power is restored: Set in BIOS: IntelRCSetup - South Bridge Chipset Configuration - State After G3 - Power on

Intel Denverton Processor Onboard

• Q20322G9: Intel Atom C3558 Processor, 4 Cores, 4 Threads, 8 MB Cache, 2.2 GHz. CPU TDP 16W
• Q20331G9: Intel Atom C3758R Processor, 8 Cores, 8 Threads, 16 MB Cache, 2.4 GHz. CPU TDP 26W
• Q20332G9: Intel Atom C3758 Processor, 8 Cores, 8 Threads, 16 MB Cache, 2.2 GHz. CPU TDP 25W
• Q20342G9: Intel Atom C3808 Processor, 12 Cores, 12 Threads, 12 MB Cache, 2.0 GHz. CPU TDP 25W
• Q20351G9: Intel Atom C3958 Processor, 16 Cores, 16 Threads, 16 MB Cache, 2.0 GHz. CPU TDP 31W
• Q20352G9: Intel Atom C3908 Processor, 16 Cores, 16 Threads, 16 MB Cache, 2.0 GHz. CPU TDP 31W

Front I/O & Rear I/O

• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 1 x VGA (DB15)
• 1 x Nano SIM Slot
• 1 x Type C (USB 3.0)
• 1 x Mini SAS (SFF-8087 to 4 SATA)

• 1 x DC Jack
• 1 x RS-232 (RJ-45)
• 1 x USB 3.0, 1 x USB 2.0
• 5 x Intel i226V 2.5 Gigabit LAN
• 4 x 10G SFP+

Internal Connectors

• 2 x DDR4 SO-DIMM Socket, Up to 64G, ECC supported
• 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)
• 1 x 2.5-inch HDD/SSD
• 1 x Nano SIM Slot & 1 x M.2 for 4G/5G (B key, Type: 3042/3052)

# Come with 1x SATA cables inside, need take out the fan to install a 2.5" SATA
# If wanna install 2x SATA, please choose mini case S20
# Do not support Wi-Fi by default. Contact us if you need Wi-Fi.

Mechanical and Environmental

• Material: Aluminium Alloy
• Dimension: 440 x 127 x 44mm
• Weight: 1.4kg
• Packaging Dimension: 545 x 180 x 90mm
• Kensington Lock: No
• Cooling Mode: Fan

• Operating Temp: 0°C~50°C
• Non-Operating Temp: -20°C~80°C
• Humidity: 10%~90%

Related Model: Q20300G9-S20

If you prefer to mini case, please click below link:

Motherboard is same but it's fanless design

Related Model: Q20322G9

Packing

1 x Mini PC-1U Rack
1 x Power cord (EU/ SA/ AU/ US/ CH Type)
1 x Hanger & screws
1 x Neutral box

We have US/ UK/ EU/ AU/ IT/CH plug and will choose them according to the destination.
