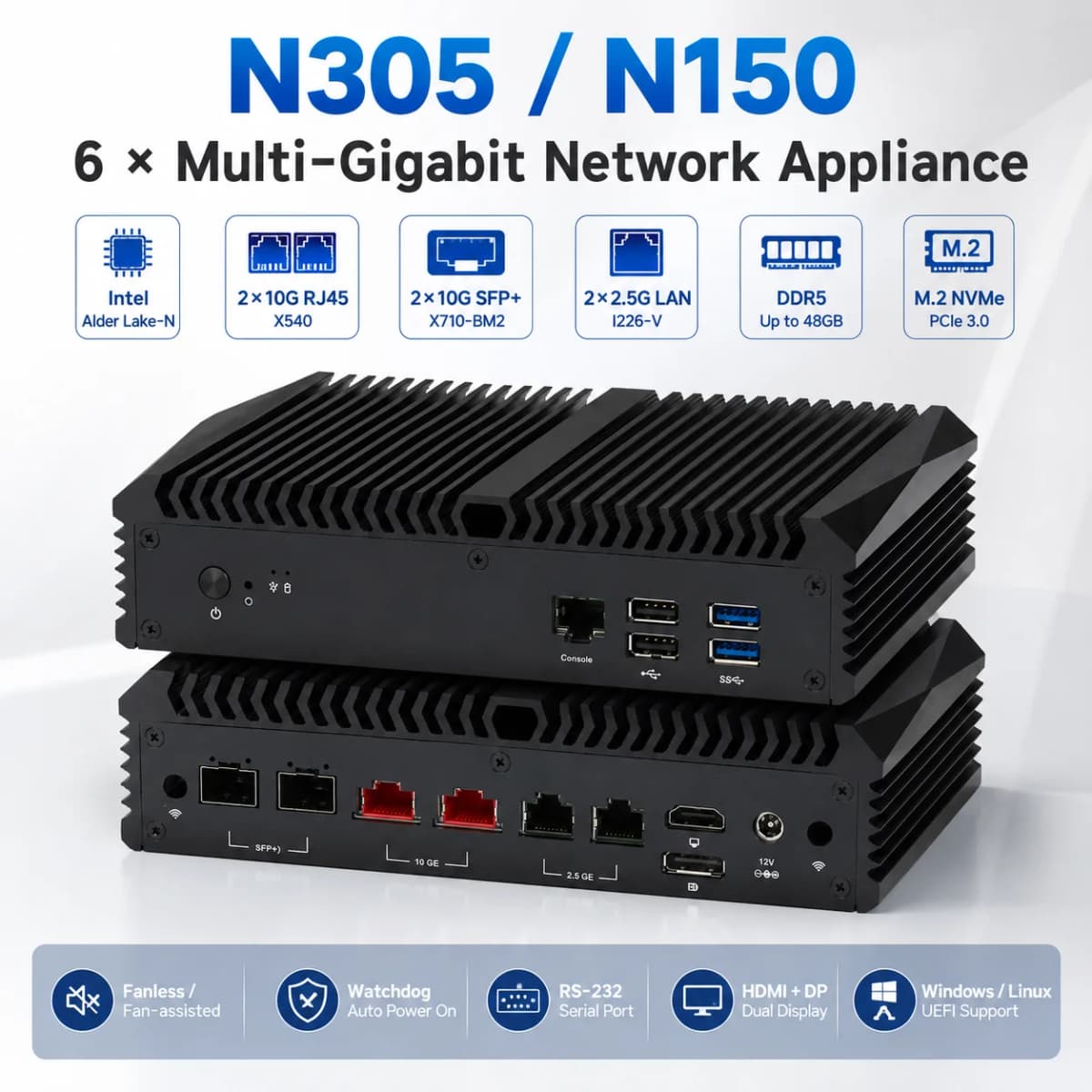

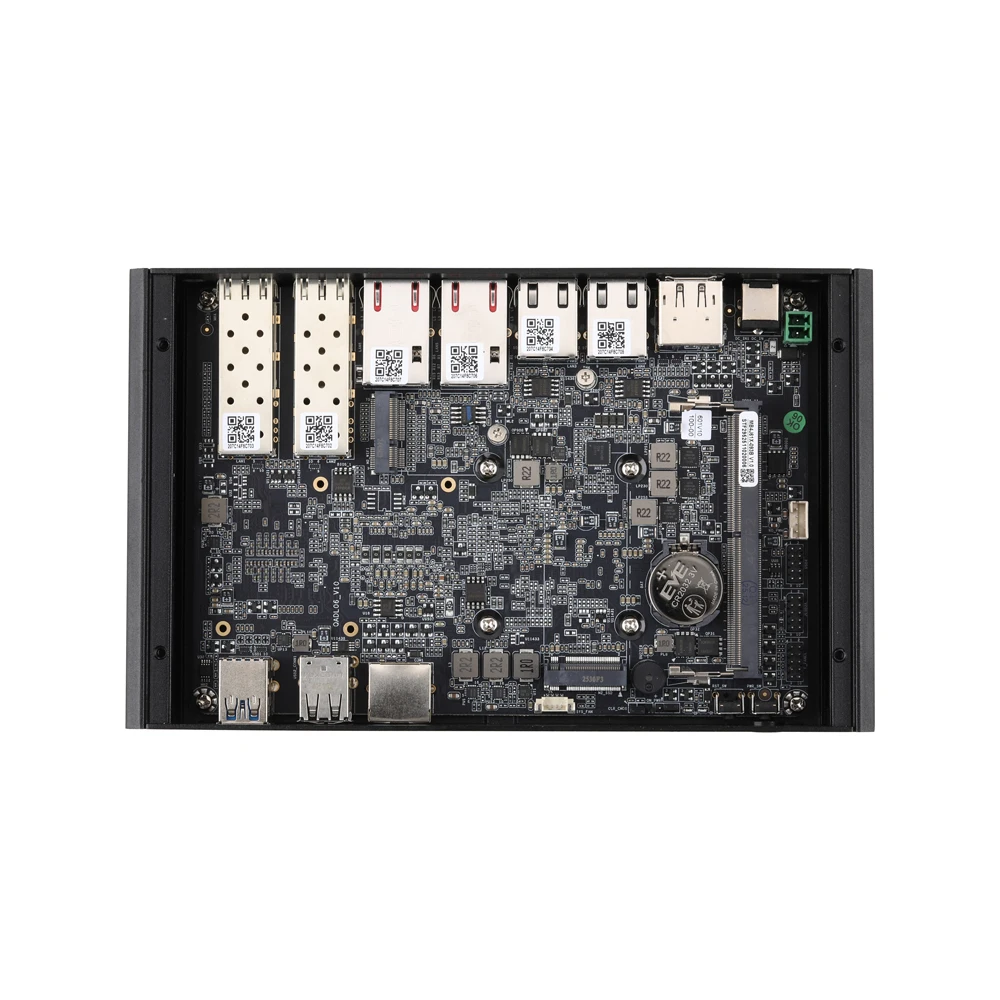

QOTOM Q10900U6 10GbE Firewall Mini PC N305 N150 2X X540 10G LAN 2X 2.5G LAN 2 X 10G SFP+ AES-NI VPN Server

Note:Shipment&Customs Clearance

Note:Shipment&Customs Clearance1. DHL / FedEx/UPS Express to most of countries
​5~7 days to most of countries.
​​
1. About Shipment:
All packages are shipped from China mainland, the consignee is responsible for completing customs clearance and promptly paying any applicable import charges, including duties, VAT, and other related fees, please pay attention to shipment.
​
2. Invoice
​If you have special requirements on invoice, please leave message.
​If you need invoice (PDF), please provide an email address.

Qotom Mini PC Q10900U6

• Option 1 CPU: Intel® Twin Lake-N Processor N305,6M Cache, 3.60 GHz,6W
• Option 2 CPU: Intel Twin Lake-N Processor N150 ,6M Cache, 3.60 GHz

• Small and compact: 196 x 122 x 47mm
• Fan-less design, quite working(Fan-assisted Cooling,the fan is removable, if you don't need, you can remove the fan )
• Running 24/7
• Aluminum alloy case
• 1 × DDR5 SO-DIMM Socket (Up to 48G)
• 1 × M.2 for SSD (M key,Type: 2 280, PCIe 3.0 × 1)
• 2 × Intel I226-V 2.5G LAN
• 2 x Intel X540 10G LAN (10GbE/1GbE)
• 2 x Intel X710-BM2 10G SFP+ (10GbE/1GbE)
• Preinstall inactive Windows 10 Pro for test
• Support multiple Operating System
• One year warranty

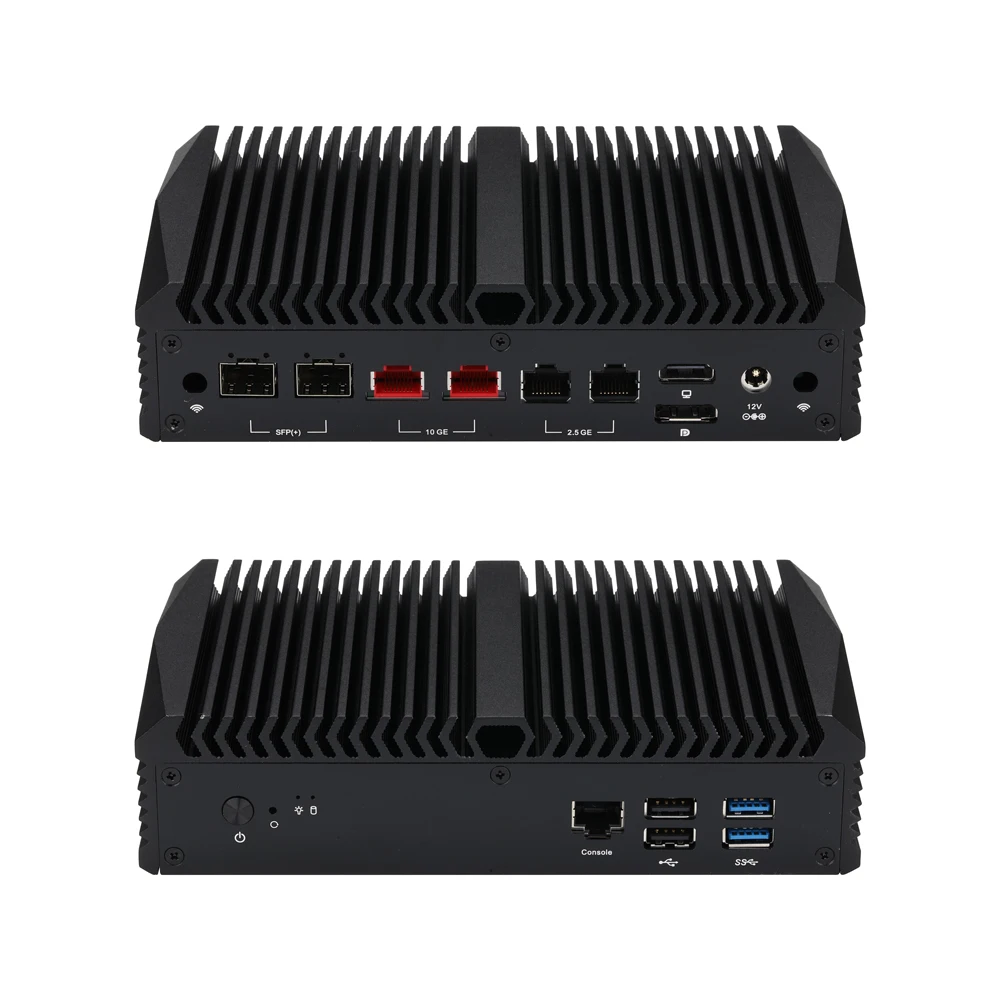

Rear I/O

1 x DC Jack
1× HD Video,1× Display Port
2 × 10G SFP+
2 × 10G RJ45
Both interfaces support up to 12Gbps
2 × 2.5G RJ45

Front I/O

1 x Power Button, 1 x Reset Button
1 x Power LED, 1 x HDD LED
1 × Connector, RS-232 (RJ-45)
2 × USB 3.0, 2 × USB 2.0

Expansion

1 × M.2 for Wi-Fi (E key, Type: 2230)
1 x AutoStart Jumper(1 x 3Pin, Pitch 2.0mm)
2 x USB 2.0 Header(2 × 5Pin, Pitch 2.0mm)
1 x USB 3.0 Header(2 × 5Pin, Pitch 2.0mm,Option)
1 x CMOS Clear Jumper(1 x 3Pin, Pitch 2.0mm)
1 x Power Header(1 x 2Pin, Pitch 3.5mm, Phoenix 2Pin)
1 x Front Panel Header(2 × 5Pin, Pitch 2.0mm)
eMMC is option

BIOS

You can ask for changing BIOS settings such as Wake on lan,Restore from AC power Loss when you place order.
Press "delete" key, you can enter the BIOS

LOGO and OEM

LOGO printing is free.Just provide your logo documenboot logo: JPG version, black background,and resolution 800*600

Sliver logo for printing: White background,and ORIGINAL logo documents in PDF version.

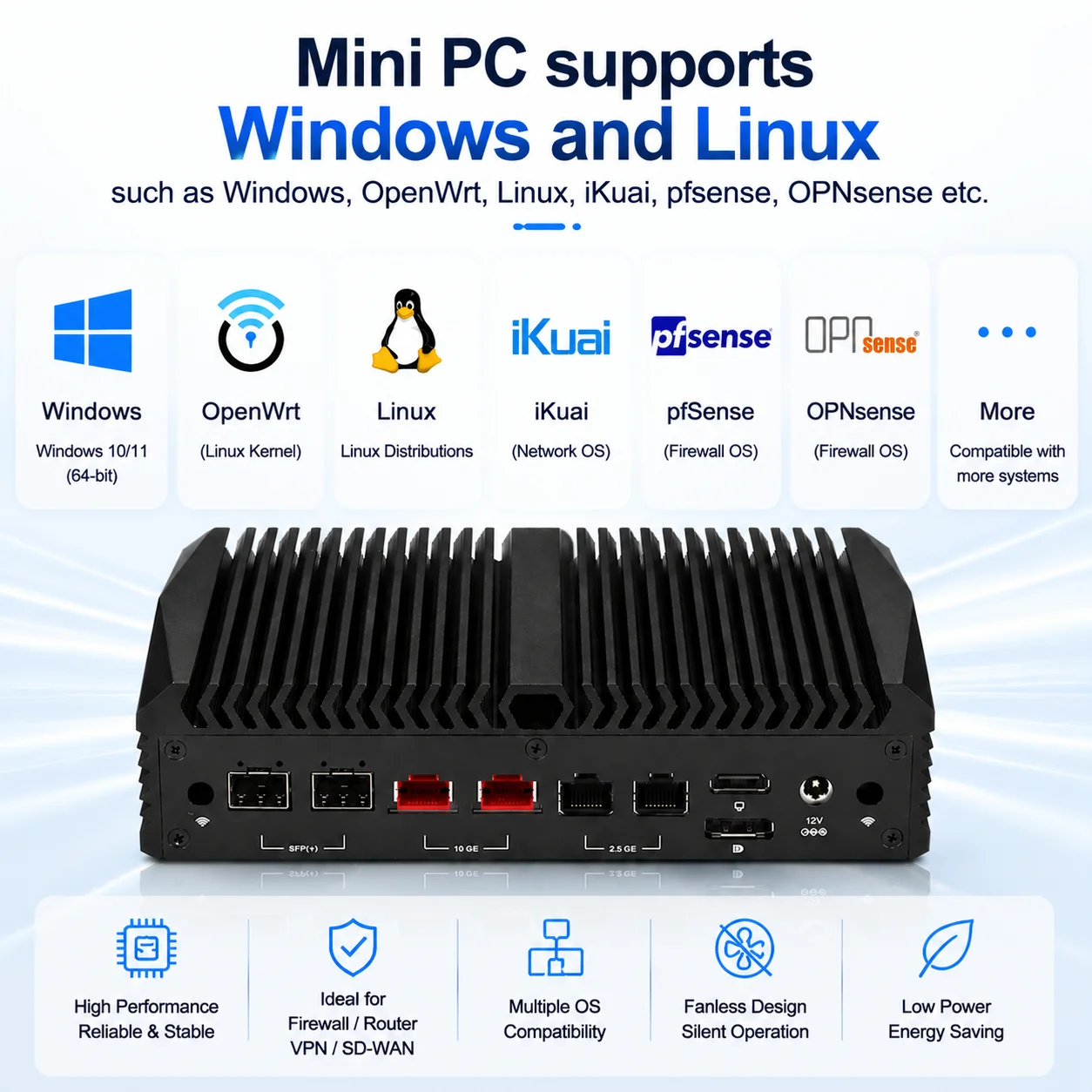

Operating System

Mini PC supports Windows and Linux ,such as Windows, OpenWrt, Linux, iKuai, pfsense, OPNsense etc.

Preload Windows 10(unactivated) for test. Buyer can reinstall OS.

F11 key boot from USB Drive. Delete key enter BIOS.

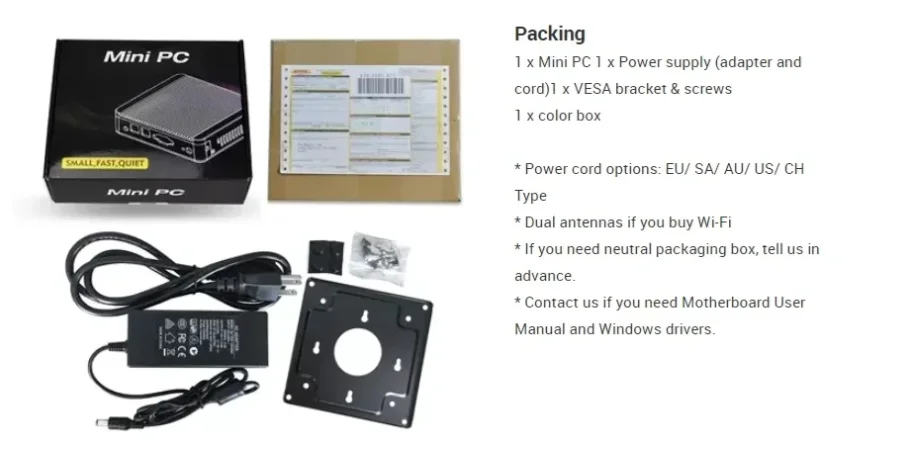

Packing & Delivery

Item Size: 196 × 122 × 47mm
Packaging Size: 285 x 260 x 93mm
