Fanless Soft Router Celeron J4125/J5005 Mini PC Quad Core 4x Intel i226 2.5G LAN HD VGA pfSense Firewall Appliance ESXI OPNsense

Main Features:

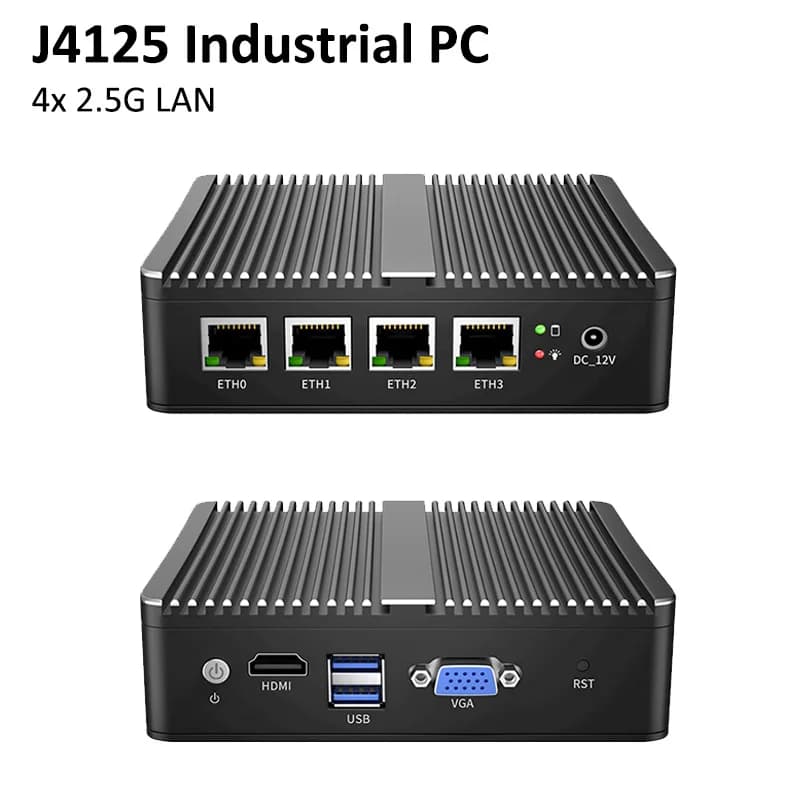

● -4x i226-V 2.5G RJ45 LANs, 2xUSB3.0.
● -2xDDR4 SODIMM non-ecc ram slot, max support 16GB 2400MHz.
● -Support two storage: 1xmSATA SSD+1x2.5''SATA SSD/HDD.
● -Support 1xHDMI+1xVGA dual display output synchronously and asynchronously.
● 1xMPCIE wireless slot, support WiFi/connection.
● -Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
● -Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.
● -Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
● -Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).

Note:

1, If you have no knowledge of computer hardware, I recommend you to buy it with RAM and SSD.
2, Please do not install Crucial RAM and memory with Micron chips, it will have compatibility issues. We recommend using SKhynix or Samsung chips.
3, We will pre-install pfsense 2.7 on every Mini PC, if you need another system or don't install any system, please message us.

J4125

● CPU: Intel® Gemini Lake Processor Celeron J4125 (4C/4T, 4M Cache, 2.0GHz up to 2.7GHz), 10W TDP
● GPU: Intel UHD Graphics GPU, 250MHz up to 700MHz; Support 4096*2160 @60Hz
● RAM: 8GB/16GB DDR4 2400MHz
● Storage:Msata 128GB/256GB/512GB, support 2.5inch HDD

External port

● Power button *1
● USB 3.0 *2
● HD 1.4 *1
● VGA *1
● 2.5GBps LAN *4
● DC in: 12V

Internal port

● RAM slot: 2 x SO-DIMM, Max capacity 32GB
● SSD slot: 1 x Msata (SATA 6.0Gb/s)
● Wireless slot: 1 x Mini PCIE (Support WIFI wireless network card)
● SATA port *1

Other

● Dimension: 13.7*12.7*4.0cm
● Power: 12V 3A DC-in
● Operating Temp: 0°C to50°C
● Storage Temp: -20°C to 60°C
● Cooling: Passive
● Operating System: Support Windows 10, Windows 11, Linux,pfSense
● Additional features:Auto Power ON

Accessories

● 1 * Power Adapter 12V 4A, (US, EU, UK, AU Plug available)
● 1 * sata cable
