Fanless Compact Mini PC Intel Celeron N2840 N2930 J1800 Dual RJ45 LAN DDR3L mSATA SSD Firewall Home Server Industrial Computer

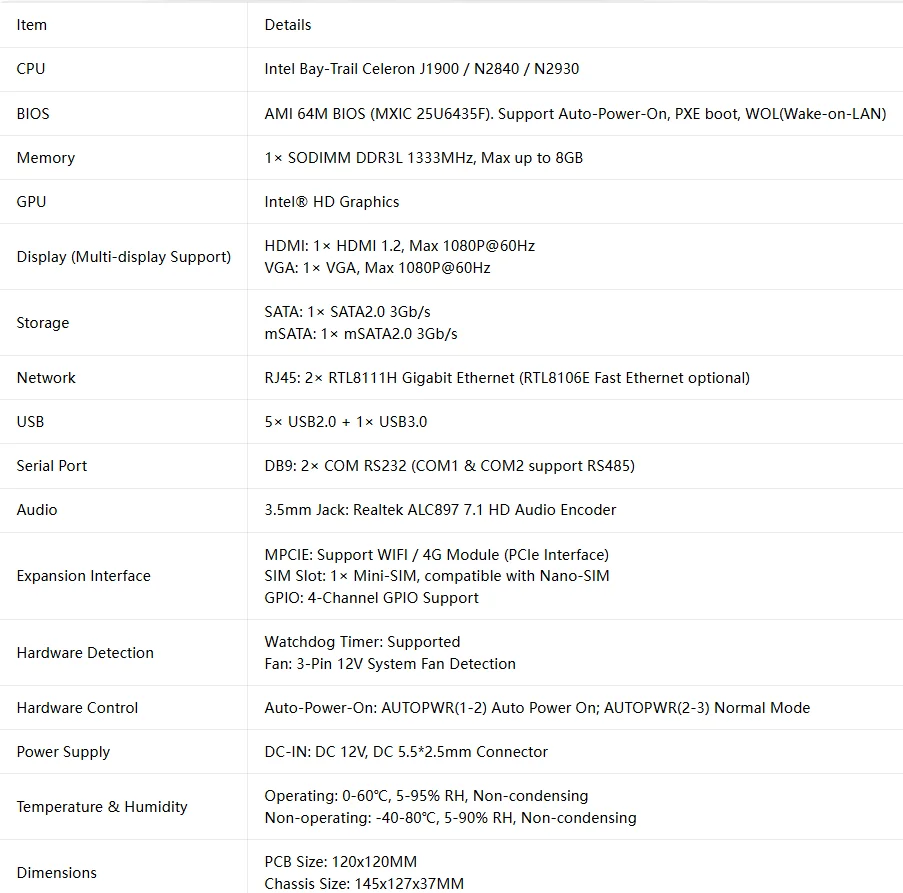

Specifications

CPU: Intel Bay‑Trail Celeron J1900 / N2840 / N2930

BIOS: AMI 64M BIOS (MXIC 25U6435F). Support Auto‑Power‑On, PXE boot, WOL(Wake‑on‑LAN)

Memory: 1× SODIMM DDR3L 1333MHz, Max up to 8GB

GPU: Intel® HD Graphics

Display (Multi‑display Support):

HDMI: 1× HDMI 1.2, Max 1080P@60Hz

VGA: 1× VGA, Max 1080P@60Hz

Storage:

SATA: 1× SATA2.0 3Gb/s

mSATA: 1× mSATA2.0 3Gb/s

Network: 2× RTL8111H Gigabit Ethernet (RTL8106E Fast Ethernet optional)

USB: 5× USB2.0 + 1× USB3.0

Serial Port: 2× COM RS232 (COM1 & COM2 support RS485)

Audio: 3.5mm Jack: Realtek ALC897 7.1 HD Audio Encoder

Expansion Interface:

MPCIE: Support WIFI / 4G Module (PCIe Interface)

SIM Slot: 1× Mini‑SIM, compatible with Nano‑SIM

GPIO: 4‑Channel GPIO Support

Hardware Detection:

Watchdog Timer: Supported

Fan: 3‑Pin 12V System Fan Detection

Hardware Control: Auto‑Power‑On: AUTOPWR(1‑2) Auto Power On; AUTOPWR(2‑3) Normal Mode

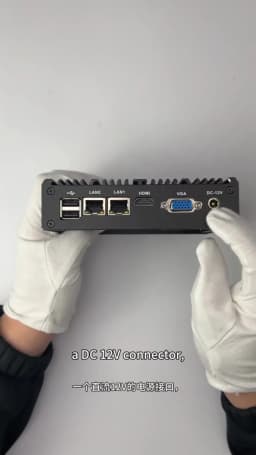

Power Supply: DC‑IN: DC 12V, DC 5.5*2.5mm Connector

Temperature & Humidity:

Operating: 0‑60℃, 5‑95% RH, Non‑condensing

Non‑operating: ‑40‑80℃, 5‑90% RH, Non‑condensing

Dimensions:

PCB Size: 120x120MM

Chassis Size: 145x127x37MM

Notice: RAM, SSD, WiFi /4G module are not included unless you select full‑configured SKU.

Package List

1 × Mini PC Host

1 × Power Adapter

1 × Power Cord (EU / US / UK / AU plug will be shipped according to the buyer's destination country)

No COM model:

2 COM model:

If you need a VESA mounting bracket, click the corresponding image to add it to your order together.
