Qotom Mini PC Q300G4-S05 Core I3 I5 I7 with 4 Gigabit Ethernet NIC AES-NI Firewall Router Computer

Shipping / Customs Advice

PS: Remote address will charge for the remote fee, pls note.

1. DHL / FedEx / UPS Express:
Delivery time is 5-10 / 10-15 working days to most countries.
We will declare full value in invoice for customs, client should pay Customs Fees (Import duty, VAT and other fees) . We aren't responsible for it. Please note that.

2. Seller's Shipping Method
Delivery time is 10-15 days .
We will declare full value in invoice for customs, client should pay Customs Fees (Import duty, VAT and other fees) . We aren't responsible for it. Please note that.

3. AliExpress Standard Shipping:
Delivery time is 30-45 working days.
We will declare full value in invoice for customs, client should pay Customs Fees (Import duty, VAT and other fees) . We aren't responsible for it. Please note that.

Product Description

CPU:
Q335G4: Intel 5th Gen Broadwell Core i3-5005U Processor (2 Cores, 3M Cache, 4 Threads, 2.0GHz). Intel HD 5500
Q355G4: Intel 5th Gen Broadwell Core i5-5200U Processor (2 Cores, 3M Cache, 4 Threads, 2.2GHz up to 2.7GHz). Intel HD 5500
Q30531G4: Intel 5th Gen Broadwell Core i3-5005U Processor (2 Cores, 3M Cache, 4 Threads, 2.0GHz). Intel HD 5500
Q30471G4: Intel 4th Gen Haswell Core i7-4500U Processor (2 Cores, 4M Cache, 4 Threads, 1.8GHz up to 3.0GHz). Intel HD 4400

LAN Chipset:
Q335G4: 4 x Intel I211-AT/I210-AT Gigabit LAN
Q355G4: 4 x Intel I211-AT/I210-AT Gigabit LAN
Q30531G4: 4 x Intel I225-V/I226-V 2.5 Gigabit LAN
Q30471G4: 4 x Intel I225-V/I226-V 2.5 Gigabit LAN

Memory: 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
Storage: 1 x 2.5" HDD/SSD
1 x Mini PCIe for mSATA SSD
OS: Support Windows 7, Windows 8, Windows 10, Linux

CPU TDP: 15W
Chipset: By CPU
AES-NI: Yes
Audio: No
Watch Dog: Yes
Kensington Lock: No

Operating Temp: 0°C~50°C
Non-Operating Temp: -20°C~80°C
Humidity: 10%~90%

Power Adapter: 12V3A
DC Jack: 5.5mm, 2.5mm

Dimension: 187 x 111 x 49mm
Material: Aluminum Alloy
Cooling Mode: Fanless Design
Mounting: VESA Mounting Bracket

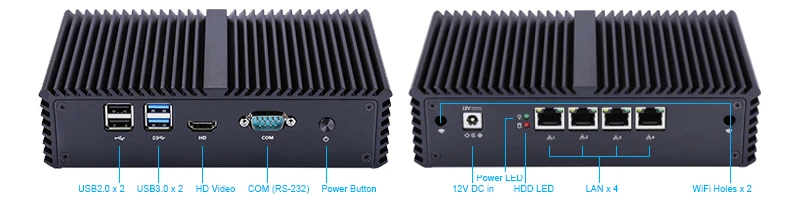

Interfaces Description

Dimension Description

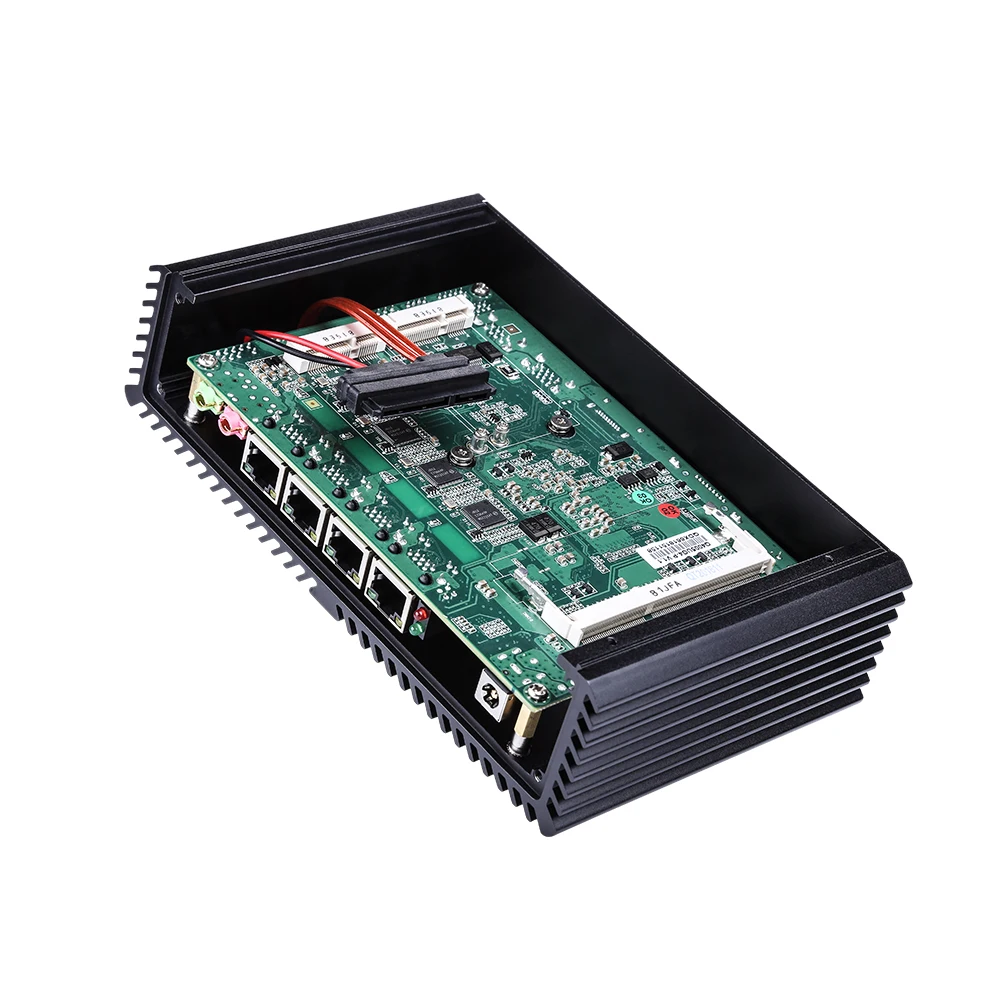

Internal Description

mSATA: 1 x Full-length Mini PCIe for SSD
Mini PCIe: 1 x Mini PCIe
Full-length for 4G
Half-length for Wi-Fi
SIM Card Slot: 1
AutoStart Jumper: Yes, 1 x 3Pin, Pitch 2.54mm
VGA: 0
GPIO: 1, 2 x 5Pin, Pitch 2.0mm
RS-485: 0
DC-in: No

Operating System

1)If the product iswith RAM and SSD, it comes with pre-install unactivated Windows 10 in English for test, and we DO NOT provide any Windows license.
You also can install OS and software package by yourself.Press F11 key boot from USB Drive, press Delete key enter into BIOS.
2) We can provide Windows drivers download link.

Pls Note:
1. If there is NO RAM, please use DDR3L-1333/1600 GHz 1.35V Non-ECC SO-DIMM RAM. They PC DO NOT support DDR3 1.5V RAM.
2. This PC is also incompatible with some 1.35V RAM model likes Crucial etc. Seller is irresponsible and makes no compensation for buyer's own RAM.

BIOS Feature

Pls set in BIOS by yourself (press Delete key).

WiFi & 3G / 4G Module

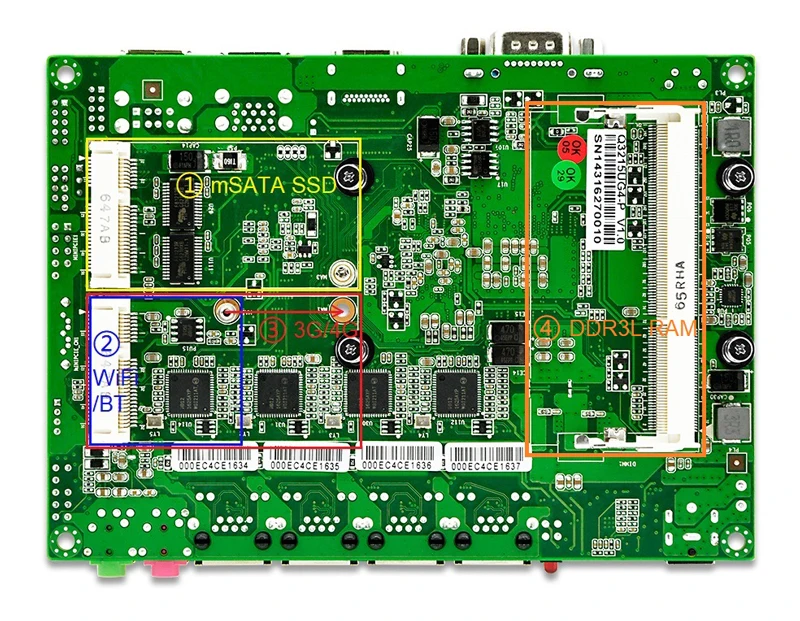

1. Full-length Mini PCI-e slot (Part ①) only supports mSATA SSD.
2. Half-length Mini PCI-e slot (Part ②) is only for WiFi (/Bluetooth).
3. Full-length Mini PCI-e slot (Part ③) is only for 3G/4G module.
4. SO-DIMM slot (Part ④) is only for DDR3L RAM.

Pls Note:
1. Mini PCI-e cann't be supported WiFi and 3G/4G module as the same time in this computer.
It only supports WiFi by default (Half-length Mini PCI-e). If you want to choose 3G/4G function, pls leave a message.
2. We don't provide SIM card and 3G/4G module.

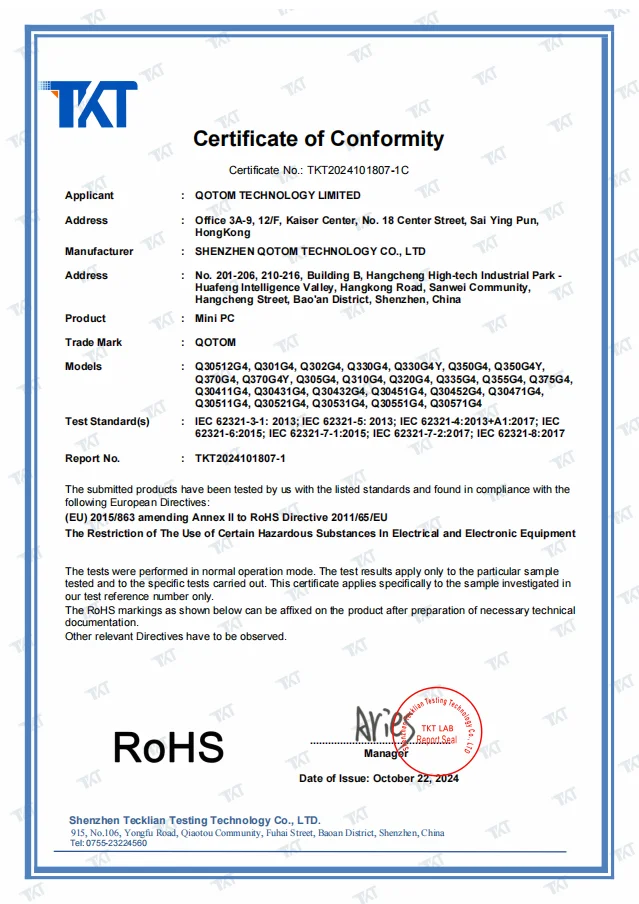

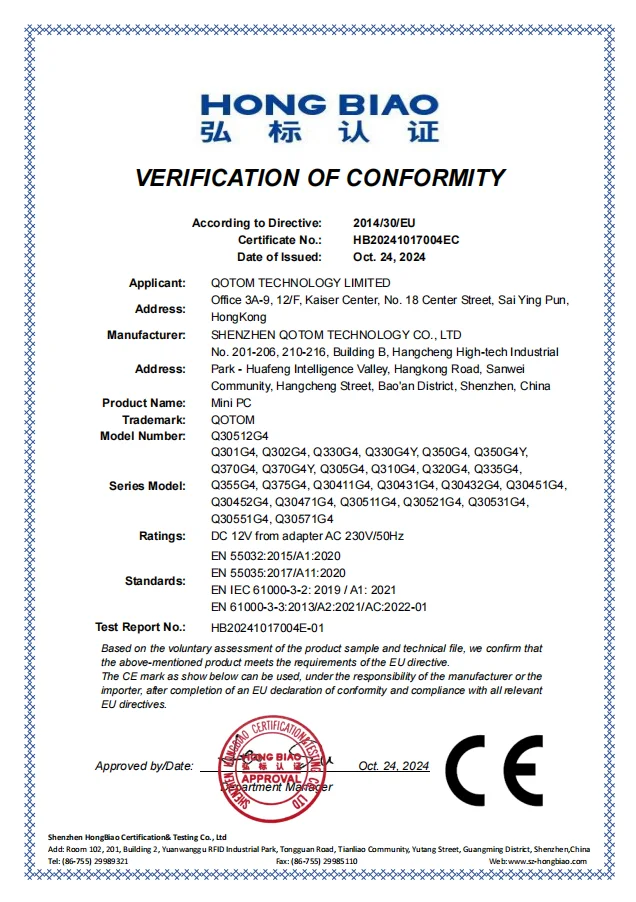

CE Certificate

CE-MEC

CE-ROHS

Packing Included

1 x Mini PC
1 x Screws
1 x VESA Mount Bracket
1 x Power Adapter with Plug
2 x Antennas (Only configuration is included WiFi)

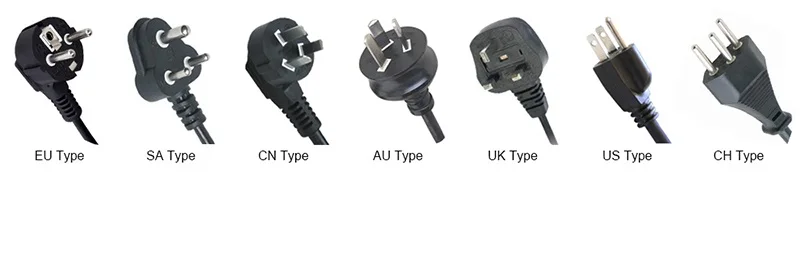

Power Plug Type to Choose
