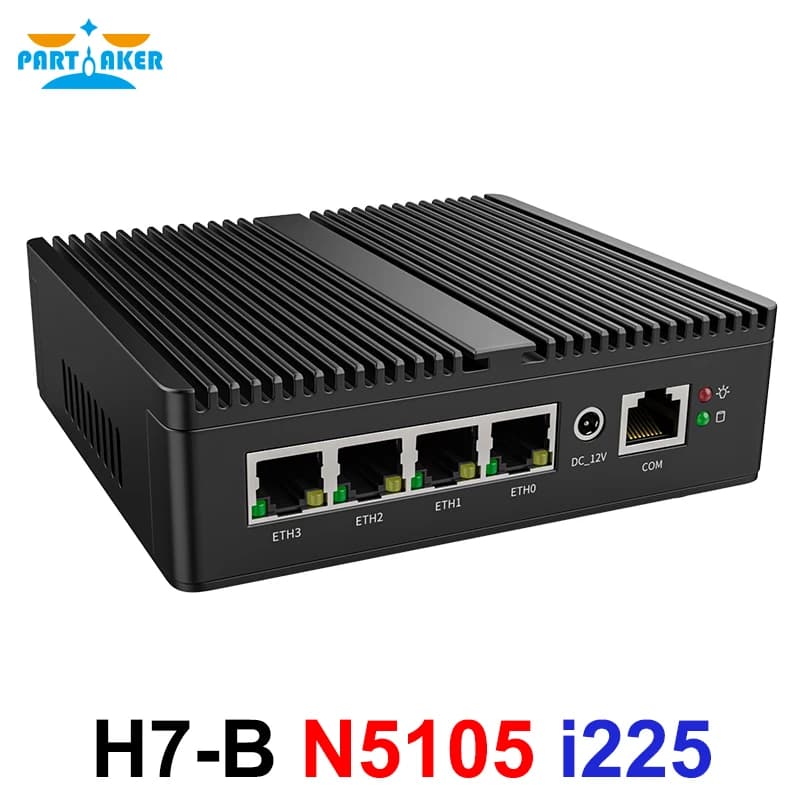

Partaker Mini PC N5105 N150 J4125 J6413 Soft Router 4 Intel I226 2.5G LAN PfSense Firewall Appliance 2xDDR4 OPNsense VPN Server

Processor parameter for referance only

Japser Lake Intel Celeron N5105 4 cores 4 threads 2.0GHz up to 2.9GHz 4MB cache TDP 10W Intel UHD Graphics, AES-NI supported.

Product Highlight

Intel Jasper Lake Celeron Processor N5105, 4 core 4 threads, 10nm, 2.0GHz up to 2.9GHz, 4M cache

Intel UHD Graphics GPU, 450MHz up to 800MHz; Support 4096*2160 @60Hz

RAM: 8GB or 2x8GB Crucial DDR4 3200MHz

4xIntel i225-V B3 2.5G RJ45 LANs, 2xUSB3.0.

Support two storage: 1xM.2 2280 NVMe SSD+1x2.5''SATA SSD/HDD.

Support 1xHDMI+1xDP dual display output synchronously and asynchronously.

1xMPCIE wireless slot, support 4G/WiFi/Bluetooth connection.

Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.

Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.

Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.

Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).

Be Careful:If you are not professional IT engineer with pc installation, it's better to buy device with RAM and Hard disk. Because maybe it will damage the memory or the entire machine if any mishandle.

Free Operating System: Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc.  Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.

DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Skyhynix etc ORIGINAL brand ram and storage. We are afraid to see you suffer a bad shopping experience and DO NOT compensate for buyer's man-made damage and faulty.

Model Number: Partaker H7

Chassis: Full aluminum

CPU: Intel Celeron Processor N5105 (4M Cache, up to 2.90 GHz)

AES-NI Supported: Yes

Memory: 2 x sodimm ddr4 2400/2666/2933 MHz

HDD/SSD: 1 x m.2 2280 nvme SSD and 1 x 2.5 inch SSD/HDD(Not support SATA interface M.2, PCIe 2X)

Ethernet: 4*Intel I225(10/100/1000/2500M)

I/O Ports: 4 x LAN, DC_IN, RJ45 COM, 2 x USB2.0, Power ON/OFF, 2 x USB3.0, 1 x HDMI, 1 x DP,  SIM Slot, WIFI Holes

Expansion: Support 1*Mini PCIE(WiFi/BT), 1*SIM Slot(4G)

Power: Dc100-240v ac/50-60hz, 12v/4a

Size: 178 x 122 x 55mm

Weight: 1.5kgs

Operating Temperature: 0°c~70°c centigrade (32°f~140°f)

Storage Temperature: -20°c~80°c centigrade (-68°f~176°f)

Relative Humidity: 10%~90% (non-condensing)

TDP: 10W

Function: Supports hardware auto power on (enabled default), network wake-up, system power management, temperature management

Cooling system: Fanless

System Support: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported;

Packing List: Firewall Appliance+ Rack Ear+ Power Cord

COMPATIBILITY: firewalls tested with pfsense, untangle, opnsense and other popular open-source software solutions

Tips: Other OS demand, Do need to leave us message on the order, thank you. 4 LAN, 6 LAN, 8 LAN, 10 Ports, Different CPU, 1U/2U RACK Mount, Desktop Type, all are available in our shop.

Specification

CPU: Intel® Jasper Lake Processor Celeron N5105/N5095 (4C/4T, 4M Cache, 2.0GHz up to 2.9GHz), 10W TDP

GPU: Intel UHD Graphics GPU, 450MHz up to 750MHz; Support 4096*2160 @60Hz

RAM: 8GB/2x8GB Crucial DDR4 3200MHz

Storage:M.2 2280 NVMe SSD 128GB/256GB/512GB , support 2.5inch HDD

External port

Power button

USB 3.0  *2

USB 2.0  *2

HDMI 2.0 *1

DP  *1

2.5GBps LAN *4

DC in: 12V

Internal port

RAM slot: 2 x SO-DIMM, Max capacity 32GB

SSD slot: 1 x M.2 2280 NVMe (PCIE 3.0 x2)

Wireless slot: 1 x Mini PCIE (Support WIFI/Bluetooth/4G wireless network card)

SATA port  *1

Other

Dimension: 13.4*12.4*4.3cm

Power: 12V 3A DC-in

Operating Temp: 0°C to50°C

Storage Temp: -20°C to 60°C

Cooling: Passive

Operating System: Support Windows 10, Windows 11, Linux,

Additional features:Auto Power ON

Accessories

1 * Power Adapter 12V 3A, (US, EU, UK, AU Plug available)

1 * sata cable
