14th Gen Core 3-100U Mini PC Firewall Home Server Intel I7 13620H I3-1215U 1220P 6×2.5G I226-V LAN PfSense Proxmox Host Computer

Processor parameter for referance only

Intel N100/i3-N300 Model

1x DDR5 SODIMM RAM slot, supports up to 16GB 4800MHz

6x Intel i226-V 2.5G RJ45 LAN ports, 4x USB 2.0, 1x RJ45 COM console port

Triple storage support: 2x M.2 2280 NVMe/PCIe 3.0 x1 SSD (one on each side of motherboard) + 1x 2.5-inch SATA 3.0 7mm SSD/HDD

1x SIM slot, 1x MPCIE slot; supports WiFi/4G (select one of two)

Intel Pentium Gold 8505 / Core i7-13620H / i3-1215U/i3-1220P Core 3-100U Model

2x DDR5 SODIMM RAM slots, supports up to 64GB 4800MHz

Intel Core i7-1195G7 / i3-1115G4 Model

2x DDR4 SODIMM RAM slots, supports up to 32GB 3200MHz

6x Intel i226-V 2.5G RJ45 LAN ports, 4x USB 3.0, 1x RJ45 COM console port

Dual storage support: 1x M.2 2280 NVMe/PCIe x4 SSD + 1x 2.5-inch 7mm SATA SSD/HDD

1x SIM slot, 1x M.2 2230 WiFi slot (CNVI/PCIe signal), 1x MPCIE slot; supports WiFi/4G (select one of two)

Common Features

1x HDMI 2.0 & 1x DP 1.4, supporting dual 4K@60Hz UHD output

Supports AES-NI, ESXi, PVE, Watchdog, auto power-on, RTC, PXE boot, Wake-on-LAN, etc.

Innovative Cooling & Design

All-aluminum finned passive heatsink + intelligent fan cooling

Fan-motherboard isolation for dust and corrosion resistance

Switchable between fan and fanless modes

High-efficiency heat dissipation unlocks full CPU performance; low noise operation

Disconnect the fan connector for completely silent fanless mode

Power & Installation

Low TDP power consumption

VESA mountable behind a monitor (bracket optional)

Package List

1x Mini PC

1x Power Adapter

1x Power Cord (EU/US/UK/AU plug according to destination country)

1x SATA Cable

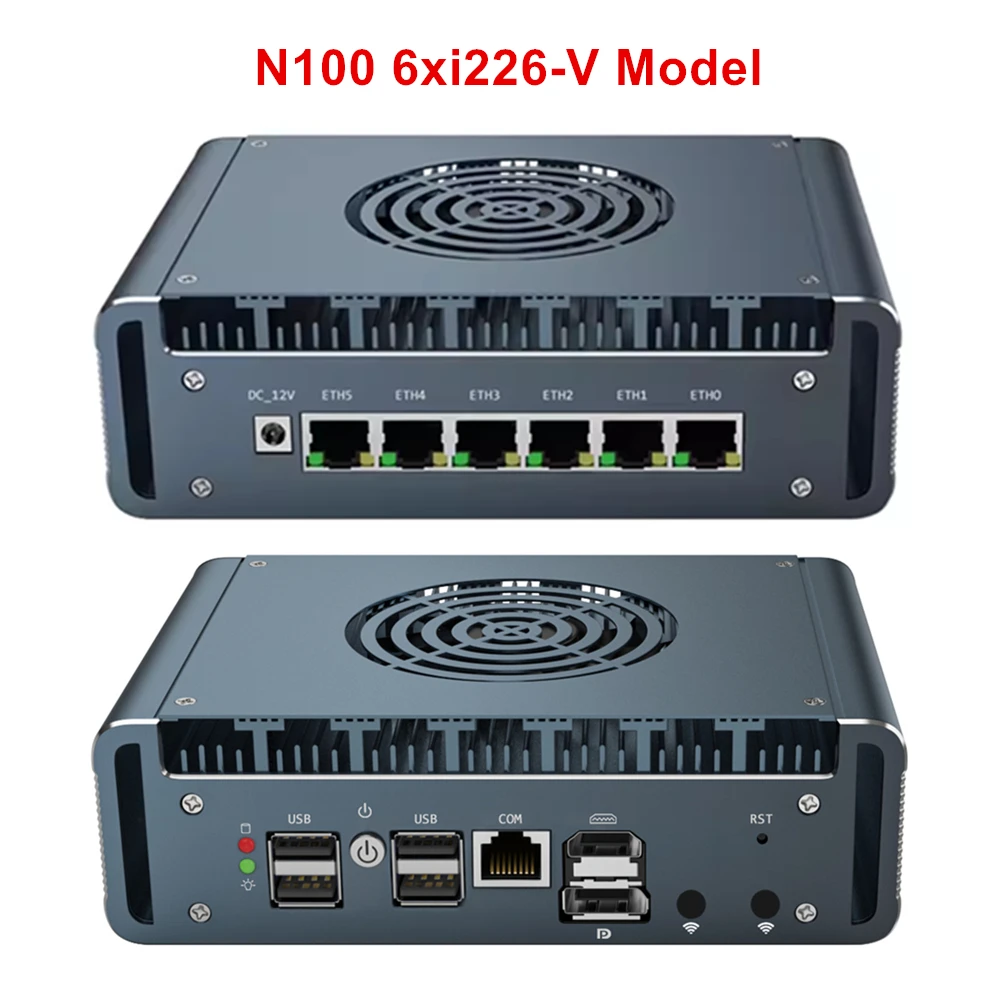

Intel N100/i3-N300 6x2.5G model

Intel Pentium 8505/i7-13620H/i3-1215U/i3-1220P/i7-1195G7/i3-1115G4 6x2.5G model

Welcome to click the picture of VESA Bracket to order together if you need:
