G30F Metal Firewall Router Intel i7 13620H i5-1235U Pentium Gold 8505 4x Intel i226V 2.5G LAN DDR4 pfSense Firewall Router

Main Features:

Pentium Gold 8505
● 12th Pentium® Gold 8505, 5 core 6 threads, Up to 4.4GHz
● Intel® UHD Graphics for 12th Gen Intel® Processors, 48EU, Up to 1.1GHz

12th Core i5-1235U
● 12th Intel® Core™ i5-1235U, 10 core 12 threads, Up to 4.4GHz
● Intel® Iris® Xe Graphics eligible, 80EU, Up to 1.2GHz

12th Core i7-1265U
● 12th Intel® Core™ i7-1265U, 10 core 12 threads, Up to 4.8GHz
● Intel® Iris® Xe Graphics eligible, 96EU, Up to 1.25GHz

● RAM: 8GB or 2x8GB DDR4
● -4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0.
● -Support two storage: 1xM.2 2280 NVMe SSD + 1x2.5''SATA SSD/HDD.
● -Support 1xHDMI+1xDP dual display output synchronously and asynchronously.
● 1xMPCIE wireless slot, support 4G model/WiFi/Bluwtooth connection.
● -Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
● -Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.
● -External cooling fan, more convenient to replace, easier to reduce the shell temperature. work as long as 7x24 hours.

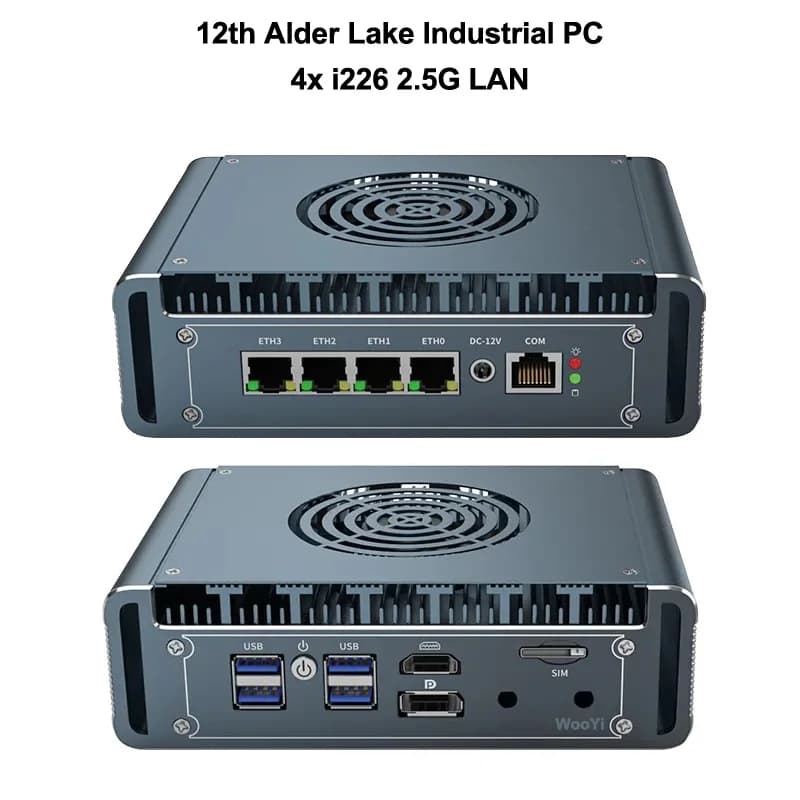

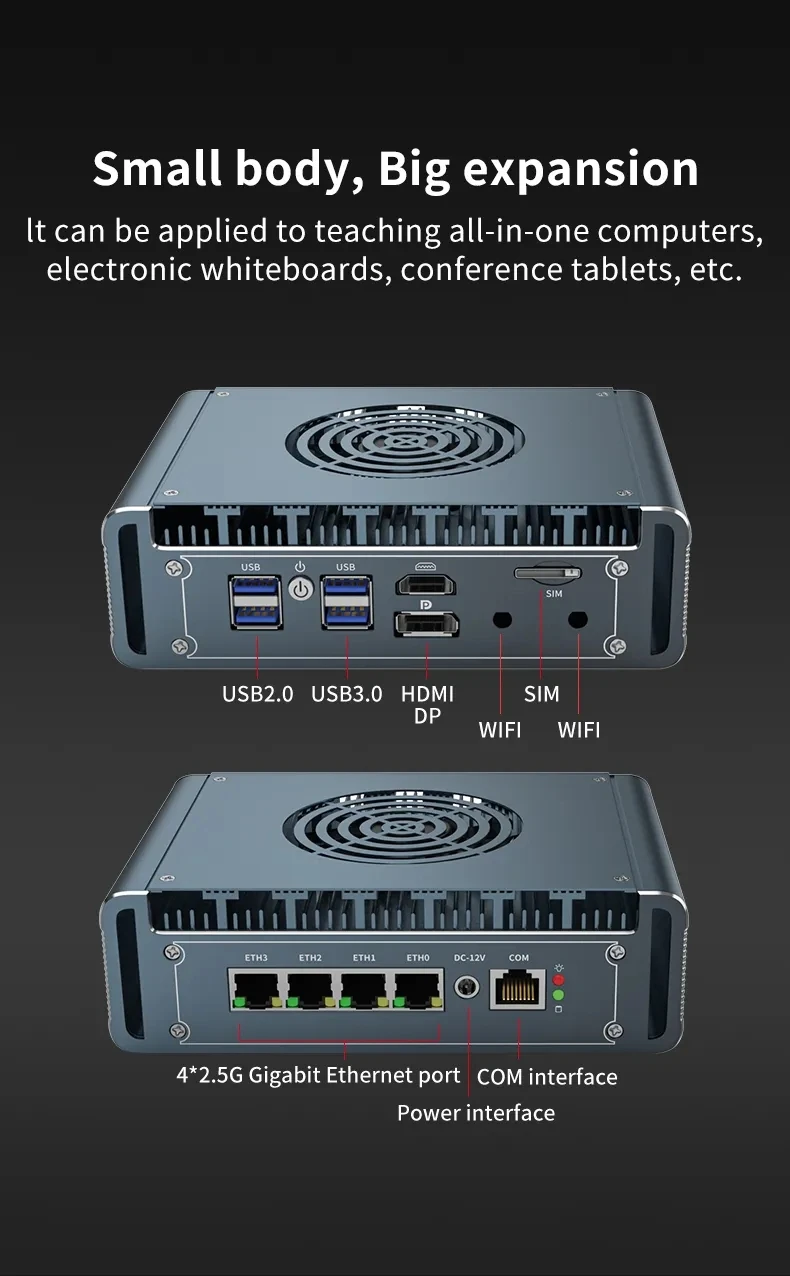

External port

● Power button *1
● USB 3.0 *2
● USB 2.0 *2
● HDMI 2.0 *1
● DP *1
● 2.5GBps LAN *4
● DC in: 12V

Internal port

● RAM slot: 2 x SO-DIMM, Max capacity 32GB
● SSD slot: 1 x M.2 2280 NVMe
● Wireless slot: 1 x Mini PCIE (Support WIFI /Bluetooth/4G modem wireless network card)
● SATA port *1

Other

● Dimension: 17.8*12.2*5.5cm
● Power: 12V 6A DC-in
● Operating Temp: 0°C to50°C
● Storage Temp: -20°C to 60°C
● Cooling: Passive
● Operating System: Support Windows 10, Windows 11, Linux,pfSense
● Additional features:Auto Power ON

Accessories

● 1 * Power Adapter 12V 6A, (US, EU, UK, AU Plug available)
● 1 * sata cable
