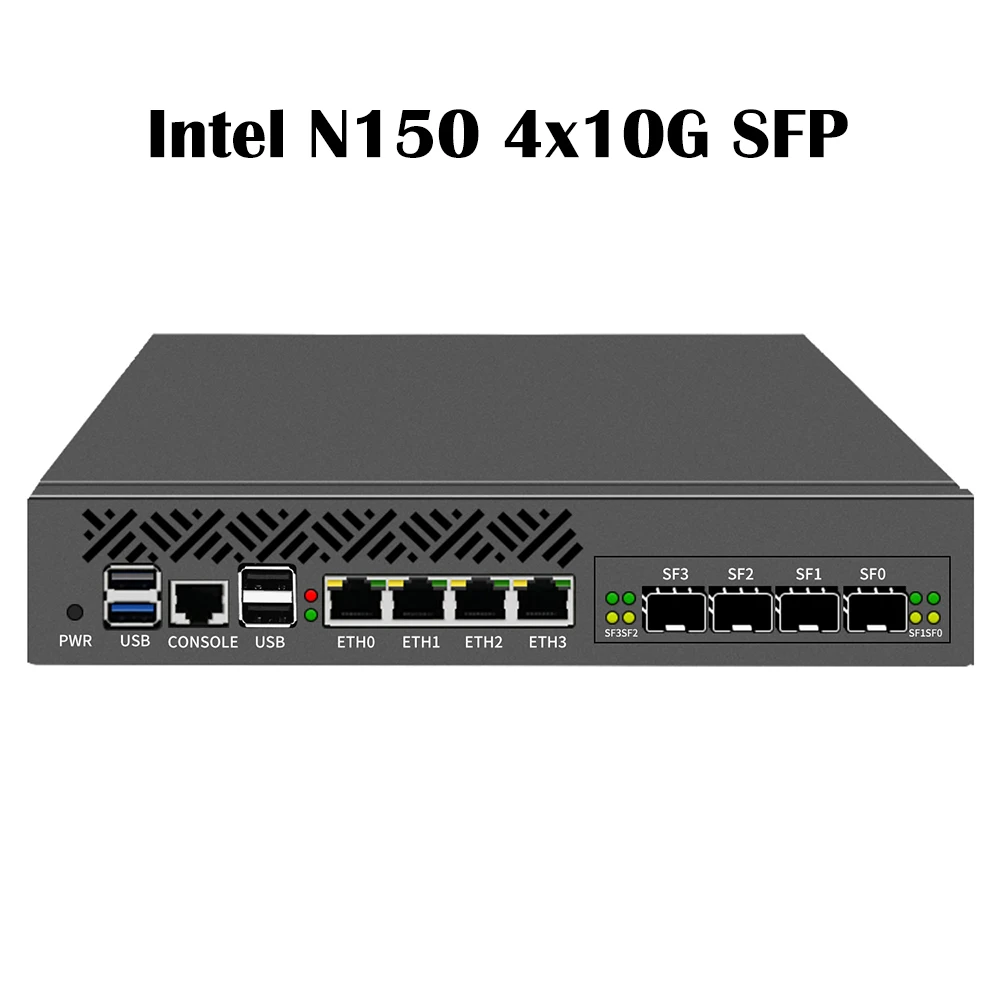

Rackmount 1U 9.5' Firewall Server Intel N150 4×10G SFP Ports 4×2.5G I226-V LAN Network Security Mini PC PfSense OPNsense Router

Processor parameter for referance only

Product Highlights

9.5-inch full solid metal chassis, compact structure with good portability; equipped with two mounting brackets to support standard 1U rack installation.

4× Intel I226-V 2.5G RJ45 LAN ports, 1× RJ45 Console port, 1× USB3.0 port and 3× USB2.0 ports.

1× PCIe x8 expansion slot (PCIe 3.0 x4 signal); optional pluggable network modules: Intel 82599ES 2×10G SFP+, Intel X710-DA4 4×10G SFP+, Intel I350-AM4 4×1G SFP+.

1× DDR5 SODIMM non-ECC notebook memory slot, compatible with memory modules up to 4800MHz.

Dual storage design: 1× M.2 2280 NVMe SSD slot (PCIe 3.0 x1) + 1× SATA 3.0 interface.

1× Mini PCIe slot (USB signal transmission) together with 1× SIM card slot; optional 4G LTE wireless communication module is available.

Dual video output interfaces: 1× HDMI + 1× VGA, realizing dual-screen display.

Built-in abundant industrial practical functions: UEFI BIOS, AES-NI hardware encryption, Watchdog, automatic power-on after power recovery, RTC timing, PXE boot, Wake-on-LAN; fully compatible with ESXi, Proxmox VE and other virtualization systems.
