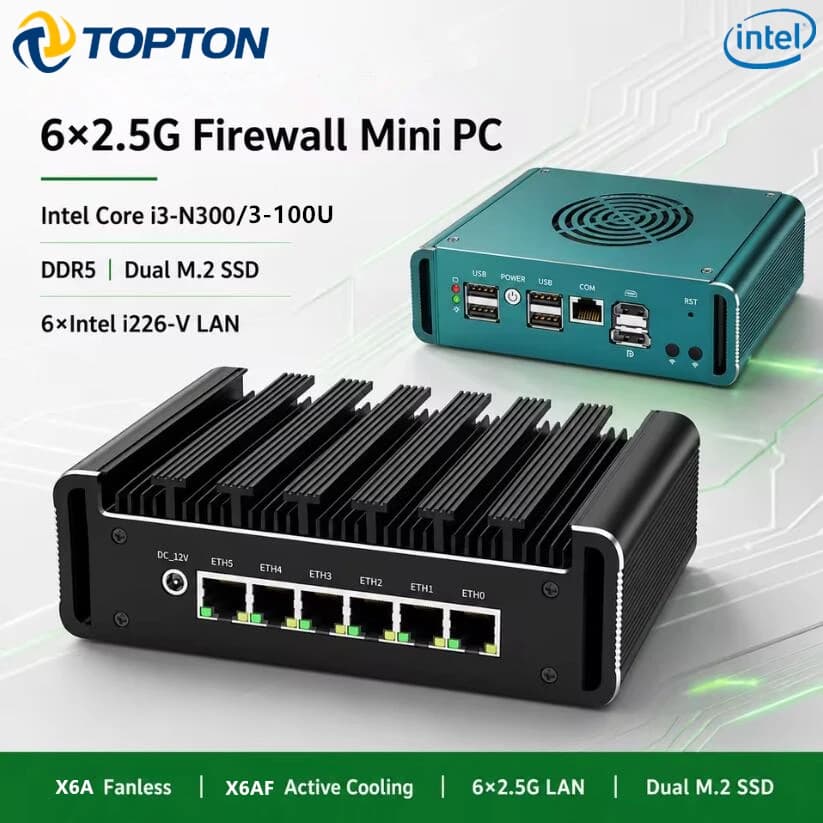

Topton 6x2.5G LAN Metal Firewall Mini PC Intel I3 N300 3 100U N100 I226-V DDR5 2xNVMe 2.5''SATA ESXi Proxmox NAS PC Home Server

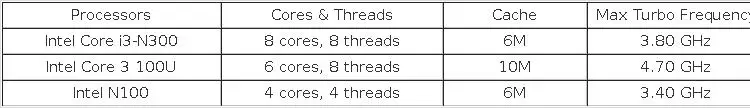

Processor parameter for referance only

Product Highlight:

-6xIntel i226-V 2.5G RJ45 LANs, 4xUSB2.0, 1xCOM RJ45, 1xHDMI, 1xDP.

-1xDDR5 SODIMM non-ecc ram slot, support max 32GB 4800MHz.

-Support three storage: 2xM.2 2280 NVMe/PCIE3.0x1 SSD(one on each side of motherboard)+1x2.5''SATA3.0 7mm SSD/HDD.

-1xSIM slot, 1xMPCIE slot, support WiFi/4G( only USB signal) connection.

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Same motherboard with two optional systems: fanless system with passive cooling by whole aluminum case, case feels hot but noiseless totally;  Fan system has a fan built in solid aluminum case with cooling fins to get much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cord(EU/US/UK/AU plug based on buyer's country)

1xSATA Cable

Suggest to install pfSense, OPNsense etc routing OS for fanless system. Suggest to add extra fan for ram and hard drive cooling if you install Proxmox, ESXi etc virtual machine system to avoid overheating crash.

System with Fan:

Fanless System:

Welcome to click the picture of VESA Bracket to order together if you need:
