Topton Solid Firewall Machine Intel I7 13620H I3 1215U 8505 N5105 4x2.5G LAN I226-V DDR4 NVMe Proxmox OPNsense Mini PC Server

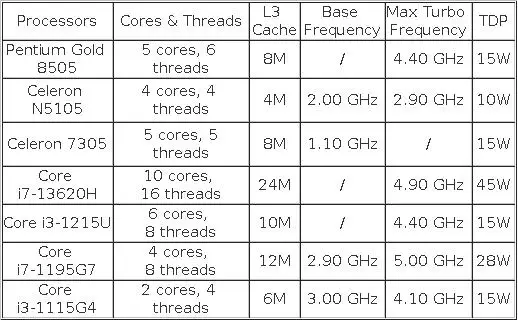

Processor parameter for referance only

Product Highlight

-2xDDR4 SODIMM ram slots, support max 64GB.

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console.

-Support two storage: 1xM.2 2280 NVMe/PCIEx4 SSD+1x7mm 2.5'' SATA SSD/HDD.

-1xSIM slot(back side), 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.

-1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display.

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Innovation: All aluminum shell fins passive heat-sink + intelligent fan cooling, using fan and motherboard isolation technology to achieve dust and corrosion prevention. It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cord(EU/US/UK/AU plug based on buyer's country)

1xSATA Cable

Welcome to click the picture of VESA Bracket to order together if you need:
