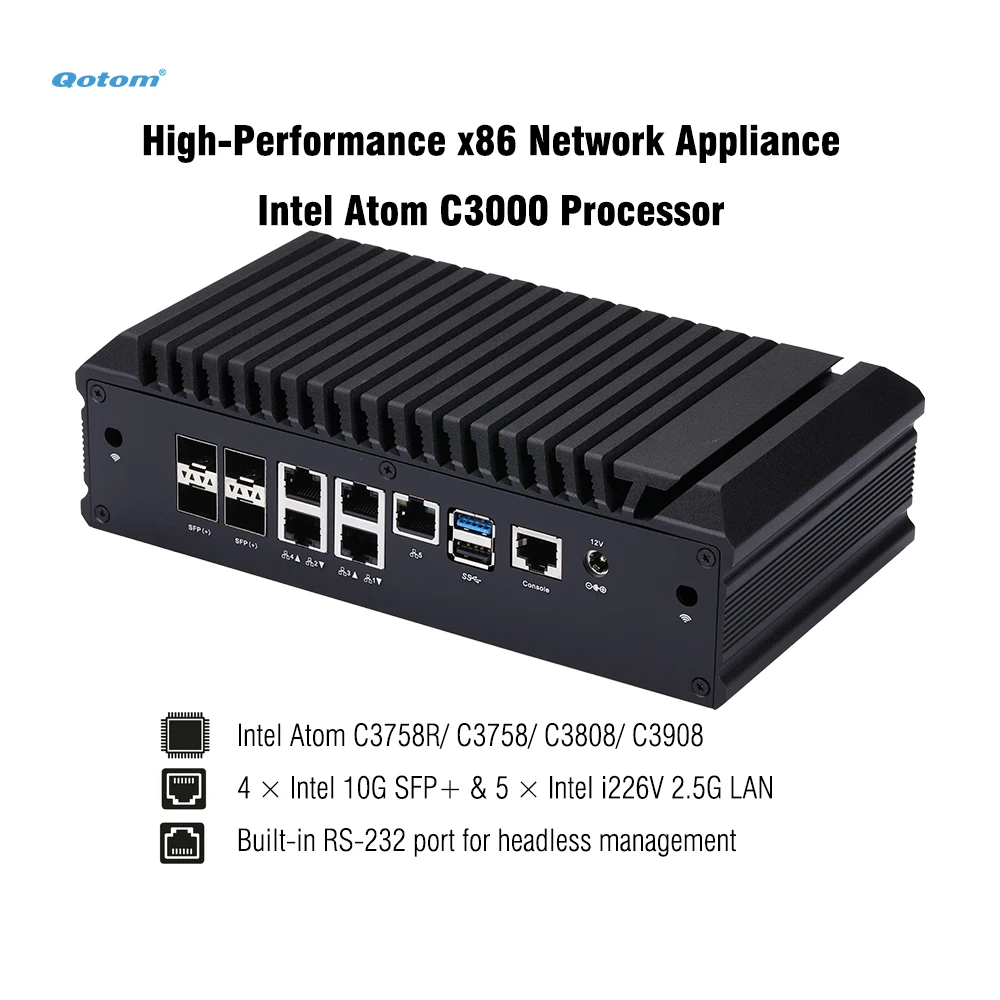

Mini PC Q20300G9 CPU Atom C3000, 4x 10G SFP+, 5x 2.5G LAN, Barebone Support 2x DDR4 RAM, 2x NVMe SSD, 2x HDD, Firewall Router

IMPORTANT SHOPPING NOTICE:

To ensure a smooth delivery and avoid any misunderstandings, please read the following before placing your order:

• Shipping Origin: All orders are shipped directly from Mainland China
• Customs & Taxes (Buyer's Duty): Import duties are the buyer's responsibility. We provide professional commercial invoices to assist with clearance. If AliExpress pre-collected VAT at checkout, you won't be charged it again. Just show your order payment screenshot to customs if requested. # DDP US
• Delivery Tracking: Once the package reaches your country, the local carrier will contact you. Please monitor your tracking info and keep your phone active to prevent "failed delivery" returns.

Notice: This is a Barebone system (No RAM, No Storage)

High-Performance x86 Network Appliance for pfSense, OPNsense, OpenWrt & More

The Q20300G9 Series is a robust x86 network appliance designed for demanding networking environments. Powered by the Intel Atom C3000 series (up to 16 cores), it bridges the gap between low-power efficiency and high-speed data processing. With 4x 10GbE SFP+ and 5x 2.5GbE Intel i226-V ports, it's the perfect hardware for next-gen firewalls and home labs.

• Do not support Arista/Untangle NG Firewall 17 (Debian 10) and Sophos XG[No i226V LAN Drivers]
• Turn on when AC power is restored: Set in BIOS: IntelRCSetup - South Bridge Chipset Configuration - State After G3 - Power on

Key Features

• Massive 10G Connectivity: 10G SFP+ fiber ports for high-bandwidth backbones and 5x 2.5G i226-V RJ45 ports for high-speed local networking.

• Up to 16-Core Processing Power: Choose from 4 processors to handle heavy IDS/IPS (Suricata/Snort), VPN encryption, and multiple VMs.

• Professional Storage Expansion: Includes a Mini SAS (SFF-8087) interface, supporting up to 4x SATA drives for high-performance NAS applications (TrueNAS/Unraid).

• Industrial Fanless Design: Premium aluminum alloy chassis provides superior heat dissipation, ensuring 24/7 silent, maintenance-free operation in harsh environments. A removable fan inside to enhance heat dissipation

• Ready for Virtualization: Fully compatible with Proxmox (VE), VMware ESXi, pfSense, OPNsense, Ubuntu Server, and Windows.

Intel Denverton Atom Processor Onboard

• Q20322G9: Intel Atom C3558 Processor, 4 Cores, 4 Threads, 8 MB Cache, 2.2 GHz. CPU TDP 16W
• Q20331G9: Intel Atom C3758R Processor, 8 Cores, 8 Threads, 16 MB Cache, 2.4 GHz. CPU TDP 26W
• Q20332G9: Intel Atom C3758 Processor, 8 Cores, 8 Threads, 16 MB Cache, 2.2 GHz. CPU TDP 25W
• Q20342G9: Intel Atom C3808 Processor, 12 Cores, 12 Threads, 12 MB Cache, 2.0 GHz. CPU TDP 25W
• Q20351G9: Intel Atom C3958 Processor, 16 Cores, 16 Threads, 16 MB Cache, 2.0 GHz. CPU TDP 31W
• Q20352G9: Intel Atom C3908 Processor, 16 Cores, 16 Threads, 16 MB Cache, 2.0 GHz. CPU TDP 31W

Front I/O & Rear I/O

• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 1 x VGA (DB15)
• 1 x Nano SIM Slot
• 1 x Type C (USB 3.0)
• 1 x Mini SAS (SFF-8087 to 4 SATA)

• 1 x DC Jack
• 1 x RS-232 (RJ-45)
• 1 x USB 3.0, 1 x USB 2.0
• 5 x Intel i226V 2.5 Gigabit LAN
• 4 x 10G SFP+

Internal Connectors

• 2 x DDR4 SO-DIMM Socket, Up to 64G, ECC supported
• 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)
• 2 x 2.5-inch HDD/SSD
• 1 x Nano SIM Slot & 1 x M.2 for 4G/5G (B key, Type: 3042/3052)

• Come with 2x SATA cables inside and a removable fan inside, you can keep the fan and install a SATA. If you wanna install 2x SATA, need remove the fan.
• Do not support Wi-Fi by default. Contact us if you need Wi-Fi.

Mechanical and Environmental

• Material: Aluminium Alloy
• Dimension: 221 x 121 x 62mm
• Weight: 1.2kg
• Mounting: VESA Mounting Bracket
• Packaging Dimension: 285 x 260 x 93mm
• Kensington Lock: No
• Cooling Mode: Fanless Design

• Operating Temp: 0°C~50°C
• Non-Operating Temp: -20°C~80°C
• Humidity: 10%~90%

Packing

• 1 x Mini PC
• 1 x Power supply: adapter and plug
• 1 x VESA bracket & screws
• 1 x Neutral packaging box

We have US/ UK/ EU/ AU/ IT/CH plug and will choose them according to the destination.

Related Model: Q20300G9 Series-1U Rack

• Material: Aluminium Alloy
• Dimension: 440 x 127 x 44 mm
• Mounting: rack ears
• Cooling Mode: Fan
• Ship with power plug and rack ears

Related Model: Q20322G9
