Topton Mini PC 2x10G SFP+ 3x2.5G LAN Intel I3 N300 N150 DDR5 Firewall Computers Soft Router PfSense OPNsense Proxmox Home Server

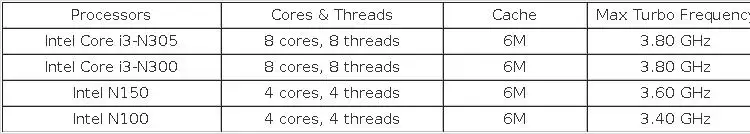

Processor parameter for referance only

Product Highlights

2×Intel 82599ES 10G SFP+ Ports, 3×Intel i226-V 2.5G RJ45 Ethernet Ports, 1×USB3.2 Gen1, 5×USB2.0

1×DDR5 SODIMM Non-ECC Notebook Memory Slot, supports DDR5 4800MHz

Storage Compatibility: 1×M.2 2280 NVMe SSD (PCIe 3.0 x1)

1×M.2 E-Key 2230 Slot: Only compatible with CNVi protocol Wi-Fi modules (Intel AX201, AX211, sold separately). PCIe-based Wi-Fi modules will occupy one RJ45 LAN channel and disable its signal.

1×M.2 B-Key 3052 Slot + 1×SIM Card Slot, supports detachable 5G cellular modules (sold separately)

Dual Display Output: 1×HDMI 2.0 + 1×DP port, simultaneous dual 4K UHD display

AT / ATX Power Mode with Auto Power-On function; switchable via motherboard jumper cap

Firmware & Virtualization Support: uEFI BIOS, AES-NI, ESXi, Proxmox VE (PVE), Hardware Watchdog, Auto Power On, RTC, PXE Boot, Wake-on-LAN and more

Low TDP low-power design; optional VESA mounting bracket for mounting behind monitors (sold separately)

Unique Modular Cooling Innovation: Swappable fan / fanless dual-mode design.

The solid aluminum chassis measures 177×125×54mm, fitted with dense long cooling fins and a quiet built-in fan to drastically boost heat dissipation and unlock full CPU performance. If complete silent operation is required, simply disconnect the fan header pin on the motherboard to convert it into a fully fanless passive cooling unit.

Package Contents

1 × Mini PC Host

1 × Power Adapter

1 × Power Cord (EU / US / UK / AU plug supplied according to buyer’s shipping country)

Welcome to click the picture of VESA Bracket to order together if you need:
