Solid Firewall Mini PC With FAN Intel I7 13620H I3 1215U 8505 4x2.5G LAN I226-V DDR4 NVMe Router Home Server Industrial Computer

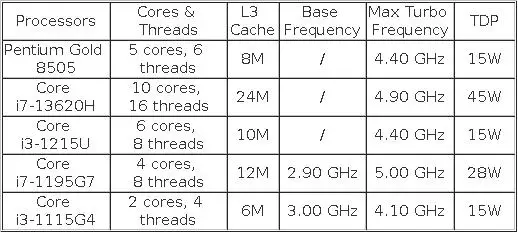

Processor parameter for referance only

Product Highlights

2 x DDR4 SODIMM RAM slots, supporting up to 64GB maximum memory for smooth multitasking and virtualization.

4 x Intel i226-V 2.5G RJ45 LAN ports, plus 2 x USB 3.0, 2 x USB 2.0, and 1 x RJ45 COM console port for flexible connectivity.

Dual storage support: 1 x M.2 2280 NVMe/PCIe x4 SSD + 1 x 7mm 2.5'' SATA SSD/HDD, ideal for NAS and server applications.

1 x SIM slot (rear) + 1 x M.2 PCIe slot, supporting WiFi or 4G LTE module (choose one) for versatile networking options.

1 x HDMI 2.0 + 1 x DP 1.4, supporting dual 4K@60Hz UHD display output for home theater or multi-monitor setups.

Built-in support for AES-NI, ESXI, PVE (Proxmox), Watchdog, Auto Power On, RTC, PXE boot, Wake-on-LAN and more.

Innovative hybrid cooling: Full aluminum finned passive heatsink + intelligent fan cooling. Fan and motherboard are isolated to prevent dust and corrosion. Easily switch between fan mode and fanless mode. The built-in fan provides excellent heat dissipation to unlock full CPU performance with low noise; simply unplug the fan connector from the motherboard for a completely silent fanless setup.

Low power consumption TDP design; supports VESA mounting (bracket optional) for space-saving installation behind a monitor.

Package List

1 x Mini PC

1 x Power Adapter

1 x Power Cord (EU/US/UK/AU plug, provided according to the buyer’s country)

1 x SATA Cable

Welcome to click the picture of VESA Bracket to order together if you need:
