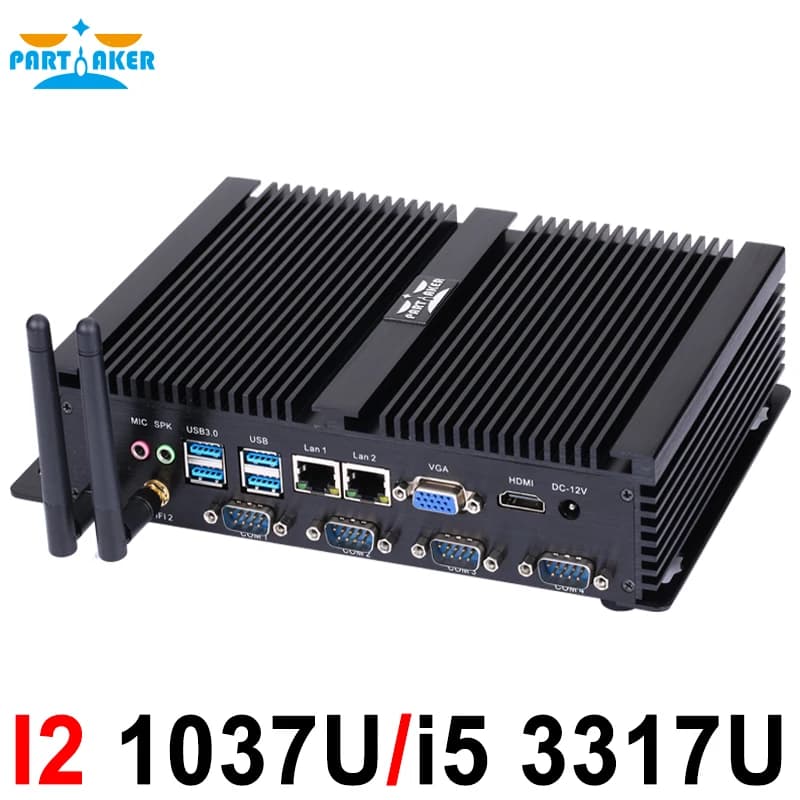

Fanless mini pc industrial computer with USB 3.0 4*COM HDMI Intel Celeron C1037U C1007U Core i5 3317U Windows 11 Linux

This Mini PC Motherboard can install 2 types of processors:

1. CPUIntel Celeron 1037U/1007U2 core 2 threads 2MB cache1.8GHzTDP 17W GraphicsHD 2500.

2. CPUIntel Core i5 3317U2 core 4 threads 3MB cache1.7GHz Max 2.6GHzTDP 17W GraphicsHD 4000.

CPU 1037U/1007U will ship randomly per the stock.

How to select Configuration?

For example:

1. You click " No Ram No Storage" from Color and "Celeron 1037U CPU" from Bundle, we will ship the mini pc with processor 1037U but no ram no storage included and No O/S to you.

2. You click " 8GB Ram 128GB SSD" from Color and "Celeron 1037U CPU" from Bundle, we will ship the mini pc with processor i1037U 8GB Ram 128GB SSD and Windows preinstalled to you.

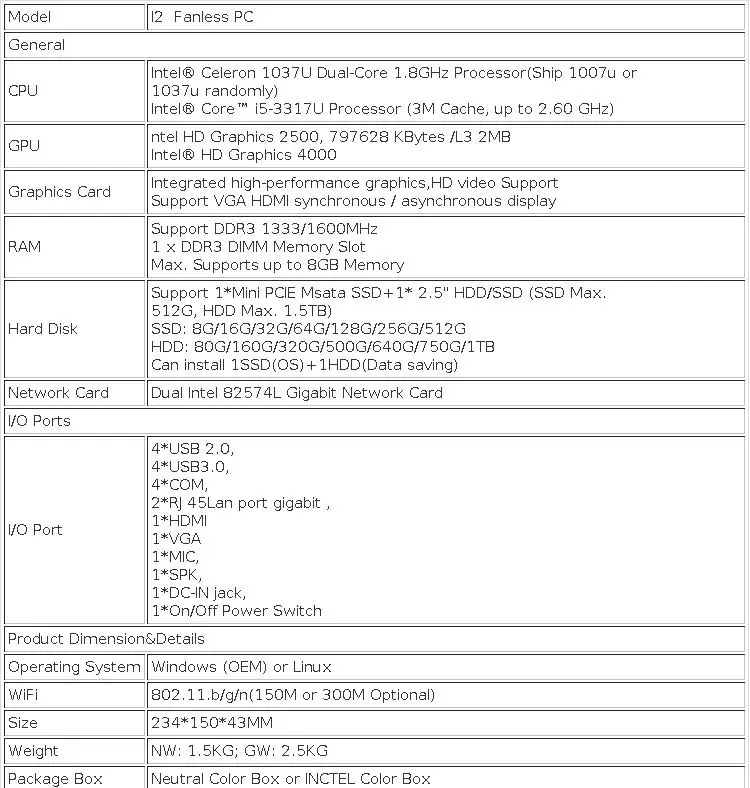

CPU: Intel Core i5-3317U Processor 1.70GHz (3M Cache, 2.60 GHz), Intel HD Graphics 4000;

Memory: Technology Single Channel DDR3 SODIMM ,1.5 Voltage, Frequency 1600MHz or LPDDR3 1866MHz RAM(Max to 8GB) ;Hard Drive:1 x Msata SSD,Support 1 x Msata SSD+1x2.5" HDD/SSD

Dual Output: HDMI & VGA, saving your time and improving your work efficiency. 4K ultra HD(UHD) video playback, delight in the seamless visual rush of 4K Ultra HD with crisp, life-like images;

Fanless cooling design, noise-free, 100% solid-state components provide a longer product life cycle. Energy saving. Green, low power consumption, power consumption is only 15W, very economical. 29mm ultra-thin brushed aluminum shell, the cooling effect is very good, the temperature control at 40-50 degrees;

Default Operating System Version:Windows 10 Pro; Optional Version: Windows 7, 8, Linux Ubuntu.(Pls leave us message after purchased if u do not need Windows10 Pro).

Processor (CPU): Intel Ivy Bridge i5 3317U, 1.70 GHz, 3 MB cache, up to 2.60 GHz

Memory (RAM): Supports 2G / 4G / 8G DDR3 memory, Maximum capacity: 8GB

Socket: 1 * 204-pin SO-DIMM

Graphics: Intel HD Graphics 4000

Memory (SATA / mSATA): Supports 2 * 2.5 inch SATA laptop HDD or SDD / 1 * mSATA SSD

Language: Multilingual

Power consumption: Theoretically max 15W, real use max. 8.7W, TDP Down 7.5W

Temperature / Humidity: 0 ℃ to 70 ℃ / 10% -85%

Material: aluminum housing

What's in the box？

1*DVD for drivers

1*Mini PC

1*Power adapter

2* wifi antennas

1*Set of SATA power and data cables(for 2.5'' hard drive installation)

4*Screw

Super stable and strong connectivity

With powerful 2.4G + 5.0G dual-band WiFi, 4* 3.0 USB ports and 1000 Mbps LAN fast internet speed. This Mini PC delivers amazingly smooth data transfer. Say goodbye to the annoying pop-up message: you can not connect to the internet.

OEM Windows 10 Professional

The Operating System is activated but not licensed(No key), just for testing the mini computer,Default version : Windows 10 Pro,Optional: Windows 7, 8, Linux Ubuntu; Turn any monitor or TV into a complete PC with this Windows Mini PC. All programs supported by Windows 10 such as Microsoft Office, KODI, VLC, TeamViewer & Skype can be installed without any problems.

Highly efficient Intel Core i5-3317U Processor

The mini PC supports Windows 10 Pro and is equipped with the advanced 64-bit Intel Core i5-3317U Processor, 1.70 GHz (Dual-core processor, 3M Cache, up to 2.60 GHz). It can decode and transfer your data at breathtaking speed. Bring it home, experience its ultra-fast performance to instantly receive your favorite shows and movies.

Chassis cooling

Fanless cooling, noise-free, 100% semiconductor components ensure a longer life of the product. Energy saving, green, low power consumption. 29mm ultra-thin brushed aluminum shell, the cooling effect is very good, the temperature control at 40-50 degrees;

Scalable slot

Max capacity: 8 GB

Socket: 1 * 204 pin SO-DIMM

SATA: Support 2 * 2.5 inch SATA laptop HDD or SSD

mSATA: Supports 1 * mSATA SSD

Bluetooth upgrade: Replaceable Bluetooth module, upgrade Bluetooth version

Memory battery: 3V CR2032 lithium manganese batte

Wide use

Model I2 Fanless mini PC is very versatile, such as: Monitor, Surveillance, TV, Digital Signage, Printer, Projector, etc. It will be a superb mini fanless computer.

Free Operating System:Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc.  Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need.Seller is irresponsible and makes no compensation for cracked system.
