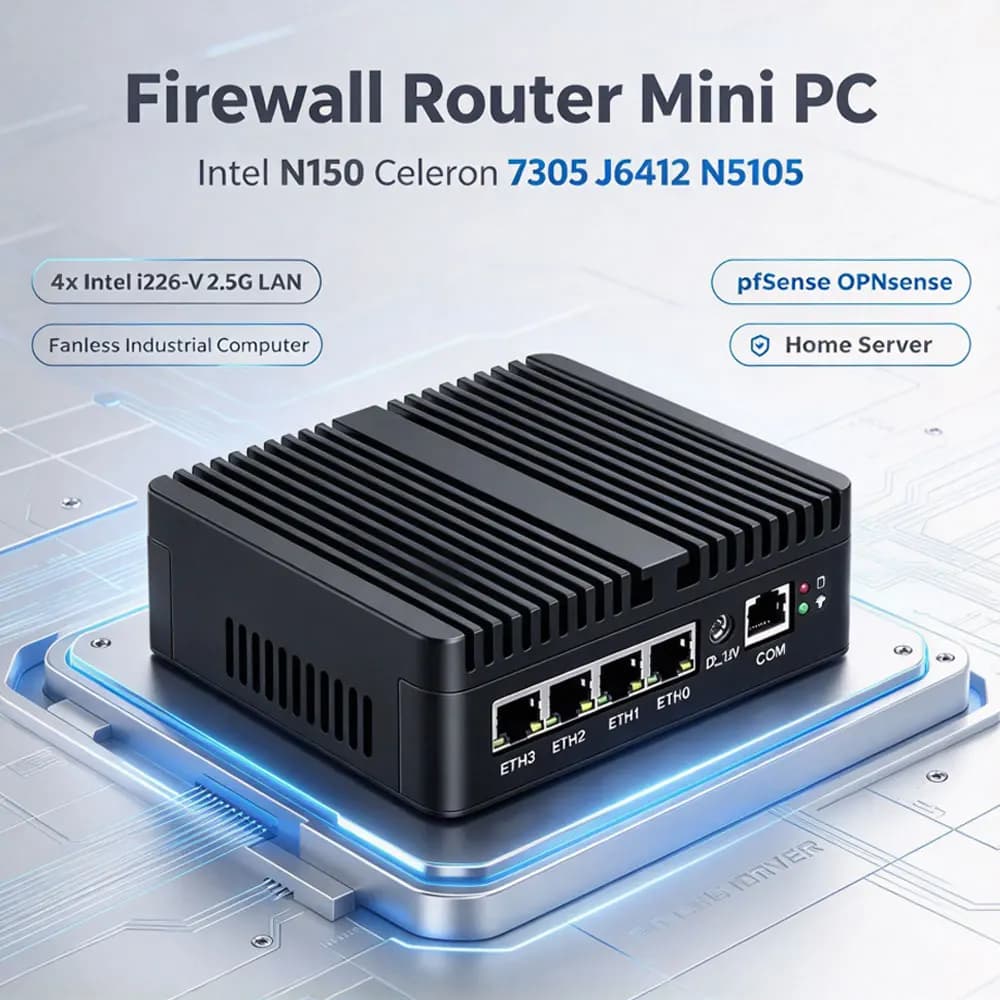

Fanless Firewall Mini PC Intel N150 Celeron 7305 J6412 N5105 4xIntel I226-V 2.5G LAN Solid Industrial Computer OPNsense Server

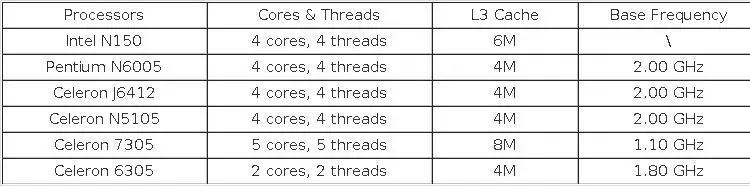

Processor parameter for referance only

X2E N150 Model

4×Intel i226-V 2.5G RJ45 Ethernet Ports, 2×USB 3.0, 4×USB 2.0, 1×RJ45 Console COM Port, 1×5G SIM Slot, 1×4G SIM Slot; DB9 RS232 / RS485 COM Port is optional accessory

1×DDR5 SODIMM Non-ECC Memory Slot, supports DDR5 4800MHz

Dual Storage Support: 1×M.2 2280 NVMe SSD (PCIe 3.0 x1) + 1×2.5-inch SATA 3.0 7mm SSD/HDD

1×SIM Slot + 1×mPCIe Wireless Slot, compatible with Wi-Fi, 4G & 5G modules (USB signal transmission)

X2B N100 Model

X2B N5105/N6005/J6412/7305/6305 Model

4×Intel i226-V 2.5GbE RJ45 LAN Ports, 2×USB 3.0, 2×USB 2.0, 1×RJ45 Console COM Port, 1×4G SIM Slot

2×DDR4 SODIMM Non-ECC Memory Slots, supports DDR4 2400 / 2666 / 3200MHz

Dual Storage Support: 1×M.2 2280 NVMe SSD (PCIe 3.0 x1) + 1×2.5-inch SATA 3.0 7mm SSD/HDD

1×SIM Slot + 1×mPCIe Wireless Slot, supports Wi-Fi & 4G modules (USB signal transmission)

Dual-display output: 1×HDMI + 1×DP, supports 4K resolution

Built-in functions: AES-NI, ESXi, Proxmox VE (PVE), Hardware Watchdog, Auto Power On, RTC, PXE Boot, Wake-on-LAN, and more

All Models Common Features

Full aluminum alloy fanless chassis with extended cooling fins delivers superior heat dissipation.

Its operating temperature runs 10–15℃ lower, with 20–25% better performance than ordinary fanless mini PCs on the market.

Completely silent with ultra-long service life, stable for continuous 7×24-hour industrial operation. A USB cooling fan can be added for extra heat dissipation if needed.

VESA mounting bracket available as an optional accessory to attach the mini PC behind your monitor.

Package Contents

1 × Fanless Mini PC Host

1 × Power Adapter

1 × Power Cord (EU / US / UK / AU plug matched to buyer’s shipping country)

1 × SATA Data Cable

Installation & Usage Recommendations

This mini PC is perfectly compatible with routing systems including pfSense, OPNsense, etc.

If you deploy virtualization platforms such as Proxmox VE or ESXi, we highly recommend installing an additional cooling fan for RAM and storage drives to prevent overheating and unexpected system crashes.

X2E N150 model:

X2B N5105/J6412/N6005/6305/7305 model:

Welcome to click the picture of VESA Bracket to order together if you need:
