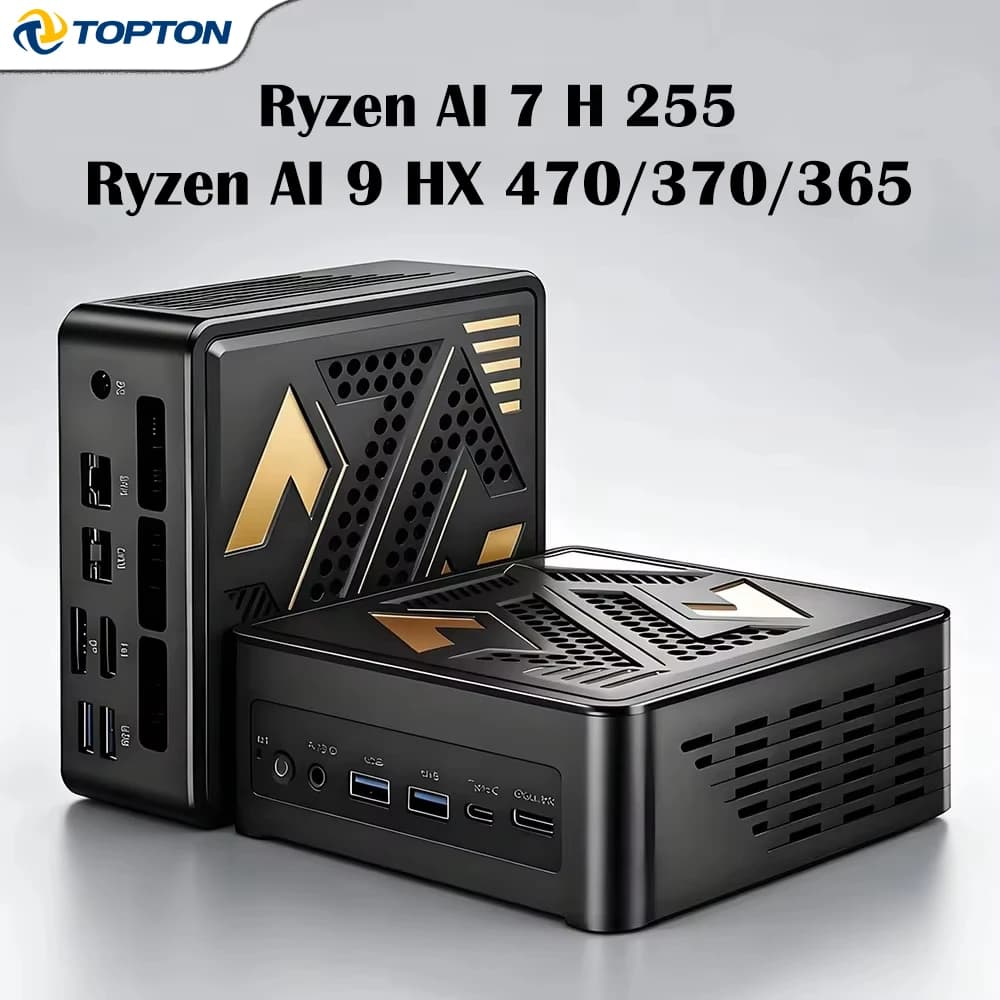

AMD Ryzen 7 H255 AI 9 HX 370 470 U9 285H ES Gaming Mini PC MCIO USB4 LPDDR5 Dual 2.5G LAN Windows 11 WiFi6E Desktop Computer

CPU Options

AMD Ryzen AI 9 HX 470, 12 Cores 24 Threads, 2.0GHz-5.2GHz, AMD Radeon 890M, 32GB LPDDR5 6400MHz, Official Retail Version

AMD Ryzen AI 9 465, 10 Cores 20 Threads, 2.0GHz-5.0GHz, AMD Radeon 880M, 32GB LPDDR5 6400MHz, Official Retail Version

AMD Ryzen AI 9 HX 370, 12 Cores 24 Threads, 2.0GHz-5.1GHz, AMD Radeon 890M, 32GB LPDDR5 6400MHz, Official Retail Version

AMD Ryzen AI 7 H 255, 8 Cores 16 Threads, 3.8GHz-4.9GHz, AMD Radeon 780M, 24GB LPDDR5 6400MHz, Official Retail Version

Genuine Intel(R) 0000, 16 Cores 16 Threads, 2.9GHz-5.4GHz, Intel Arc 140T (Ultra 9-285H ES Version), 16/24GB LPDDR5 6400MHz, Engineering Sample (ES)

Genuine Intel(R) 0000, 14 Cores 14 Threads, 2.4GHz-5.0GHz, Intel Arc 140T (Ultra 5-235H ES Version), 12/24GB LPDDR5 6400MHz, Engineering Sample (ES)

Note: ES CPU performance and frequency are about 5~10% lower than retail official version. The system will not show the real CPU model, only display as Genuine Intel(R) 0000.

Product Highlights

✅ On‑board LPDDR5 High‑Speed Memory

Built‑in 16GB/24GB/32GB LPDDR5 RAM @6400MT/s, high‑frequency memory greatly boosts system responsiveness.

✅ Dual M.2 2280 PCIe 4.0 x4 SSD Slots

Two NVMe SSD bays, each supports up to 2TB storage, ultra‑fast read‑write speed for large files and virtual machines.

✅ MCIO Port for External eGPU Expansion

MCIO (PCIe4.0 x8) interface supports external discrete graphics card. Run AAA‑class games and accelerate large‑scale AI model computation.

✅ Dual 2.5G RJ45 Ethernet Ports

2×2.5G network ports up to 2500Mbps bandwidth, perfect for soft‑router, NAS, home server and high‑speed local transmission.

✅ 8K Ultra‑High‑Definition Video Output

HDMI2.1 + DP2.1 + USB4 port, support 8K@60Hz /4K@120Hz‑160Hz output, smooth high‑refresh display for monitors and projectors.

✅ WiFi‑6E + Bluetooth 5.2 Combo Module

Latest‑generation wireless connectivity, stable and low‑latency WiFi and Bluetooth connection.

✅ VC Vapor Chamber Efficient Cooling System

VC vapor chamber heat dissipation structure, quiet operation, keeps stable performance under 65W power consumption for long‑time running.

✅ Rich I/O Interfaces

3×USB3.0, 1×USB2.0, HDMI2.1, DP2.1, Audio jack, USB4 40Gbps, MCIO expansion port, power button & RST reset hole.

✅ 120W Power Supply, Supports Windows 10 / Windows 11

Input:19V 6.32A 120W power adapter. Ready‑to‑run for office, gaming, homelab and media server scenarios.
