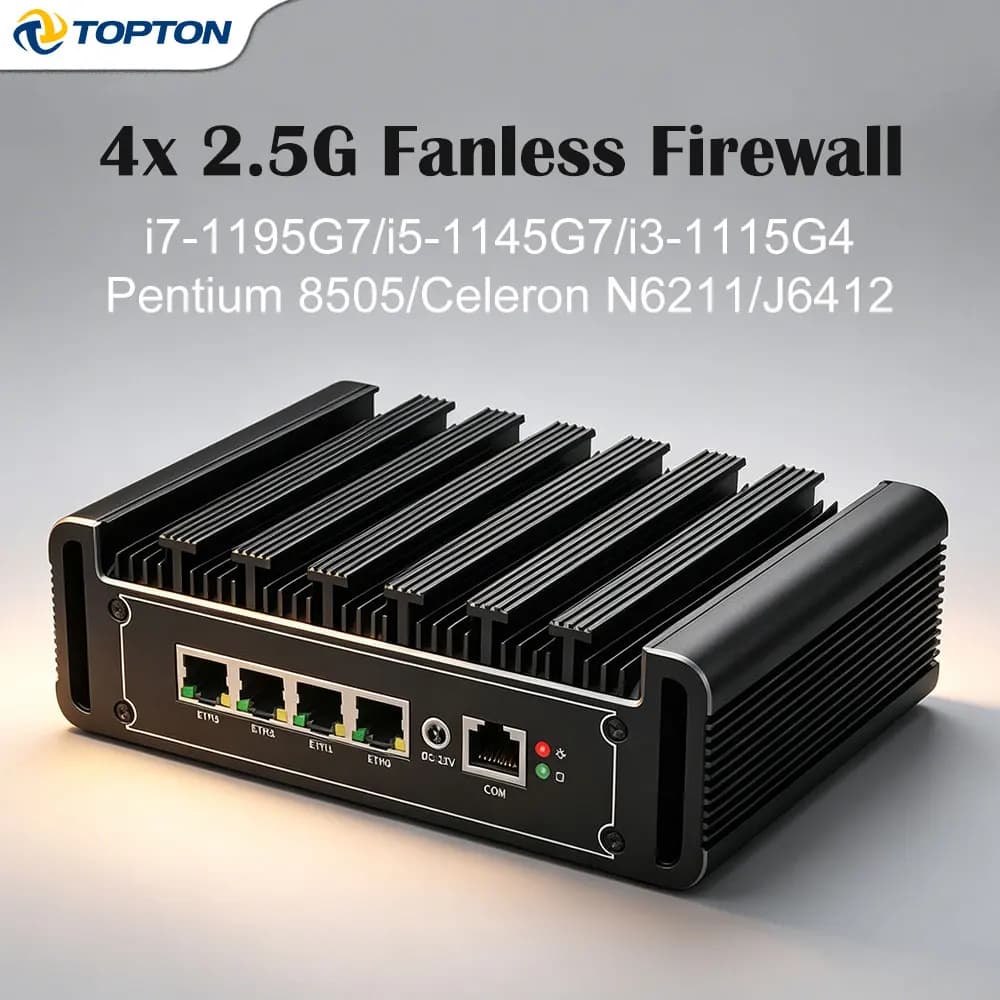

Top Version Fanless Firewall Mini PC Intel I7 I5 I3 8505 N5105 7305 4x I226-V 2.5G LAN PfSense Proxmox OPNsense Home Server

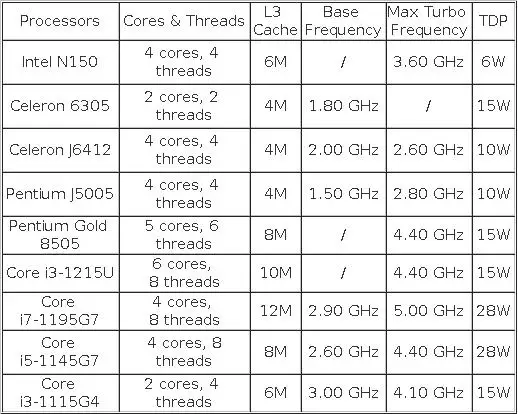

Processor parameter for referance only

Product Specifications

4x Intel i226-V 2.5GbE RJ45 LANs, 2x USB 3.0, 2x USB 2.0, 1x RJ45 COM console, 1x 4G/3G SIM slot.

2x DDR4 SODIMM non-ECC RAM slots, supports 2400/2666/3200MHz.

Dual storage supported: 1x M.2 NVMe/PCIe 3.0 x1 2280 SSD + 1x 2.5'' SATA 3.0 7mm SSD/HDD.

1x SIM slot & 1x MPCIE wireless slot, supports WiFi/4G/3G (USB signal, 3 options selectable).

Supports 1x HDMI + 1x DP dual 4K video output.

Supports AES-NI, ESXI, PVE, watchdog, auto power-on, RTC, PXE boot, Wake-on-LAN, etc.

Fanless design with large-area heatsink provides much better cooling performance,

running 15–20℃ lower and delivering 25–30% higher performance than standard models on the market.

Stable, silent, and durable for 24/7 continuous operation.

Low power consumption TDP. Can be mounted behind the monitor via VESA bracket (optional).

Package List

1x Mini PC

1x Power Adapter

1x Power Cable (EU/US/UK/AU plug according to the buyer’s country)

1x SATA Cable

If you need the VESA bracket, please click its product image to add it to your order.
