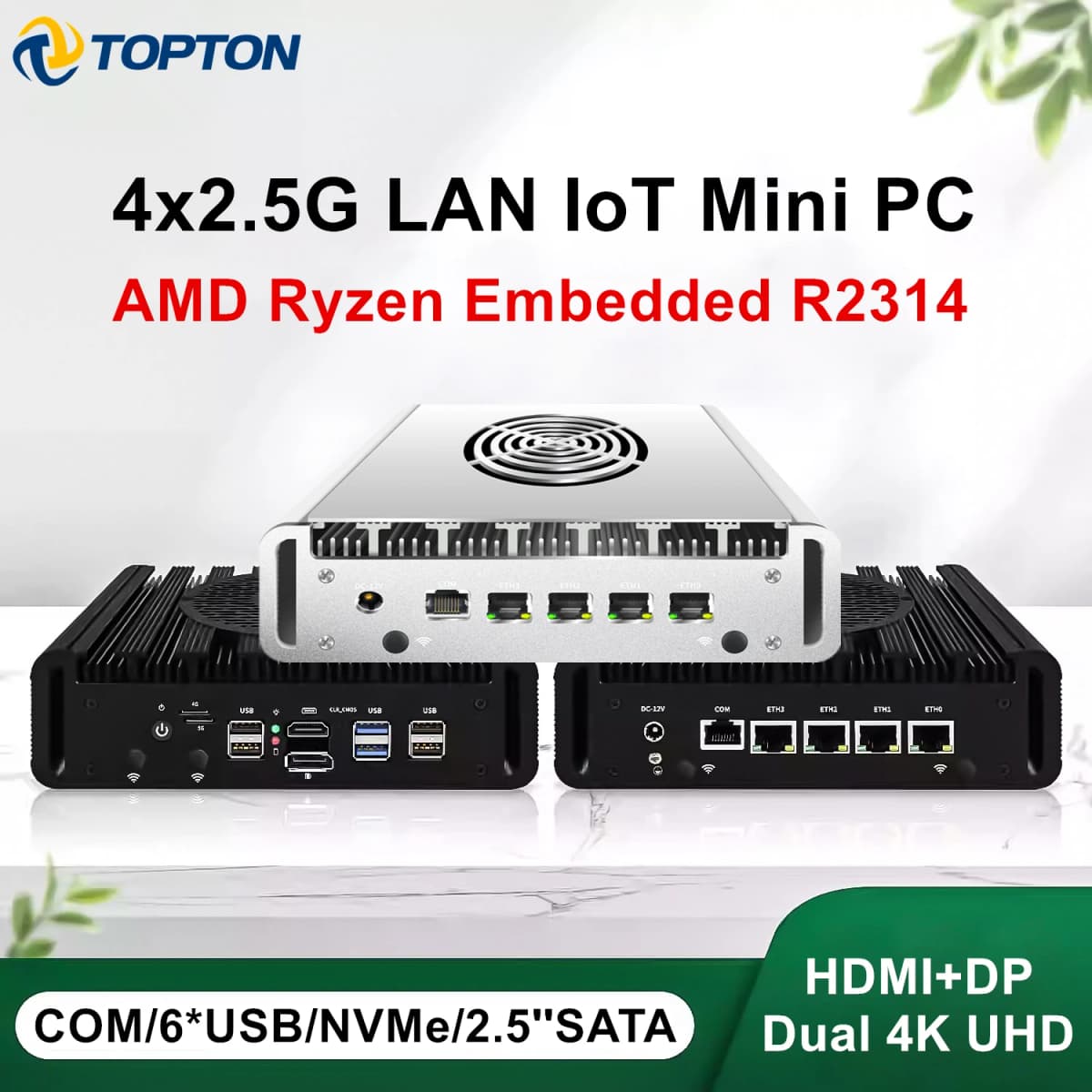

Topton Firewall Router Mini PC Intel N150 AMD Ryzen Embedded R2314 4x2.5G LAN NVMe 6xUSB Proxmox PfSense OPNsense Home Server

Product Highlight

AMD Ryzen Embedded R2314 model:

-1xDDR4 SODIMM non-ecc ram slot, support max 16GB.

-Support two storage: 1xM.2 2280 NVMe/PCIEx4/SATA SSD+1x7mm 2.5'' SATA SSD/HDD.

Intel N150 model:

-1xDDR5 SODIMM non-ecc ram slot, support max 32GB.

-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 4xUSB2.0, 1xRJ45 COM console.

-Support two storage: 1xM.2 2280 NVMe/PCIEx4/SATA SSD+1x7mm 2.5'' SATA SSD/HDD.

-1xM.2 B Key support 5G connection, 1xMPCIE slot, support WiFi/4G(2 choose 1) connection.(WiFi or 4G/5G LTE module is optional to buy)

-1xHDMI and 1xDP support dual 4K UHD video display.

-Innovation: All aluminum shell fins passive heat-sink + intelligent fan cooling, using fan and motherboard isolation technology to achieve dust and corrosion prevention. It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cord(EU/US/UK/AU plug based on buyer's country)

1xSATA Cable
