Topton Fanless Firewall Mini PC Top Version Intel i7 i5 i3 8505 J5005 6305 4x 2.5G LAN Home Server pfSense Proxmox AES-NI

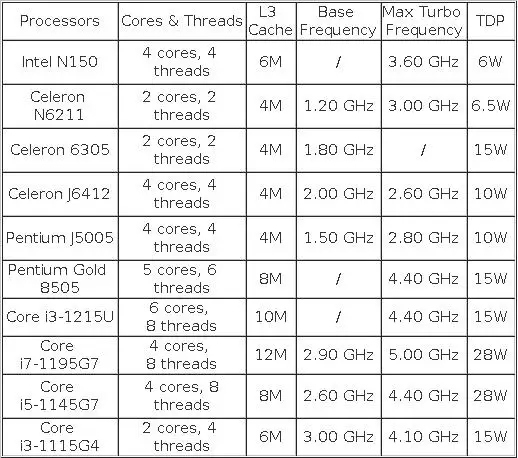

Processor parameter for referance only

-4xIntel i226-V 2.5GbE RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G/3G SIM slot.

N150 model:1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.

Other models:-2xDDR4 SODIMM non-ecc ram slots, support 2400/2666/3200MHz.

-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.

-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G/3G(USB signal, 3 choose 1) connection.

-Support 1xHDMI and 1xDP dual 4K video display.

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Fanless system with larger area fins has much better cooling efficiency with a temperature 15-20℃ lower and performance 25-30% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7x24 hours.

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cable(EU/US/UK/AU plug based on buyer's country)

1xSATA Cable

Welcome to click the picture of VESA Bracket to order together if you need:
