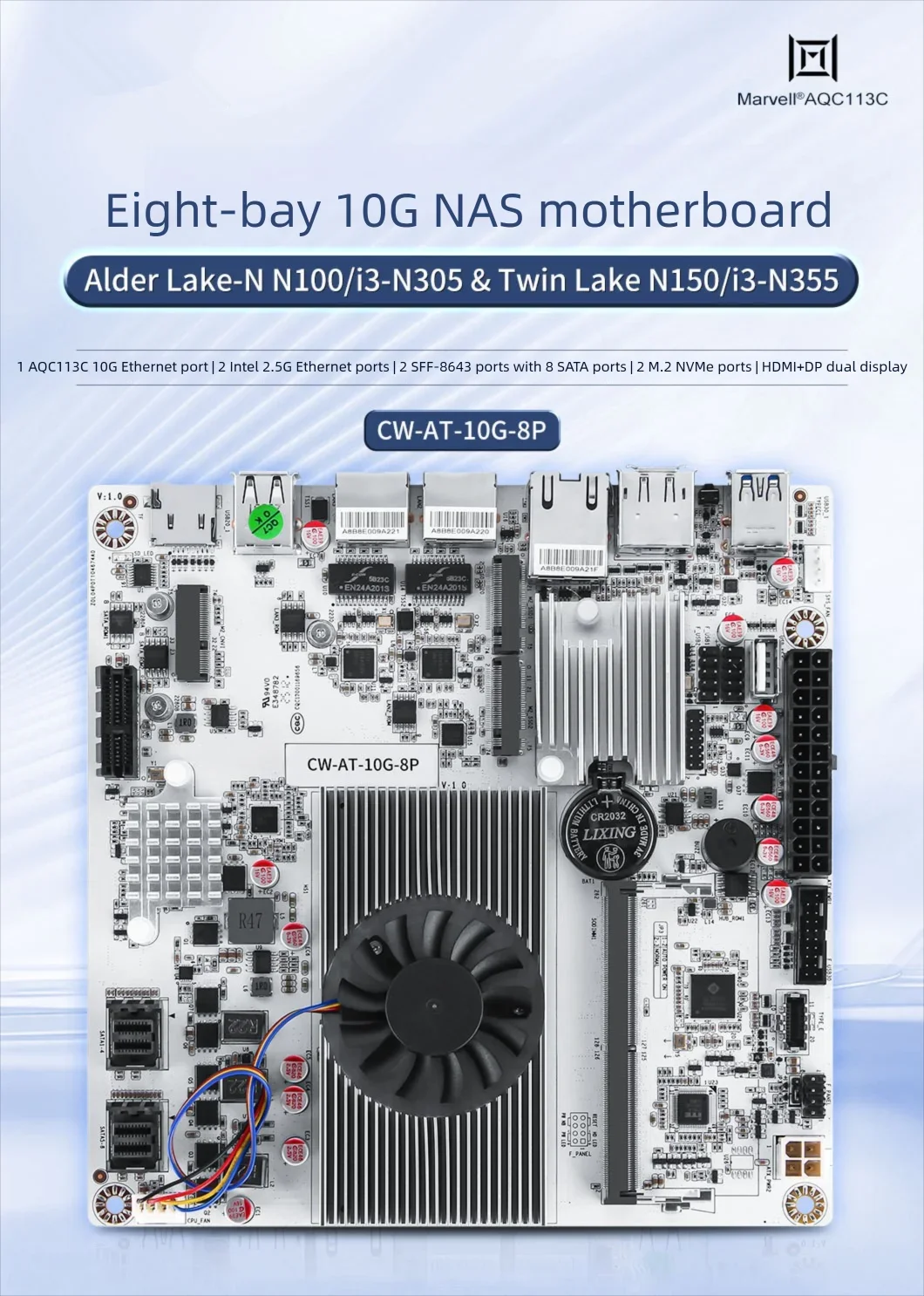

8-Bay 10G NAS Motherboard Intel I3-N350/N300/N150 1X10G + 2X2.5G LAN 2XNVMe PCIe X1 Firewall Mini ITX Mainboard

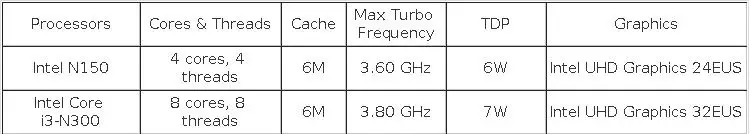

Processor parameter for referance only

Notice

Power Supply Requirement:

A 24-pin ATX and a 4-pin ATX 12V power supply must be connected simultaneously to power on the motherboard.

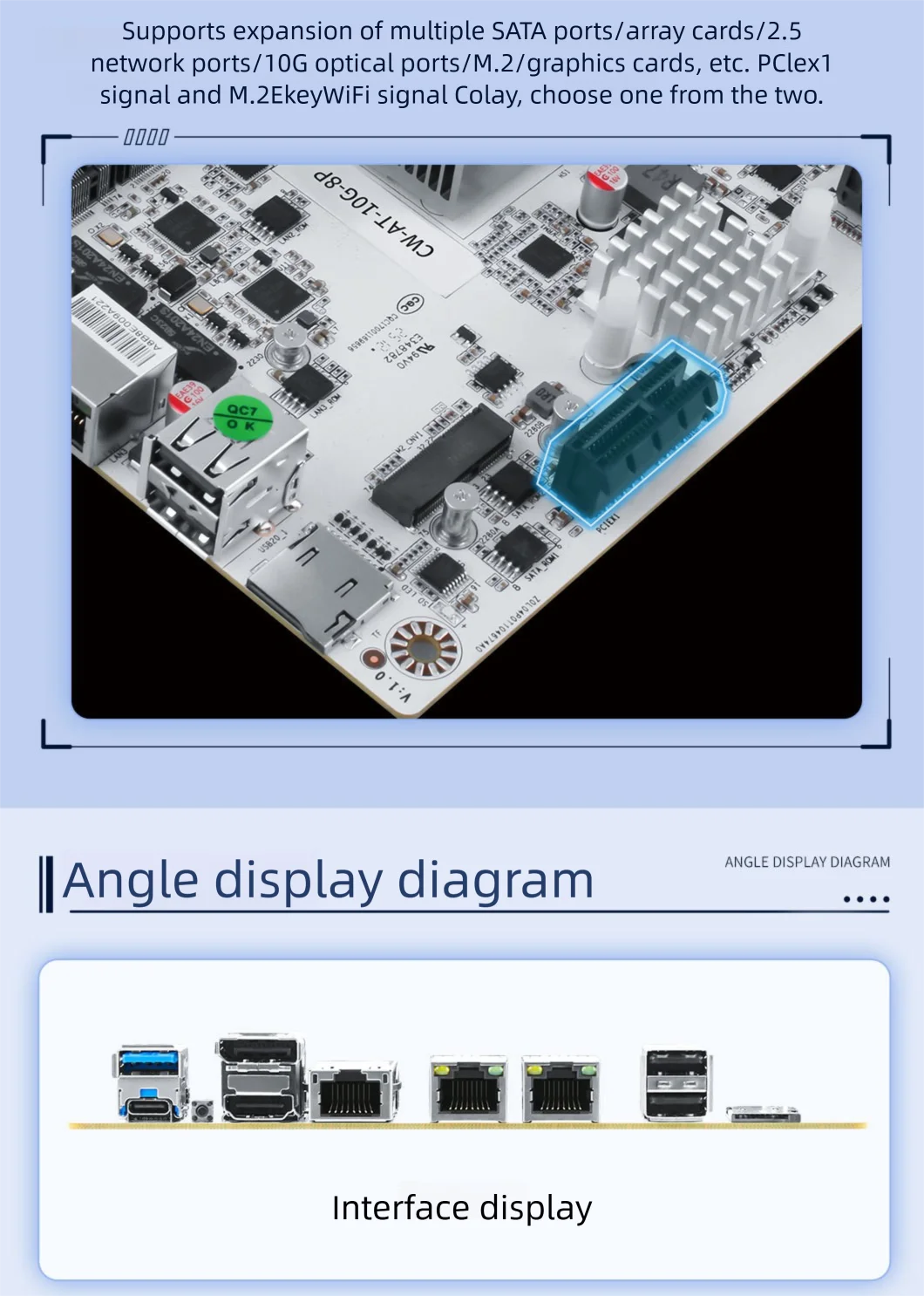

PCIe x1 Slot & M.2 WiFi Slot Sharing:

The PCIe x1 slot shares the PCIe 3.0 x1 signal with the M.2 WiFi slot.

⚠️ These two slots cannot be used at the same time.

SFF-8643 Cable Compatibility:

Please purchase the SFF-8643 cable bundle from our store.

Many SFF-8643 cables available on the market have incorrect signal sequences and will not work with this motherboard.

📌 Overview

This 17cm x 17cm Mini-ITX motherboard is designed for high-performance NAS, home server, and firewall applications. Powered by Intel's 12th generation Alder Lake-N or next-gen Twin Lake processors, it delivers up to 15% better performance over the previous generation. With 10G and dual 2.5G LAN ports, 8 SATA 3.0 connections, and dual M.2 NVMe slots, this board is the ideal foundation for a compact yet powerful storage server.

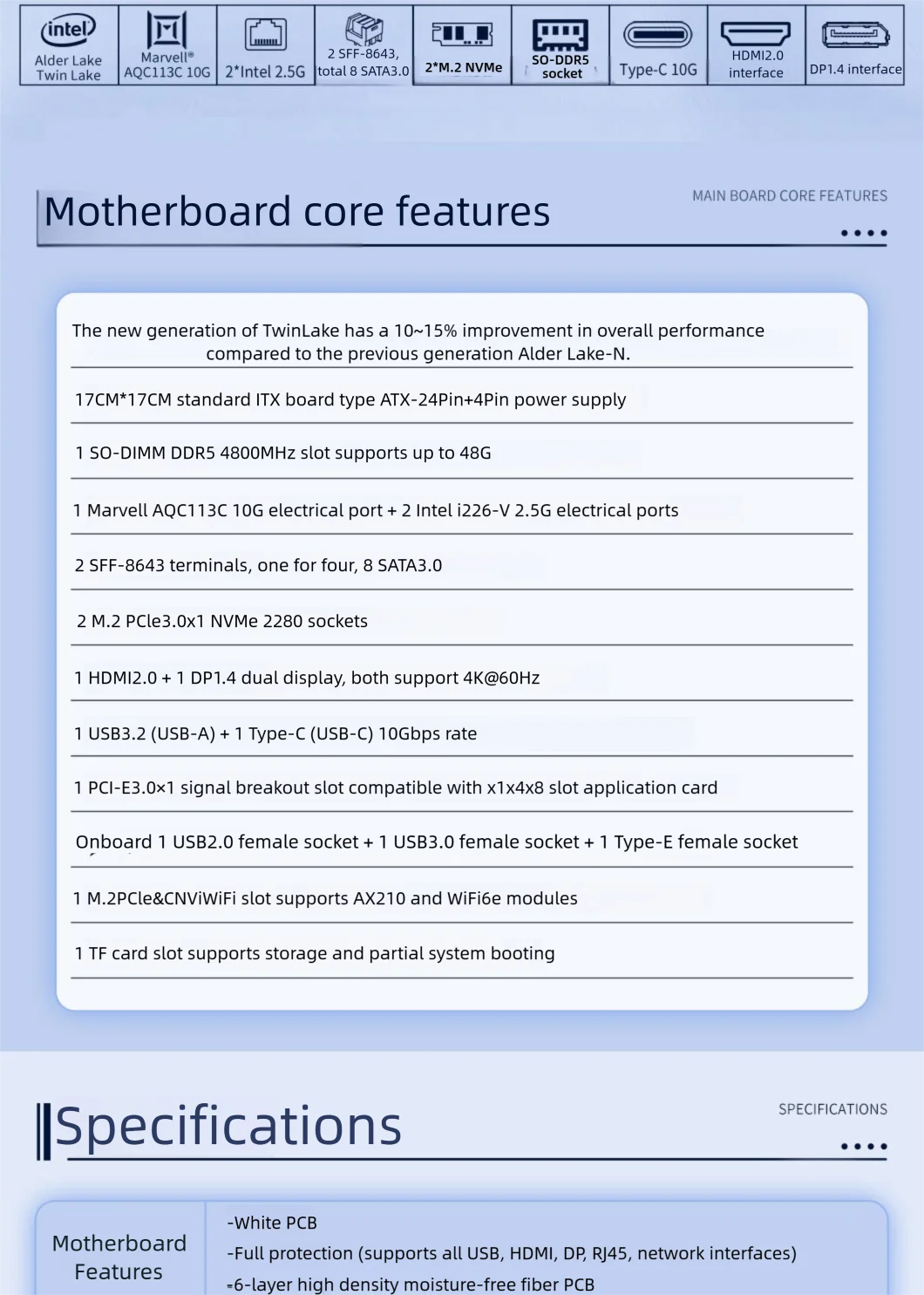

✨ Key Features

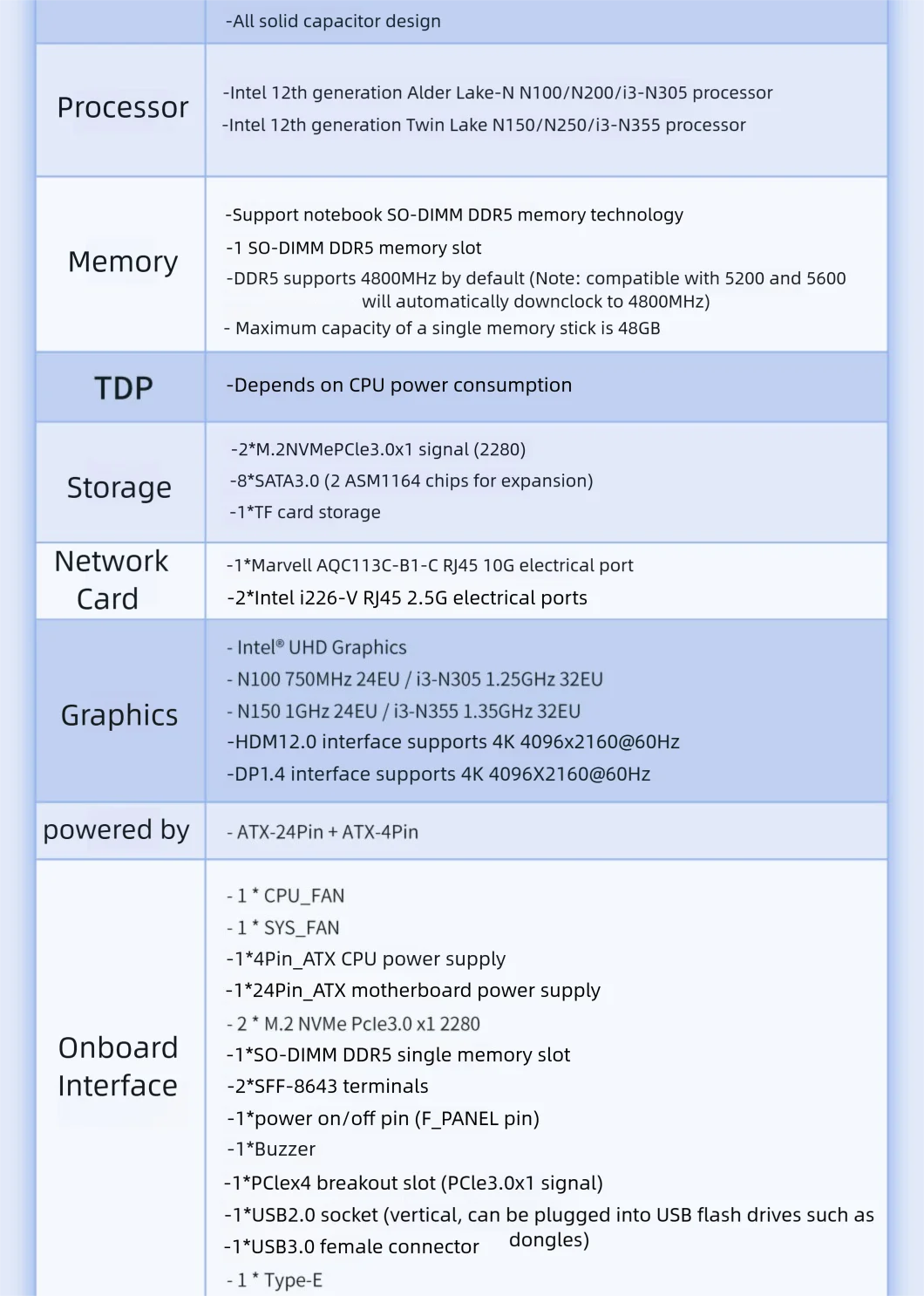

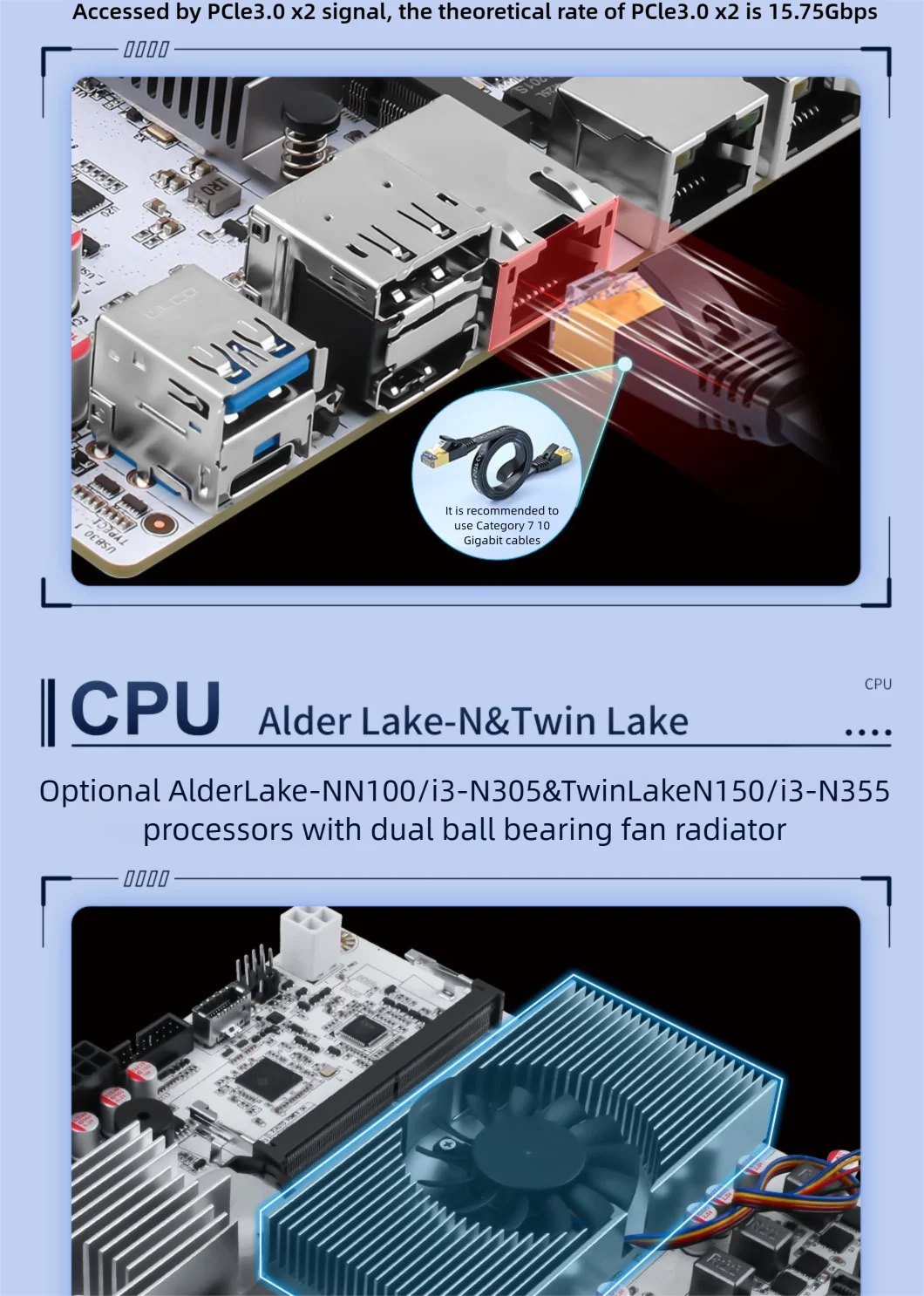

🧠 Processor Options

Intel 12th Gen Alder Lake-N Series: N100 / N200 / i3-N305

Intel 12th Gen Twin Lake Series: N150 / N250 / i3-N355

All-solid capacitor design for enhanced stability and longevity

⚡ Memory

1 x SO-DIMM DDR5 slot

Supports up to 48GB (single module)

Default speed: 4800MHz (compatible with 5200/5600 – will auto-downclock to 4800MHz)

💾 Storage Expansion

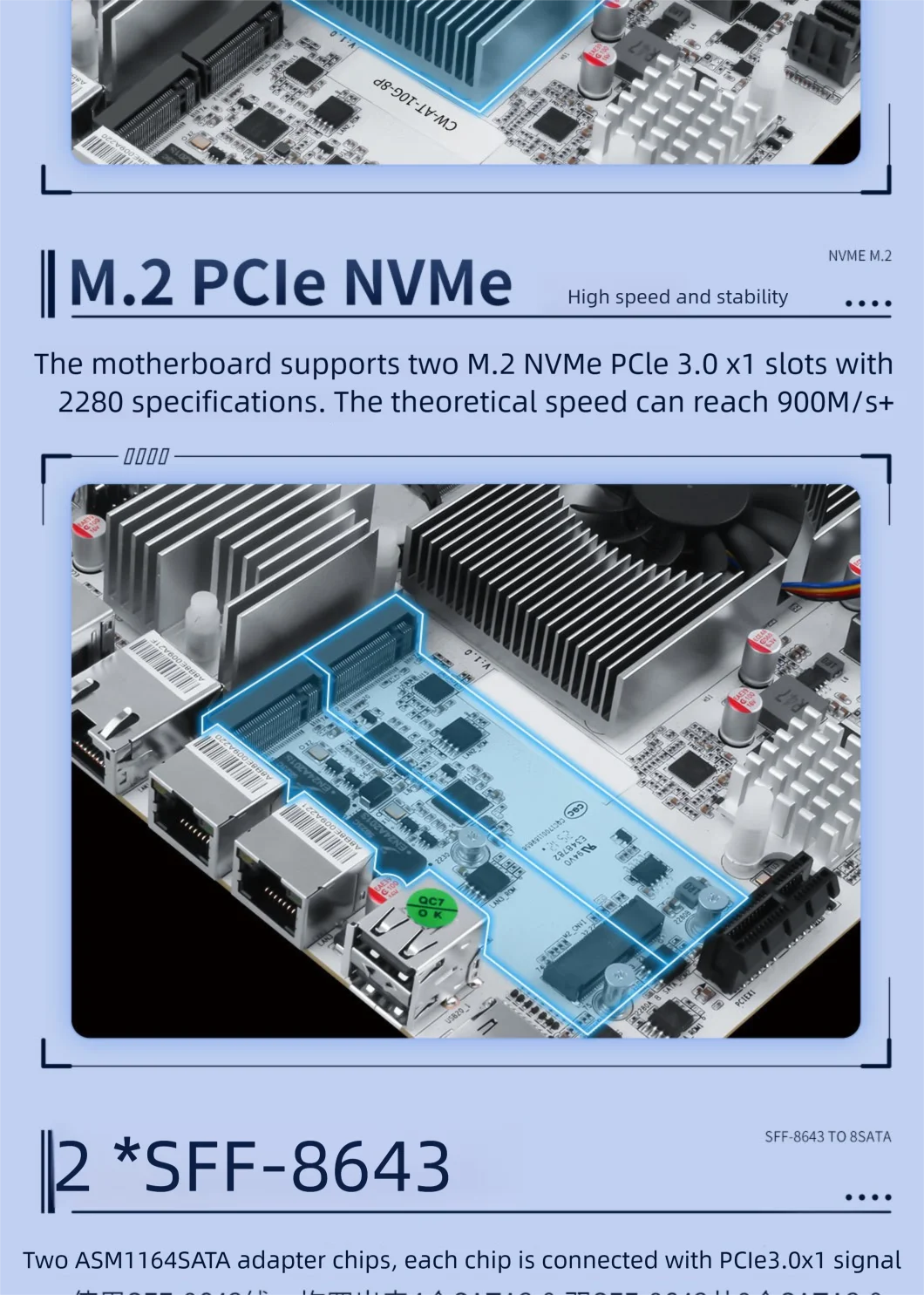

2 x M.2 NVMe PCIe 3.0 x1 sockets (2280)

8 x SATA 3.0 ports (expanded via 2 x ASM1164 chips)

1 x TF card slot (supports storage and partial system boot)

🌐 Networking

1 x Marvell AQC113C-B1-C 10GBase-T RJ45 port

2 x Intel i226-V 2.5G RJ45 ports

Ideal for high-speed NAS, virtualized environments, and firewall applications (pfSense, OPNsense)

🎮 Graphics & Display

Integrated Intel® UHD Graphics

Graphics frequency varies by CPU:

N100: 750MHz / 24EU

i3-N305: 1.25GHz / 32EU

N150: 1GHz / 24EU

i3-N355: 1.35GHz / 32EU

Dual display output:

1 x HDMI 2.0 (supports 4K@60Hz)

1 x DP 1.4 (supports 4K@60Hz)

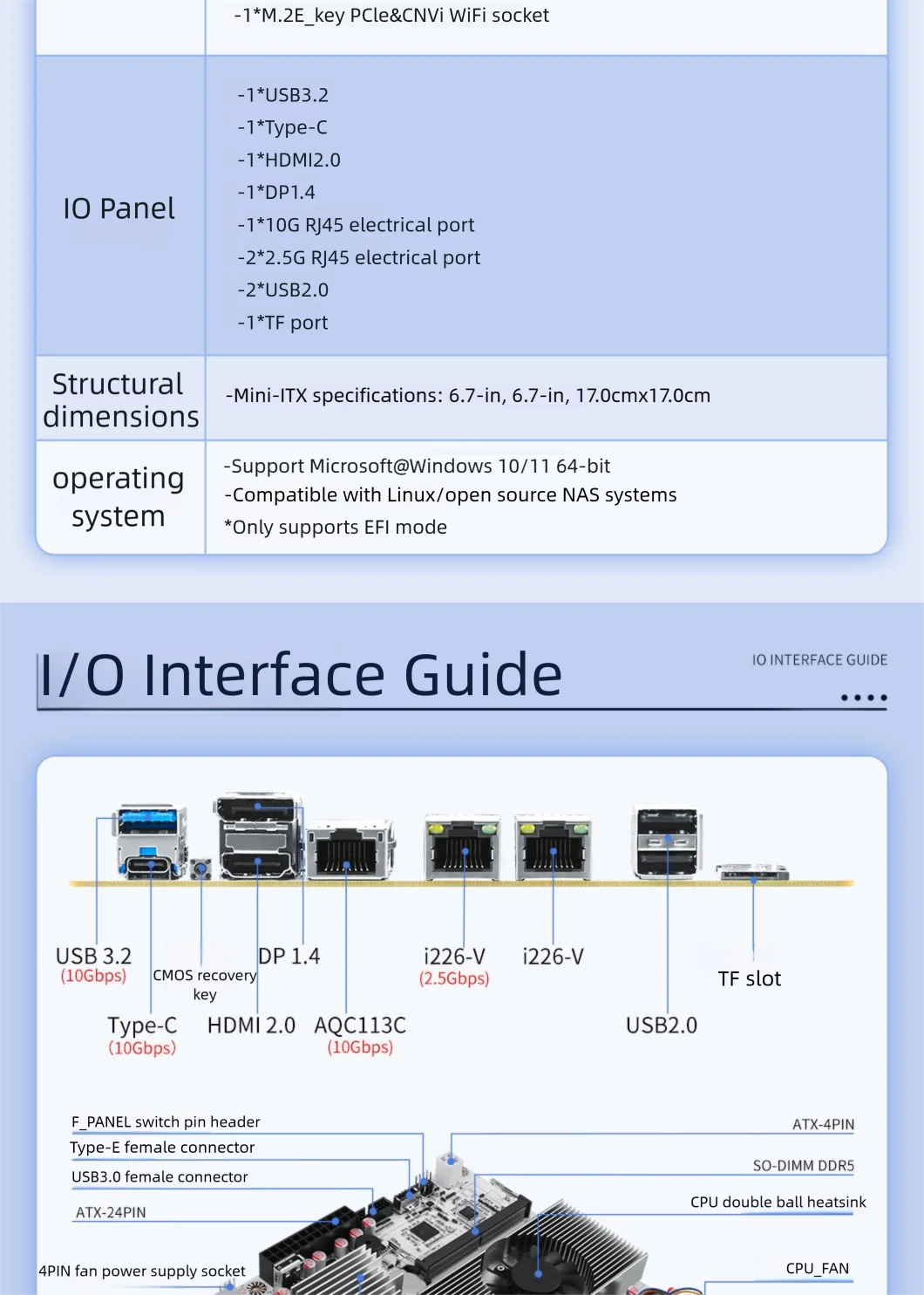

🔌 Rear I/O Ports

⚙️ Internal Connectors & Interfaces

Power: 24-pin ATX + 4-pin ATX 12V (both must be connected)

Fan Headers: 1 x CPU_FAN, 1 x SYS_FAN

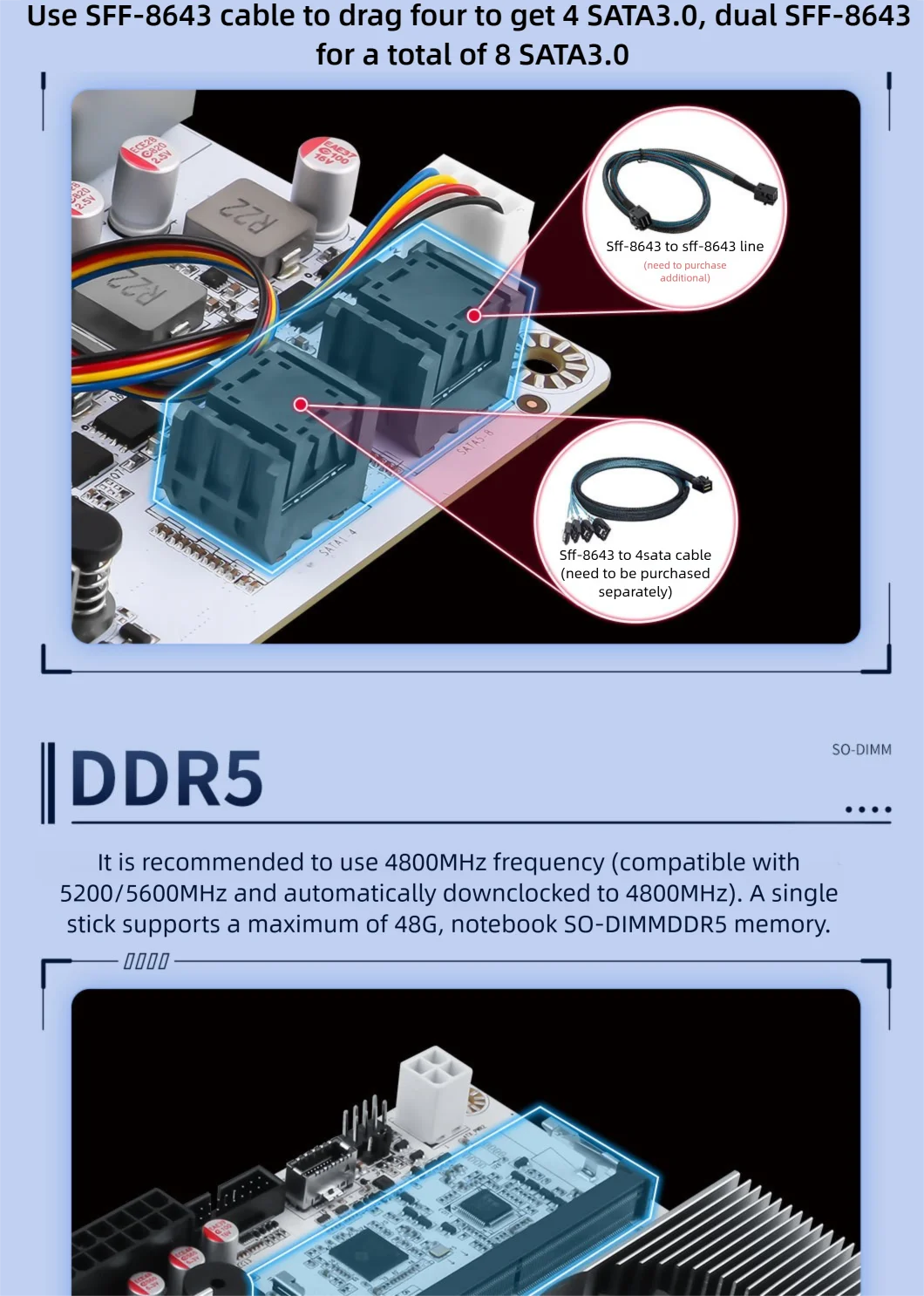

Storage Expansion: 2 x SFF-8643 connectors (each supports 4 x SATA – total 8 SATA 3.0)

M.2 Sockets:

2 x M.2 NVMe PCIe 3.0 x1 (2280)

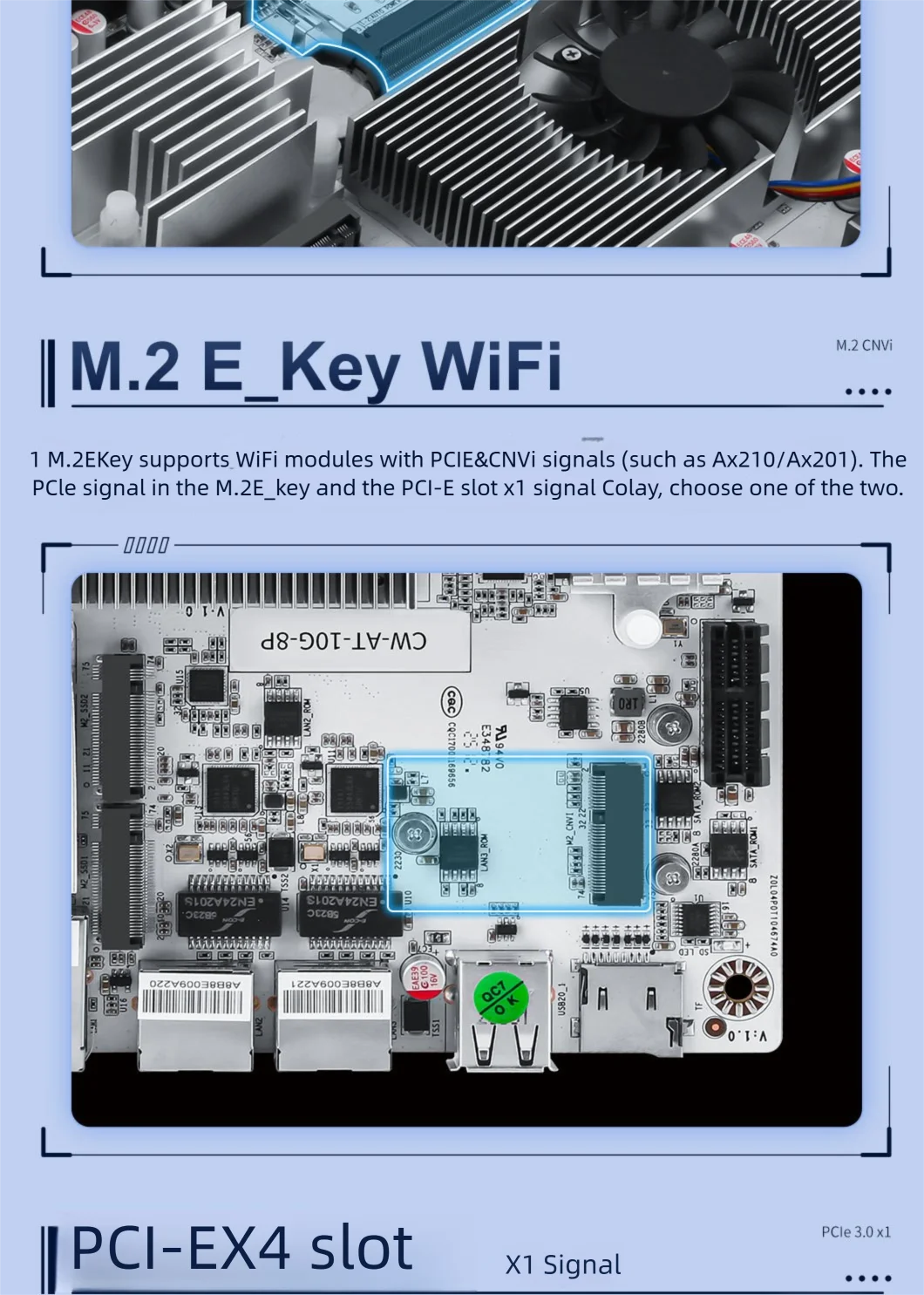

1 x M.2 (PCIe & CNVi) for WiFi modules (supports AX210 / WiFi 6E)

PCIe Expansion: 1 x PCIe x4 slot (PCIe 3.0 x1 signal) – compatible with x1/x4/x8 cards

Internal USB:

1 x USB 2.0 vertical socket (supports flash drive)

1 x USB 3.0 header

1 x Type-E header

Other: Front panel power switch pin (F_PANEL), onboard buzzer

📐 Dimensions & Build Quality

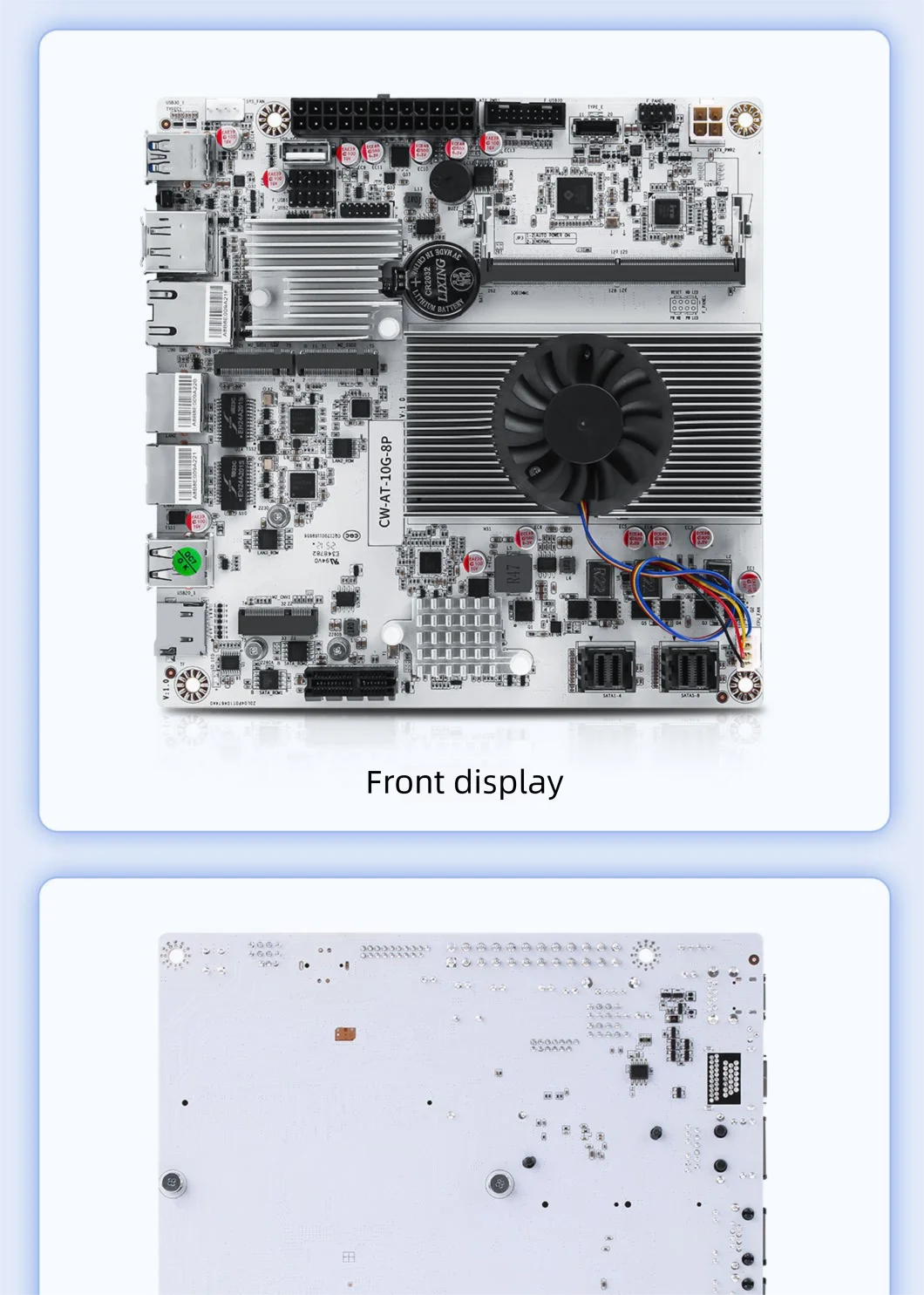

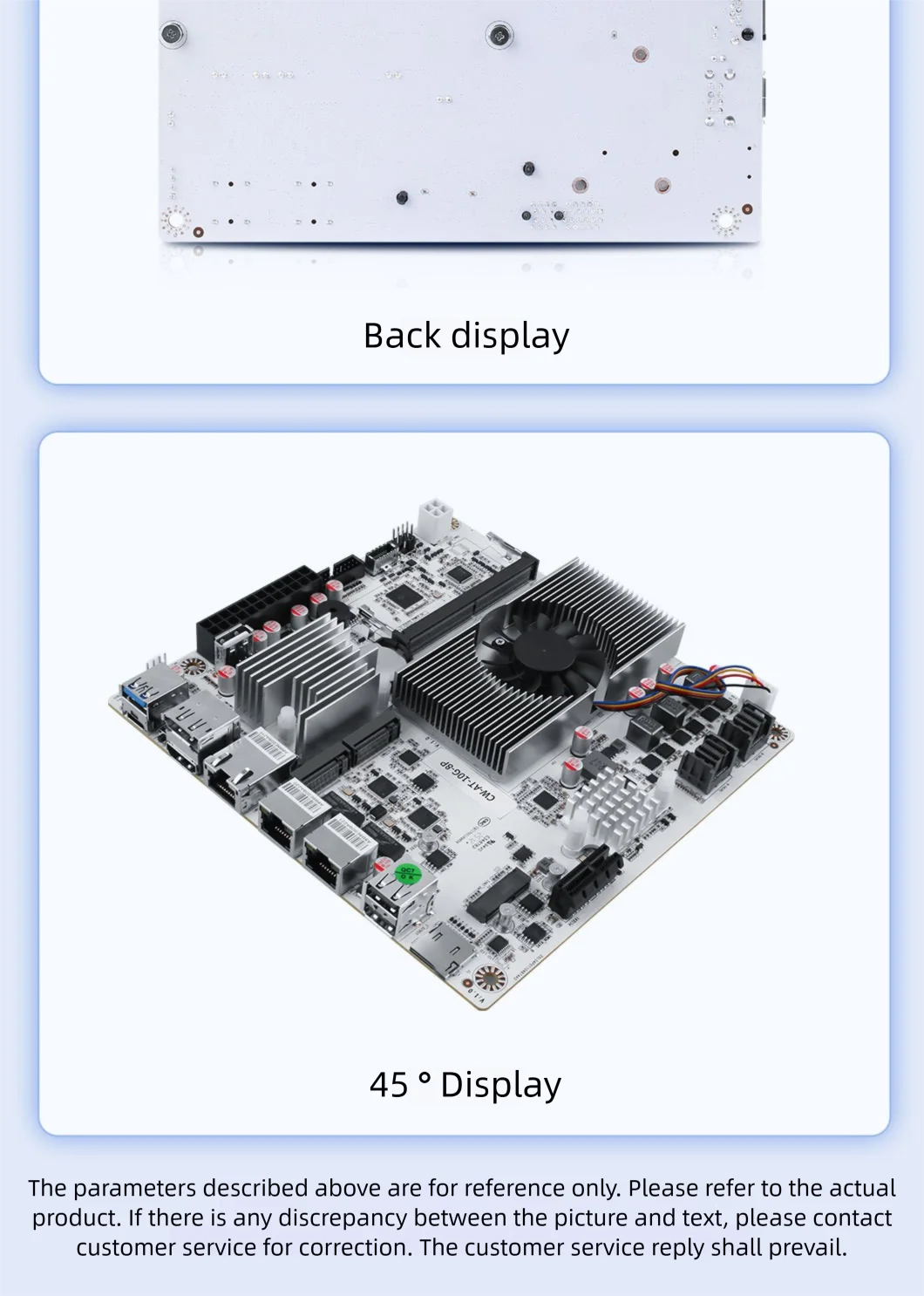

Form Factor: Mini-ITX (17cm x 17cm)

PCB: White solder mask, 6-layer high-density fiberglass (moisture-resistant)

Protection: Full interface protection (USB, HDMI, DP, LAN ports)

⚠️ Important Notes

Power Supply Requirement

Both the 24-pin ATX and 4-pin ATX 12V power connectors must be connected simultaneously for the motherboard to power on.

PCIe x1 Slot & M.2 WiFi Slot Sharing

The PCIe x1 slot shares the PCIe 3.0 x1 signal with the M.2 WiFi slot.

⚠️ These two slots cannot be used at the same time.

SFF-8643 Cable Compatibility

Please purchase the SFF-8643 cable bundle from our store.

Many SFF-8643 cables on the market have incorrect signal sequences and will not work with this motherboard.

Memory Compatibility

DDR5 5200/5600 modules are supported but will automatically downclock to 4800MHz.

📦 Package Contents

1 x Motherboard

1 x SATA Cable (optional – please check your order)

1 x I/O Shield

(SFF-8643 cables sold separately)

🏆 Ideal For

High-performance Network Attached Storage (NAS)

Home theater and media servers

Software-defined networking (pfSense, OPNsense, OpenWRT)

Virtualization hosts

Compact industrial automation systems

🔧 Supported Operating Systems

Windows 10/11

Windows Server

Linux distributions (Ubuntu, Debian, CentOS, etc.)

FreeBSD / pfSense / OPNsense
