Intel N150 Celeron N5100 J6412 Soft Router Fanless J5005 Mini PC 4x Intel i226 2.5G LAN HD DP pfSense Firewall Appliance ESXI

Note:

We pre-install Windows 11 Pro by default, if you want us pre-install pfSense or Don't install any system, please leave us a message.

Celeron N5100

● CPU: Intel Jasper Lake Celeron Processor N5105, 4 core 4 threads,64 bit, 10nm, 1.1GHz up to 2.8GHz, 4M cache
● GPU: Intel UHD Graphics GPU, 24EU, 350MHz up to 800MHz

P​entium 6305

● CPU: Intel Tiger Lake Celeron 6305 Processor, 2 core 2 threads,64 bit, 10nm, 1.8GHz, 4M cache
● GPU: Intel UHD Graphics For 11th Gen Intel GPU, 48EU, Up to 1.25GHz

P​entium J5005

● CPU: Intel Gemini Lake Pentium Silver Processor J5005, 4 core 4 threads,64 bit, 14nm, 1.5GHz up to 2.8GHz, 4M cache
● GPU: Intel UHD Graphics 605 GPU, 18EU, 250MHz up to 800MHz

Celeron J6412

● CPU: Intel Elkhart Lake Celeron Processor J6412, 4 core 4 threads,64 bit, 10nm, 2.0GHz up to 2.6GHz, 4M cache
● GPU: GPU: Intel UHD Graphics For 11th Gen Intel GPU, 16EU, 400MHz up to 800MHz

● RAM: 4GB or 8GB or 16GB DDR4
● SSD: 128GB/256GB/512GB/1TB M.2 2280 NVMe SSD
● -4xIntel i225-V B3 2.5G RJ45 LANs, 2xUSB3.0.
● -Support two storage: 1xM.2 2280 NVMe SSD + 1x2.5''SATA SSD/HDD.
● -Support 1xHD+1xDP dual display output synchronously and asynchronously.
● 1xMPCIE wireless slot, support 4G model/WiFi/Bluwtooth connection.
● -Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
● -Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.
● -Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
● -Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).

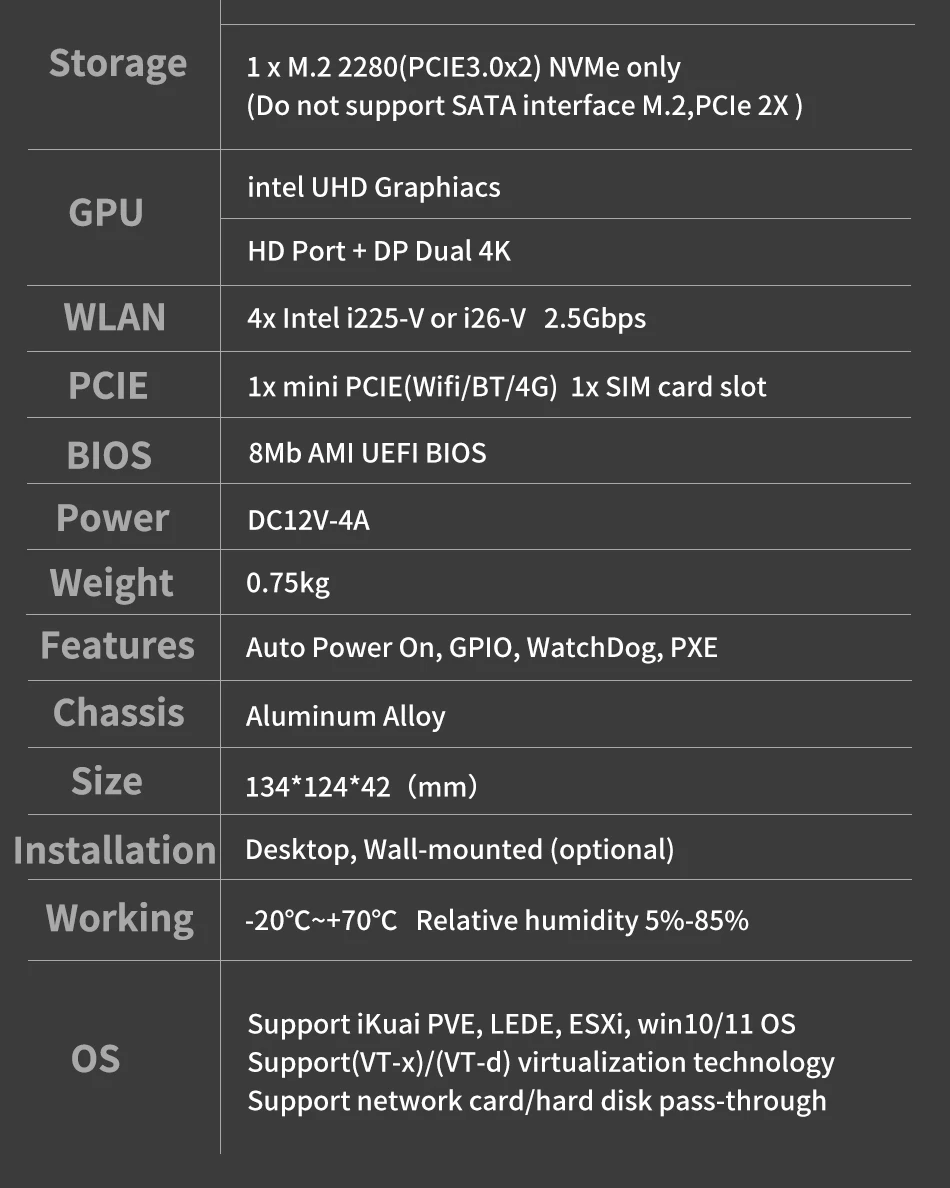

Specification

● CPU: Intel® Jasper Lake Processor Celeron N5105 (4C/4T, 4M Cache, 2.0GHz up to 2.9GHz), 10W TDP
● GPU: Intel UHD Graphics GPU, 450MHz up to 750MHz; Support 4096*2160 @60Hz
● RAM: 8GB/16GB DDR4
● Storage:M.2 2280 NVMe SSD 128GB/256GB/512GB , support 2.5inch HDD

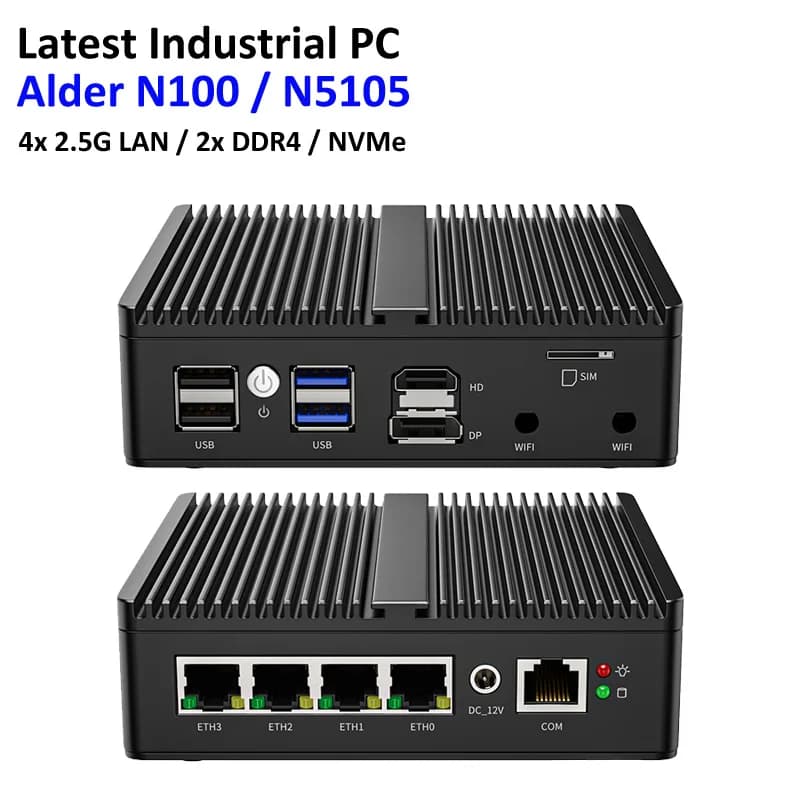

External port

● Power button *1
● USB 3.0 *2
● USB 2.0 *2
● HD Port *1
● DP *1
● 2.5GBps LAN *4
● DC in: 12V

Internal port

● RAM slot: 2 x SO-DIMM, Max capacity 32GB

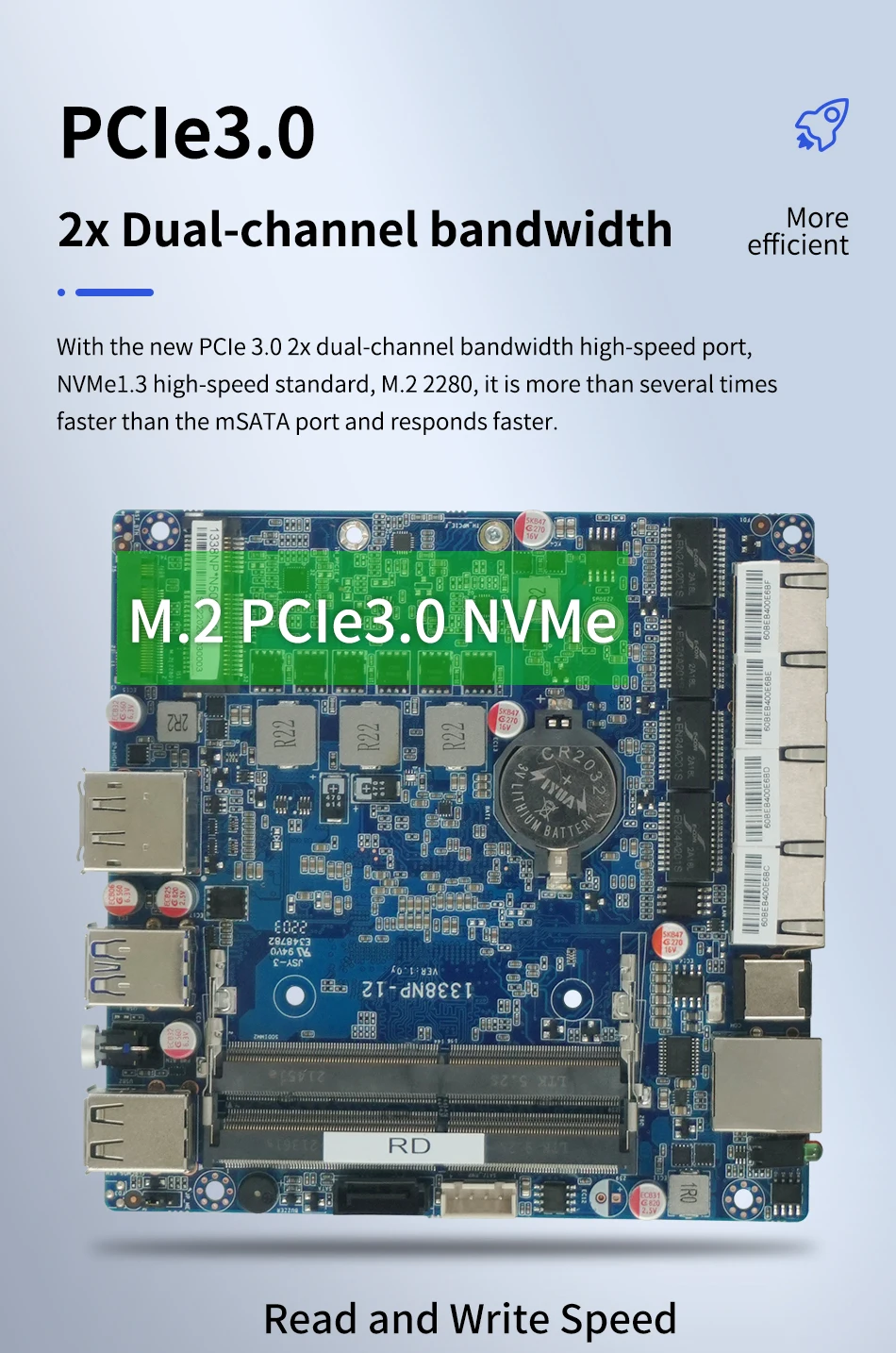

● SSD slot: 1 x M.2 2280 NVMe
● Wireless slot: 1 x Mini PCIE (Support WIFI /Bluetooth/4G modem wireless network card)
● SATA port *1

Other

● Dimension: 13.4*12.4*4.3cm
● Power: 12V 4A DC-in
● Operating Temp: 0°C to50°C
● Storage Temp: -20°C to 60°C
● Cooling: Passive
● Operating System: Support Windows 10, Windows 11, Linux,pfSense
● Additional features:Auto Power ON

Accessories

● 1 * Power Adapter 12V 3A, (US, EU, UK, AU Plug available)
● 1 * HDMI 1.4 cable(100cm)
