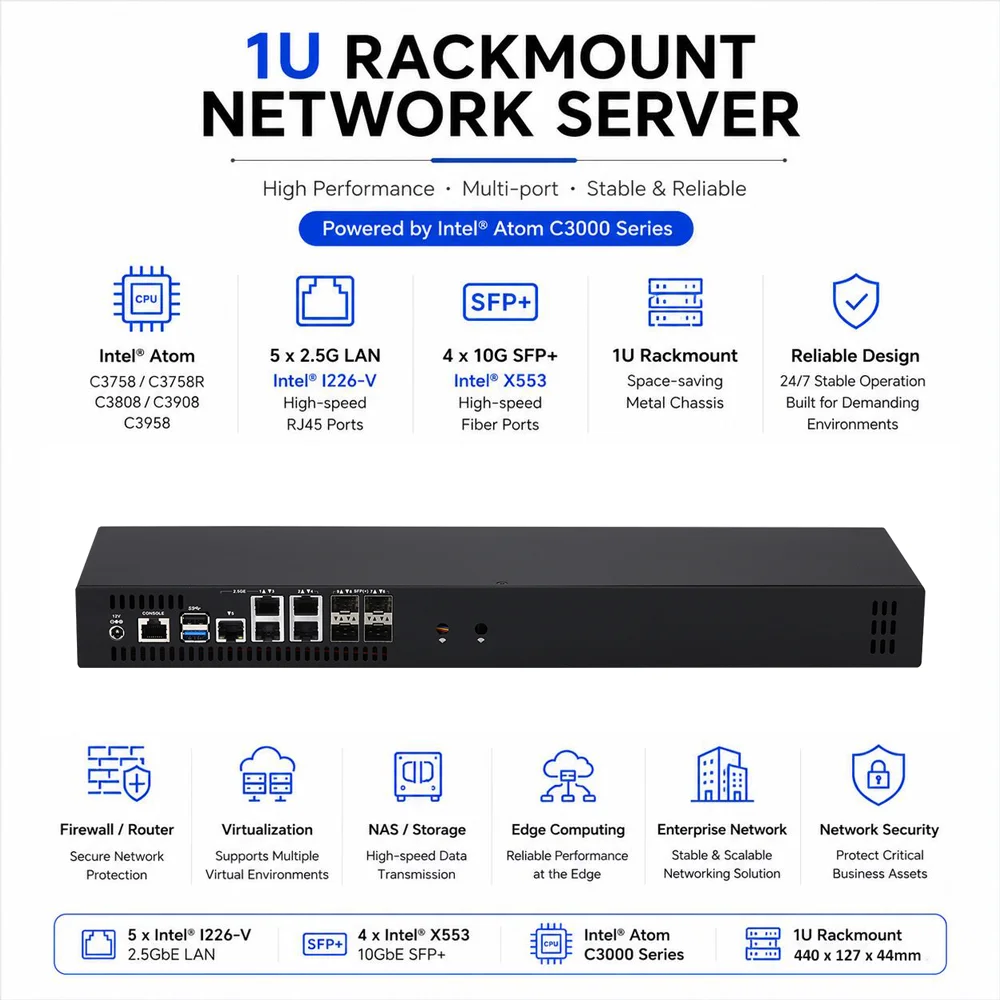

Qotom Q20331G9 1U Rack Chassis Mini PC 5*2.5G Lan SFP Atom C3808 C3758R C3558 C3958 C3908 Pfsense Mini PC Server

Shipment & Clearance :

1. For remote address,carrier will charge for additional remote delivery cost.

2. For all shipment choices,Buyer need to work with carriers to pay taxes/duties for clearance .

DHL/ Fedex express:

1.Generally, you need to waite 2-5 workdays.

Specification:

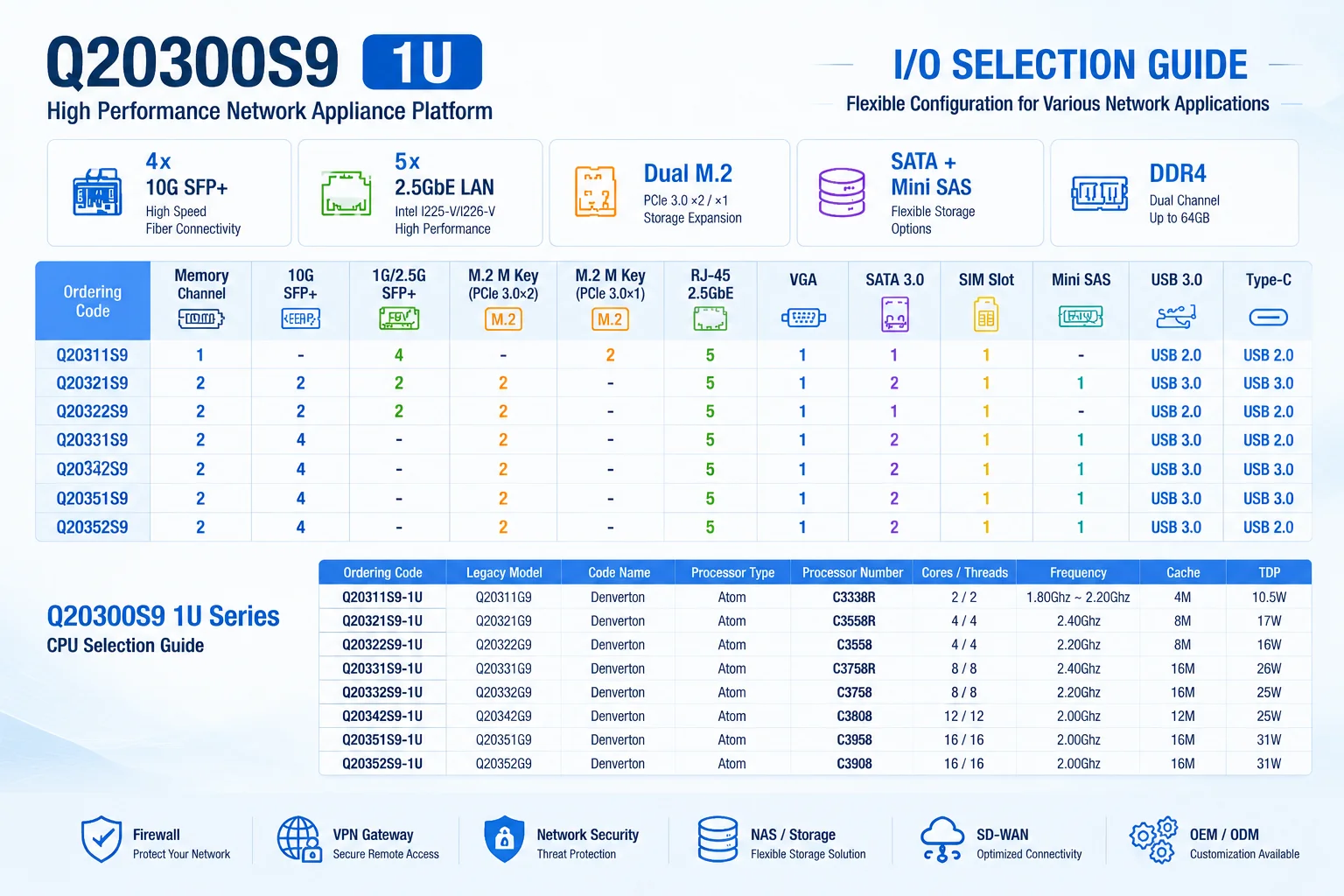

Model name: Q20322G9/Q20332G9/Q20342G9/Q20352G9/Q20351G9/Q20331G9

Dimension: 440*127*44mm(L*W*H)

Processor:

Q20322G9 : Intel Atom Denverton C3558, 2.2GHz,8m Cache,4 core,TPD 16W

Q20332G9 : Intel Atom Denverton C3758,2.2GHz,16m Cache,8 core,AES-NI,TDP 25W

Q20342G9 : Intel Atom Denverton C3808,2GHz,12m Cache,12 core,TDP 25W

Q20352G9 : Intel Atom Denverton C3908,2GHz,16m Cache,16 core,TDP 31W

Q20351G9 : Intel Atom Denverton C3958,2GHz,16m Cache,16 core,TDP 31W

Q20331G9 : Intel Atom Denverton C3758R,2.4GHz,16m Cache,8 core,AES-NI,TDP 26W

Pls notice about SFP:

Q20332G9/Q20342G9/Q20352G9/Q20351G9/Q20331G9: with 4* 10G X553 SFP+

Q20322G9 with 2* 1G SFP,2*10G X553 SFP+

Ports:

Q20332G9/Q20342G9/Q20352G9/Q20351G9/Q20331G9: 4X10G SFP+ +5LANs +USB2.0 + USB3.0 +5LANs +Mini SAS +VGA +SIM Slot +TYPE C(USB3.0) +COM(RS232)

Q20322G9 : 2x10G SFP+  +2x1G SFP +5LANs +2USB2.0+5LANs +VGA +SIM Slot +TYPE C(USB2.0)+COM(RS232)

Memory : Two DDR4 SO-DIMM Socket (2400MHz)MAX 64G

Storage :

Q20332G/Q20342G9/Q20352G9/Q20351G9/Q20331G9: support 2*2.5inch SSD/HDD,2 M.2 for SSD(M Key Type:2280mm,PCIE3.0*2),

Q20322G9: support 2*2.5inch SSD/HDD,2M.2 for SSD(M Key Type:2280mm,PCIE3.0*1)

M.2 Slot:

2 * M.2 for SSD(M key,Type 2280,PCIE 3.0*2),Q20322G9 with pcie3.0*1

1 * M.2 Slot for 4G/5G(B key, 3042/3052)

LAN：5* Intel I226-V 2.5 Gigabit LAN(B3 Version),4SFP

Panel Connectors:Q20332G/Q20342G9/Q20352G9/Q20351G9/Q20331G9

12V DC input (DC Jack 5.5mm,2.5mm)

RST button

1 * USB 3.0 Ports

1 * USB 2.0 Ports

4 * 10G SFP Ports

1 * Nano SIM Slot

1 * Mini SAS (SFF8087)port

1 * VGA port(DB15)

1 * TYPE C port(USB3.0)

1 * RJ45 COM( RS232) Ports

5 * Intel I226-V 2.5 Gigabit LAN

Panel Connectors:Q20322G9(C3558)

12V DC input (DC Jack 5.5mm,2.5mm)

RST button

2 * USB 2.0 Ports

2 * 1G SFP Ports

2 * 10G SFP Ports

1 * Nano SIM Slot

1 * VGA port(DB15)

1 * TYPE C port(USB2.0)

1 * RJ45 COM( RS232) Ports

5 * Intel I226-V 2.5 Gigabit LAN

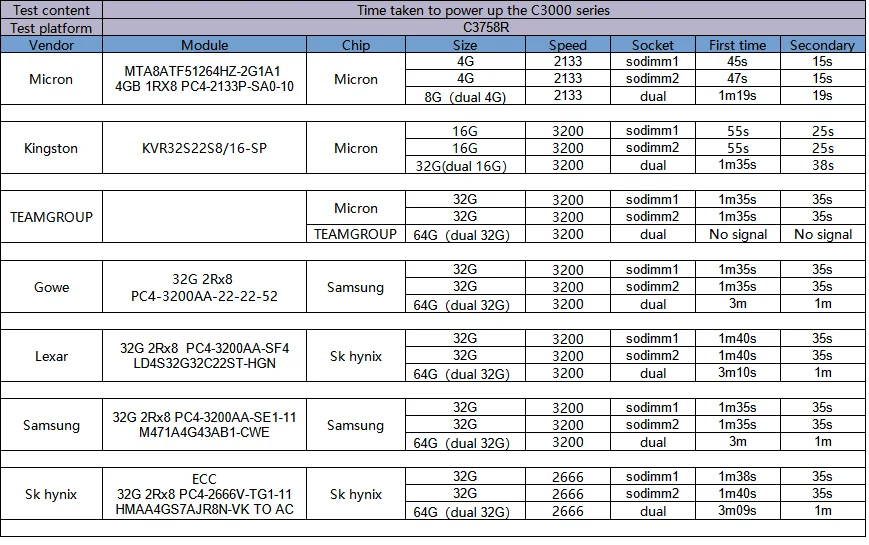

Attention!!!(For barebone buyers)

Pls buy these memory listed to avoid incompatibility between memory and machine,which will result in NO display!

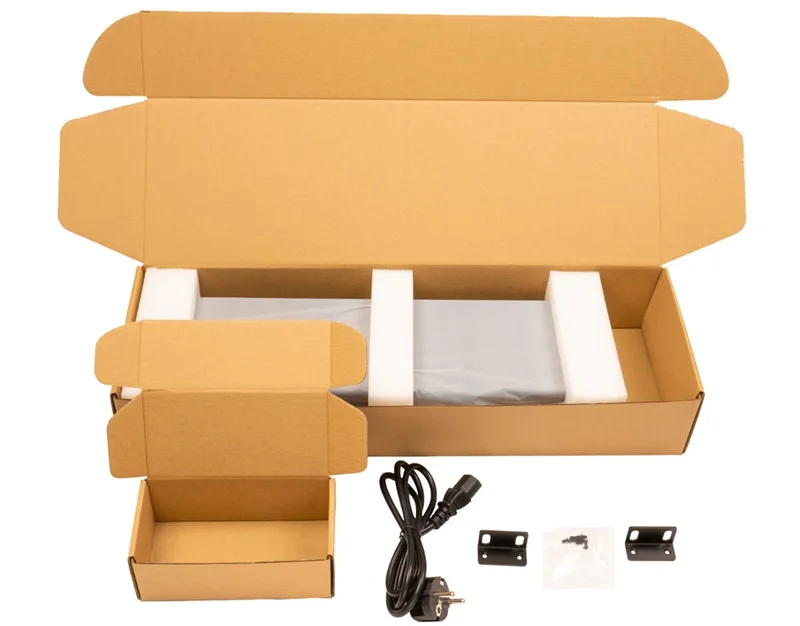

Packing list:

2 x Rack ears

plug cord (we arrange it based on your country)

Some replacement screws

1 x Mini PC

Sliver logo for printing: White background,and ORIGINAL logo documents in PDF version.

2.LOGO printing is free.Just provide your logo documenboot logo: JPG version, black background,and resolution 800*600

LOGO and OEM:

You can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.

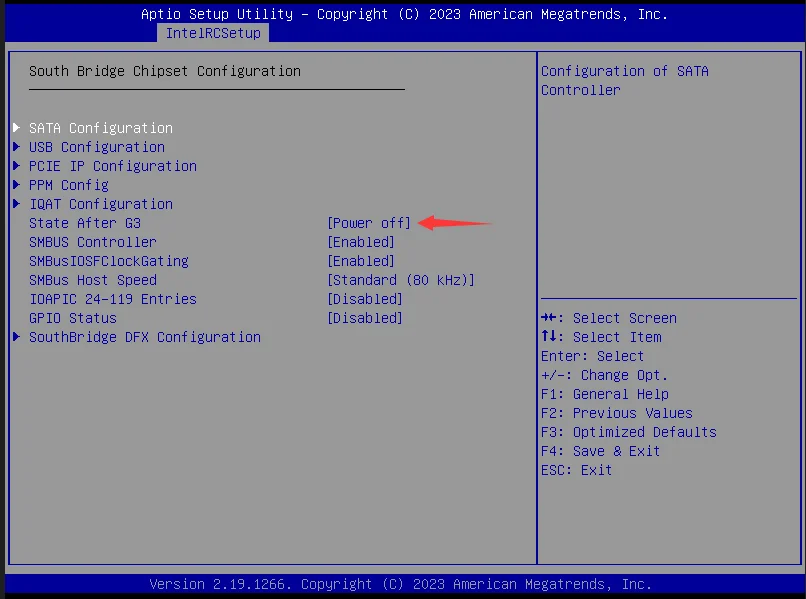

You can changing BIOS settings such as Wake on lan,Restore from AC power Loss when you place order.

Restore from AC Power Loss:
