Intel N100 Pentium Gold 7505 Fanless Mini PC 6x Intel I226‑V 2.5G LAN RJ45 COM Firewall Home Server OPNsense Industrial Computer

Processor parameter for referance only

Product Highlights

Intel Pentium Gold 8505 Model

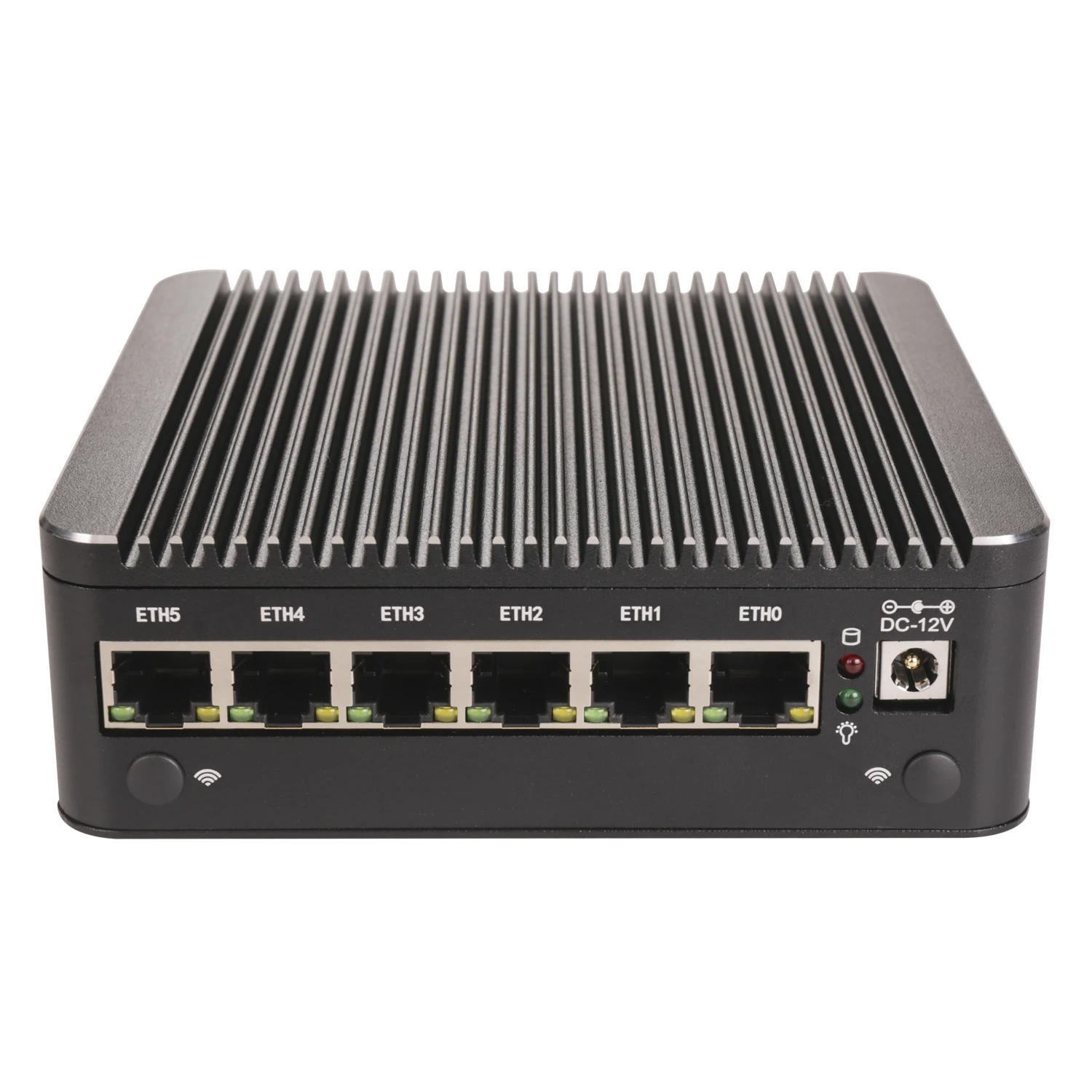

‑ 6× Intel i226‑V 2.5G RJ45 LAN ports, 3× USB3.2, 1× USB2.0, 1× Type‑C USB2.0, 1× RJ45 COM console port

‑ 2× DDR5 SODIMM non‑ECC RAM slots, max up to 64GB, 4800MHz

‑ 4‑storage support: 2× M.2 2280 NVMe / PCIe x4 SSD (mounted on both sides of motherboard) + 2× SATA3.0 SSD/HDD

Intel N100 Model

‑ 6× Intel i226‑V 2.5G RJ45 LAN ports, 2× USB3.2, 2× USB2.0, 1× Type‑C USB2.0, 1× RJ45 COM console port

‑ 1× DDR4 SODIMM non‑ECC RAM slot, max up to 32GB, 2400/2666/3200MHz

‑ 2‑storage support: 1× M.2 2280 NVMe / PCIe3.0 x1 SSD + 1× SATA3.0 SSD/HDD

Pentium Gold 7505 / Celeron 6305 Model

‑ 6× Intel i226‑V 2.5G RJ45 LAN ports, 2× USB3.0, 2× USB2.0, 1× Type‑C USB3.0, 1× RJ45 COM console port

‑ 2× DDR4 SODIMM non‑ECC RAM slots, max up to 64GB, 2400/2666/3200MHz

‑ 3‑storage support: 1× M.2 2280 NVMe / PCIe3.0 x4 SSD + 2× SATA3.0 SSD/HDD

‑ 1× M.2 2230 WiFi slot; WiFi module sold separately as optional accessory

‑ 1× HDMI + 1× DP ports, dual 4K@60Hz UHD video output

‑ Supports AES‑NI, ESXi, PVE, Watchdog, Auto Power‑on, RTC, PXE Boot, Wake‑on‑LAN and more

‑ Full solid aluminum‑alloy enclosure with 3‑sided Y‑shaped fin heat sink. Great heat dissipation, premium exterior craftsmanship. Fanless silent operation, stable for 7×24‑hour continuous running. Power consumption can be adjusted in BIOS for lower power draw and cooler temperatures. A 4‑pin internal fan is included as a complimentary gift for additional thermal concerns.

Package List

‑ 1 × Mini PC Host

‑ 1 × Power Adapter

‑ 1 × Power Cord (EU / US / UK / AU plug shipped according to buyer’s destination country)

‑ 1 × SATA Cable

‑ 1 × 4‑pin Internal Fan (Free gift)

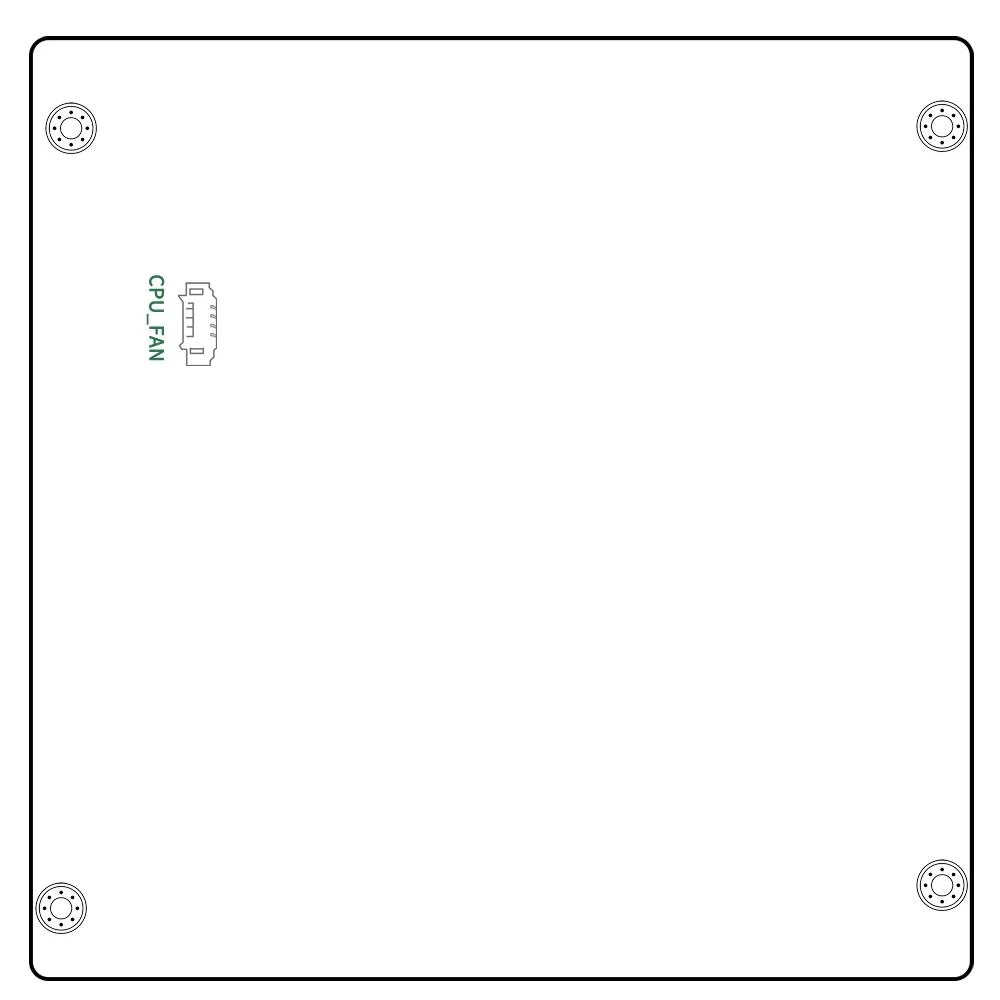

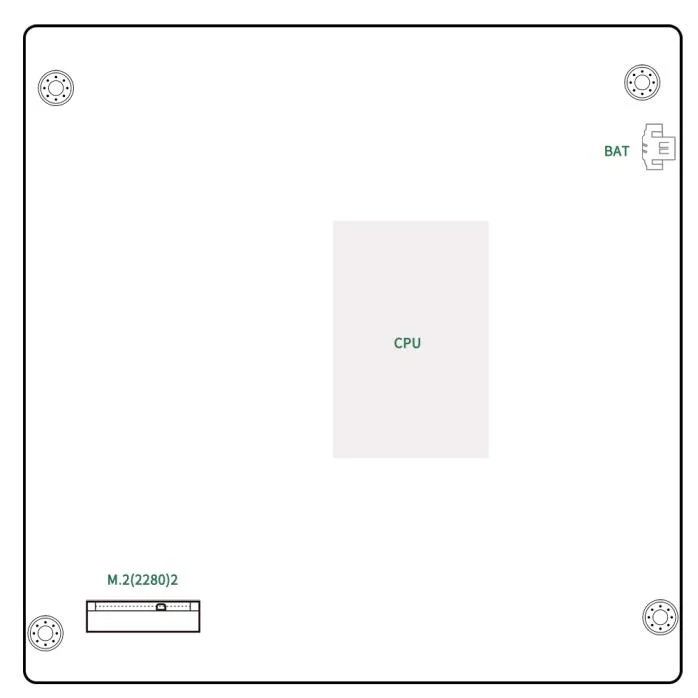

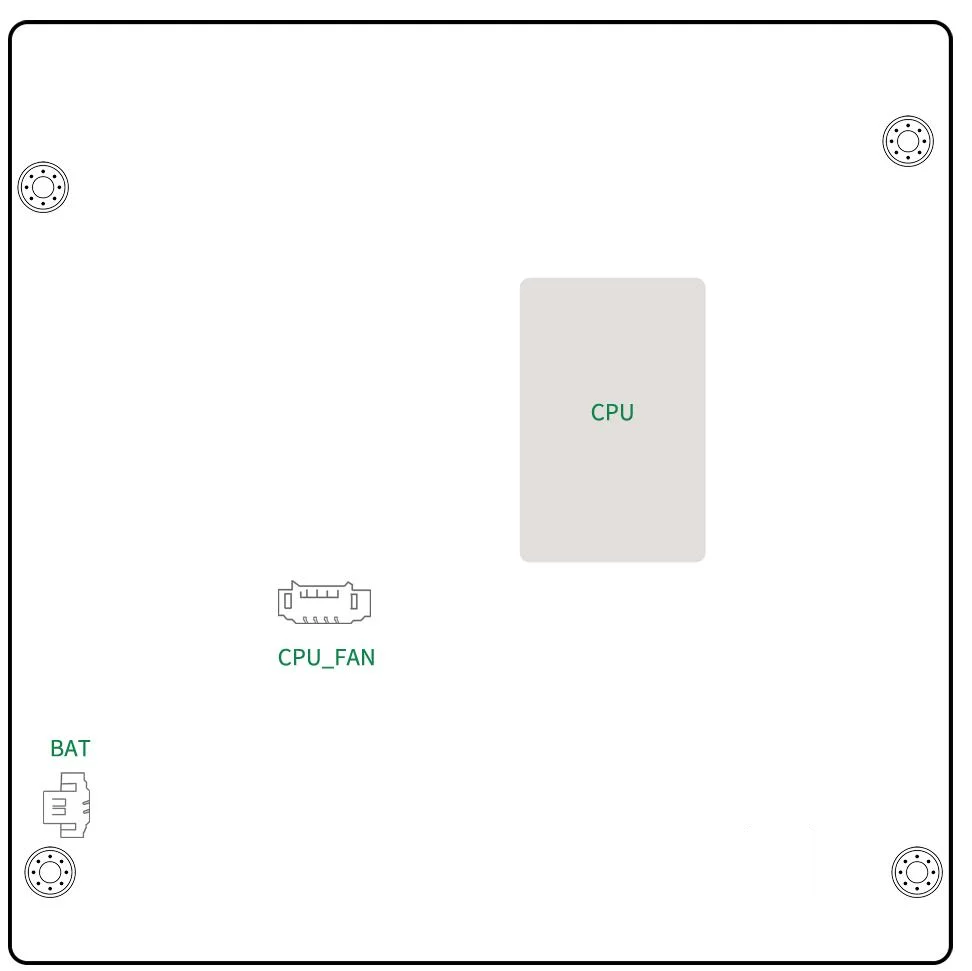

Intel Pentium Gold 8505 Model Motherboard Diagram:

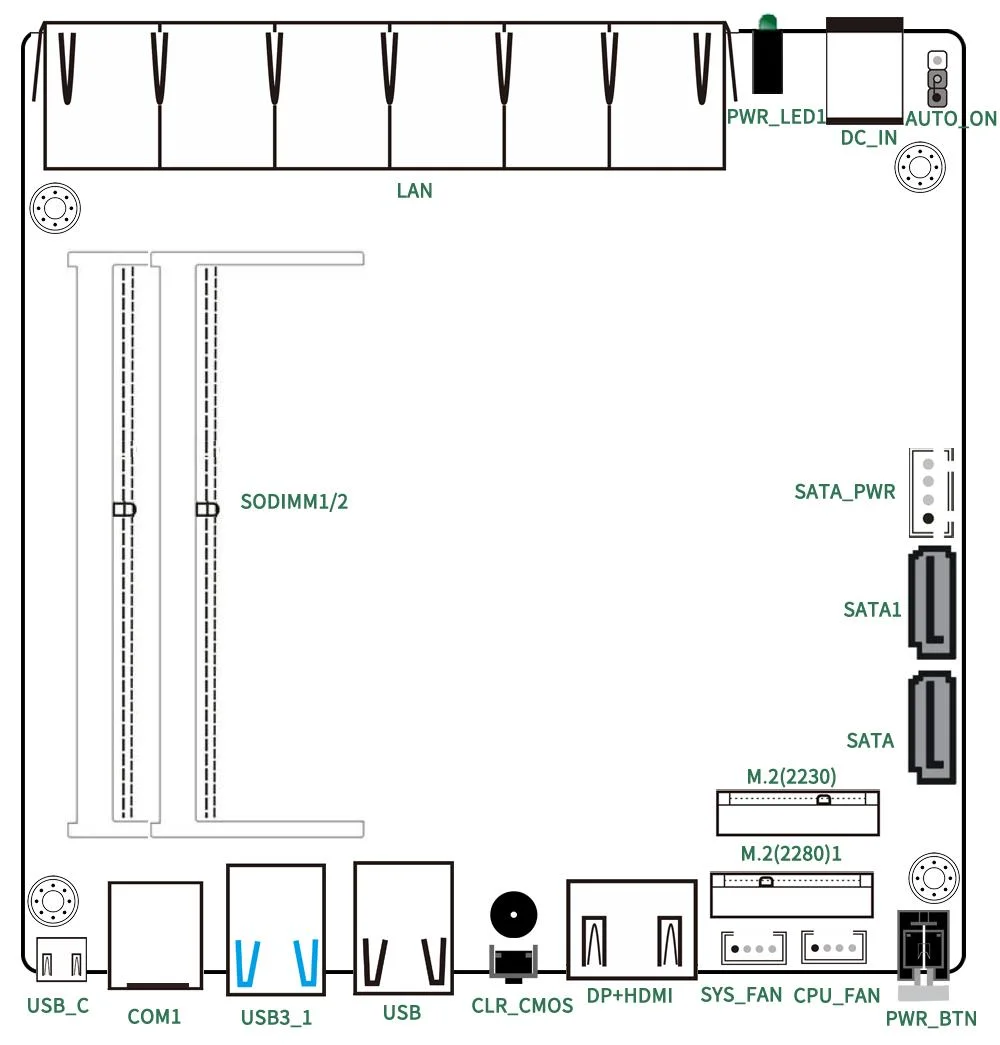

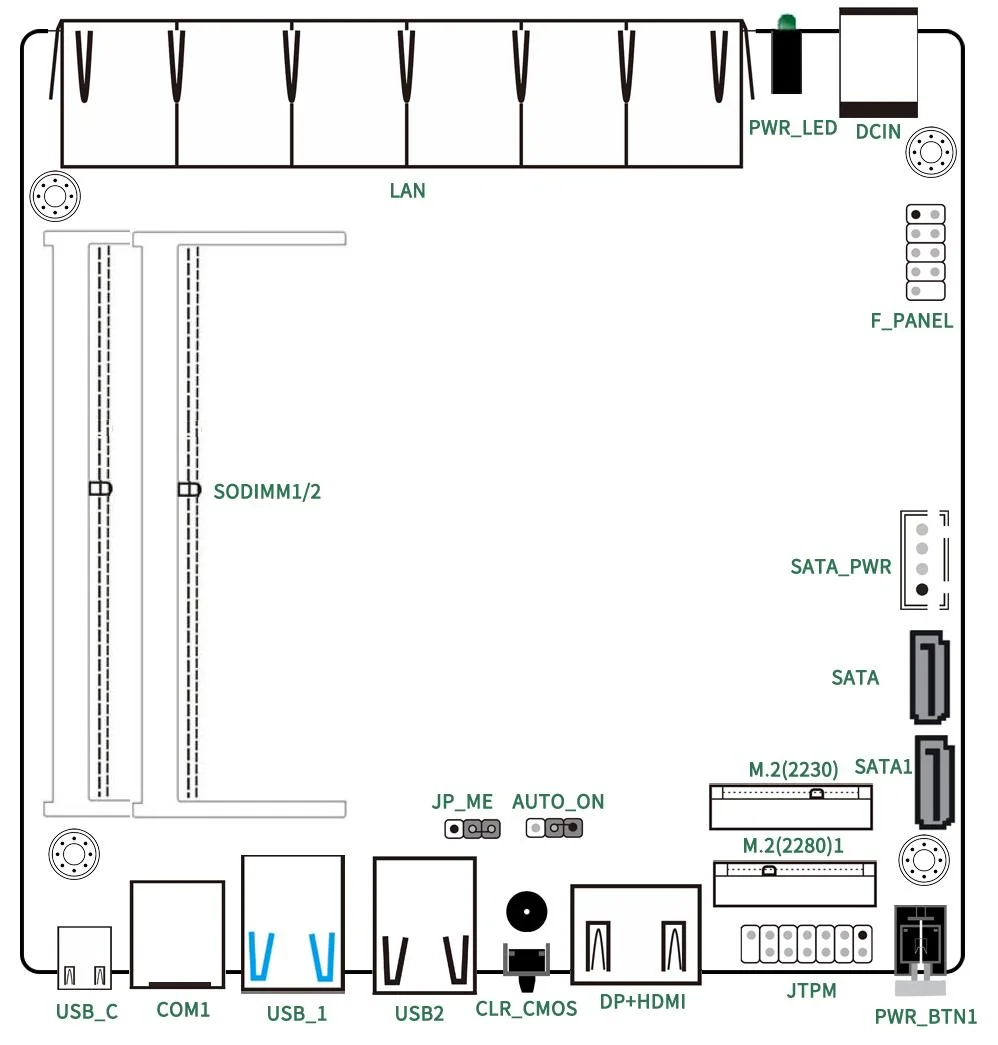

Intel Pentium Gold 7505/Celeron 6305 Model Motherboard Diagram:

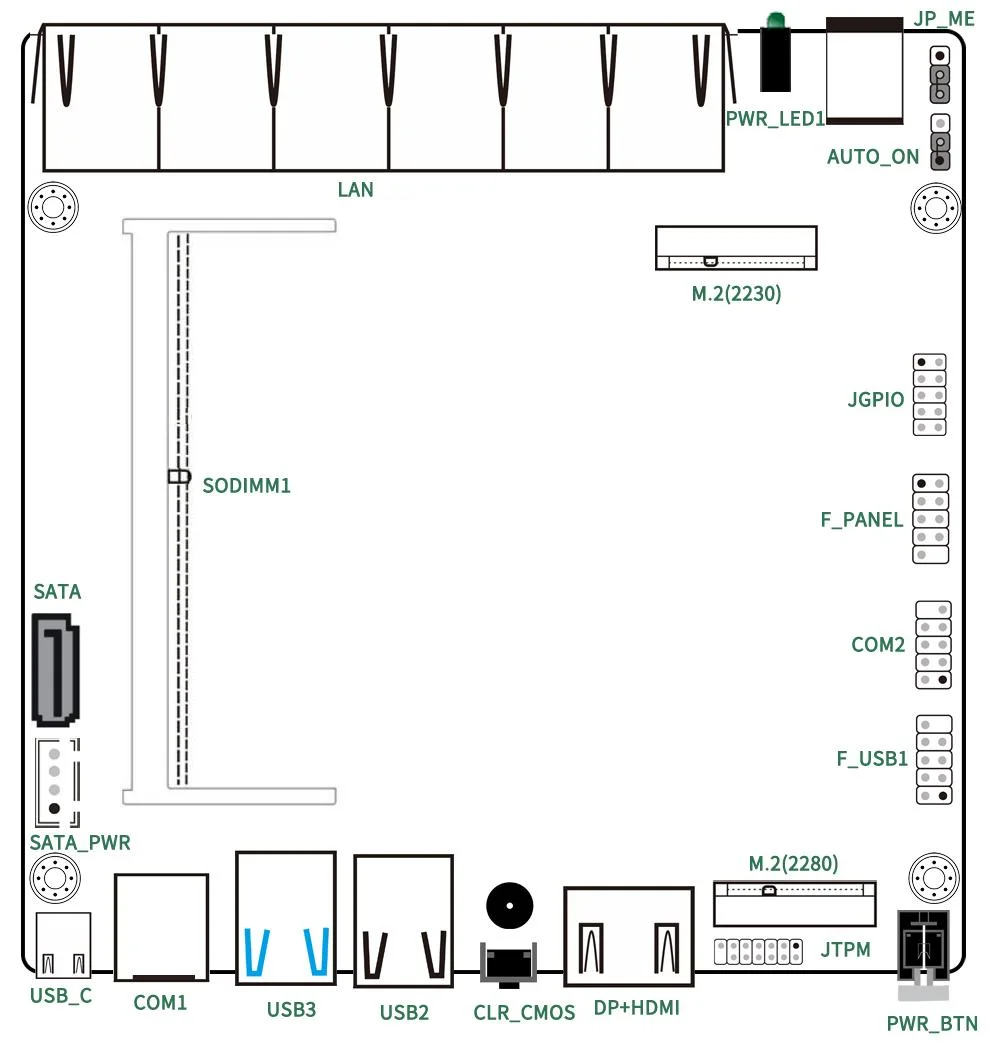

Intel N100 Model Motherboard Diagram:
