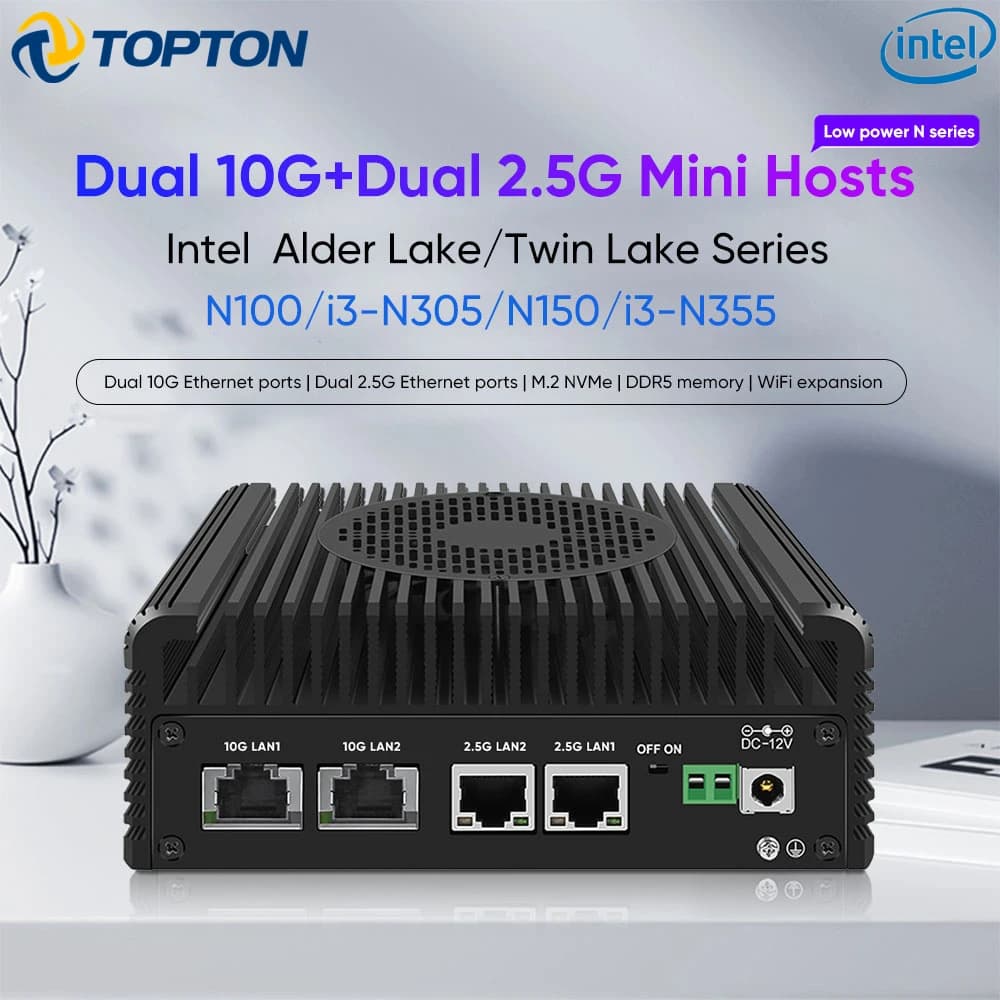

Topton 4 NICs Solid Metal Firewall PC Intel I3-N305 N150 2*10G 2*2.5G RJ45 LANs DDR5 2*NVMe NAS Mini PC Proxmox ESXi Home Server

Processor parameter for referance only

Product Highlight

-2xIntel X550 10G Rj45 LANs, 2xIntel i226-V 2.5G RJ45 LANs, 1xType-C 3.2 Gen1, 1xUSB3.2 Gen1, 4xUSB2.0.

-1xDDR5 SODIMM ram slot, support 4800MHz.

-Support 3 storage: 2xM.2 NVMe(PCIe3.0x1, one on the back of motherboard) 2280 SSD+1x2.5-inch SATA3.0 SSD/HDD.

-1xM.2 E key 2230 slot, support WiFi6&Bluetooth connection and support transfer to 2280 NVMe by adapter board.

-1xTF card slot support storage and partial system boot.

-2xHDMI2.0 support 2x4K@60Hz UHD video display.

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case already with high tooth fins and copper block gets much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cable(EU/US/UK/AU plug based on buyer's country)

1xM.2 2230 to 2280 NVMe adapter board

Welcome to click the picture of VESA Bracket to order together if you need:
