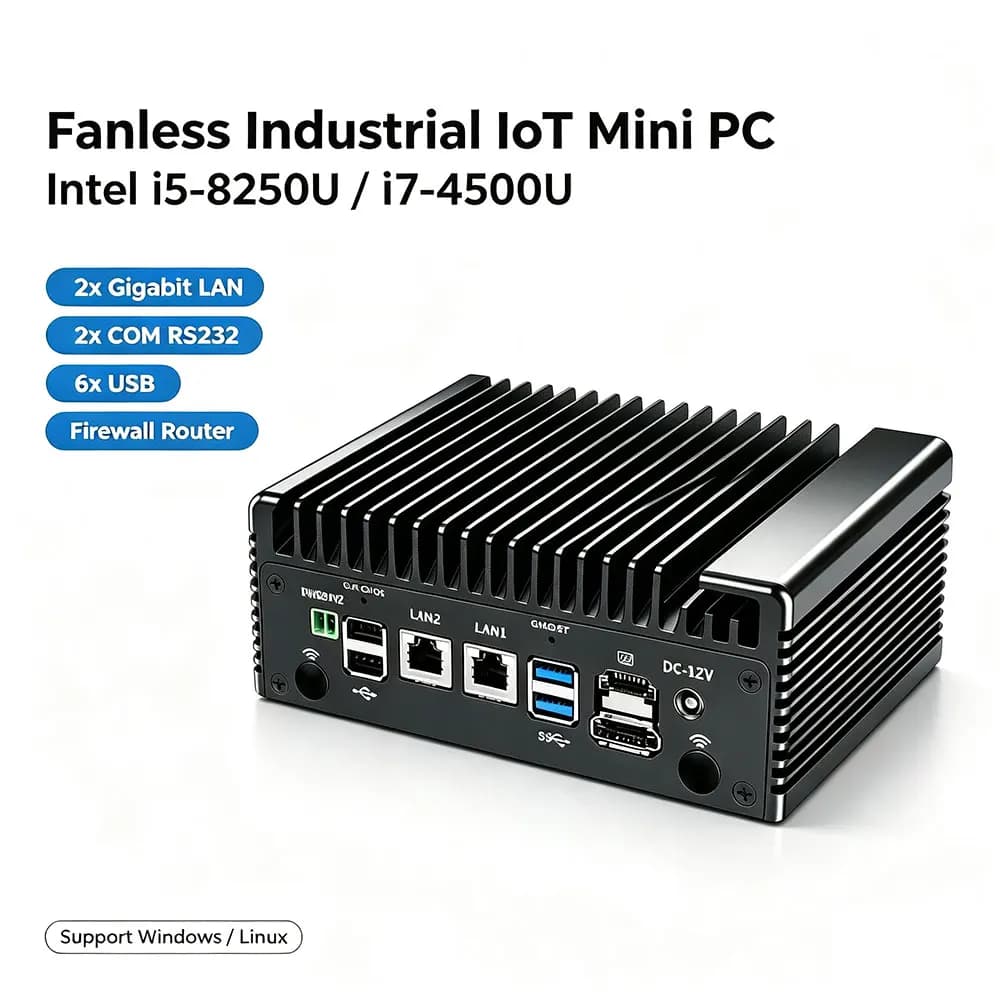

Fanless Industrial IoT Mini PC Intel Core i5 8250U i7 4500U 2xGigabit LAN 2xCOM Industrial Firewall Computer Windows Home Server

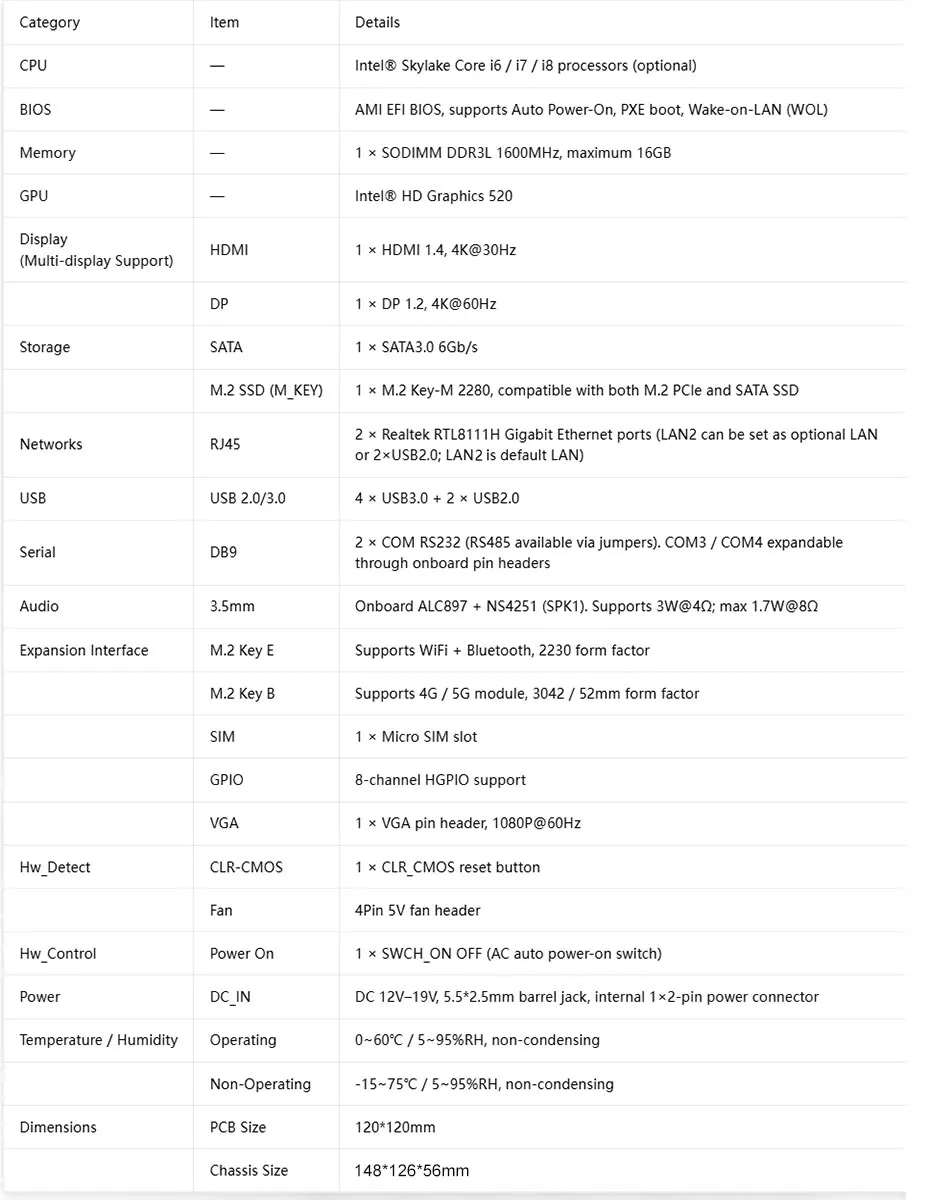

Parameter Specifications

Processor: Intel® Skylake Core 6th / 7th/ 8th processors (optional)

BIOS Function: AMI EFI BIOS, supports Auto Power-On, PXE Boot and Wake-on-LAN (WOL)

Memory: 1 × DDR3L 1600MHz SODIMM slot, max support 16GB

Integrated Graphics: Intel HD Graphics 520

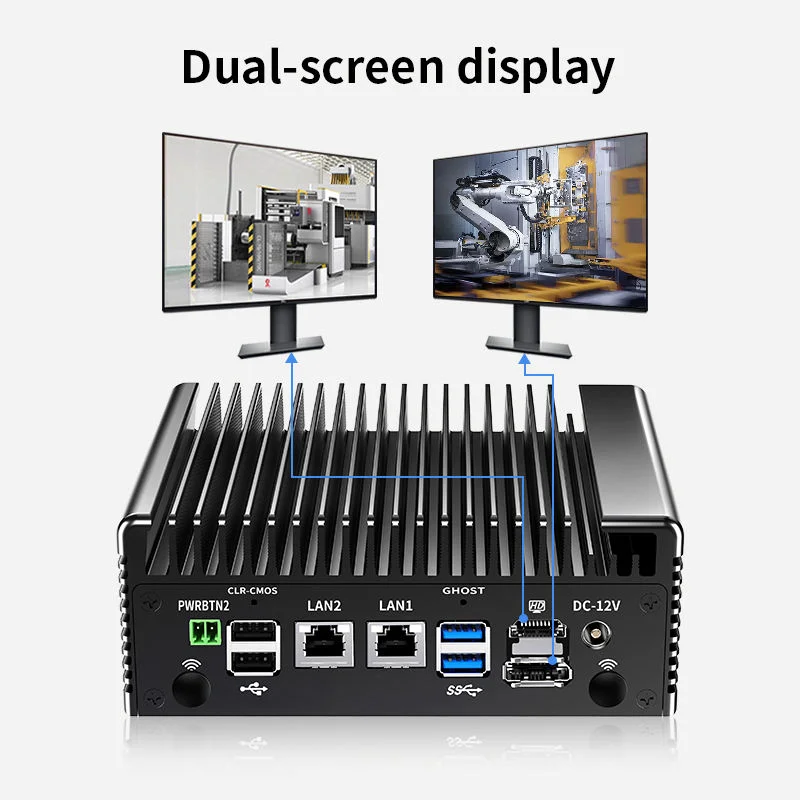

Multi-Display Output

- HDMI 1.4: 4K@30Hz

- DP 1.2: 4K@60Hz

Storage Expansion

- 1 × SATA3.0 6Gb/s interface for 2.5” HDD/SSD

- 1 × M.2 Key-M 2280 slot, supports both PCIe and SATA protocol SSD

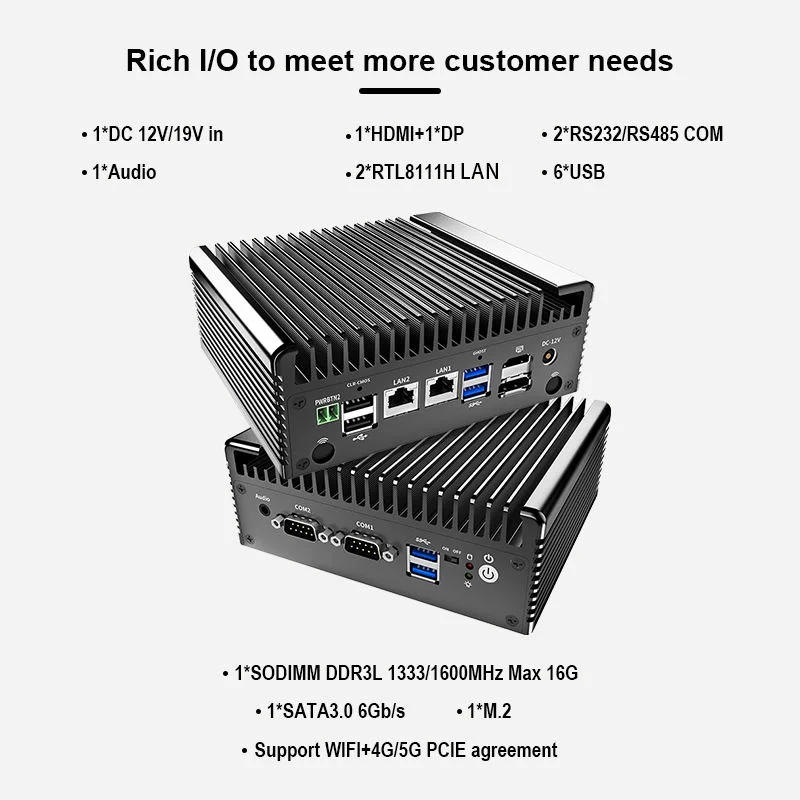

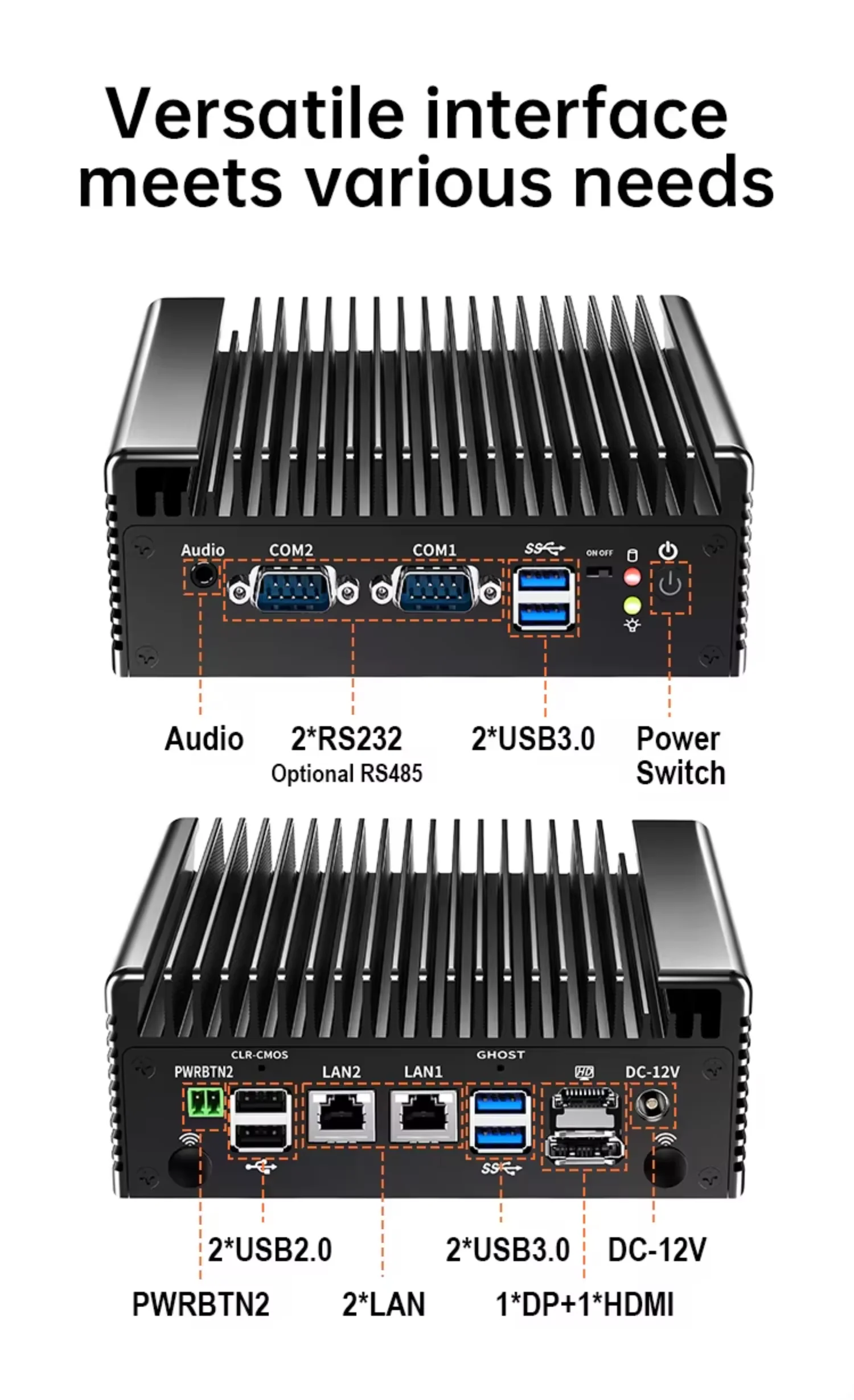

Network Ports

- 2 × Realtek RTL8111H Gigabit Ethernet ports

- LAN2 is the default network port; LAN2 can be switched to optional LAN or 2×USB2.0 via setting

USB Interface: 4 × USB3.0 + 2 × USB2.0

Serial Port

- 2 × DB9 COM RS232 ports (supports RS485 via jumper adjustment)

- Expandable COM3 / COM4 via onboard pin headers

Audio System: Built-in ALC897 + NS4251 audio chip, 3.5mm audio jack. Supports 3W@4Ω / 1.7W@8Ω speaker output

Expansion Interfaces

- M.2 Key E Slot: Supports 2230 WiFi & Bluetooth module

- M.2 Key B Slot: Supports 3042 / 52mm 4G/5G module

- 1 × Micro SIM card slot

- 8-channel HGPIO support

- 1 × VGA pin header, supports 1080P@60Hz display output

Hardware Control & Detection

- CLR-CMOS reset button for BIOS factory reset

- 4Pin 5V fan header for active heat dissipation expansion

- SWCH_ON/OFF jumper, supports AC auto power-on function

Power Supply

- DC 12V–19V wide voltage input

- 5.5*2.5mm standard barrel jack + internal 1×2-pin power connector

Working Environment

- Operating Temperature: 0℃ ~ 60℃, 5%~95% RH (non-condensing)

- Storage Temperature: -15℃ ~ 75℃, 5%~95% RH (non-condensing)

Dimensions

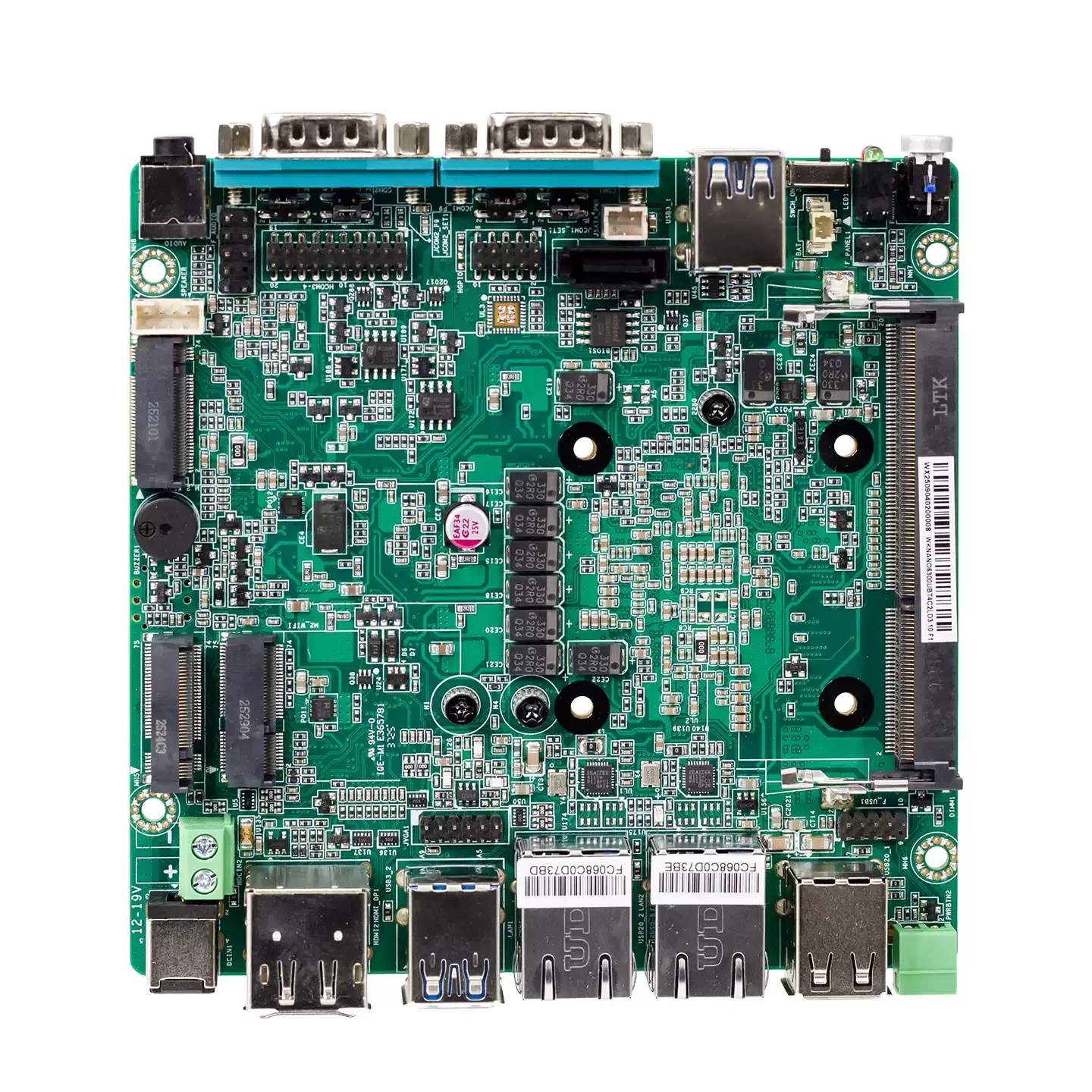

- PCB Size: 120 * 120mm

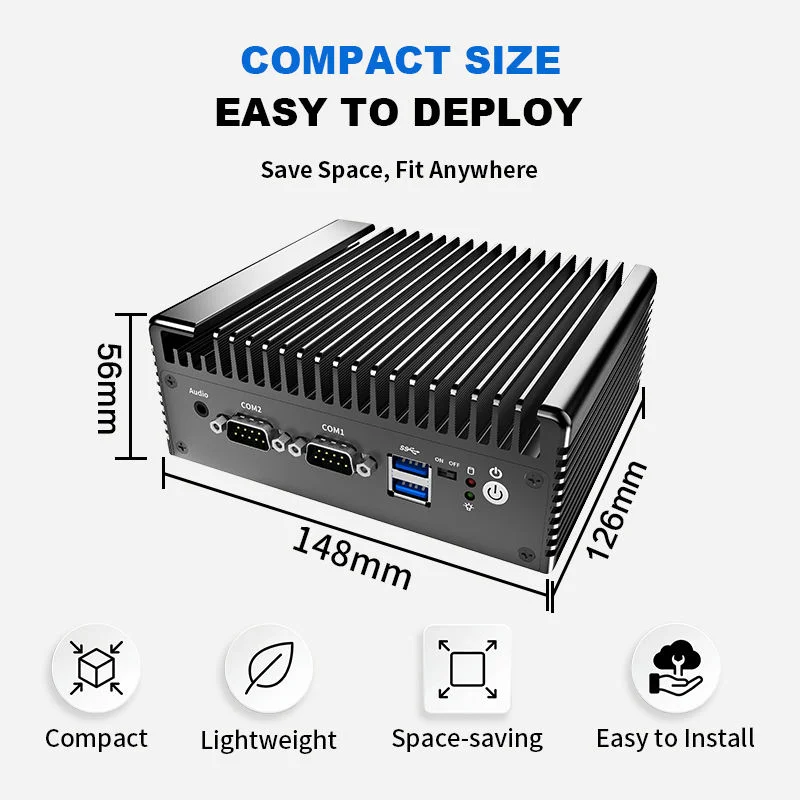

- Chassis Size: 148 * 126 * 56mm

Click the VESA Bracket image if you need it, you can place the order together with the mini PC.
