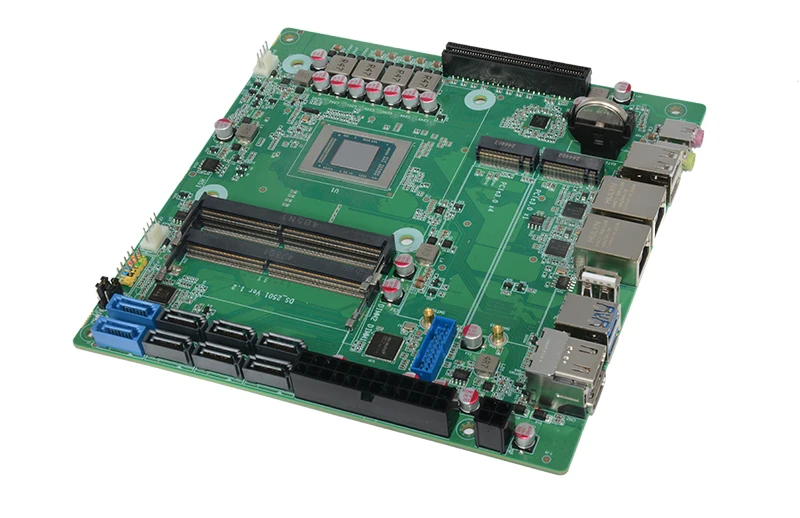

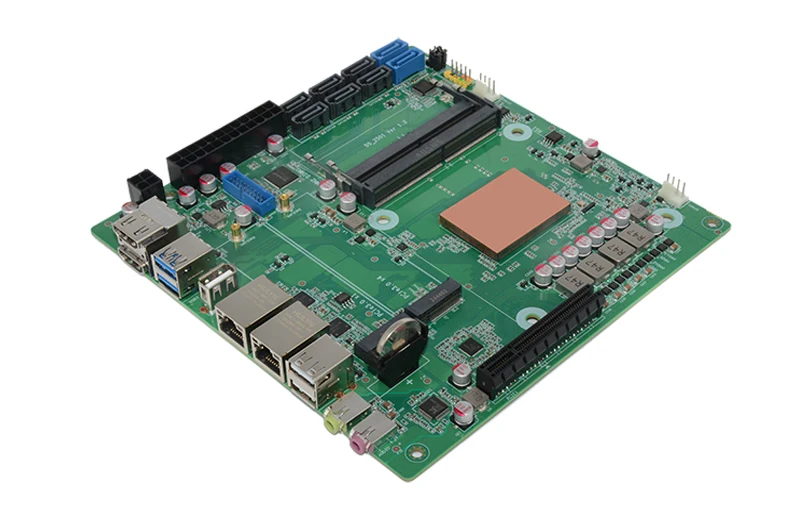

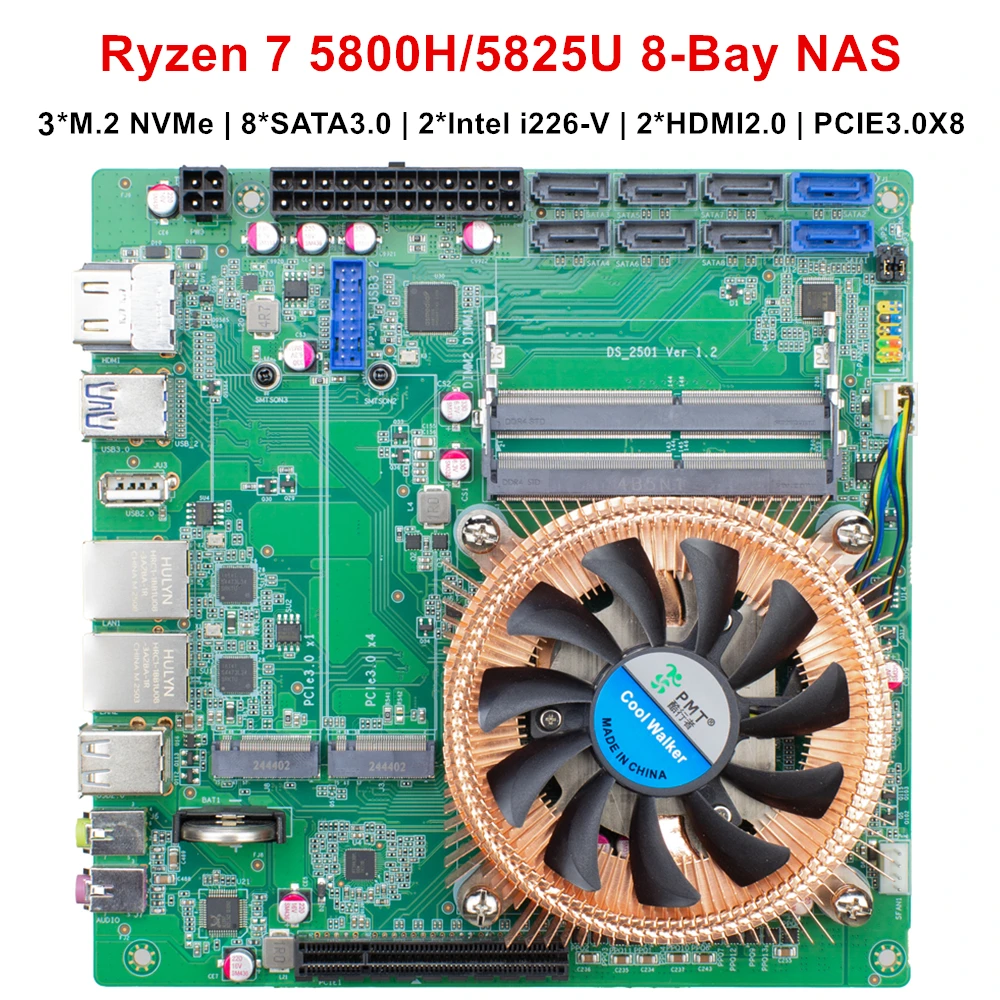

Topton 8-Bay NAS Motherboard AMD Ryzen 9 5900HX 7 5800H/5825U - 8*SATA 3*NVMe 2*2.5G LAN 1*PCIE3.0 8X 2*DDR4 - Gaming & Firewall

This link bundle: No Ram No Storage No OS, please choose CPU Fan bundle carefully.

Specification:

CPU:

1. AMD Ryzen 5 5600U 6 Core 12 thread 2.3GHz up to 4.2GHz, 16M Cache, TDP 15W

2. AMD Ryzen 7 5800U/5825U 8 Core 16 thread 1.9/2.0GHz up to 4.4/4.5GHz, 16M Cache, TDP 15W

3. AMD Ryzen 7 5800H 8 Core 16 thread 3.2GHz up to 4.4GHz, 16M Cache, TDP 45W

4. AMD Ryzen 9 5900H(HX) 8 Core 16 thread 3.3GHz up to 4.6GHz, 16M Cache, TDP 45W

5. AMD Ryzen 7 PRO 5850U 8 Core 16 thread 1.9GHz up to 4.4GHz, 16M Cache, TDP 15W(support ECC ram)

6. AMD Ryzen 9 5900HX ES(Engineering Sample version) 8 Cores 16 Threads, about 3-5% lower in performance compared to the official version. Do Not display the CPU model on the computer, but instead display product ID number, such as 100-000000300. The corresponding CPU version model can be found on the AMD official website.

GPU: AMD Radeon Graphic

RAM: 2*DDR4 non-ECC SODIMM Slots，Max up to 64GB 3200MHz

Network: 2*Intel i226- 2.5G RJ45 LANs

Display: 2*HDMI2.0，support dual 4K@60Hz display

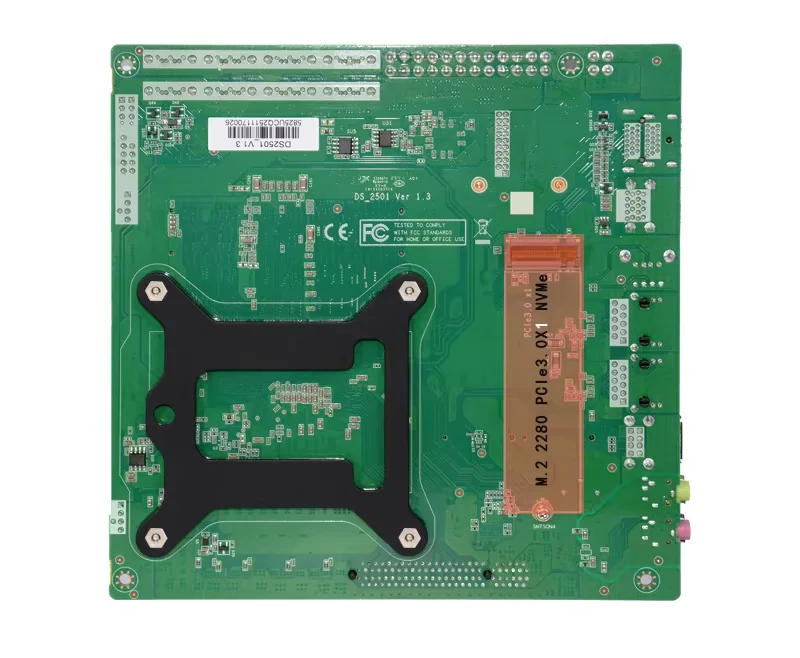

Storage: 8*SATA3.0，3*M.2 2280 NVMe(1*PCIE3.0x4+2*PCIE3.0x1, one on back side)

Powe supply:  24pins+4pins ATX 12V power suppply, must connect at same time to power on

Expansion: 1*PCIE3.0 8X slot, support to expand graphic card, network card etc

Radiator fan: support LGA115X standard fan(75x75mm) with screw hole positions in square layout, optional to buy

Function: Support auto power on, wake on lan, RTC, watchdog etc (DELETE key to enter BIOS, F7 key to select boot drive, F3 key to restore BIOS default values)

Form: 17x17CM, mini ITX

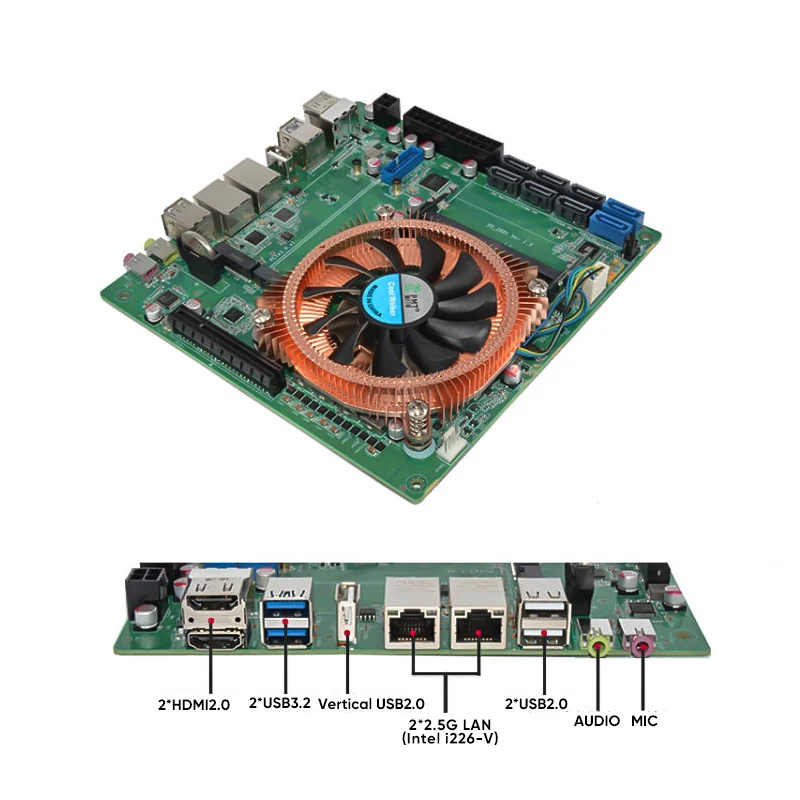

I/O port:

2*RJ45 LAN ( 2*Intel i226-V 2.5G）

2*HDMI2.0

2*USB3.2

3*USB2.0

1*Audio

1*MIC

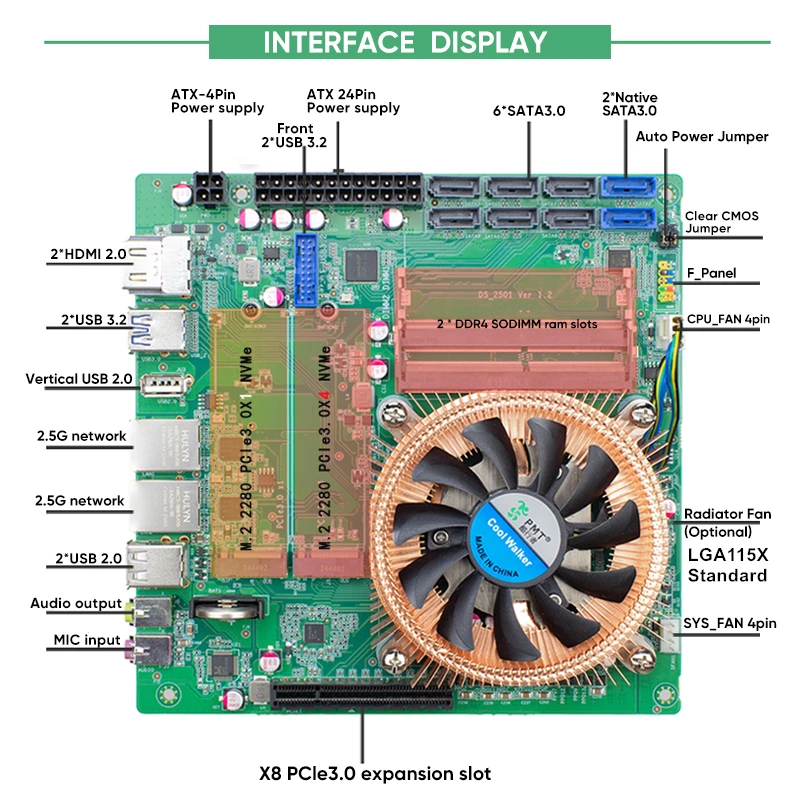

Inner I/O Port:

8*SATA3.0

3*M.2(NVME)

2*DDR4 SODIMM

1*PCIE3.0 8X

Front 2*USB3.2 pins

1*F_Panel

1*Auto power jumper

1*Clear CMOS jumper

1*CPU_FAN 4pin

1*SYS_FAN 4pin
