2×10G SFP Solid Fanless Firewall Mini PC Intel I3 N300 N305 N150 3×2.5G LAN DDR5 M.2 NVMe PfSense OPNsense Home Server Router

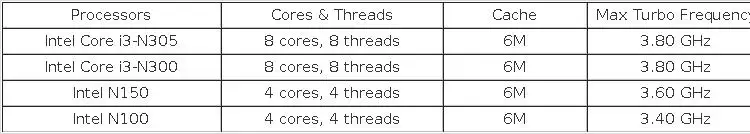

Processor parameter for referance only

Product Highlight

‑ 2× Intel 82599ES 10G SFP+ ports, 3× Intel i226‑V 2.5G RJ45 LAN ports, 1× USB3.2 Gen1, 5× USB2.0 ports

‑ 1× DDR5 SODIMM non‑ECC laptop RAM slot, supports up to 4800MHz

‑ Supports 1× M.2 2280 NVMe / PCIe3.0 x1 SSD

‑ 1× M.2 E‑Key 2230 slot: only compatible with CNVio‑protocol WiFi modules (e.g. Intel AX201, AX211, sold separately). PCIe‑based WiFi modules will occupy one RJ45 LAN channel.

‑ 1× M.2 B‑Key 3052 slot + 1× SIM slot, supports 5G wireless module (module sold separately)

‑ 1× HDMI2.0 + 1× DP, dual‑display support for 4K UHD output

‑ AT / ATX auto‑power‑on function: enable or disable via onboard motherboard jumper

‑ UEFI BIOS supported; compatible with AES‑NI, ESXi, PVE, Watchdog, Auto Power On, RTC, PXE Boot, Wake‑on‑LAN and more

‑ Low‑TDP power design; supports VESA bracket mounting for monitor back installation (bracket sold separately)

‑ Flexible cooling design: switch between fan‑cooled or fanless mode. Solid aluminum enclosure (17712554mm) with high‑density fins delivers excellent thermal performance with low‑noise fan. Simply unplug the fan header from motherboard for complete silent fanless operation.

Package List

‑ 1 × Mini PC Host

‑ 1 × Power Adapter

‑ 1 × Power Cable (EU / US / UK / AU plug shipped according to buyer’s destination country)

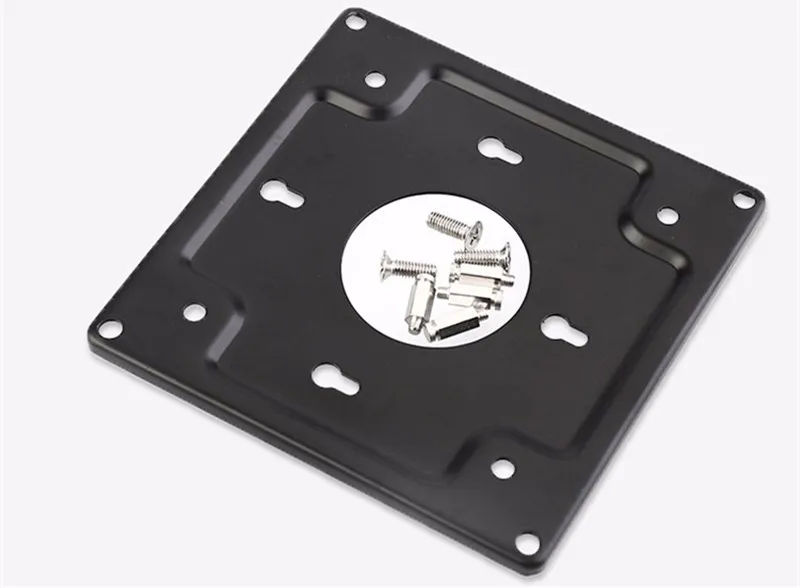

If you need the VESA bracket, please click its product image to add it to your order.
