Intel N150 N100 Fanless Mini Industrial PC 4x 2.5GbE I226-V LAN Firewall Router Celeron J6412 7305 N5105 N6005 PfSense OPNsense

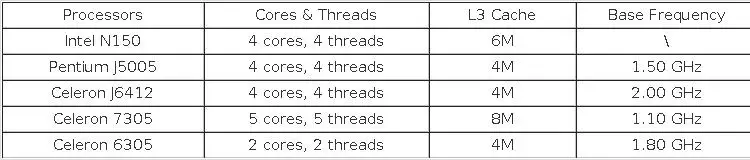

Processor parameter for referance only

X2E N150 Model

4×Intel i226-V 2.5G RJ45 Ethernet Ports, 2×USB 3.0, 4×USB 2.0, 1×RJ45 Console COM Port, 1×5G SIM Slot, 1×4G SIM Slot; DB9 RS232 / RS485 COM Port is optional

1×DDR5 SODIMM Non-ECC Memory Slot, supports DDR5 4800MHz

Dual Storage Support: 1×M.2 2280 NVMe SSD (PCIe 3.0 x1) + 1×2.5-inch SATA 3.0 7mm SSD/HDD

1×SIM Slot + 1×mPCIe Wireless Slot, compatible with Wi-Fi, 4G and 5G modules via USB signal transmission

X2G N5105/J6412/N6005/7305/6305 Model

4×Intel i226-V 2.5GbE RJ45 LAN Ports, 2×USB 3.0, 2×USB 2.0, 1×RJ45 Console COM Port, 1×4G SIM Slot

2×DDR4 SODIMM Non-ECC Memory Slots, supports DDR4 2400 / 2666 / 3200MHz

Dual Storage Support: 1×M.2 2280 NVMe SSD (PCIe 3.0 x1) + 1×2.5-inch SATA 3.0 7mm SSD/HDD

1×SIM Slot + 1×mPCIe Wireless Slot, supports Wi-Fi & 4G modules via USB signal transmission

Dual 4K Display Output: 1×HDMI + 1×DP

Built-in Functional Features: AES-NI, ESXi, Proxmox VE (PVE), Hardware Watchdog, Auto Power On, RTC, PXE Boot, Wake-on-LAN and more

Universal Features for All Models

This mini PC adopts an all-aluminum fanless chassis with extended cooling fins for excellent heat dissipation.

Its operating temperature is 10–15°C lower, and performance is 20–25% better than ordinary fanless mini PCs sold online.

It runs completely silent with an extended service lifespan, stable for 7×24-hour continuous operation. You can equip an extra USB cooling fan for enhanced heat dissipation if needed.

An optional VESA mounting bracket is available to install the device behind your monitor.

Package Contents

1 × Fanless Mini PC Host

1 × Power Adapter

1 × Power Cord (EU / US / UK / AU plug will be shipped according to buyer’s delivery country)

1 × SATA Data Cable

Usage Recommendations

This hardware is highly recommended for routing operating systems such as pfSense, OPNsense, etc.

If you install virtualization platforms including Proxmox VE, ESXi and other virtual machine systems, we suggest adding an extra cooling fan for memory and hard drives to prevent overheating and unexpected system crashes.

X2E N150 model:

X2G J6412/N5105/7505/6305 model:

Welcome to click the picture of VESA Bracket to order together if you need:
