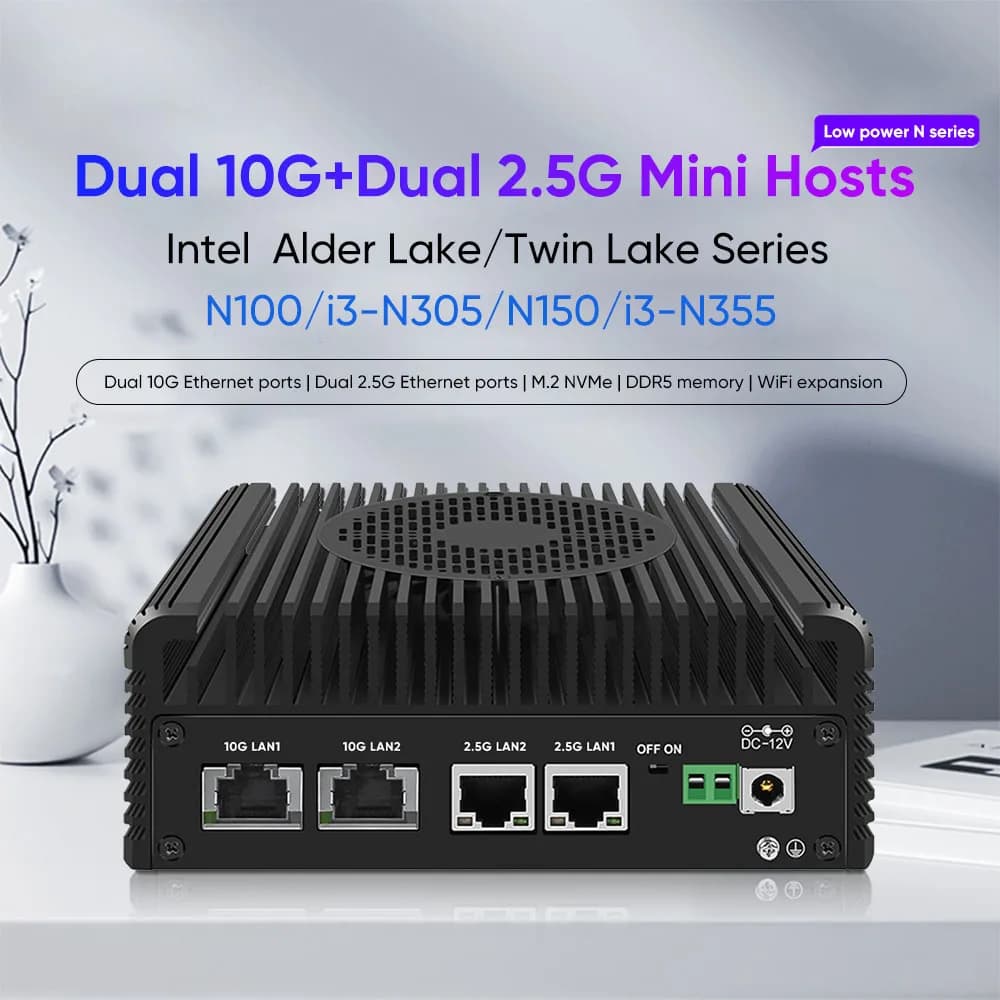

Intel N150 Mini PC 2×10G X550 2×2.5G I226-V LAN DDR5 Dual NVMe SATA Industrial Computer Firewall NAS PfSense Proxmox Home Lab

Processor parameter for referance only

Product Highlights

Network Ports:

2 × Intel X550 10G RJ45 LAN Ports, 2 × Intel I226-V 2.5G RJ45 LAN Ports; 1 × Type-C 3.2 Gen1, 1 × USB 3.2 Gen1, 4 × USB 2.0

Memory: 1 × DDR5 SODIMM RAM Slot, supports 4800MHz memory

Triple Storage Support:

2 × M.2 NVMe PCIe3.0 x1 2280 SSD Slots (one located on the rear side of the motherboard) + 1 × 2.5-inch SATA3.0 SSD/HDD Bay

Expansion Slot: 1 × M.2 E-key 2230 slot for WiFi 6 & Bluetooth; compatible with M.2 2280 NVMe via included adapter board

Extra Storage: 1 × TF card slot for data storage and partial system boot

Display Output: 2 × HDMI 2.0 ports, dual 4K@60Hz UHD video output supported

Industrial Features: AES-NI encryption, ESXi, Proxmox VE, Hardware Watchdog, Auto Power On, RTC, PXE Boot, Wake-on-LAN and more

Innovative Cooling Design: Dual-mode convertible cooling system (fanless / fan mode). Equipped with solid aluminum casing with dense heat sink fins and copper heat blocks for superior heat dissipation to boost CPU performance. The built-in fan operates at low noise; simply unplug the fan connector on the motherboard to switch to completely silent fanless mode.

Low Power Consumption with low TDP; VESA mountable (VESA bracket optional) for rear-of-monitor installation

Package List

1 × Mini PC Host

1 × Power Adapter

1 × Power Cable (EU / US / UK / AU plug shipped according to buyer’s destination country)

1 × M.2 2230 to 2280 NVMe Adapter Board

Welcome to click the picture of VESA Bracket to order together if you need:
